스피커
| 사진 | 제조업체 부품 번호 | 재고 상태 | 수량 | 데이터시트 | 시리즈 | 패키징 | 제품 상태 | 기술 | 유형 | 주파수 범위 | 주파수 - 자기 공진 | 임피던스 | 효율성 - dBA | 효율성 - 테스트 | 효율성 - 유형 | 전력 - 정격 | 전력 - 최대 | 포트 위치 | 모양 | 재료 - 콘 | 소재 - 자석 | 침투 방지 | 정격 | 종단 | 크기/치수 | 높이 - 앉은 상태(최대) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SP-1511LSPEAKER 8OHM 700MW TOP PORT 83DB |
511 |
|
데이터시트 |
SP | Tray | Active | Magnetic | General Purpose | 300 Hz ~ 5 kHz | 600Hz | 8 Ohms | 83.00 | 100mW/100mm | Sound Pressure Level (SPL) | 700 mW | 1 W | Top | Rectangular | Polyetheretherketone (PEEK) | Nd-Fe-B | - | - | Wire Leads | 0.591" L x 0.433" W (15.00mm x 11.00mm) | 0.118" (3.00mm) |
|
SP-1511S-6SPEAKER 8OHM 500MW TOP PORT 82DB |
501 |
|
데이터시트 |
SP | Tray | Active | Magnetic | General Purpose | 300 Hz ~ 5 kHz | 750Hz | 8 Ohms | 82.00 | 100mW/100mm | Sound Pressure Level (SPL) | 500 mW | 800 mW | Top | Rectangular | Polyetheretherketone (PEEK) | Nd-Fe-B | - | - | Spring Type | 0.591" L x 0.433" W (15.00mm x 11.00mm) | 0.118" (3.00mm) |
|

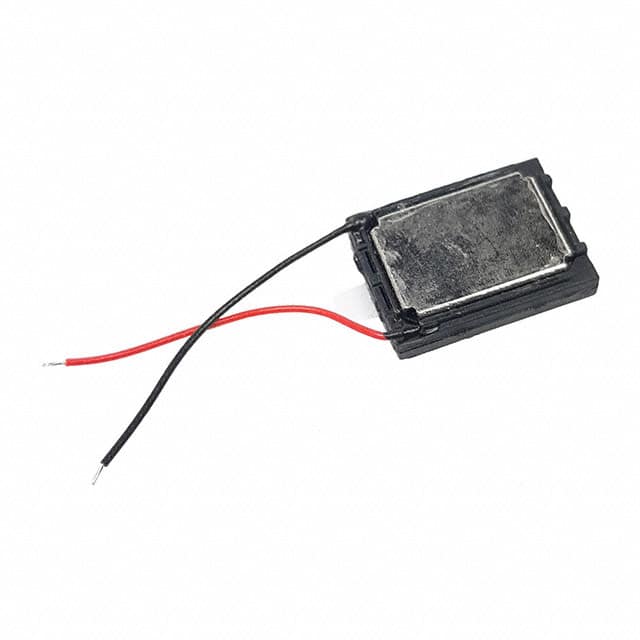

SP-1511L-2SPEAKER 8OHM 700MW TOP PORT 91DB |
154 |
|
데이터시트 |
SP Micro Speaker | Tray | Active | Magnetic | General Purpose | 100 Hz ~ 20 kHz | 650Hz | 8 Ohms | 91.00 | 700mW/100mm | Sound Pressure Level (SPL) | 700 mW | 1 W | Top | Rectangular | Polyetheretherketone (PEEK) | Nd-Fe-B | - | - | Wire Leads | 0.591" L x 0.433" W (15.00mm x 11.00mm) | 0.165" (4.20mm) |
|
CMS-151103-088SPSPEAKER 8OHM 700MW TOP PORT 90DB |
155 |
|
데이터시트 |
CMS | Box | Active | Magnetic | General Purpose | 100 Hz ~ 20 kHz | 550Hz | 8 Ohms | 90.00 | 700mW/100mm | Sound Pressure Level (SPL) | 700 mW | 1 W | Top | Rectangular | Polyetheretherketone (PEEK) | Nd-Fe-B | - | - | Solder Pads | 0.591" L x 0.433" W (15.00mm x 11.00mm) | 0.118" (3.00mm) |
|

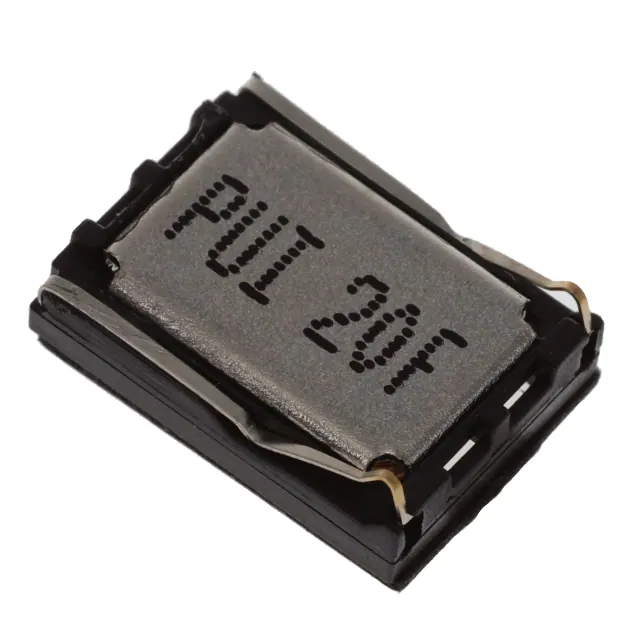

AS01508MO-SC11-RSPEAKER 8OHM 700MW TOP PORT 89DB |
4,530 |
|
데이터시트 |
AS | Tray | Active | Magnetic | Receiver | 600 Hz ~ 20 kHz | 600Hz | 8 Ohms | 89.00 | - | Sensitivity | 700 mW | 1 W | Top | Rectangular | Polyethylenimine (PEI) | Nd-Fe-B | - | - | Spring Type | 0.591" L x 0.433" W (15.00mm x 11.00mm) | 0.154" (3.90mm) |
|

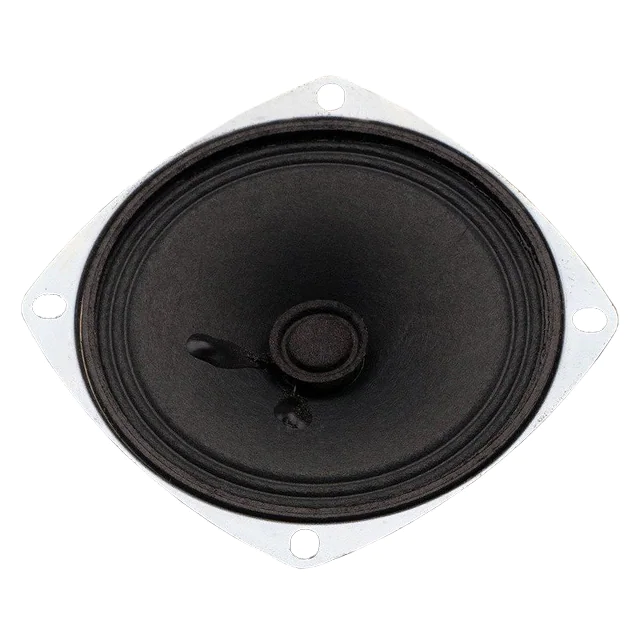

1314SPEAKER 4OHM 3 DIAMETER |
153 |
|
데이터시트 |
- | Bulk | Active | - | General Purpose | - | - | 4 Ohms | - | - | - | - | 3 W | - | Round, Square Frame | - | - | - | - | Wire Leads | 3.071" L x 3.071" W (78.00mm x 78.00mm) | 1.000" (25.40mm) |
|
4227SPEAKER 8OHM 1W TOP PORT 96DB |
110 |
|
데이터시트 |
- | Bulk | Active | Magnetic | General Purpose | 670 Hz ~ 20 kHz | 670Hz | 8 Ohms | 96.00 | 1W/100mm | Sound Pressure Level (SPL) | 1 W | 1.5 W | Top | Oval | Polyethylene Naphthalate (PEN) | Nd-Fe-B | - | Washable | Wire Leads | 1.181" L x 0.787" W (30.00mm x 20.00mm) | 0.189" (4.80mm) |
|

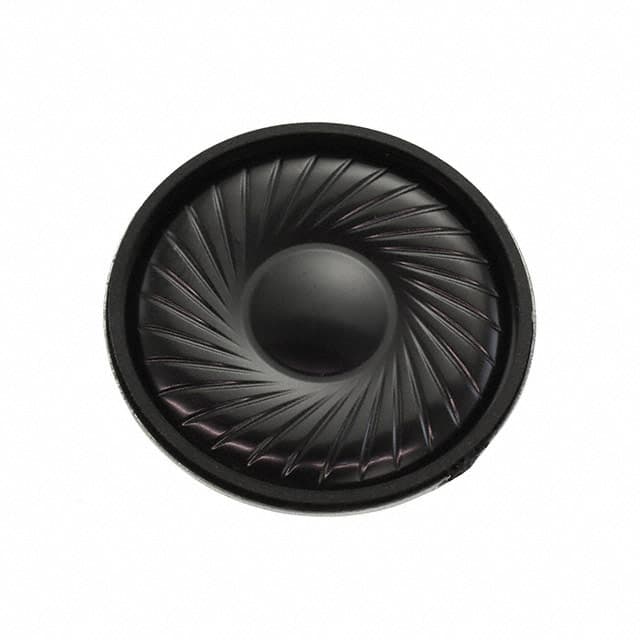

SP-4005-3YSPEAKR 32OHM 500MW TOP PORT 91DB |
310 |
|
데이터시트 |
SP Micro Speaker | Tray | Active | Magnetic | General Purpose | 480 Hz ~ 20 kHz | 480Hz | 32 Ohms | 91.00 | 100mW/100mm | Sound Pressure Level (SPL) | 500 mW | 800 mW | Top | Round | - | - | - | - | Solder Pads | 1.575" Dia (40.00mm) | 0.224" (5.70mm) |
|
AR01232MS-SC12-WP-RSPEAKR 32OHM 20MW TOP PORT 116DB |
284 |
|
데이터시트 |
AR | Tray | Active | Magnetic | Receiver | 300 Hz ~ 7 kHz | 450Hz | 32 Ohms | 116.00 | - | Sensitivity | 20 mW | 30 mW | Top | Rectangular | Polyimide (PI) | Nd-Fe-B | IP67 - Dust Tight, Waterproof | - | Spring Type | 0.472" L x 0.236" W (12.00mm x 6.00mm) | 0.079" (2.00mm) |
|

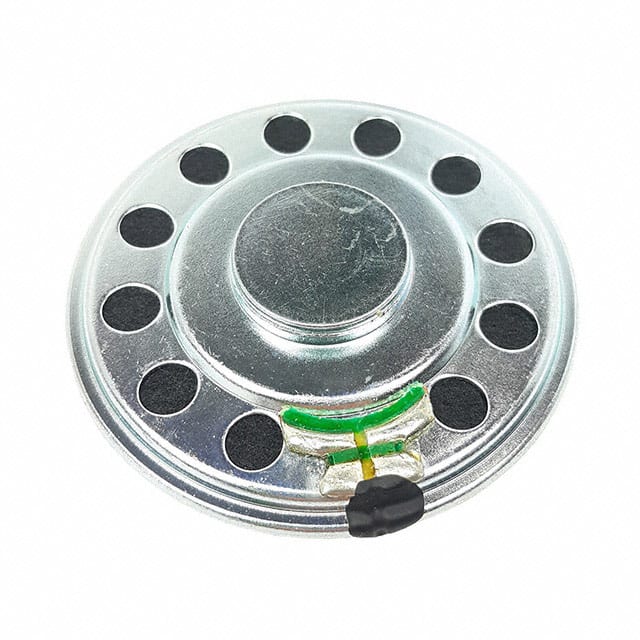

SP-5007YSPEAKER 8OHM 2W TOP PORT 87DB |
301 |
|
데이터시트 |
SP Micro Speaker | Tray | Active | Magnetic | General Purpose | 580 Hz ~ 10 kHz | 580Hz | 8 Ohms | 87.00 | 1W/500mm | Sound Pressure Level (SPL) | 2 W | 3 W | Top | Round | - | Nd-Fe-B | - | - | Solder Pads | 1.969" Dia (50.00mm) | 0.287" (7.30mm) |
|

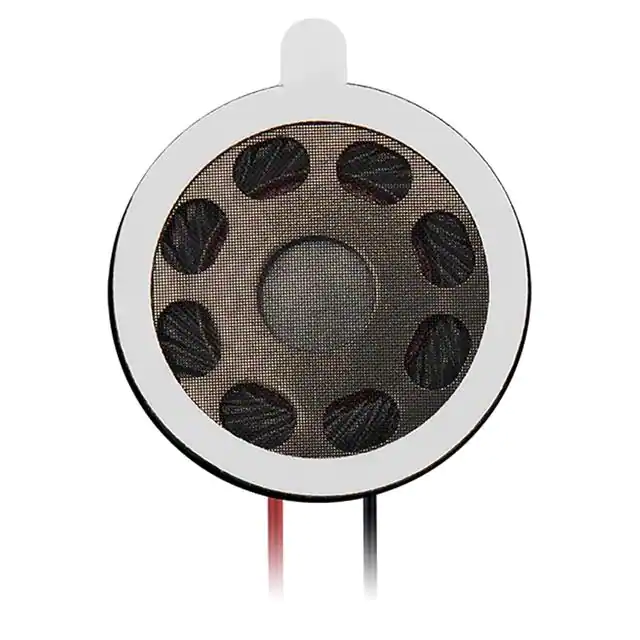

SPKM.20.8.ASPEAKER 8OHM 800MW TOP PORT 98DB |
426 |
|
데이터시트 |
- | Bulk | Active | Magnetic | General Purpose | 10 Hz ~ 11 kHz | 850Hz | 8 Ohms | 98.00 | 500mW/100mm | Sound Pressure Level (SPL) | 800 mW | 1 W | Top | Round | - | Nd-Fe-B | - | - | Wire Leads with Connector | 0.787" Dia (20.00mm) | 0.142" (3.60mm) |
|
SP-1003SPEAKER 8OHM 300MW TOP PORT 80DB |
3,619 |
|
데이터시트 |
SP Micro Speaker | Tray | Active | Magnetic | General Purpose | 300 Hz ~ 8 kHz | 1350Hz | 8 Ohms | 80.00 | 100mW/100mm | Sound Pressure Level (SPL) | 300 mW | 500 mW | Top | Round | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B-N38 | - | - | Wire Leads | 0.394" Dia (10.00mm) | 0.114" (2.90mm) |
|

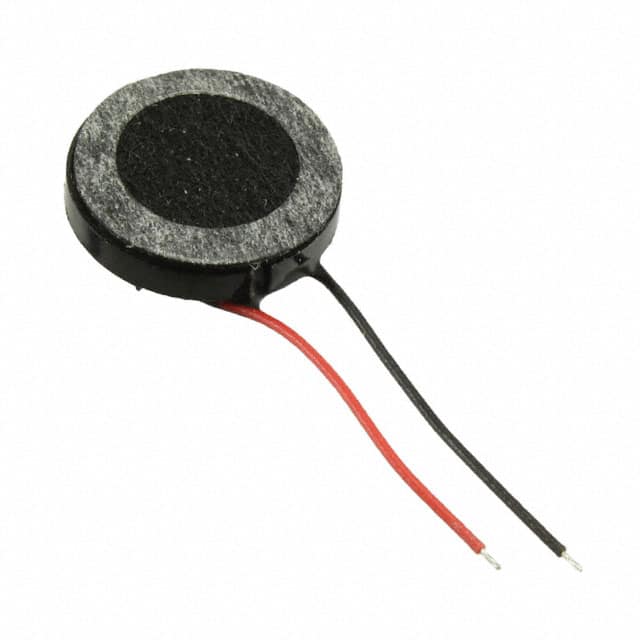

SP-1304-2SPEAKER 8OHM 500MW TOP PORT 82DB |
602 |
|
데이터시트 |
SP Micro Speaker | Tray | Active | Magnetic | General Purpose | 300 Hz ~ 8 kHz | 1300Hz | 8 Ohms | 82.00 | 100mW/100mm | Sound Pressure Level (SPL) | 500 mW | 800 mW | Top | Round | - | - | - | - | Wire Leads | 0.512" Dia (13.00mm) | 0.169" (4.30mm) |
|
AS01508MS-SC11-WP-RSPEAKER 8OHM 700MW TOP PORT 89DB |
6,921 |
|
데이터시트 |
AS | Tray | Active | Magnetic | Receiver | 600 Hz ~ 20 kHz | 600Hz | 8 Ohms | 89.00 | - | Sensitivity | 700 mW | 1 W | Top | Rectangular | - | Nd-Fe-B | IP67 - Dust Tight, Waterproof | - | Spring Type | 0.591" L x 0.433" W (15.00mm x 11.00mm) | 0.138" (3.50mm) |
|
SP-1810SPEAKER 8OHM 500MW TOP PORT 82DB |
1,918 |
|
데이터시트 |
SP Micro Speaker | Tray | Active | Magnetic | General Purpose | 300 Hz ~ 8 kHz | 1000Hz | 8 Ohms | 82.00 | 100mW/100mm | Sound Pressure Level (SPL) | 500 mW | 1 W | Top | Oval | Polyethylene Naphthalate (PEN) | Nd-Fe-B-N38 | - | - | Wire Leads | 0.709" L x 0.394" W (18.00mm x 10.00mm) | 0.181" (4.60mm) |
.jpg)
|
CDMG15008-03ASPEAKER 8OHM 300MW TOP PORT 88DB |
1,273 |
|
데이터시트 |
CDMG | Tray | Active | Magnetic | General Purpose | 900 Hz ~ 20 kHz | 900Hz | 8 Ohms | 88.00 | 1W/1M | Sound Pressure Level (SPL) | 300 mW | 500 mW | Top | Round | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | Solder Pads | 0.591" Dia (15.00mm) | 0.110" (2.80mm) |
|
SP-2804LSPEAKER 4OHM 1.5W TOP PORT 92DB |
1,798 |
|
데이터시트 |
SP | Tray | Active | Magnetic | General Purpose | 450 Hz ~ 8 kHz | 450Hz | 4 Ohms | 92.00 | 100mW/100mm | Sound Pressure Level (SPL) | 1.5 W | 2 W | Top | Round | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | Wire Leads | 1.102" Dia (28.00mm) | 0.173" (4.40mm) |
|
CMS-16093-078SPSPEAKER 8OHM 700MW TOP PORT 91DB |
875 |
|
데이터시트 |
CMS | Tray | Active | Magnetic | General Purpose | 100 Hz ~ 20 kHz | 550Hz | 8 Ohms | 91.00 | 700mW/100mm | Sound Pressure Level (SPL) | 700 mW | 1 W | Top | Rectangular | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | Solder Pads | 0.630" L x 0.354" W (16.00mm x 9.00mm) | 0.118" (3.00mm) |
|
AS03608MR-LW100-RSPEAKER 8OHM 1W TOP PORT 91DB |
450 |
|
데이터시트 |
AS | Tray | Active | Magnetic | General Purpose | 500 Hz ~ 4.5 kHz | 500Hz | 8 Ohms | 91.00 | 100mW/100mm | Sound Pressure Level (SPL) | 1 W | 1.5 W | Top | Round | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | IEC 60601-1-8 | Wire Leads | 1.417" Dia (36.00mm) | 0.181" (4.60mm) |
|
SP-1511S-3SPEAKER 8OHM 700MW TOP PORT 83DB |
868 |
|
데이터시트 |
SP Micro Speaker | Tray | Active | Magnetic | General Purpose | 200 Hz ~ 3.4 kHz | 850Hz | 8 Ohms | 83.00 | 100mW | Sound Pressure Level (SPL) | 700 mW | 1 W | Top | Rectangular | - | Nd-Fe-B | - | - | Spring Type | 0.591" L x 0.433" W (15.00mm x 11.00mm) | 0.142" (3.60mm) |
