스피커
| 사진 | 제조업체 부품 번호 | 재고 상태 | 수량 | 데이터시트 | 시리즈 | 패키징 | 제품 상태 | 기술 | 유형 | 주파수 범위 | 주파수 - 자기 공진 | 임피던스 | 효율성 - dBA | 효율성 - 테스트 | 효율성 - 유형 | 전력 - 정격 | 전력 - 최대 | 포트 위치 | 모양 | 재료 - 콘 | 소재 - 자석 | 침투 방지 | 정격 | 종단 | 크기/치수 | 높이 - 앉은 상태(최대) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CMS-151135-078SSPEAKER 8OHM 700MW TOP PORT 91DB |
0 |
|
데이터시트 |
CMS | Bulk | Active | Magnetic | General Purpose | 100 Hz ~ 20 kHz | 550Hz | 8 Ohms | 91.00 | 700mW/100mm | Sound Pressure Level (SPL) | 700 mW | 1 W | Top | Rectangular | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | Spring Type | 0.591" L x 0.433" W (15.00mm x 11.00mm) | 0.138" (3.50mm) |
|

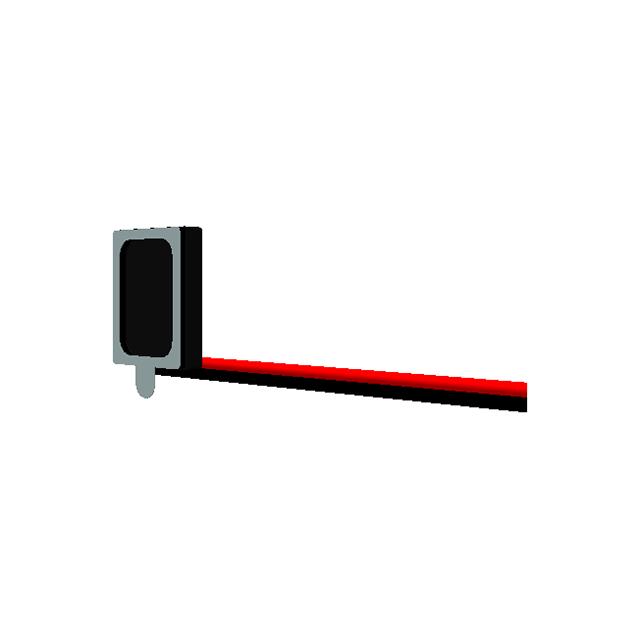

AS01506MS-WP-LW100-RSPEAKER 6OHM 1W TOP PORT 93DB |
582 |
|
데이터시트 |
AS | Tray | Active | Magnetic | Receiver | 550 Hz ~ 20 kHz | 550Hz | 6 Ohms | 93.00 | 100mm | Sensitivity | 1 W | 1.2 W | Top | Rectangular | - | Nd-Fe-B | IP67 - Dust Tight, Waterproof | - | Wire Leads | 0.591" L x 0.433" W (15.00mm x 11.00mm) | 0.154" (3.90mm) |
|
CMS-15113-078L100SPEAKER 8OHM 700MW TOP PORT 91DB |
1,381 |
|
데이터시트 |
CMS | Tray | Active | Magnetic | General Purpose | 100 Hz ~ 20 kHz | 700Hz | 8 Ohms | 91.00 | 700mW/100mm | Sound Pressure Level (SPL) | 700 mW | 1 W | Top | Rectangular | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | Wire Leads | 0.591" L x 0.433" W (15.00mm x 11.00mm) | 0.118" (3.00mm) |
|
CMS-181345-18SP-X8SPEAKER, 18 X 13 MM, 4.5 MM DEEP |
394 |
|
데이터시트 |
CMS | Tray | Active | Magnetic | General Purpose | 400 Hz ~ 20 kHz | 950Hz | 8 Ohms | 100.00 | 100mm | Sound Pressure Level (SPL) | 1 W | 1.2 W | Top | Rectangular | Polyetheretherketone (PEEK) | Nd-Fe-B-N38 | IPX8 | - | Solder Pads | 0.709" L x 0.512" W (18.00mm x 13.00mm) | 0.177" (4.50mm) |
|
CMS-15113-078SP-67SPEAKER 8OHM 700MW TOP PORT 91DB |
3,832 |
|
데이터시트 |
CMS | Tray | Active | Magnetic | General Purpose | 100 Hz ~ 20 kHz | 700Hz | 8 Ohms | 91.00 | 700mW/100mm | Sound Pressure Level (SPL) | 700 mW | 1 W | Top | Rectangular | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | IP67 - Dust Tight, Waterproof | - | Solder Pads | 0.591" L x 0.433" W (15.00mm x 11.00mm) | 0.118" (3.00mm) |
|
CMS-151135-078SP-67SPEAKER 8OHM 700MW TOP PORT 91DB |
1,153 |
|
데이터시트 |
CMS | Tray | Active | Magnetic | General Purpose | 100 Hz ~ 20 kHz | 550Hz | 8 Ohms | 91.00 | 700mW/100mm | Sound Pressure Level (SPL) | 700 mW | 1 W | Top | Rectangular | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | IP67 - Dust Tight, Waterproof | - | Solder Pads | 0.591" L x 0.433" W (15.00mm x 11.00mm) | 0.138" (3.50mm) |
|
CMS-160925-078SP-67SPEAKER 8OHM 700MW TOP PORT 90DB |
142 |
|
데이터시트 |
CMS | Tray | Active | Magnetic | General Purpose | 100 Hz ~ 20 kHz | 550Hz | 8 Ohms | 90.00 | 700mW/100mm | Sound Pressure Level (SPL) | 700 mW | 1 W | Top | Rectangular | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | IP67 - Dust Tight, Waterproof | - | Solder Pads | 0.630" L x 0.354" W (16.00mm x 9.00mm) | 0.098" (2.50mm) |
|
CDM-16008SPEAKER 8OHM 400MW TOP PORT 93DB |
1,027 |
|
데이터시트 |
CDM | Tray | Active | Magnetic | General Purpose | 640 Hz ~ 20 kHz | 800Hz | 8 Ohms | 93.00 | 400mW/100mm | Sound Pressure Level (SPL) | 400 mW | 600 mW | Top | Round | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | Solder Pads | 0.630" Dia (16.00mm) | 0.126" (3.20mm) |
|
|
CMS-181345-18S-X8SPEAKER, 18 X 13 MM, 4.5 MM DEEP |
200 |
|
데이터시트 |
CMS | Tray | Active | Magnetic | General Purpose | 400 Hz ~ 20 kHz | 950Hz | 8 Ohms | 100.00 | 100mm | Sound Pressure Level (SPL) | 1 W | 1.2 W | Top | Rectangular | Polyetheretherketone (PEEK) | Nd-Fe-B-N38 | IPX8 | - | Spring Type | 0.709" L x 0.512" W (18.00mm x 13.00mm) | 0.177" (4.50mm) |
|
CMS-160925-078S-67SPEAKER 8OHM 700MW TOP PORT 90DB |
1,517 |
|
데이터시트 |
CMS | Tray | Active | Magnetic | General Purpose | 100 Hz ~ 20 kHz | 550Hz | 8 Ohms | 90.00 | 700mW/100mm | Sound Pressure Level (SPL) | 700 mW | 1 W | Top | Rectangular | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | IP67 - Dust Tight, Waterproof | - | Spring Type | 0.630" L x 0.354" W (16.00mm x 9.00mm) | 0.098" (2.50mm) |
|
CMS-151125-078S-67SPEAKER 8OHM 700MW TOP PORT 91DB |
1,019 |
|
데이터시트 |
CMS | Tray | Active | Magnetic | General Purpose | 100 Hz ~ 20 kHz | 700Hz | 8 Ohms | 91.00 | 700mW/100mm | Sound Pressure Level (SPL) | 700 mW | 1 W | Top | Rectangular | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | IP67 - Dust Tight, Waterproof | - | Spring Type | 0.591" L x 0.433" W (15.00mm x 11.00mm) | 0.098" (2.50mm) |
|
SP-1609SPEAKER 8OHM 500MW TOP PORT 82DB |
236 |
|
데이터시트 |
SP Micro Speaker | Tray | Active | Magnetic | General Purpose | 200 Hz ~ 3.4 kHz | 850Hz | 8 Ohms | 82.00 | 100mW | Sound Pressure Level (SPL) | 500 mW | 700 mW | Top | Rectangular | - | Nd-Fe-B | - | - | Wire Leads | 0.630" L x 0.354" W (16.00mm x 9.00mm) | 0.161" (4.10mm) |
|
AS01508MO-SP11-LW25-RSPEAKER 8OHM 700MW TOP PORT 89DB |
2,383 |
|
데이터시트 |
AS | Tray | Active | Magnetic | Receiver | 600 Hz ~ 20 kHz | 600Hz | 8 Ohms | 89.00 | - | Sensitivity | 700 mW | 1 W | Top | Rectangular | Polyethylenimine (PEI) | Nd-Fe-B | - | - | Wire Leads | 0.591" L x 0.433" W (15.00mm x 11.00mm) | 0.154" (3.90mm) |
|
AS01508MR-6-LW100-RSPEAKER 8OHM 1.2W TOP PORT 88DB |
957 |
|
데이터시트 |
AS | Tray | Active | Magnetic | General Purpose | 900 Hz ~ 20 kHz | 900Hz | 8 Ohms | 88.00 | 100mW/100mm | Sound Pressure Level (SPL) | 1.2 W | 1.8 W | Top | Round | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | Wire Leads | 0.591" Dia (15.00mm) | 0.173" (4.40mm) |
|

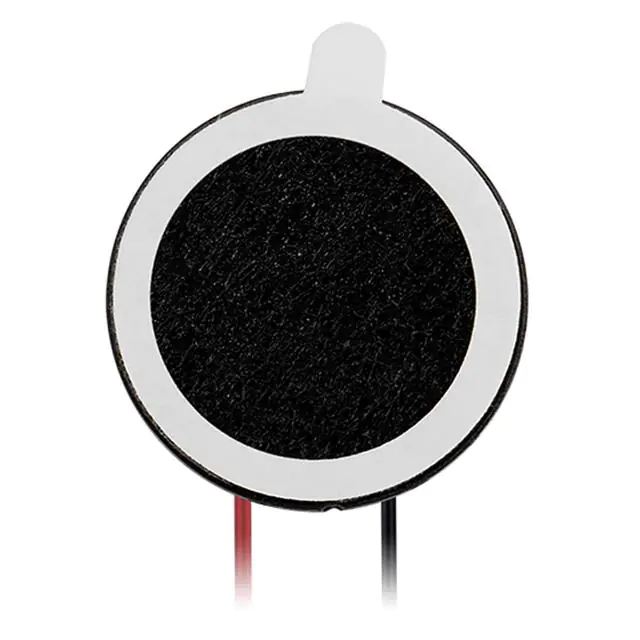

SPKM.17.8.ASPEAKER 8OHM 500MW TOP PORT 96DB |
863 |
|
데이터시트 |
- | Bulk | Active | Magnetic | General Purpose | 10 Hz ~ 11 kHz | 900Hz | 8 Ohms | 96.00 | 500mW/100mm | Sound Pressure Level (SPL) | 500 mW | 800 mW | Top | Round | - | Nd-Fe-B | - | - | Wire Leads with Connector | 0.669" Dia (17.00mm) | 0.185" (4.70mm) |
|
|
CMS-2278-34SPSPEAKER, 22 MM, 7.8 MM DEEP, PU+ |
999 |
|
데이터시트 |
CMS | Tray | Active | Magnetic | General Purpose | 304 Hz ~ 20 kHz | 380Hz | 4 Ohms | 80.00 | 1W/500mm | Sound Pressure Level (SPL) | 3 W | 3.5 W | Top | Round | Polyethylene Naphthalate (PEN), Polyurethane (PU) | Nd-Fe-B | - | - | Solder Tabs | 0.866" Dia (22.00mm) | 0.307" (7.80mm) |
|

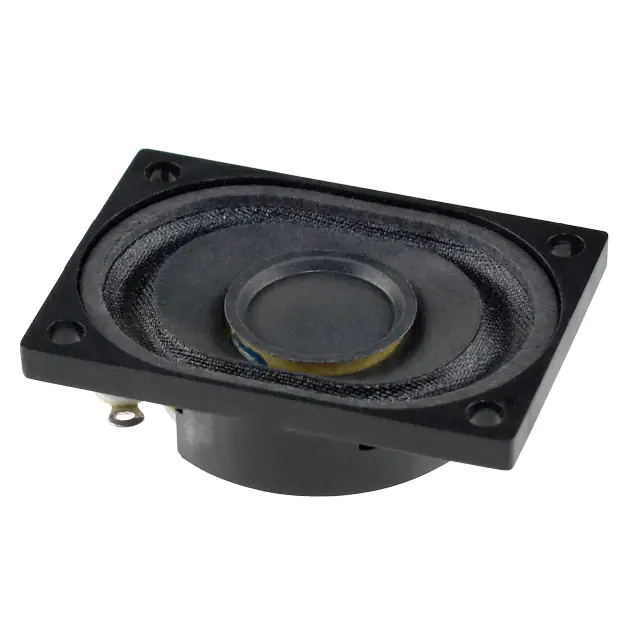

CMS-402811-28SPSPEAKER 8OHM 2W TOP PORT 84DB |
4,596 |
|
데이터시트 |
CMS | Box | Active | Magnetic | General Purpose | 200 Hz ~ 20 kHz | 450Hz | 8 Ohms | 84.00 | 1W/500mm | Sound Pressure Level (SPL) | 2 W | 3 W | Top | Oval, Rectangular Frame | Cloth | Nd-Fe-B | - | - | Solder Eyelet(s) | 1.575" L x 1.114" W (40.00mm x 28.30mm) | 0.453" (11.50mm) |
|
PSR-45N08A-JQSPEAKER 8OHM 250MW TOP PORT 88DB |
362 |
|
데이터시트 |
PSR | Bulk | Active | Magnetic | General Purpose | 400 Hz ~ 6 kHz | 400Hz | 8 Ohms | 88.00 | 1W/1M | Sound Pressure Level (SPL) | 250 mW | 300 mW | Top | Round | Polyester, Polyethylene Terephthalate (PET) | Ferrite | - | - | Solder Pads | 1.772" Dia (45.00mm) | 0.189" (4.80mm) |
|
|
CMS-150803-088S-X8SPEAKER, 15 X 8 MM, 3 MM DEEP, P |
493 |
|
데이터시트 |
CMS | Tray | Active | Magnetic | General Purpose | 980 Hz ~ 20 kHz | 1.2kHz | 8 Ohms | 93.00 | 100mm | Sound Pressure Level (SPL) | 800 mW | 1.2 W | Top | Rectangular | Polyetheretherketone (PEEK) | Nd-Fe-B-N38 | IPX8 | - | Spring Type | 0.591" L x 0.315" W (15.00mm x 8.00mm) | 0.118" (3.00mm) |
|
CDS-5085-32-SPSPEAKR 32OHM 500MW TOP PORT 92DB |
387 |
|
데이터시트 |
CDS | Box | Active | Magnetic | General Purpose | 320 Hz ~ 20 kHz | 400Hz | 32 Ohms | 92.00 | 100mW/100mm | Sound Pressure Level (SPL) | 500 mW | 1 W | Top | Round | Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | Solder Pads | 1.969" Dia (50.00mm) | 0.335" (8.50mm) |
