스피커
| 사진 | 제조업체 부품 번호 | 재고 상태 | 수량 | 데이터시트 | 시리즈 | 패키징 | 제품 상태 | 기술 | 유형 | 주파수 범위 | 주파수 - 자기 공진 | 임피던스 | 효율성 - dBA | 효율성 - 테스트 | 효율성 - 유형 | 전력 - 정격 | 전력 - 최대 | 포트 위치 | 모양 | 재료 - 콘 | 소재 - 자석 | 침투 방지 | 정격 | 종단 | 크기/치수 | 높이 - 앉은 상태(최대) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SP570408-1SPEAKR 8OHM 500MW TOP PORT 101DB |
192 |
|
데이터시트 |
- | Tray | Active | Magnetic | General Purpose | 420 Hz ~ 5 kHz | 420Hz | 8 Ohms | 101.00 | 100mm | Sound Pressure Level (SPL) | 500 mW | 800 mW | Top | Round | Paper | - | - | - | Solder Eyelet(s) | 2.244" Dia (57.00mm) | 0.650" (16.50mm) |
|
SW151008-1SPEAKER 8OHM 500MW TOP PORT 87DB |
678 |
|
데이터시트 |
SW | Bulk | Active | Magnetic | General Purpose | 1 kHz ~ 10 kHz | 1kHz | 8 Ohms | 87.00 | 500mW/100mm | Sound Pressure Level (SPL) | 500 mW | 800 mW | Top | Rectangular | Polyetheretherketone (PEEK) | - | Waterproof | - | Spring Type | 0.591" L x 0.236" W (15.00mm x 6.00mm) | 0.114" (2.90mm) |
|
CMR-12062S-67SPEAKR 32OHM 20MW TOP PORT 117DB |
943 |
|
데이터시트 |
CMR | Tray | Active | Magnetic | Receiver | 300 Hz ~ 7 kHz | 450Hz | 32 Ohms | 117.00 | - | Sound Pressure Level (SPL) | 20 mW | 30 mW | Top | Rectangular | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | IP67 - Dust Tight, Waterproof | - | Spring Type | 0.472" L x 0.236" W (12.00mm x 6.00mm) | 0.079" (2.00mm) |
|
AS01808MR-RSPEAKER 8OHM 1W TOP PORT 80DB |
9,393 |
|
데이터시트 |
AS | Tray | Active | Magnetic | General Purpose | 250 Hz ~ 20 kHz | 550Hz | 8 Ohms | 80.00 | 1W/500mm | Sound Pressure Level (SPL) | 1 W | 1.5 W | Top | Round | Polyester, Polyethylene Terephthalate (PET) | Rare Earth | - | - | Solder Pads | 0.709" Dia (18.00mm) | 0.228" (5.80mm) |
|
CMS-15118C-SPSPEAKER 8OHM 800MW TOP PORT 88DB |
596 |
|
데이터시트 |
CMS | Tray | Active | Magnetic | Low Profile | 400 Hz ~ 10 kHz | 500Hz | 8 Ohms | 88.00 | 800mW/100mm | Sound Pressure Level (SPL) | 800 mW | 1 W | Top | Rectangular | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | Spring Type | 0.591" L x 0.433" W (15.00mm x 11.00mm) | 0.118" (3.00mm) |
|
AR027300MR-RSPEAKER 300OHM 10MW TOP PT 110DB |
236 |
|
데이터시트 |
AR | Tray | Active | Magnetic | Receiver | 100 Hz ~ 10 kHz | 650Hz | 300 Ohms | 110.00 | 1mW/10mm | Sound Pressure Level (SPL) | 10 mW | 30 mW | Top | Round | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | Solder Pads | 1.126" Dia (28.60mm) | 0.315" (8.00mm) |
|
AR03032MR-RSPEAKR 32OHM 20MW TOP PORT 115DB |
126 |
|
데이터시트 |
- | Tray | Active | Magnetic | Receiver | 60 Hz ~ 10 kHz | - | 32 Ohms | 115.00 | 1mW/10mm | Sound Pressure Level (SPL) | 20 mW | 30 mW | Top | Round | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | Solder Pads | 1.142" Dia (29.00mm) | 0.287" (7.30mm) |
|
SP-2027NWSPEAKER 4OHM 1W TOP PORT 83DB |
134 |
|
데이터시트 |
SP Micro Speaker | Tray | Active | Magnetic | General Purpose | 750 Hz ~ 10 kHz | 750Hz | 4 Ohms | 83.00 | 1W/500mm | Sound Pressure Level (SPL) | 1 W | 1.5 W | Top | Rectangular | Cloth | Nd-Fe-B | - | - | Wire Leads | 1.063" L x 0.787" W (27.00mm x 20.00mm) | 0.252" (6.40mm) |
|

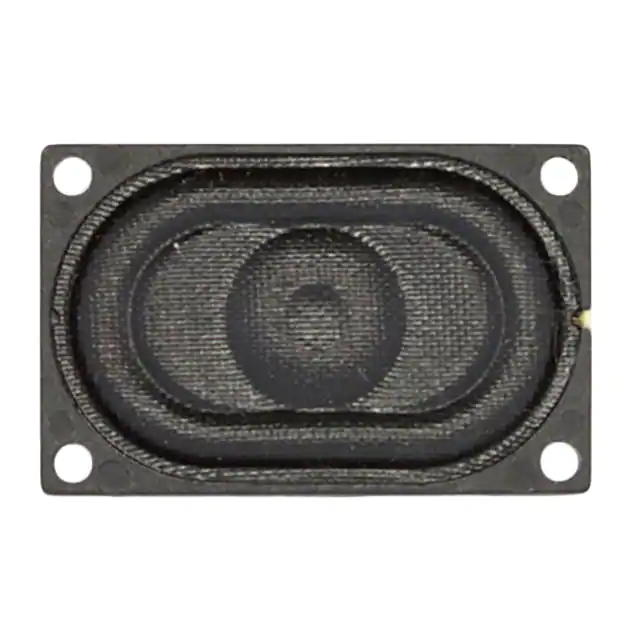

SC250708-1SPEAKER 8OHM 1W TOP PORT 96DB |
3,005 |
|
데이터시트 |
- | Tray | Active | Magnetic | General Purpose | 200 Hz ~ 20 kHz | 750Hz | 8 Ohms | 96.00 | 100mm | Sound Pressure Level (SPL) | 1 W | 1.3 W | Top | Rectangular | Cloth | - | - | - | Wire Leads | 0.984" L x 0.630" W (25.00mm x 16.00mm) | 0.244" (6.20mm) |
|
CMS-3060-128SP-67SPEAKER 8OHM 1.2W TOP PORT 100DB |
799 |
|
데이터시트 |
CMS | Tray | Active | Magnetic | General Purpose | 680 Hz ~ 10 kHz | 850Hz | 8 Ohms | 100.00 | 1.2W/100mm | Sound Pressure Level (SPL) | 1.2 W | 1.5 W | Top | Round | Polyethylene Terephthalate (PET) | Nd-Fe-B | IP67 - Dust Tight, Waterproof | - | Solder Pads | 1.181" Dia (30.00mm) | 0.224" (5.70mm) |
|
CMS-231137-158SP-X8SPEAKER, 23 X 11 MM, 3.7 MM DEEP |
619 |
|
데이터시트 |
CMS | Tray | Active | Magnetic | General Purpose | 800 Hz ~ 20 kHz | 1kHz | 8 Ohms | 103.00 | 100mm | Sound Pressure Level (SPL) | 1.5 W | 1.7 W | Top | Rectangular | Polyetheretherketone (PEEK) | Nd-Fe-B-N38 | IPX8 | - | Solder Pads | 0.906" L x 0.433" W (23.00mm x 11.00mm) | 0.146" (3.70mm) |
|
|
CMS-211337-24SP-X8SPEAKER, 21 X 13 MM, 3.7 MM DEEP |
597 |
|
데이터시트 |
CMS | Tray | Active | Magnetic | General Purpose | 800 Hz ~ 20 kHz | 1kHz | 4 Ohms | 102.00 | 100mm | Sound Pressure Level (SPL) | 2 W | 2.2 W | Top | Rectangular | Polyetheretherketone (PEEK) | Nd-Fe-B-N38 | IPX8 | - | Solder Pads | 0.827" L x 0.512" W (21.00mm x 13.00mm) | 0.146" (3.70mm) |
|

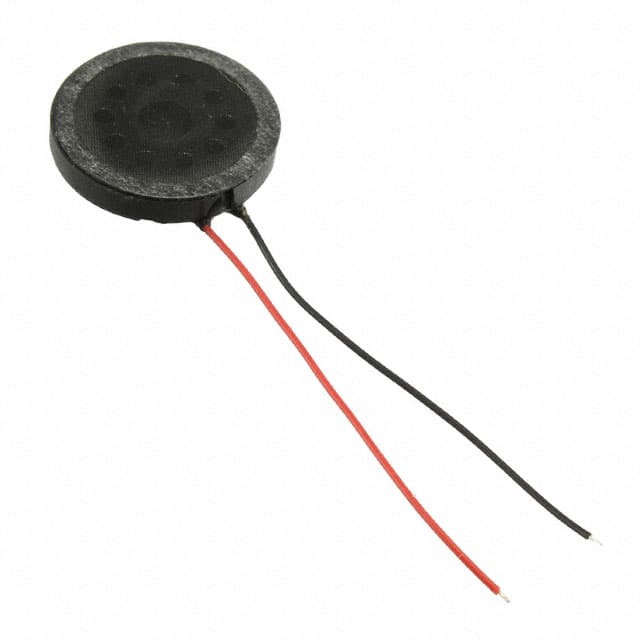

SP-1704SPEAKER 8OHM 800MW TOP PORT 90DB |
662 |
|
데이터시트 |
SP Micro Speaker | Tray | Active | Magnetic | General Purpose | 300 Hz ~ 5 kHz | 850Hz | 8 Ohms | 90.00 | 100mW/100mm | Sound Pressure Level (SPL) | 800 mW | 1 W | Top | Round | Polyethylene Naphthalate (PEN) | - | - | - | Wire Leads | 0.669" Dia (17.00mm) | 0.157" (4.00mm) |
|
CLF0381MP-1SPEAKER 8OHM 250MW TOP PORT 93DB |
2,704 |
|
데이터시트 |
CLF | Tray | Active | Magnetic | Low Profile | 380 Hz ~ 10 kHz | 380Hz | 8 Ohms | 93.00 | 100mW/500mm | Sound Pressure Level (SPL) | 250 mW | 400 mW | Top | Round | Polyester, Polyethylene Terephthalate (PET) | Ferrite | - | - | PC Pins | 1.496" Dia (38.00mm) | 0.370" (9.40mm) |
|
PSR-36N08A-JQSPEAKER 8OHM 250MW TOP PORT 89DB |
6,371 |
|
데이터시트 |
PSR | Bulk | Active | Magnetic | General Purpose | 550 Hz ~ 7 kHz | 550Hz | 8 Ohms | 89.00 | 1W/1M | Sound Pressure Level (SPL) | 250 mW | 500 mW | Top | Round | Polyester, Polyethylene Terephthalate (PET) | Ferrite | - | - | Solder Pads | 1.417" Dia (36.00mm) | 0.189" (4.80mm) |
|

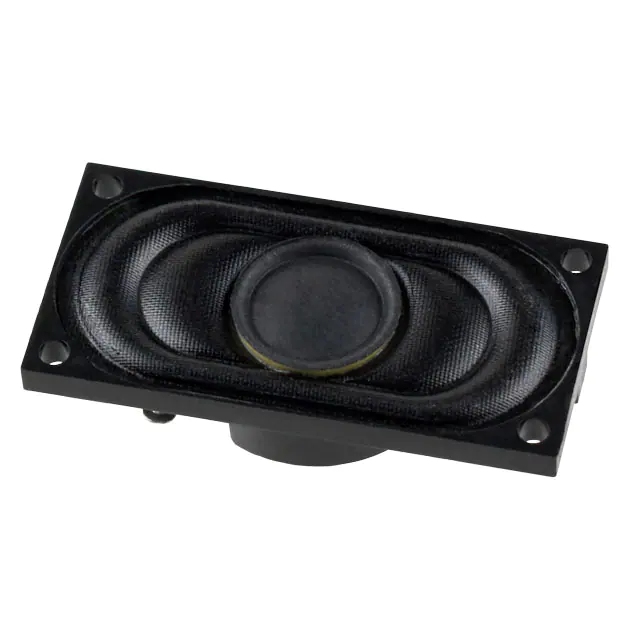

CMS-402008-18SPSPEAKER 8OHM 1.5W TOP PORT 84DB |
321 |
|
데이터시트 |
CMS | Box | Active | Magnetic | General Purpose | 200 Hz ~ 20 kHz | 550Hz | 8 Ohms | 84.00 | 1W/500mm | Sound Pressure Level (SPL) | 1.5 W | 3 W | Top | Oval, Rectangular Frame | Cloth | Nd-Fe-B | - | - | Solder Eyelet(s) | 1.575" L x 0.787" W (40.00mm x 20.00mm) | 0.315" (8.00mm) |
|
SP-3020SPEAKER 8OHM 1.5W TOP PORT 85DB |
1,178 |
|
데이터시트 |
SP Micro Speaker | Tray | Active | Magnetic | General Purpose | 300 Hz ~ 8 kHz | 500Hz | 8 Ohms | 85.00 | 100mW/100mm | Sound Pressure Level (SPL) | 1.5 W | 2 W | Top | Oval | Paper | Nd-Fe-B N40 | - | - | Wire Leads | 1.181" L x 0.787" W (30.00mm x 20.00mm) | 0.205" (5.20mm) |
|
SP-3605SPEAKER 8OHM 1W TOP PORT 90DB |
2,041 |
|
데이터시트 |
SP Micro Speaker | Tray | Active | Magnetic | General Purpose | 300 Hz ~ 5 kHz | 550Hz | 8 Ohms | 90.00 | 100mW/100mm | Sound Pressure Level (SPL) | 1 W | 1.5 W | Top | Round | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B-N38 | - | - | Wire Leads with Connector | 1.417" Dia (36.00mm) | 0.197" (5.00mm) |
|
SPKM.50.8.ASPEAKER 8OHM 500MW TOP PORT 93DB |
1,053 |
|
데이터시트 |
- | Bulk | Active | Magnetic | General Purpose | 10 Hz ~ 11 kHz | 450Hz | 8 Ohms | 93.00 | 500mW/100mm | Sound Pressure Level (SPL) | 500 mW | 800 mW | Top | Round | - | Nd-Fe-B | - | - | Wire Leads with Connector | 1.969" Dia (50.00mm) | 0.315" (8.00mm) |
|

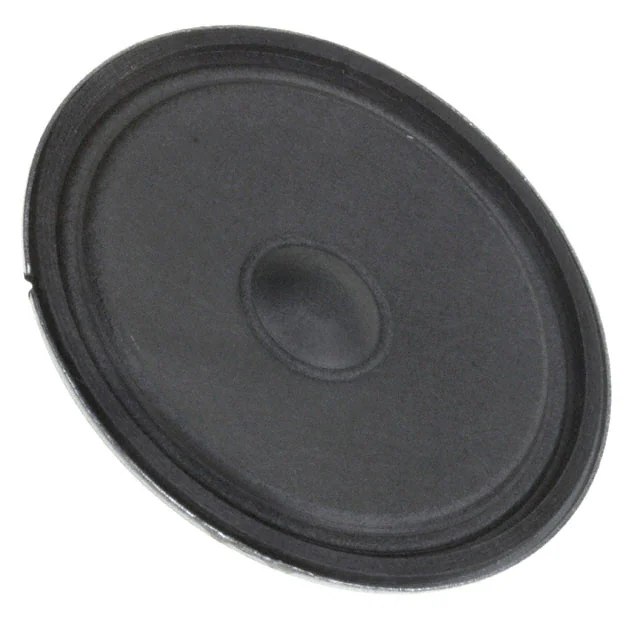

PSR-57N08A01-AQSPEAKER 8OHM 500MW TOP PORT 92DB |
135 |
|
데이터시트 |
PSR | Bulk | Active | Magnetic | General Purpose | 600 Hz ~ 4 kHz | 600Hz | 8 Ohms | 92.00 | 1W/1M | Sound Pressure Level (SPL) | 500 mW | 1 W | Top | Round | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | Solder Pads | 2.244" Dia (57.00mm) | 0.331" (8.40mm) |
