스피커
| 사진 | 제조업체 부품 번호 | 재고 상태 | 수량 | 데이터시트 | 시리즈 | 패키징 | 제품 상태 | 기술 | 유형 | 주파수 범위 | 주파수 - 자기 공진 | 임피던스 | 효율성 - dBA | 효율성 - 테스트 | 효율성 - 유형 | 전력 - 정격 | 전력 - 최대 | 포트 위치 | 모양 | 재료 - 콘 | 소재 - 자석 | 침투 방지 | 정격 | 종단 | 크기/치수 | 높이 - 앉은 상태(최대) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TS121041Loudspeaker 4 Ohms |
46 |
|
데이터시트 |
- | Tray | Active | Magnetic | General Purpose | 0 Hz ~ 16 kHz | 200Hz | 4 Ohms | 86.00 | 1W/500mm | Sound Pressure Level (SPL) | 1 W | 2 W | Top | Round | PVC | Nd-Fe-B | - | IEC 60268-5 | Wire Leads | 2.047" L x 0.965" W (52.00mm x 24.50mm) | 0.965" (24.50mm) |
|
|
CS50C28DN4GF53x53mm speaker, wires connector |
50 |
|
데이터시트 |
- | Tray | Active | Magnetic | General Purpose | - | 135Hz | 4 Ohms | 101.00 | 5W/100mm | Sensitivity | 5 W | - | Top | Square | Paper | Nd-Fe-B | - | - | Wire Leads with Connector | 2.087" L x 2.087" W (53.00mm x 53.00mm) | 1.102" (28.00mm) |
|

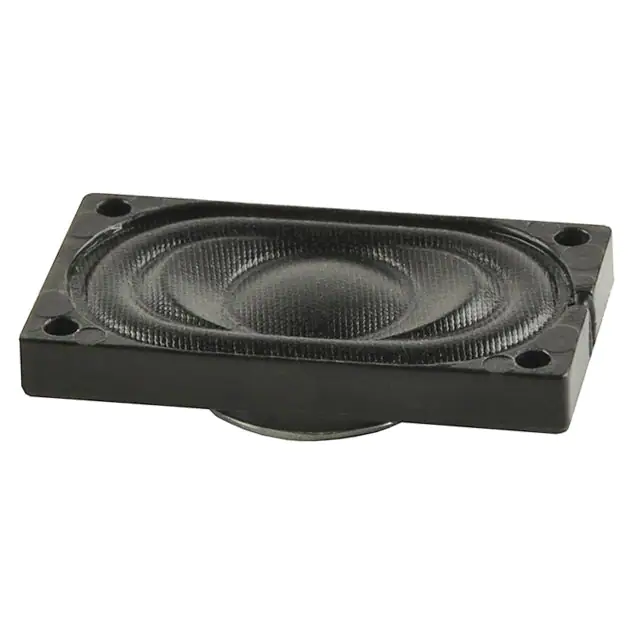

CMS-25148NSPEAKER 8OHM 1W TOP PORT 92DB |
39 |
|
데이터시트 |
CMS | Tray | Active | Magnetic | General Purpose | 840 Hz ~ 20 kHz | 1050Hz | 8 Ohms | 92.00 | 1W/100mm | Sound Pressure Level (SPL) | 1 W | 1.5 W | Top | Oval, Rectangular Frame | Cloth | Nd-Fe-B | - | - | Solder Pads | 0.984" L x 0.551" W (25.00mm x 14.00mm) | 0.205" (5.20mm) |
|
|
BOX-CR3411SPEAKER 4OHM 2W TOP PORT |
74 |
|
데이터시트 |
- | Tray | Active | Magnetic | General Purpose | 580 Hz ~ 20 kHz | 580Hz | 4 Ohms | - | - | Sound Pressure Level (SPL) | 2 W | 3 W | Top | Rectangular | - | Nd-Fe-B | - | - | Wire Leads | 1.339" L x 0.433" W (34.00mm x 11.00mm) | 0.433" (11.00mm) |
|
BMS1609F-11C-07H03-DSSPEAKER 7OHM 800MW 93DB |
100 |
|
데이터시트 |
BMS | Box | Active | Magnetic | - | 850 Hz ~ 20 kHz | 850Hz | 7 Ohms | 93.00 | 800mW/100mm | Sound Pressure Level (SPL) | 800 mW | 1 W | - | Rectangle | - | Nd-Fe-B | - | - | Solder Pads | 0.630" L x 0.354" W (16.00mm x 9.00mm) | 0.118" (3.00mm) |
|
BMS1511F-11C-08H3.5W018SPEAKER 8OHM 500MW TOP PORT 82DB |
80 |
|
데이터시트 |
BMS | Box | Active | Magnetic | General Purpose | 500 Hz ~ 20 kHz | 500Hz | 8 Ohms | 82.00 | 100mW/100mm | Sound Pressure Level (SPL) | 500 mW | 1 W | Top | Rectangular | Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | Connector | 0.591" L x 0.433" W (15.00mm x 11.00mm) | 0.138" (3.50mm) |
|

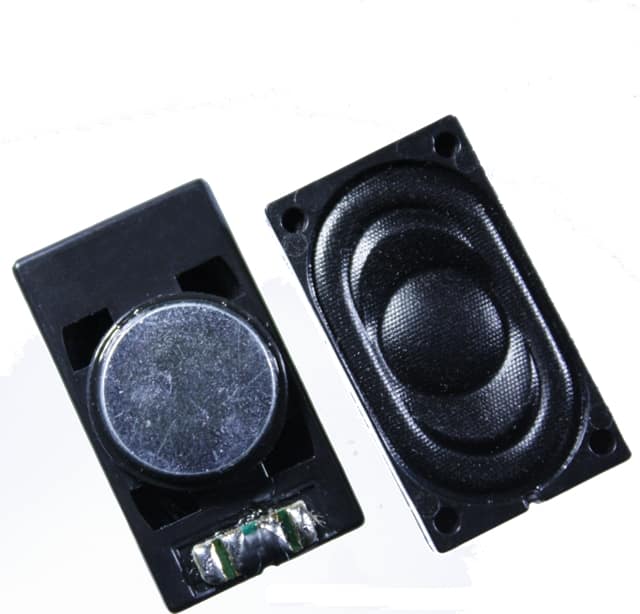

BLS1425-11-08H5.2SPEAKER 8OHM 1W 88DB RECT |
95 |
|
데이터시트 |
BLS | Box | Active | Magnetic | General Purpose | 1.2 kHz ~ 20 kHz | 1.2kHz | 8 Ohms | 88.00 | 100mW/100cm | Sound Pressure Level (SPL) | 1 W | 1.5 W | - | Rectangular | - | Nd-Fe-B | - | - | Solder Pads | 0.984" L x 0.551" W (25.00mm x 14.00mm) | 0.205" (5.20mm) |
|

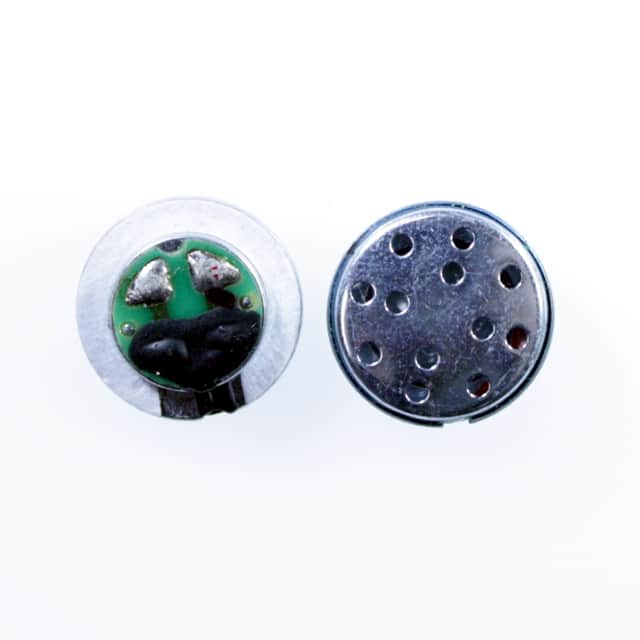

HSR13Z-32SPEAKR 32OHM 10MW TOP PORT 101DB |
56 |
|
데이터시트 |
HSR | Box | Active | Magnetic | General Purpose | - | - | 32 Ohms | 101.00 | 1mW | - | 10 mW | 20 mW | Top | Round | - | - | - | - | Solder Pads | 0.512" Dia (13.00mm) | 0.205" (5.20mm) |
|
|
BDT38-11-50H17-BOXSPEAKER 50OHM 1W TOP PORT 85DB |
95 |
|
데이터시트 |
- | Tray | Active | Magnetic | General Purpose | 1 Hz ~ 4 kHz | 600Hz | 50 Ohms | 85.00 | 1W/500mm | Sound Pressure Level (SPL) | 1 W | 1.2 W | Top | Round | Polybutylene Terephthalate (PBT) | Nd-Fe-B | - | - | Spring Type | 1.496" Dia (38.00mm) | 0.669" (17.00mm) |
|

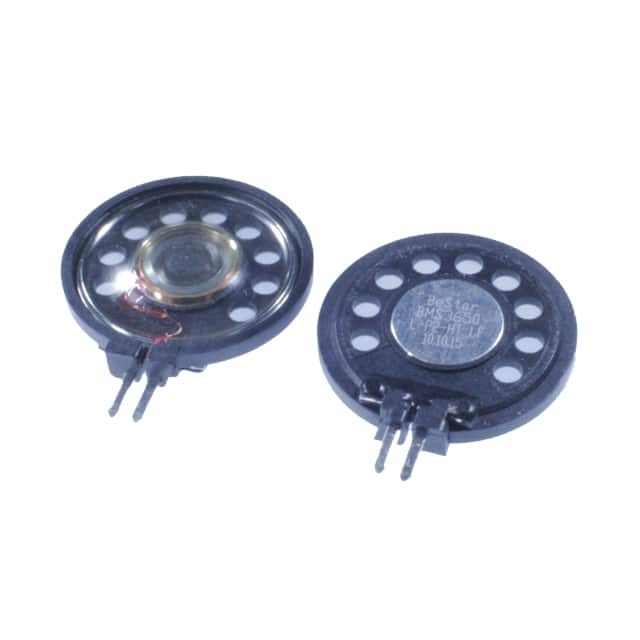

BMS3650L-P2-HTSPEAKER 50OHM 1W TOP PORT 80DB |
40 |
|
데이터시트 |
BMS | Box | Active | Magnetic | General Purpose | 350 Hz ~ 6 kHz | 540Hz | 50 Ohms | 80.00 | - | Sound Pressure Level (SPL) | 1 W | 1.5 W | Top | Round | Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | Solder Pads | 1.732" L x 0.417" W (44.00mm x 36.00mm) | 0.213" (5.40mm) |
|

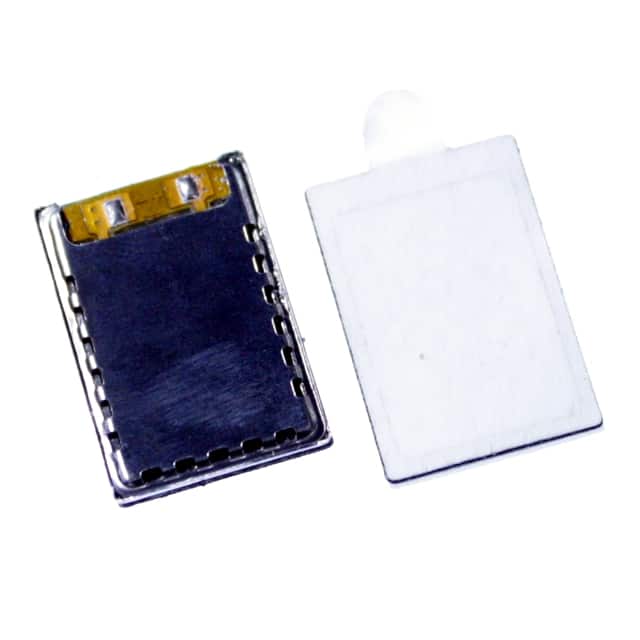

BPS1319H1.3SPEAKER TOP PORT 88DB RECTANGLE |
75 |
|
데이터시트 |
BPS | Box | Active | Piezo | General Purpose | - | 1.5kHz | - | 88.00 | - | - | - | - | Top | Rectangle | - | - | - | - | Solder Pads | 0.748" L x 0.512" W (19.00mm x 13.00mm) | 0.051" (1.30mm) |
|
BTD26-12-08H09SPEAKER 8OHM 2W TOP PORT |
100 |
|
데이터시트 |
BTD | Box | Active | Magnetic | General Purpose | 0 Hz ~ 20 kHz | 550Hz | 8 Ohms | - | - | - | 2 W | 3 W | Top | Round | - | - | - | - | Solder Pads | 1.024" Dia (26.00mm) | 0.354" (9.00mm) |
|
BHS2612-11S-08H06SPEAKER 8OHM 1W EXCITER |
75 |
|
데이터시트 |
- | Box | Active | - | Exciter | 0 Hz ~ 15 kHz | 500Hz | 8 Ohms | - | 1W/100mm | - | 1 W | 2 W | - | Round, Rectangular Frame | - | - | - | - | Solder Pads | 1.024" x 0.472" (26.00mm x 12.00mm) | 0.236" (6.00mm) |
|
BLS2035-11-08H7.6SPEAKER 8OHM 2W 86DB RECT |
95 |
|
데이터시트 |
BLS | Box | Active | Magnetic | General Purpose | 570 Hz ~ 10 kHz | 570Hz | 8 Ohms | 86.00 | 100mW/100cm | Sound Pressure Level (SPL) | 2 W | 3 W | - | Rectangular | - | Nd-Fe-B | - | - | Solder Pads | 1.378" L x 0.787" W (35.00mm x 20.00mm) | 0.307" (7.80mm) |
|

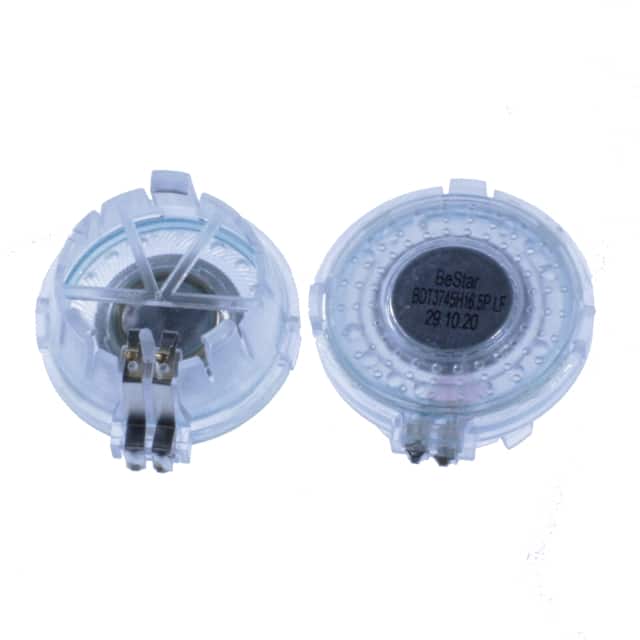

BDT3745H16.5PSPEAKER 50OHM 200MW 86DB |
100 |
|
데이터시트 |
BDT | Box | Active | Magnetic | - | 200 Hz ~ 8 kHz | 500Hz | 50 Ohms | 86.00 | 3W/100cm | Sound Pressure Level (SPL) | 200 mW | 400 mW | - | Round | - | Nd-Fe-B | - | - | Spring Type | 1.457" Dia (37.00mm) | 0.650" (16.50mm) |
|
BDT3032H12.8-02SPEAKER 32OHM 1.3W 100DB |
50 |
|
데이터시트 |
BDT | Box | Active | Magnetic | - | 1 kHz ~ 4 kHz | - | 32 Ohms | 100.00 | - | Sound Pressure Level (SPL) | 1.3 W | 1.5 W | - | Round | Polyethylenimine (PEI) | Nd-Fe-B N35H | - | - | PC Pins | 1.181" Dia (30.00mm) | 0.504" (12.80mm) |
|
BLS2027-11-08H7.8SPEAKER 8OHM 2W 86DB RECT |
95 |
|
데이터시트 |
BLS | Box | Active | Magnetic | General Purpose | 570 Hz ~ 10 kHz | 570Hz | 8 Ohms | 86.00 | 1W/100cm | Sound Pressure Level (SPL) | 2 W | 3 W | - | Rectangular | - | Nd-Fe-B | - | - | Solder Pads | 1.063" L x 0.787" W (27.00mm x 20.00mm) | 0.307" (7.80mm) |
|
BMS28-12B-08H05W135-5035SPEAKER 8OHM 800MW 91DB |
100 |
|
데이터시트 |
BMS | Box | Active | Magnetic | - | 750 Hz ~ 20 kHz | 750Hz | 8 Ohms | 91.00 | 100mW/100cm | Sound Pressure Level (SPL) | 800 mW | 1 W | - | Round | Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | Wire Leads with Connector | 1.102" Dia (28.00mm) | 0.197" (5.00mm) |
|
BOX1-18082-7SPSPEAKER 8OHM 800MW TOP PORT 72DB |
100 |
|
데이터시트 |
- | Tray | Active | Magnetic | General Purpose, Enclosure Included | 900 Hz ~ 10 kHz | 900Hz | 8 Ohms | 72.00 | 1W/1M | Sensitivity | 800 mW | 1 W | Top | Rectangular | Polyetheretherketone (PEEK) | Nd-Fe-B | - | - | Solder Pads | 1.575" L x 0.472" W (40.00mm x 12.00mm) | 0.157" (4.00mm) |
|
BOX1-18082-2B100GDASPEAKER 8OHM 800MW TOP PORT 72DB |
82 |
|
데이터시트 |
- | Tray | Active | Magnetic | General Purpose, Enclosure Included | 900 Hz ~ 10 kHz | 900Hz | 8 Ohms | 72.00 | 1W/1M | Sensitivity | 800 mW | 1 W | Top | Rectangular | Polyetheretherketone (PEEK) | Nd-Fe-B | - | - | Wire Leads | 1.575" L x 0.472" W (40.00mm x 12.00mm) | 0.157" (4.00mm) |
