스피커
| 사진 | 제조업체 부품 번호 | 재고 상태 | 수량 | 데이터시트 | 시리즈 | 패키징 | 제품 상태 | 기술 | 유형 | 주파수 범위 | 주파수 - 자기 공진 | 임피던스 | 효율성 - dBA | 효율성 - 테스트 | 효율성 - 유형 | 전력 - 정격 | 전력 - 최대 | 포트 위치 | 모양 | 재료 - 콘 | 소재 - 자석 | 침투 방지 | 정격 | 종단 | 크기/치수 | 높이 - 앉은 상태(최대) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PAM 13 8 OHMPAM 13 8 OHM |
8 |
|
데이터시트 |
PAM 13 | Bulk | Active | - | General Purpose | 85 Hz ~ 15 kHz | 135Hz | 8 Ohms | 88.00 | 1W/1M | Sound Pressure Level (SPL) | 60 W | - | Top | Round | Paper | Ferrite | - | - | Solder Eyelet(s) | 5.217" Dia (132.50mm) | 2.717" (69.00mm) |
|
|
W 100 X 2X4 OHMW 100 X 2X4 OHM |
5 |
|
데이터시트 |
W 100 X | Bulk | Active | - | General Purpose | 45 Hz ~ 12 kHz | 64Hz | 8 Ohms | 81.00 | 1W/1M | Sound Pressure Level (SPL) | 40 W | 60 W | Top | Round | - | - | - | - | Solder Eyelet(s) | 4.567" Dia (116.00mm) | 2.402" (61.00mm) |
|
|
B 100 - 6 OHMSPEAKER 6OHM 30W TOP PORT 88DB |
18 |
|
데이터시트 |
- | Bulk | Active | Magnetic | - | 75 Hz ~ 20 kHz | 75Hz | 6 Ohms | 88.00 | 1W/1M | Sound Pressure Level (SPL) | 30 W | 60 W | Top | Round | Paper | - | - | - | Quick Connect | 4.783" Dia (121.50mm) | 2.244" (57.00mm) |
|
|
EX 60 XWP 8 OHMEX 60 XWP 8 OHM |
23 |
|
데이터시트 |
EX 60 XWP | Bulk | Active | - | General Purpose | - | - | 8 Ohms | - | - | - | 25 W | - | - | Rectangular | - | - | IP65/IP67 - Dust Tight, Waterproof | - | Wire Leads | 2.953" L x 2.638" W (75.00mm x 67.00mm) | 1.102" (28.00mm) |
|
|
DK 121 - 100 VSPEAKER 100DB ROUND SQUARE FRAME |
18 |
|
데이터시트 |
- | Bulk | Active | - | - | 570 Hz ~ 4.4 kHz | - | - | 100.00 | 1W/1M | Sound Pressure Level (SPL) | - | - | User Defined | Round, Square Frame | Polypropylene (PP) | - | IP66/IP67 - Dust Tight, Water Resistant, Waterproof | - | Wire Leads | 3.996" Dia x 4.764" L (101.50mm x 121.00mm) | 3.858" (98.00mm) |
|
|
B 200 - 6 OHMSPEAKER 6OHM 40W TOP PORT 96DB |
8 |
|
데이터시트 |
- | Bulk | Active | Magnetic | - | 40 Hz ~ 18 kHz | 40Hz | 6 Ohms | 96.00 | 1M | Sound Pressure Level (SPL) | 40 W | 70 W | Top | Round | Paper | - | - | - | Quick Connect | 8.268" Dia (210.00mm) | 3.622" (92.00mm) |
|
|
BOX1-15121-LSPEAKER 8OHM 600MW TOP PORT 73DB |
89 |
|
데이터시트 |
- | Tray | Active | Magnetic | General Purpose | 750 Hz ~ 20 kHz | 750Hz | 8 Ohms | 73.00 | 1W/1m | Sensitivity | 600 mW | 1 W | Top | Rectangular | - | Nd-Fe-B | - | - | Wire Leads with Connector | 0.787" L x 0.591" W (20.00mm x 15.00mm) | 0.315" (8.00mm) |
|
OWR-1340T-38ASPEAKER 38OHM 2MW TOP PORT 84DB |
94 |
|
데이터시트 |
- | Bulk | Active | Magnetic | Earphone Driver | 20 Hz ~ 20 kHz | 200Hz | 38 Ohms | 84.00 | 1mW/10mm | Sound Pressure Level (SPL) | 2 mW | 5 mW | Top | Round | Plastic | Nd-Fe-B | IP67 - Dust Tight, Waterproof | - | Solder Pads | 0.512" Dia (13.00mm) | 0.157" (4.00mm) |
|
SCM-20R3.2-16N0.5RSPEAKR 16OHM 500MW TOP PORT 89DB |
59 |
|
데이터시트 |
- | Box | Active | - | - | 0 Hz ~ 20 kHz | 850Hz | 16 Ohms | 89.00 | 100mW/100cm | Sound Pressure Level (SPL) | 500 mW | 1 W | Top | Round | - | Nd-Fe-B | IP67 - Dust Tight, Waterproof | - | - | 0.787" Dia (20.00mm) | 0.126" (3.20mm) |
|
CMS-160925-078SSPEAKER 8OHM 700MW TOP PORT 90DB |
34 |
|
데이터시트 |
CMS | Tray | Active | Magnetic | General Purpose | 100 Hz ~ 20 kHz | 550Hz | 8 Ohms | 90.00 | 700mW/100mm | Sound Pressure Level (SPL) | 700 mW | 1 W | Top | Rectangular | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | Spring Type | 0.630" L x 0.354" W (16.00mm x 9.00mm) | 0.098" (2.50mm) |
|
CMS-181325-078SPSPEAKER 8OHM 700MW TOP PORT 93DB |
29 |
|
데이터시트 |
CMS | Tray | Active | Magnetic | General Purpose | 500 Hz ~ 10 kHz | 800Hz | 8 Ohms | 93.00 | 700mW/100mm | Sound Pressure Level (SPL) | 700 mW | 1 W | Top | Rectangular | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | Solder Pads | 0.709" L x 0.512" W (18.00mm x 13.00mm) | 0.098" (2.50mm) |
|
SCM-2514L6.0-4N2RSPEAKER 4OHM 2W 94DB |
54 |
|
데이터시트 |
- | Tray | Active | - | - | 650 Hz ~ 20 kHz | 650Hz | 4 Ohms | 94.00 | 2W/100mm | Sound Pressure Level (SPL) | 2 W | 2.5 W | - | Rectangular | Polyetheretherketone (PEEK) | - | - | - | Solder Pads | 0.984" L x 0.551" W (25.00mm x 14.00mm) | 0.236" (6.00mm) |
|
CC13P025W15-4800SPEAKR 8OHM 500 MA TOP PORT 72DB |
86 |
|
데이터시트 |
- | Tray | Active | Magnetic | General Purpose | 950 Hz ~ 10 kHz | 950Hz | 8 Ohms | 72.00 | 1W/1M | Sensitivity | 500 mA | 700 mA | Top | Rectangular | Polyetheretherketone (PEEK) | Nd-Fe-B | - | - | Spring Type | 0.591" L x 0.236" W (15.00mm x 6.00mm) | 0.098" (2.50mm) |
|
TC058S043YN16SPEAKER 16OHM 10MW 101DB |
49 |
|
데이터시트 |
- | Tray | Active | - | Receiver | 20 Hz ~ 20 kHz | - | 16 Ohms | 101.00 | - | Sensitivity | 10 mW | 20 mW | - | Round | - | Nd-Fe-B | - | - | - | 0.228" Dia (5.80mm) | 0.169" (4.30mm) |
|
40A5758BIP1J11MSPEAKER 8OHM 1W TOP PORT 90DB |
50 |
|
데이터시트 |
- | Tray | Active | Magnetic | General Purpose | 500 Hz ~ 4.5 kHz | 500Hz | 8 Ohms | 90.00 | 100mW/100mm | Sound Pressure Level (SPL) | 1 W | 1.5 W | Top | Round | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B-N35 | - | - | Wire Leads | 1.575" Dia (40.00mm) | 0.205" (5.20mm) |
|
WD11903Y8H-WPDAPSPEAKER 8OHM 500MW TOP PT 86.5DB |
67 |
|
데이터시트 |
- | Tray | Active | Magnetic | General Purpose | 450 Hz ~ 8 Hz | 700Hz | 8 Ohms | 86.50 | 1W/1M | Sensitivity | 500 mW | 1 W | Top | Round | Plastic | Nd-Fe-B | IPX7 | - | Solder Posts | 1.102" Dia (28.00mm) | 0.236" (6.00mm) |
|

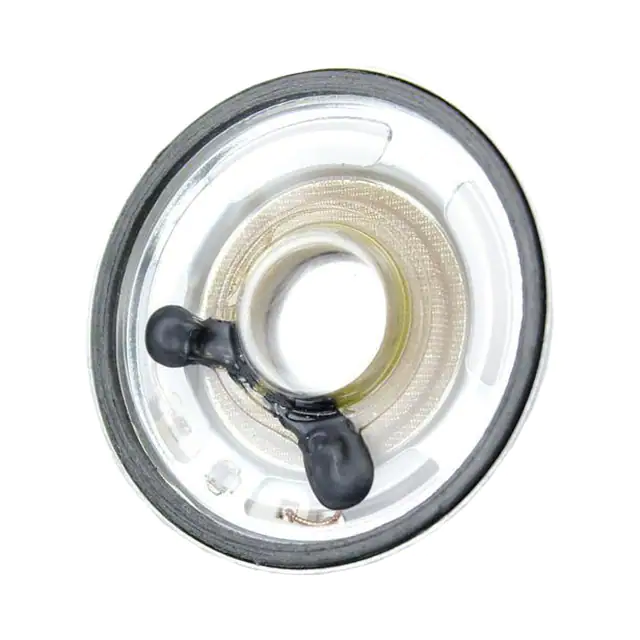

SP-4510SPEAKER 4OHM 300MW TOP PORT 82DB |
37 |
|
데이터시트 |
SP | Tray | Active | Magnetic | General Purpose | 700 Hz ~ 6 kHz | 700Hz | 4 Ohms | 82.00 | 1W/100mm | Sound Pressure Level (SPL) | 300 mW | 3 W | Top | Round | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | Solder Pads | 1.772" Dia (45.00mm) | 0.394" (10.00mm) |
|
CLS0281MPSPEAKER 8OHM 200MW TOP PORT 82DB |
46 |
|
데이터시트 |
CLS | Tray | Active | Magnetic | Low Profile | 850 Hz ~ 6 kHz | 850Hz | 8 Ohms | 82.00 | 200mW/500mm | Sound Pressure Level (SPL) | 200 mW | 300 mW | Top | Round | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | PC Pins | 1.102" Dia (28.00mm) | 0.165" (4.20mm) |
|
CR1511L025YN8WPSPEAKER 8OHM 800MW TOP PORT 73DB |
100 |
|
데이터시트 |
- | Tray | Active | Magnetic | General Purpose | 850 Hz ~ 20 kHz | 850Hz | 8 Ohms | 73.00 | 1W/1M | Sensitivity | 800 mW | 1 W | Top | Rectangular | Polyetheretherketone (PEEK) | Nd-Fe-B | IP67 - Dust Tight, Waterproof | - | Spring Type | 0.591" L x 0.433" W (15.00mm x 11.00mm) | 0.098" (2.50mm) |
|
|
CC31S09UN4SPEAKER - 31 MM DIAMETER - 4 OHM |
100 |
|
데이터시트 |
* | Tray | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
