스피커
| 사진 | 제조업체 부품 번호 | 재고 상태 | 수량 | 데이터시트 | 시리즈 | 패키징 | 제품 상태 | 기술 | 유형 | 주파수 범위 | 주파수 - 자기 공진 | 임피던스 | 효율성 - dBA | 효율성 - 테스트 | 효율성 - 유형 | 전력 - 정격 | 전력 - 최대 | 포트 위치 | 모양 | 재료 - 콘 | 소재 - 자석 | 침투 방지 | 정격 | 종단 | 크기/치수 | 높이 - 앉은 상태(최대) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CR1511L030UN8-2SPEAKER 8OHM 800MW TOP PORT 70DB |
100 |
|
데이터시트 |
- | Tray | Active | Magnetic | General Purpose | 900 Hz ~ 10 kHz | 900Hz | 8 Ohms | 70.00 | 1W/1M | Sensitivity | 800 mW | 1 W | Top | Rectangular | Polyetheretherketone (PEEK) | Nd-Fe-B | - | - | Spring Type | 0.591" L x 0.433" W (15.00mm x 11.00mm) | 0.138" (3.50mm) |
|
SOR4030S11ZN25SPEAKER 25OHM 1W TOP PORT 74DB |
100 |
|
데이터시트 |
- | Tray | Active | Magnetic | General Purpose | 450 Hz ~ 15 kHz | 450Hz | 25 Ohms | 74.00 | 1W/1M | Sensitivity | 1 W | 1.5 W | Top | Rectangular | Paper | Nd-Fe-B | - | - | Solder Pads | 1.575" L x 1.181" W (40.00mm x 30.00mm) | 0.453" (11.50mm) |
|
CO2014L038BN8MDASPEAKER 8OHM 500MW TOP PORT 93DB |
100 |
|
데이터시트 |
- | Tray | Active | Magnetic | General Purpose | 800 Hz ~ 20 kHz | 800Hz | 8 Ohms | 93.00 | 500mW/10cm | Sensitivity | 500 mW | 1 W | Top | Oval | Plastic | Nd-Fe-B | - | - | Spring Type | 0.787" L x 0.551" W (20.00mm x 14.00mm) | 0.150" (3.80mm) |
|
TR1205S030YN8WPGDAW2SPEAKER 8OHM 300MW TOP PORT 73DB |
100 |
|
데이터시트 |
- | Tray | Active | Magnetic | General Purpose | 800 Hz ~ 20 kHz | 1.4kHz | 8 Ohms | 73.00 | 1W/1M | Sensitivity | 300 mW | 500 mW | Top | Rectangular | Plastic | Nd-Fe-B | IPX8 | - | Solder Pads | 0.472" L x 0.217" W (12.00mm x 5.50mm) | 0.118" (3.00mm) |
|
CR1813L025UN8-2SPEAKER 8OHM 700MW TOP PORT 75DB |
98 |
|
데이터시트 |
- | Tray | Active | Magnetic | General Purpose | 800 Hz ~ 20 kHz | 800Hz | 8 Ohms | 75.00 | 1W/1M | Sensitivity | 700 mW | 1 W | Top | Rectangular | Polyetheretherketone (PEEK) | Nd-Fe-B | IP66 - Dust Tight, Water Resistant | - | Spring Type | 0.709" L x 0.512" W (18.00mm x 13.00mm) | 0.098" (2.50mm) |
|
CR1609L030BN8GDASPEAKER 8OHM 500MW TOP PORT 67DB |
95 |
|
데이터시트 |
- | Tray | Active | Magnetic | General Purpose | 900 Hz ~ 10 kHz | 900Hz | 8 Ohms | 67.00 | 500mW/1M | Sensitivity | 500 mW | 800 mW | Top | Rectangular | Plastic | Nd-Fe-B | - | - | Spring Type | 0.630" L x 0.354" W (16.00mm x 9.00mm) | 0.136" (3.45mm) |
|
GR1407S030YN8WPSPEAKER 8OHM 500MW TOP PORT 73DB |
89 |
|
데이터시트 |
- | Tray | Active | Magnetic | General Purpose | 950 Hz ~ 10 kHz | 950Hz | 8 Ohms | 73.00 | 1W/1M | Sensitivity | 500 mW | 700 mW | Top | Rectangular | Plastic | Nd-Fe-B | IP68 - Dust Tight, Waterproof | - | Solder Pads | 0.535" L x 0.260" W (13.60mm x 6.60mm) | 0.118" (3.00mm) |
|
CO2014L038BN8GMDAWSPEAKER 8OHM 500MW TOP PORT 76DB |
88 |
|
데이터시트 |
- | Tray | Active | Magnetic | General Purpose | 800 Hz ~ 20 kHz | 800Hz | 8 Ohms | 76.00 | 1W/1M | Sensitivity | 500 mW | 1 W | Top | Oval | Plastic | Nd-Fe-B | - | - | Spring Type | 0.787" L x 0.551" W (20.00mm x 14.00mm) | 0.169" (4.30mm) |
|

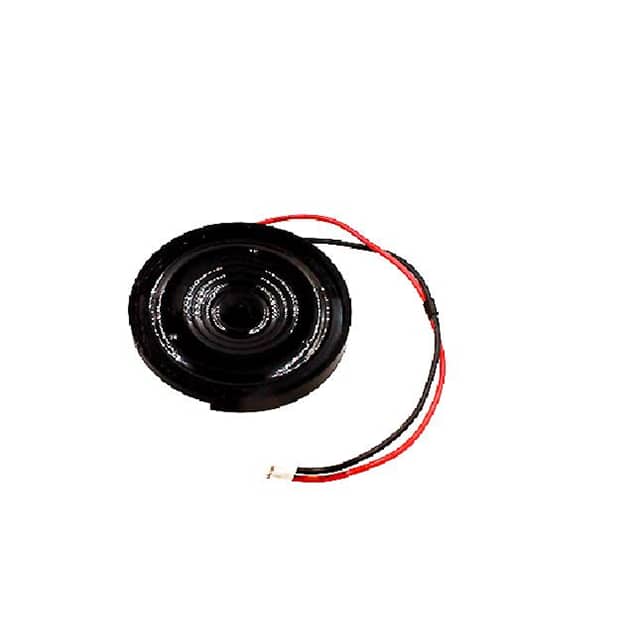

SOC50C07Y50SPEAKR 50OHM 500MW TOP PORT 85DB |
69 |
|
데이터시트 |
- | Tray | Active | Magnetic | Telecom | 300 Hz ~ 3.5 kHz | 300Hz | 50 Ohms | 85.00 | 1W/1M | Sensitivity | 500 mW | 800 mW | Top | Round | Plastic | Nd-Fe-B | - | - | Wire Leads with Connector | 1.969" Dia (50.00mm) | 0.311" (7.90mm) |
|
SOD20722X50CVSPEAKER 50OHM 1W 85.5DB VERT |
64 |
|
데이터시트 |
- | Tray | Active | Magnetic | - | 300 Hz ~ 10 kHz | 300Hz | 50 Ohms | 85.50 | 1W/1M | Sensitivity | 1 W | 2 W | - | Round | Plastic | Ferrite | - | - | Solder Pads | 1.969" Dia (50.00mm) | 0.717" (18.20mm) |
|

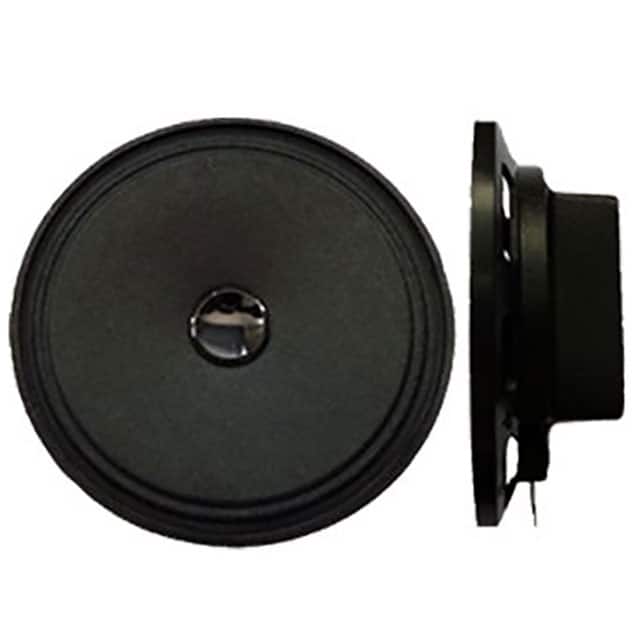

SOD2071Z8SPEAKER 8OHM 1W TOP PORT 87DB |
62 |
|
데이터시트 |
- | Tray | Active | Magnetic | General Purpose | 340 Hz ~ 3.5 kHz | 340Hz | 8 Ohms | 87.00 | 1W/1M | Sensitivity | 1 W | 2 W | Top | Round | Paper | Ferrite | - | - | Solder Pads | 2.520" Dia (64.00mm) | 0.764" (19.40mm) |
|
CR3411S040BN4SPEAKER 4OHM 2W TOP PORT 73DB |
62 |
|
데이터시트 |
- | Tray | Active | Magnetic | General Purpose | 500 Hz ~ 20 kHz | 500Hz | 4 Ohms | 73.00 | 1W/1M | Sensitivity | 2 W | 3 W | Top | Rectangular | Plastic | Nd-Fe-B | - | - | Solder Pads | 1.339" L x 0.433" W (34.00mm x 11.00mm) | 0.160" (4.06mm) |
|
CR1609L030BN8SPEAKER 8OHM 500MW TOP PORT 70DB |
58 |
|
데이터시트 |
- | Tray | Active | Magnetic | General Purpose | 700 Hz ~ 10 kHz | 900Hz | 8 Ohms | 70.00 | 1W/1M | Sensitivity | 500 mW | 800 mW | Top | Rectangular | Polyetheretherketone (PEEK) | Nd-Fe-B | - | - | Spring Type | 0.630" L x 0.354" W (16.00mm x 9.00mm) | 0.118" (3.00mm) |
|
CC31C165AN4PSPEAKER 4OHM 3W TOP PORT 76DB |
56 |
|
데이터시트 |
- | Tray | Active | Magnetic | General Purpose | 380 Hz ~ 7 kHz | 380Hz | 4 Ohms | 76.00 | 1W/1M | Sensitivity | 3 W | 4 W | Top | Round | Plastic | Nd-Fe-B | - | - | Wire Leads with Connector | 1.220" Dia (31.00mm) | 0.650" (16.50mm) |
|
TR1206L020UN32WPGDASPEAKER 32OHM 10MW TOP PORT 63DB |
50 |
|
데이터시트 |
- | Tray | Active | Magnetic | General Purpose | 350 Hz ~ 8 kHz | 350Hz | 32 Ohms | 63.00 | 1W/1m | Sensitivity | 10 mW | 20 mW | Top | Rectangular | - | Nd-Fe-B | IPX7 | - | Spring Contacts | 0.472" L x 0.236" W (12.00mm x 6.00mm) | 0.079" (2.00mm) |
|
BR1506L025YN16MSPEAKER 16OHM 20MW TOP PORT 70DB |
46 |
|
데이터시트 |
- | Tray | Active | Magnetic | General Purpose | 450 Hz ~ 8 kHz | 450Hz | 16 Ohms | 70.00 | 1W/1m | Sensitivity | 20 mW | 50 mW | Top | Rectangular | Polyethylene Naphthalate (PEN) | Nd-Fe-B | - | - | Spring Contacts | 0.591" L x 0.236" W (15.00mm x 6.00mm) | 0.098" (2.50mm) |
|
BR1506L025YN32MGDARSPEAKR 32OHM 22MW TOP PT 111.5DB |
45 |
|
데이터시트 |
- | Tray | Active | Magnetic | General Purpose | 450 Hz ~ 8 kHz | 450Hz | 32 Ohms | 111.50 | 1W/1M | Sensitivity | 22 mW | - | Top | Rectangular | Plastic | Nd-Fe-B | - | - | - | 0.591" L x 0.236" W (15.00mm x 6.00mm) | 0.098" (2.50mm) |
|
BR1506L025YN32MSPEAKER 32OHM 22MW TOP PORT 90DB |
42 |
|
데이터시트 |
- | Tray | Active | - | General Purpose | 300 Hz ~ 6 kHz | 450Hz | 32 Ohms | 90.00 | 10mW/10mm | Sensitivity | 22 mW | 30 mW | Top | Rectangular | - | - | - | - | Spring Type | 0.591" L x 0.236" W (15.00mm x 6.00mm) | 0.098" (2.50mm) |
|
BR1511L035UN6-WPSPEAKER 6OHM 700MW TOP PORT 72DB |
33 |
|
데이터시트 |
- | Tray | Active | Magnetic | General Purpose | 900 Hz ~ 5 kHz | 900Hz | 6 Ohms | 72.00 | 1W/1M | Sensitivity | 700 mW | 1.2 W | Top | Rectangular | Polyetheretherketone (PEEK) | Nd-Fe-B | IP67 - Dust Tight, Waterproof | - | Spring Type | 0.591" L x 0.433" W (15.00mm x 11.00mm) | 0.138" (3.50mm) |
|
SOC40C180DN4SPEAKER 4OHM 2W TOP PORT 77DB |
26 |
|
데이터시트 |
- | Tray | Active | - | General Purpose | 160 Hz ~ 15 kHz | 160Hz | 4 Ohms | 77.00 | 1W/1M | Sound Pressure Level (SPL) | 2 W | 4 W | Top | Round | Paper, Rubber | Nd-Fe-B | - | - | Wire Leads | 1.575" Dia (40.00mm) | 0.709" (18.00mm) |
