방열판
| 사진 | 제조업체 부품 번호 | 재고 상태 | 수량 | 데이터시트 | 시리즈 | 패키징 | 제품 상태 | 유형 | 패키지 냉각 | 부착 방법 | 모양 | 길이 | 너비 | 직경 | 핀 높이 | 온도 상승 시 전력 소모 | 강제 공기 흐름 시 열 저항 | 자연 시 열 저항 | 소재 | 재료 마감 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ATS-FPX070070020-29-C1-R0HEATSINK 70X70X20MM XCUT FP |
70 |
|
데이터시트 |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 2.756" (70.00mm) | 2.756" (70.00mm) | - | 0.790" (20.00mm) | - | 7.56°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-CPX070070010-133-C1-R0HEATSINK 70X70X10MM XCUT CP |
97 |
|
데이터시트 |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 2.756" (70.00mm) | 2.756" (70.00mm) | - | 0.394" (10.00mm) | - | 7.41°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|

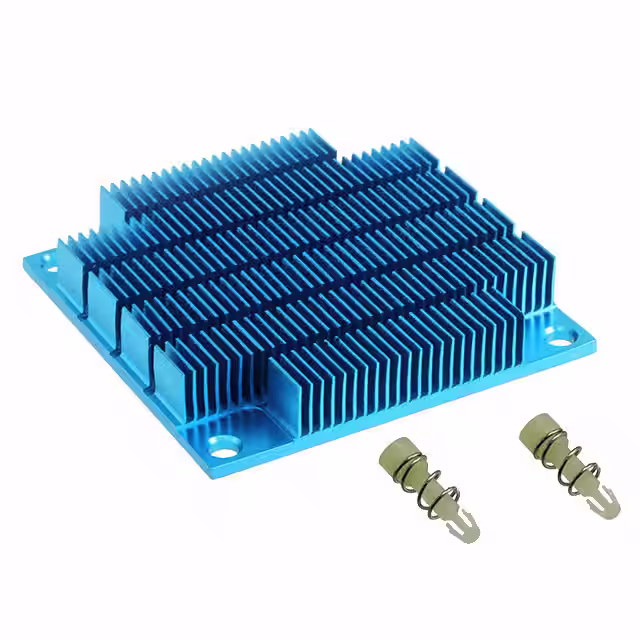

ATS-P1-109-C2-R1HEATSINK 54X54X9.5MM XCUT T766 |
58 |
|
데이터시트 |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 2.126" (54.00mm) | 2.126" (54.00mm) | - | 0.374" (9.50mm) | - | 27.70°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|

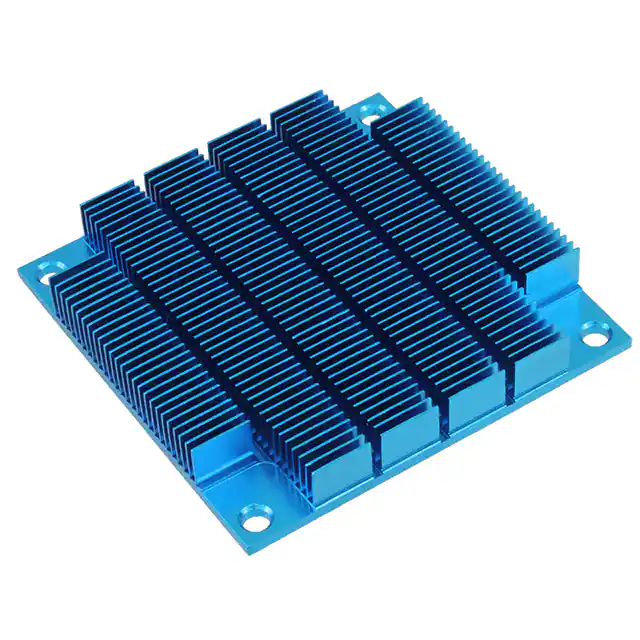

ATS-FPX060060010-111-C1-R1HEATSINK 60X60X9.5MM XCUT SFP |
96 |
|
데이터시트 |
pushPIN™ | Tray | Active | Top Mount, Skived | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 2.362" (60.00mm) | 2.362" (60.00mm) | - | 0.374" (9.50mm) | - | 26.72°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-03H-127-C2-R0HEATSINK 54X54X20MM XCUT T766 |
72 |
|
데이터시트 |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 2.126" (54.00mm) | 2.126" (54.00mm) | - | 0.790" (20.00mm) | - | 3.84°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-CPX070070012-210-C2-R0HEATSINK 70X70X12MM XCUT CP |
38 |
|
데이터시트 |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 2.756" (70.00mm) | 2.756" (70.00mm) | - | 0.472" (12.00mm) | - | 5.18°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
960-27-33-D-AB-0HEATSINK 27X33MM DIA PUSH PIN |
70 |
|
데이터시트 |
960 | Box | Active | Top Mount | BGA | Push Pin | Square, Pin Fins | 1.063" (27.00mm) | 1.063" (27.00mm) | - | 1.299" (33.00mm) | - | 2.40°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|

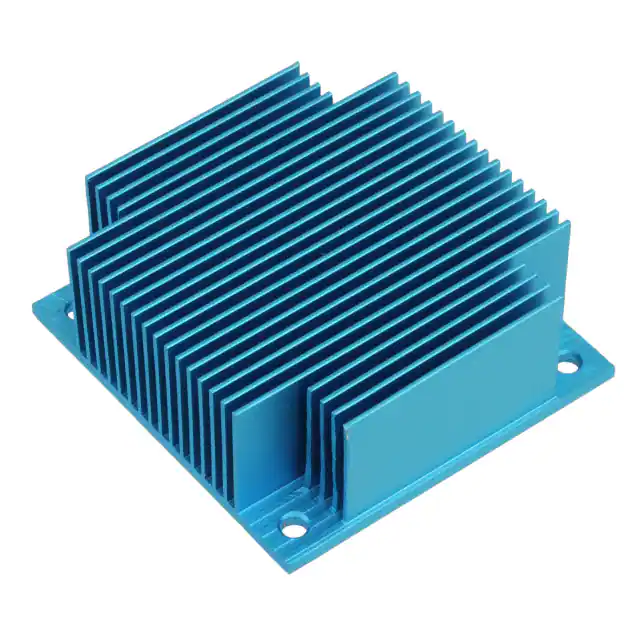

ATS-FPS058061023-42-C2-R0HEATSINK 57.9X60.96X22.86MM FP |
78 |
|
데이터시트 |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Rectangular, Fins | 2.280" (57.90mm) | 2.400" (60.96mm) | - | 0.900" (22.86mm) | - | 7.31°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|

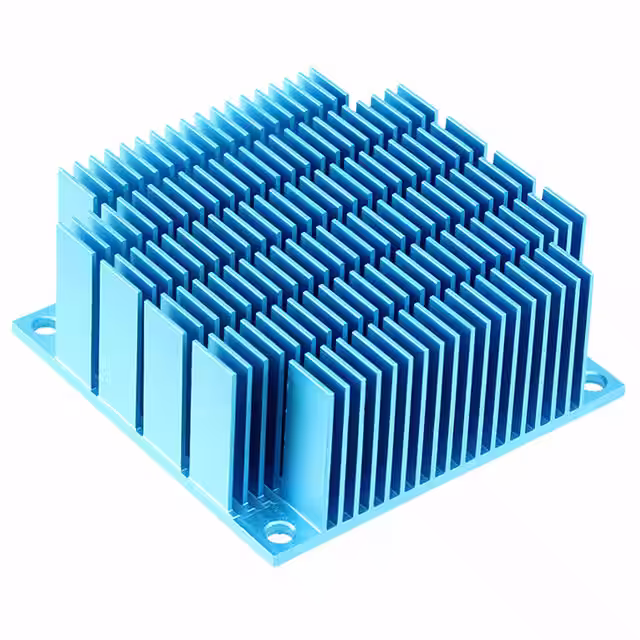

ATS-FPX060060025-25-C2-R0HEATSINK 60X60X25MM XCUT FP |
77 |
|
데이터시트 |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 2.362" (60.00mm) | 2.362" (60.00mm) | - | 0.984" (25.00mm) | - | 6.26°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|

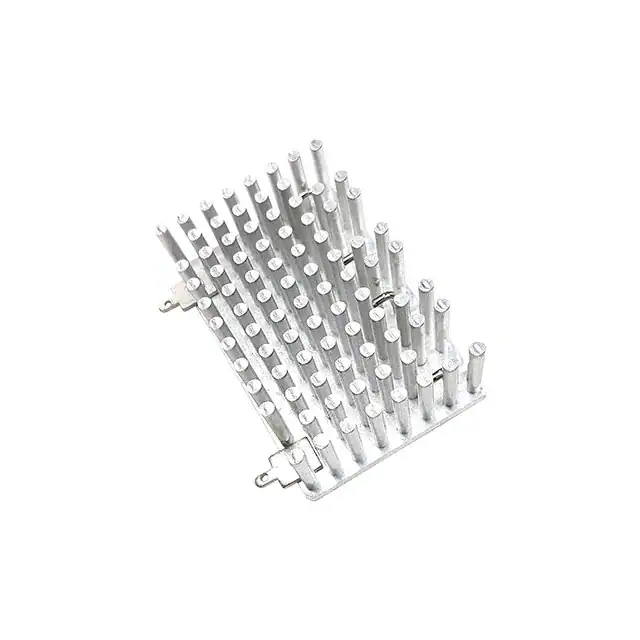

PV-T22-38EDUAL PIN FIN HEATSINK 2 CLIPS |
60 |
|
데이터시트 |
P | Box | Active | Board Level, Vertical | TO-220, TO-247, TO-264 | 2 Clips and PC Pin | Rectangular, Pin Fins | 2.170" (55.12mm) | 1.240" (31.50mm) | - | 1.520" (38.61mm) | - | - | 3.89°C/W | Aluminum | Degreased |
|

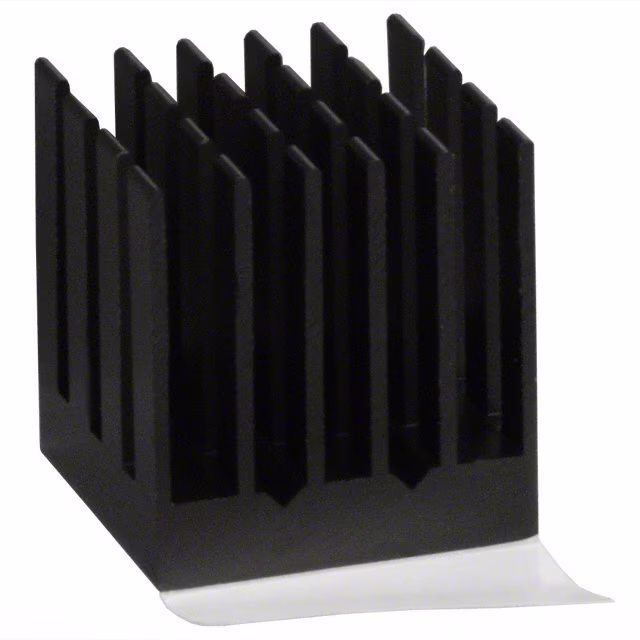

ATS-55190R-C1-R0HEAT SINK 19MM X 19MM X 19.5MM |
91 |
|
데이터시트 |
- | Bulk | Active | Top Mount | BGA | Thermal Tape, Adhesive (Included) | Square, Fins | 0.748" (19.00mm) | 0.748" (19.00mm) | - | 0.768" (19.50mm) | - | 9.20°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|
|
ATS-CPX070070020-135-C1-R0HEATSINK 70X70X20MM XCUT CP |
74 |
|
데이터시트 |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 2.756" (70.00mm) | 2.756" (70.00mm) | - | 0.790" (20.00mm) | - | 2.99°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|

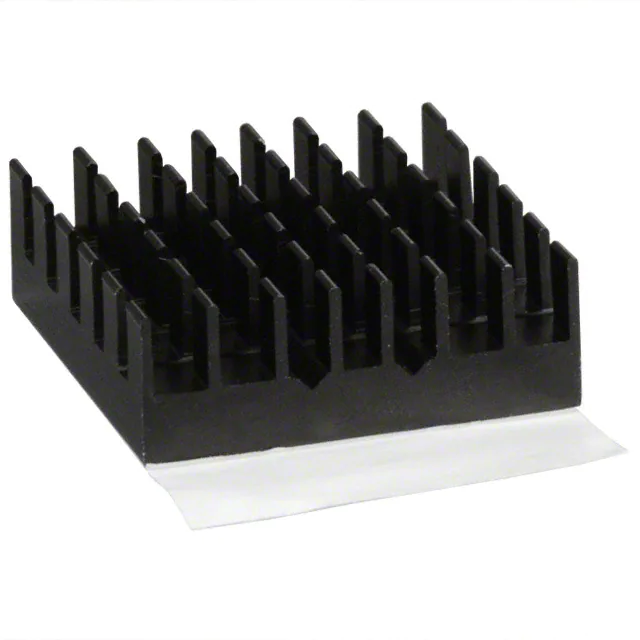

ATS-55270D-C1-R0HEAT SINK 27MM X 27MM X 9.5MM |
66 |
|
데이터시트 |
- | Bulk | Active | Top Mount | BGA | Thermal Tape, Adhesive (Included) | Square, Pin Fins | 1.063" (27.00mm) | 1.063" (27.00mm) | - | 0.374" (9.50mm) | - | 15.50°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|
ATS-12E-20-C2-R0HEATSINK 54X54X25MM XCUT T766 |
95 |
|
데이터시트 |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 2.126" (54.00mm) | 2.126" (54.00mm) | - | 0.984" (25.00mm) | - | 7.14°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-54400D-C1-R0HEAT SINK 40MM X 40MM X 9.5MM |
56 |
|
데이터시트 |
- | Bulk | Active | Top Mount | BGA | Thermal Tape, Adhesive (Included) | Square, Fins | 1.575" (40.00mm) | 1.575" (40.00mm) | - | 0.374" (9.50mm) | - | 9.10°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|
ATS-P2-36-C2-R0HEATSINK 36.83X57.6X11.43MM T766 |
60 |
|
데이터시트 |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Rectangular, Fins | 1.450" (36.83mm) | 2.267" (57.60mm) | - | 0.450" (11.43mm) | - | 14.82°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|

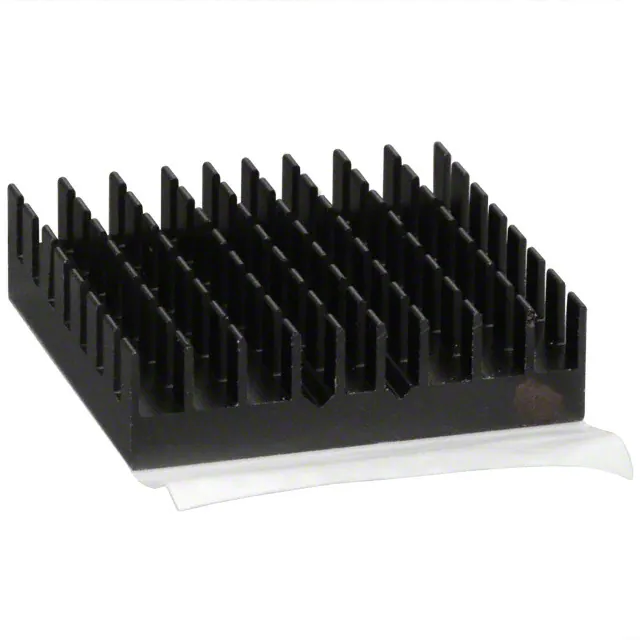

ATS-55350D-C1-R0HEAT SINK 35MM X 35MM X 9.5MM |
26 |
|
데이터시트 |
- | Bulk | Active | Top Mount | BGA | Thermal Tape, Adhesive (Included) | Square, Pin Fins | 1.378" (35.00mm) | 1.378" (35.00mm) | - | 0.374" (9.50mm) | - | 11.30°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|
|
960-31-33-S-AB-0HEATSINK 31X33MM SIDE PUSH PIN |
61 |
|
데이터시트 |
960 | Box | Active | Top Mount | BGA | Push Pin | Square, Pin Fins | 1.220" (31.00mm) | 1.220" (31.00mm) | - | 1.299" (33.00mm) | - | 2.00°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|

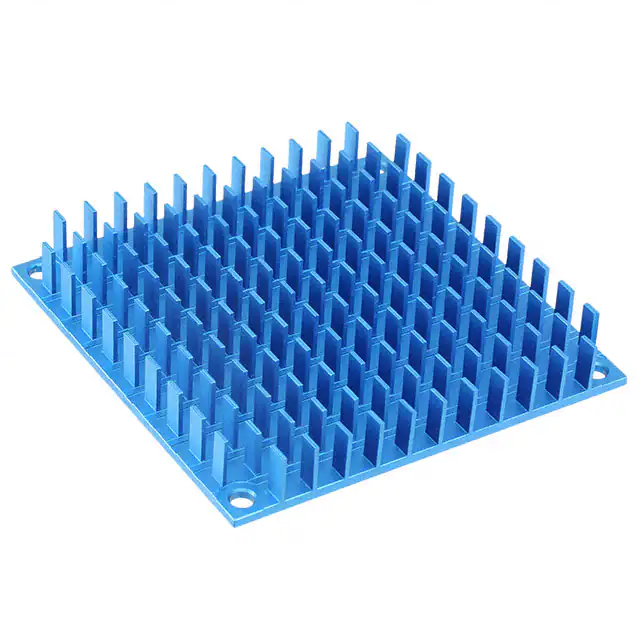

ATS-CPX070070010-209-C2-R0HEATSINK 70X70X10MM XCUT CP |
52 |
|
데이터시트 |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 2.756" (70.00mm) | 2.756" (70.00mm) | - | 0.394" (10.00mm) | - | 6.27°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|

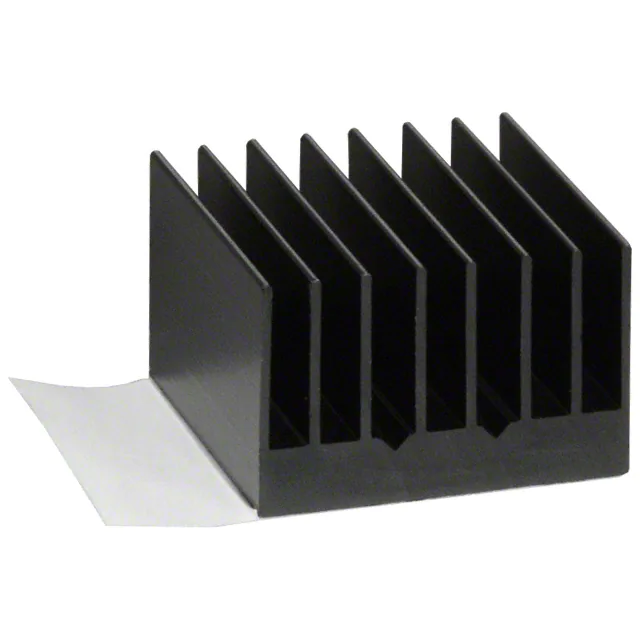

ATS-54230K-C1-R0HEAT SINK 23MM X 23MM X 14.5MM |
32 |
|
데이터시트 |
- | Bulk | Active | Top Mount | BGA | Thermal Tape, Adhesive (Included) | Square, Fins | 0.900" (23.00mm) | 0.906" (23.01mm) | - | 0.571" (14.50mm) | 0.3W @ 20°C | 8.80°C/W @ 200 LFM | - | Aluminum | Black Anodized |
