방열판
| 사진 | 제조업체 부품 번호 | 재고 상태 | 수량 | 데이터시트 | 시리즈 | 패키징 | 제품 상태 | 유형 | 패키지 냉각 | 부착 방법 | 모양 | 길이 | 너비 | 직경 | 핀 높이 | 온도 상승 시 전력 소모 | 강제 공기 흐름 시 열 저항 | 자연 시 열 저항 | 소재 | 재료 마감 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
V5236B-THEATSINK ALUM ANOD |
550 |
|
데이터시트 |
- | Bulk | Active | Board Level | SOT-32, TO-220 | Bolt On | Rectangular, Fins | 1.189" (30.20mm) | 1.000" (25.40mm) | - | 0.311" (7.90mm) | - | - | 18.00°C/W | Aluminum | Black Anodized |
|

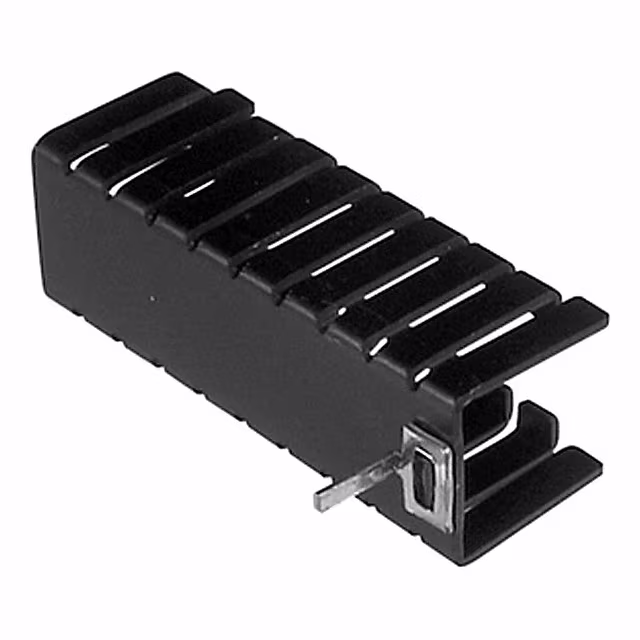

V8508FHEATSINK ALUM WITH PIN TO-220 |
275 |
|
데이터시트 |
- | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | PC Pin | Square, Pin Fins | 0.984" (25.00mm) | 0.984" (25.00mm) | - | 0.500" (12.70mm) | - | - | 16.00°C/W | Aluminum | Black Anodized |
|
ATS-PCB1071HEATSINK TO-220 W/TAB BLACK |
834 |
|
데이터시트 |
- | Bulk | Active | Board Level, Vertical | TO-220 | Bolt On and PC Pin | Rectangular, Fins | 0.750" (19.05mm) | 0.520" (13.21mm) | - | 0.375" (9.52mm) | - | 15.60°C/W @ 200 LFM | 25.90°C/W | Aluminum | Black Anodized |
|
V5629VHEATSINK ANOD ALUM SOT-32 |
853 |
|
데이터시트 |
- | Bulk | Active | Board Level, Vertical | SOT-32 | Bolt On and PC Pin | Rectangular, Fins | 0.591" (15.00mm) | 0.472" (12.00mm) | - | 0.453" (11.50mm) | - | - | 38.50°C/W | Aluminum | Black Anodized |
|
ATS-PCB1009HEATSINK TO-220 LOW PROFILE |
712 |
|
데이터시트 |
- | Bulk | Active | Board Level | TO-220 | Bolt On | Square, Fins | 0.750" (19.05mm) | 0.750" (19.05mm) | - | 0.375" (9.52mm) | - | 10.00°C/W @ 200 LFM | 24.00°C/W | Aluminum | Black Anodized |
|
ATS-PCB1017HEATSINK TO-220/TO-202 BLACK |
291 |
|
데이터시트 |
- | Bulk | Active | Board Level | TO-220, TO-202 | Bolt On | Rectangular, Fins | 0.698" (17.74mm) | 1.750" (44.45mm) | - | 0.371" (9.43mm) | - | 7.10°C/W @ 200 LFM | 15.60°C/W | Aluminum | Black Anodized |
|
ATS-PCBT1080HEATSINK TO-218/TO-220 BLACK |
1,000 |
|
데이터시트 |
- | Bulk | Active | Board Level, Vertical | TO-220, TO-218 | Bolt On and PC Pin | Rectangular, Fins | 1.772" (45.00mm) | 1.220" (30.99mm) | - | 0.500" (12.70mm) | - | 9.00°C/W @ 200 LFM | 13.00°C/W | Aluminum | Black Anodized |
|
XL25D-TO220-18.5-12-1CERAMIC HEAT SPREADER 20X18.5X1M |
100 |
|
데이터시트 |
XL-25 | Bulk | Active | Heat Spreader | TO-220 | Thermal Tape | Rectangular | 0.787" (20.00mm) | 0.728" (18.50mm) | - | 0.039" (1.00mm) | - | - | - | Ceramic | - |
|
ATS-CPX040040006-193-C3-R0HEATSINK 40X40X6MM XCUT CP |
56 |
|
데이터시트 |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.575" (40.00mm) | 1.575" (40.00mm) | - | 0.236" (6.00mm) | - | 21.29°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
7-340-3PP-BAHEATSINK PWR HORZ BLACK TO-220 |
43 |
|
데이터시트 |
7 | Box | Active | Board Level | TO-220 | Bolt On | Rectangular, Fins | 0.750" (19.05mm) | 1.150" (29.21mm) | - | 0.460" (11.68mm) | 3.0W @ 40°C | - | 15.00°C/W | Aluminum | Black Anodized |
|
XL25D-TO3P-25-20-0.64CERAMIC HEAT SPREADER 25X20X0.63 |
38 |
|
데이터시트 |
XL-25 | Bulk | Active | Heat Spreader | TO-3P | Thermal Tape | Rectangular | 0.984" (25.00mm) | 0.787" (20.00mm) | - | 0.025" (0.64mm) | - | - | - | Ceramic | - |
|
ATS-CPX045045025-120-C3-R0HEATSINK 45X45X25MM XCUT CP |
57 |
|
데이터시트 |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.772" (45.00mm) | 1.772" (45.00mm) | - | 0.984" (25.00mm) | - | 3.57°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|

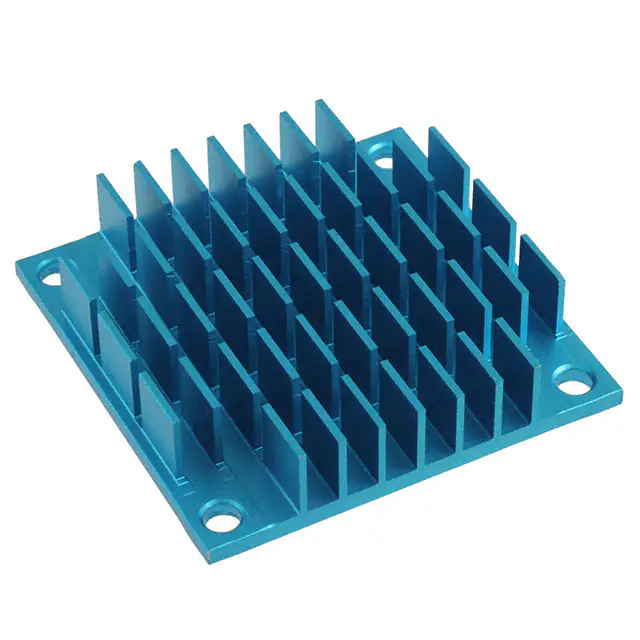

ATS-CPX045045010-117-C1-R0HEATSINK 45X45X10MM XCUT CP |
58 |
|
데이터시트 |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.772" (45.00mm) | 1.772" (45.00mm) | - | 0.394" (10.00mm) | - | 10.46°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-CPX050050010-121-C1-R0HEATSINK 50X50X10MM XCUT CP |
71 |
|
데이터시트 |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.969" (50.00mm) | 1.969" (50.00mm) | - | 0.394" (10.00mm) | - | 9.46°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-FPX030030010-79-C1-R0HEATSINK 30X30X10MM R-TAB FP |
96 |
|
데이터시트 |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.181" (30.00mm) | 1.181" (30.00mm) | - | 0.394" (10.00mm) | - | 26.32°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
XL25D-TO220-20-14-0.64CERAMIC HEAT SPREADER 20X14X0.63 |
42 |
|
데이터시트 |
XL-25 | Bulk | Active | Heat Spreader | TO-220 | Thermal Tape | Rectangular | 0.787" (20.00mm) | 0.551" (14.00mm) | - | 0.025" (0.64mm) | - | - | - | Ceramic | - |
|
ATS-CPX025025015-166-C3-R0HEATSINK 25X25X15MM R-TAB CP |
100 |
|
데이터시트 |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 0.984" (25.00mm) | 0.984" (25.00mm) | - | 0.590" (15.00mm) | - | 12.46°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-CPX050050006-199-C1-R0HEATSINK 50X50X6MM XCUT CP |
100 |
|
데이터시트 |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.969" (50.00mm) | 1.969" (50.00mm) | - | 0.236" (6.00mm) | - | 15.80°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|

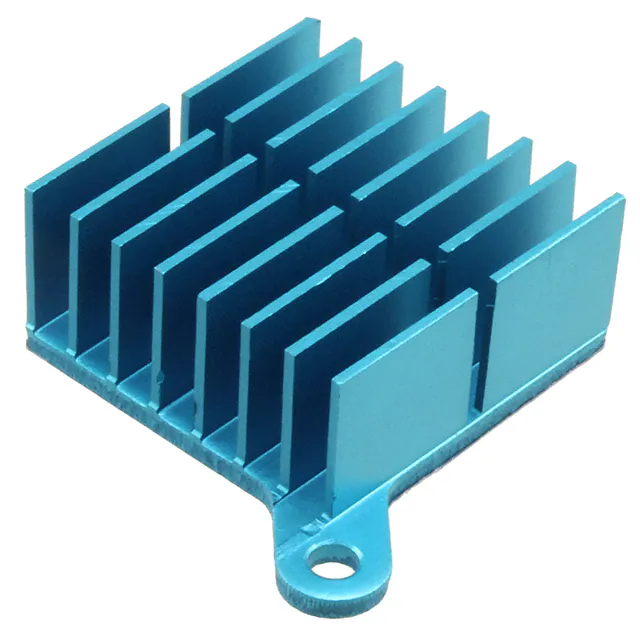

ATS-CPX030030015-142-C1-R0HEATSINK 30X30X15MM L-TAB CP |
76 |
|
데이터시트 |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.181" (30.00mm) | 1.181" (30.00mm) | - | 0.590" (15.00mm) | - | 10.02°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-CPX030030010-141-C1-R0HEATSINK 30X30X10MM L-TAB CP |
100 |
|
데이터시트 |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.181" (30.00mm) | 1.181" (30.00mm) | - | 0.394" (10.00mm) | - | 15.66°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
