FET, MOSFET
| 사진 | 제조업체 부품 번호 | 재고 상태 | 수량 | 데이터시트 | 시리즈 | 패키지/케이스 | 패키징 | 제품 상태 | FET 유형 | 기술 | 드레인-소스 전압(Vdss) | 전류 - 연속 드레인(Id) @ 25°C | 구동 전압(최대 Rds 켜짐, 최소 Rds 켜짐) | Rds 켜짐(최대) @ Id, Vgs | Vgs(th) (최대) @ Id | 게이트 충전(Qg) (최대) @ Vgs | Vgs (최대) | 입력 커패시턴스(Ciss) (최대) @ Vds | FET 기능 | 전력 소모(최대) | 작동 온도 | 등급 | 자격 | 장착 유형 | 공급자 장치 패키지 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SI4833ADY-T1-E3MOSFET P-CH 30V 4.6A 8SO |
8,812 |
|
데이터시트 |
LITTLE FOOT® | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | P-Channel | MOSFET (Metal Oxide) | 30 V | 4.6A (Tc) | 4.5V, 10V | 72mOhm @ 3.6A, 10V | 2.5V @ 250µA | 15 nC @ 10 V | ±20V | 750 pF @ 15 V | Schottky Diode (Isolated) | 1.93W (Ta), 2.75W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SOIC |
|
SI5445BDC-T1-E3MOSFET P-CH 8V 5.2A 1206-8 |
3,997 |
|
데이터시트 |
TrenchFET® | 8-SMD, Flat Leads | Tape & Reel (TR) | Obsolete | P-Channel | MOSFET (Metal Oxide) | 8 V | 5.2A (Ta) | 1.8V, 4.5V | 33mOhm @ 5.2A, 4.5V | 1V @ 250µA | 21 nC @ 4.5 V | ±8V | - | - | 1.3W (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 1206-8 ChipFET™ |
|

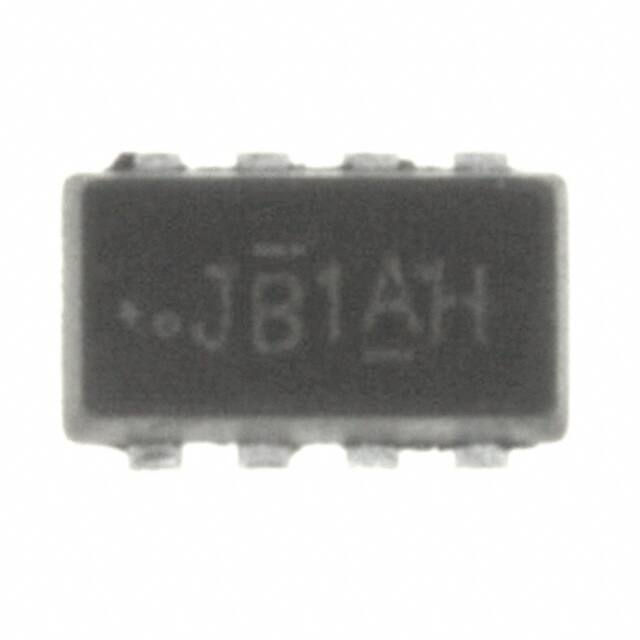

SI5855DC-T1-E3MOSFET P-CH 20V 2.7A 1206-8 |
7,548 |
|
데이터시트 |
TrenchFET® | 8-SMD, Flat Leads | Tape & Reel (TR) | Obsolete | P-Channel | MOSFET (Metal Oxide) | 20 V | 2.7A (Ta) | 1.8V, 4.5V | 110mOhm @ 2.7A, 4.5V | 1V @ 250µA | 7.7 nC @ 4.5 V | ±8V | - | Schottky Diode (Isolated) | 1.1W (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 1206-8 ChipFET™ |
|
SI7100DN-T1-E3MOSFET N-CH 8V 35A PPAK1212-8 |
7,752 |
|
데이터시트 |
TrenchFET® | PowerPAK® 1212-8 | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 8 V | 35A (Tc) | 2.5V, 4.5V | 3.5mOhm @ 15A, 4.5V | 1V @ 250µA | 105 nC @ 8 V | ±8V | 3810 pF @ 4 V | - | 3.8W (Ta), 52W (Tc) | -50°C ~ 150°C (TJ) | - | - | Surface Mount | PowerPAK® 1212-8 |
|
SI7136DP-T1-E3MOSFET N-CH 20V 30A PPAK SO-8 |
6,117 |
|
데이터시트 |
TrenchFET® | PowerPAK® SO-8 | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 20 V | 30A (Tc) | 4.5V, 10V | 3.2mOhm @ 20A, 10V | 3V @ 250µA | 78 nC @ 10 V | ±20V | 3380 pF @ 10 V | - | 5W (Ta), 39W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | PowerPAK® SO-8 |
|
|
SI7382DP-T1-E3MOSFET N-CH 30V 14A PPAK SO-8 |
5,329 |
|
데이터시트 |
TrenchFET® | PowerPAK® SO-8 | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 14A (Ta) | 4.5V, 10V | 4.7mOhm @ 24A, 10V | 3V @ 250µA | 40 nC @ 4.5 V | ±20V | - | - | 1.8W (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | PowerPAK® SO-8 |
|
|
SI7384DP-T1-E3MOSFET N-CH 30V 11A PPAK SO-8 |
6,292 |
|
데이터시트 |
TrenchFET® | PowerPAK® SO-8 | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 11A (Ta) | 4.5V, 10V | 8.5mOhm @ 18A, 10V | 3V @ 250µA | 18 nC @ 4.5 V | ±20V | - | - | 1.8W (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | PowerPAK® SO-8 |
|
|
SI7485DP-T1-E3MOSFET P-CH 20V 12.5A PPAK SO-8 |
5,476 |
|
데이터시트 |
- | PowerPAK® SO-8 | Cut Tape (CT) | Obsolete | P-Channel | MOSFET (Metal Oxide) | 20 V | 12.5A (Ta) | - | 7.3mOhm @ 20A, 4.5V | 900mV @ 1mA | 150 nC @ 5 V | - | - | - | - | - | - | - | Surface Mount | PowerPAK® SO-8 |
|
|
SI7703EDN-T1-E3MOSFET P-CH 20V 4.3A PPAK1212-8 |
6,506 |
|
데이터시트 |
TrenchFET® | PowerPAK® 1212-8 | Tape & Reel (TR) | Active | P-Channel | MOSFET (Metal Oxide) | 20 V | 4.3A (Ta) | 1.8V, 4.5V | 48mOhm @ 6.3A, 4.5V | 1V @ 800µA | 18 nC @ 4.5 V | ±12V | - | Schottky Diode (Isolated) | 1.3W (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | PowerPAK® 1212-8 |
|
|
SI7858ADP-T1-E3MOSFET N-CH 12V 20A PPAK SO-8 |
6,100 |
|
데이터시트 |
TrenchFET® | PowerPAK® SO-8 | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 12 V | 20A (Ta) | 2.5V, 4.5V | 2.6mOhm @ 29A, 4.5V | 1.5V @ 250µA | 80 nC @ 4.5 V | ±8V | 5700 pF @ 6 V | - | 1.9W (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | PowerPAK® SO-8 |
|
SI8402DB-T1-E1MOSFET N-CH 20V 5.3A 2X2 4-MFP |
8,984 |
|
데이터시트 |
- | 4-XFBGA, CSPBGA | Cut Tape (CT) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 20 V | 5.3A (Ta) | - | 37mOhm @ 1A, 4.5V | 1V @ 250µA | 26 nC @ 4.5 V | - | - | - | - | - | - | - | Surface Mount | 4-Microfoot |
|
SUM110N04-03P-E3MOSFET N-CH 40V 110A TO263 |
8,621 |
|
데이터시트 |
TrenchFET® | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 110A (Tc) | 10V | 3.1mOhm @ 30A, 10V | 4V @ 250µA | 150 nC @ 10 V | ±20V | 6500 pF @ 25 V | - | 3.75W (Ta), 375W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | TO-263 (D2PAK) |
|
|
SUM110N04-04-E3MOSFET N-CH 40V 110A TO263 |
6,153 |
|
데이터시트 |
TrenchFET® | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 110A (Tc) | 10V | 3.5mOhm @ 30A, 10V | 4V @ 250µA | 200 nC @ 10 V | ±20V | 6800 pF @ 25 V | - | 3.75W (Ta), 250W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | TO-263 (D2PAK) |
|
|
SUM110N04-2M3L-E3MOSFET N-CH 40V 110A TO263 |
2,902 |
|
데이터시트 |
TrenchFET® | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 40 V | 110A (Tc) | 4.5V, 10V | 2.3mOhm @ 30A, 10V | 3V @ 250µA | 360 nC @ 10 V | ±20V | 13600 pF @ 25 V | - | 3.75W (Ta), 375W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | TO-263 (D2PAK) |
|
|
SUM52N20-39P-E3MOSFET N-CH 200V 52A TO263 |
2,053 |
|
데이터시트 |
TrenchFET® | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 200 V | 52A (Tc) | 10V, 15V | 38mOhm @ 20A, 15V | 4.5V @ 250µA | 185 nC @ 15 V | ±25V | 4220 pF @ 25 V | - | 3.12W (Ta), 250W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | TO-263 (D2PAK) |
|
2SK2719(F)MOSFET N-CH 900V 3A TO3P |
7,557 |
|
데이터시트 |
- | TO-3P-3, SC-65-3 | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 900 V | 3A (Ta) | 10V | 4.3Ohm @ 1.5A, 10V | 4V @ 1mA | 25 nC @ 10 V | ±30V | 750 pF @ 25 V | - | 125W (Tc) | 150°C (TJ) | - | - | Through Hole | TO-3P(N) |
|
|
2SK2847(F)MOSFET N-CH 900V 8A TO3PIS |
5,627 |
|
데이터시트 |
- | TO-3P-3, SC-65-3 | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 900 V | 8A (Ta) | 10V | 1.4Ohm @ 4A, 10V | 4V @ 1mA | 58 nC @ 10 V | ±30V | 2040 pF @ 25 V | - | 85W (Tc) | 150°C (TJ) | - | - | Through Hole | TO-3P(N)IS |
|
|
2SK2917(F)MOSFET N-CH 500V 18A TO3PIS |
3,466 |
|
데이터시트 |
- | TO-3P-3, SC-65-3 | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 500 V | 18A (Ta) | 10V | 270mOhm @ 10A, 10V | 4V @ 1mA | 80 nC @ 10 V | ±30V | 3720 pF @ 10 V | - | 90W (Tc) | 150°C (TJ) | - | - | Through Hole | TO-3P(N)IS |
|
|
2SK2967(F)MOSFET N-CH 250V 30A TO3P |
6,449 |
|
데이터시트 |
- | TO-3P-3, SC-65-3 | Tray | Obsolete | N-Channel | MOSFET (Metal Oxide) | 250 V | 30A (Ta) | 10V | 68mOhm @ 15A, 10V | 3.5V @ 1mA | 132 nC @ 10 V | ±20V | 5400 pF @ 10 V | - | 150W (Tc) | 150°C (TJ) | - | - | Through Hole | TO-3P(N) |
|
2SK2993(TE24L,Q)MOSFET N-CH 250V 20A TO220SM |
3,849 |
|
데이터시트 |
- | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 250 V | 20A (Ta) | 10V | 105mOhm @ 10A, 10V | 3.5V @ 1mA | 100 nC @ 10 V | ±20V | 4000 pF @ 10 V | - | 100W (Tc) | 150°C (TJ) | - | - | Surface Mount | TO-220SM |
