FET, MOSFET
| 사진 | 제조업체 부품 번호 | 재고 상태 | 수량 | 데이터시트 | 시리즈 | 패키지/케이스 | 패키징 | 제품 상태 | FET 유형 | 기술 | 드레인-소스 전압(Vdss) | 전류 - 연속 드레인(Id) @ 25°C | 구동 전압(최대 Rds 켜짐, 최소 Rds 켜짐) | Rds 켜짐(최대) @ Id, Vgs | Vgs(th) (최대) @ Id | 게이트 충전(Qg) (최대) @ Vgs | Vgs (최대) | 입력 커패시턴스(Ciss) (최대) @ Vds | FET 기능 | 전력 소모(최대) | 작동 온도 | 등급 | 자격 | 장착 유형 | 공급자 장치 패키지 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IXTA70N085TMOSFET N-CH 85V 70A TO263 |
3,320 |
|
데이터시트 |
TrenchMV™ | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 85 V | 70A (Tc) | 10V | 13.5mOhm @ 25A, 10V | 4V @ 50µA | 59 nC @ 10 V | ±20V | 2570 pF @ 25 V | - | 176W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | TO-263AA |
|
|
IXTA76N075TMOSFET N-CH 75V 76A TO263 |
9,341 |
|
데이터시트 |
TrenchMV™ | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 75 V | 76A (Tc) | 10V | 12mOhm @ 25A, 10V | 4V @ 50µA | 57 nC @ 10 V | ±20V | 2580 pF @ 25 V | - | 176W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | TO-263AA |
|
|
IXTA88N085TMOSFET N-CH 85V 88A TO263 |
2,748 |
|
데이터시트 |
TrenchMV™ | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 85 V | 88A (Tc) | 10V | 11mOhm @ 25A, 10V | 4V @ 100µA | 69 nC @ 10 V | ±20V | 3140 pF @ 25 V | - | 230W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | TO-263AA |
|
|
IXTA90N055TMOSFET N-CH 55V 90A TO263 |
7,717 |
|
데이터시트 |
TrenchT2™ | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 55 V | 90A (Tc) | 10V | 8.8mOhm @ 25A, 10V | 4V @ 50µA | 61 nC @ 10 V | ±20V | 2500 pF @ 25 V | - | 176W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | TO-263AA |
|
|
IXTA98N075TMOSFET N-CH 75V 98A TO263 |
4,343 |
|
데이터시트 |
- | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 75 V | 98A (Tc) | 10V | - | 4V @ 100µA | - | ±20V | - | - | 230W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | TO-263AA |
|
IXTC160N085TMOSFET N-CH 85V 110A ISOPLUS220 |
4,564 |
|
데이터시트 |
- | ISOPLUS220™ | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 85 V | 110A (Tc) | - | - | - | - | - | - | - | - | - | - | - | Through Hole | ISOPLUS220™ |
|
IXTC180N085TMOSFET N-CH 85V 110A ISOPLUS220 |
7,789 |
|
데이터시트 |
- | ISOPLUS220™ | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 85 V | 110A (Tc) | 10V | 6.1mOhm @ 25A, 10V | 4V @ 250µA | 170 nC @ 10 V | ±20V | 8800 pF @ 25 V | - | 150W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | ISOPLUS220™ |
|

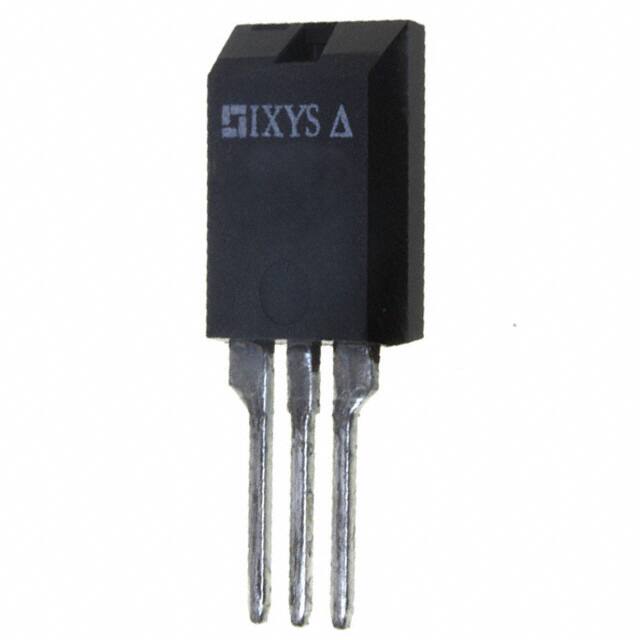

IXTC220N055TMOSFET N-CH 55V 130A ISOPLUS220 |
7,256 |
|
데이터시트 |
TrenchMV™ | ISOPLUS220™ | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 55 V | 130A (Tc) | 10V | 4.4mOhm @ 25A, 10V | 4V @ 250µA | 158 nC @ 10 V | ±20V | 7200 pF @ 25 V | - | 150W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | ISOPLUS220™ |
|
IXTC220N075TMOSFET N-CH 75V 115A ISOPLUS220 |
2,913 |
|
데이터시트 |
TrenchMV™ | ISOPLUS220™ | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 75 V | 115A (Tc) | 10V | 5mOhm @ 25A, 10V | 4V @ 250µA | 165 nC @ 10 V | ±20V | 7700 pF @ 25 V | - | 150W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | ISOPLUS220™ |
|
IXTC240N055TMOSFET N-CH 55V 132A ISOPLUS220 |
6,798 |
|
데이터시트 |
TrenchMV™ | ISOPLUS220™ | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 55 V | 132A (Tc) | 10V | 4mOhm @ 50A, 10V | 4V @ 1mA | 170 nC @ 10 V | ±20V | 7600 pF @ 25 V | - | 150W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | ISOPLUS220™ |
|

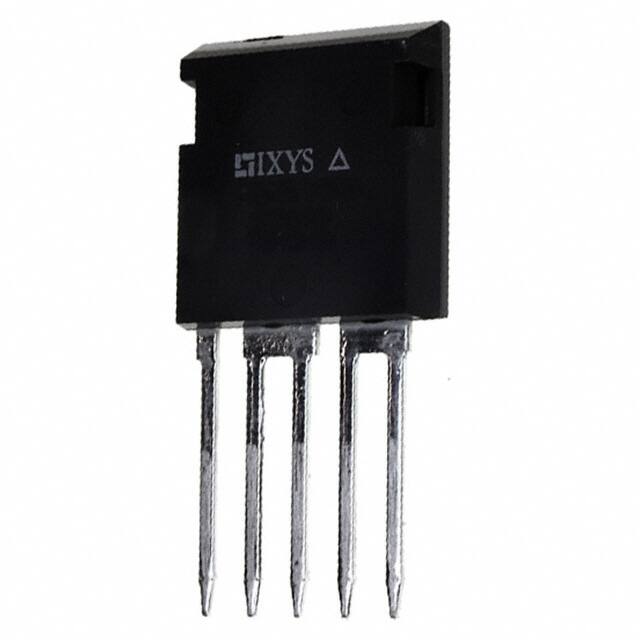

IXTF230N085TMOSFET N-CH 85V 130A I4PAC |
7,250 |
|
데이터시트 |
TrenchMV™ | i4-Pac™-5 | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 85 V | 130A (Tc) | 10V | 5.3mOhm @ 50A, 10V | 4V @ 250mA | 187 nC @ 10 V | ±20V | 9900 pF @ 25 V | - | 200W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | ISOPLUS i4-PAC™ |
|
IXTF250N075TMOSFET N-CH 75V 140A I4PAC |
5,858 |
|
데이터시트 |
TrenchMV™ | i4-Pac™-5 | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 75 V | 140A (Tc) | 10V | 4.4mOhm @ 50A, 10V | 4V @ 250µA | 200 nC @ 10 V | ±20V | 9900 pF @ 25 V | - | 200W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | ISOPLUS i4-PAC™ |
.jpg)
|
IXTH152N085TMOSFET N-CH 85V 152A TO247 |
5,540 |
|
데이터시트 |
TrenchMV™ | TO-247-3 | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 85 V | 152A (Tc) | 10V | 7mOhm @ 25A, 10V | 4V @ 250µA | 114 nC @ 10 V | ±20V | 5500 pF @ 25 V | - | 360W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-247 (IXTH) |
|
|
IXTH160N075TMOSFET N-CH 75V 160A TO247 |
8,127 |
|
데이터시트 |
TrenchMV™ | TO-247-3 | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 75 V | 160A (Tc) | 10V | 6mOhm @ 25A, 10V | 4V @ 250µA | 112 nC @ 10 V | ±20V | 4950 pF @ 25 V | - | 360W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-247 (IXTH) |
|
|
IXTH16P20MOSFET P-CH 200V 16A TO247 |
6,016 |
|
데이터시트 |
- | TO-247-3 | Tube | Obsolete | P-Channel | MOSFET (Metal Oxide) | 200 V | 16A (Tc) | 10V | 160mOhm @ 500mA, 10V | 5V @ 250µA | 95 nC @ 10 V | ±20V | 2800 pF @ 25 V | - | 300W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-247 (IXTH) |
|
|
IXTH182N055TMOSFET N-CH 55V 182A TO247 |
3,699 |
|
데이터시트 |
TrenchMV™ | TO-247-3 | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 55 V | 182A (Tc) | 10V | 5mOhm @ 25A, 10V | 4V @ 250µA | 114 nC @ 10 V | ±20V | 4850 pF @ 25 V | - | 360W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-247 (IXTH) |
|
|
IXTH200N075TMOSFET N-CH 75V 200A TO247 |
6,449 |
|
데이터시트 |
- | TO-247-3 | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 75 V | 200A (Tc) | 10V | 5mOhm @ 25A, 10V | 4V @ 250µA | 160 nC @ 10 V | ±20V | 6800 pF @ 25 V | - | 430W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-247 (IXTH) |
|
|
IXTH200N085TMOSFET N-CH 85V 200A TO247 |
3,147 |
|
데이터시트 |
TrenchMV™ | TO-247-3 | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 85 V | 200A (Tc) | 10V | 5mOhm @ 25A, 10V | 4V @ 250µA | 152 nC @ 10 V | ±20V | 7600 pF @ 25 V | - | 480W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-247 (IXTH) |
|
|
IXTH220N055TMOSFET N-CH 55V 220A TO247 |
2,388 |
|
데이터시트 |
TrenchMV™ | TO-247-3 | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 55 V | 220A (Tc) | 10V | 4mOhm @ 25A, 10V | 4V @ 250µA | 158 nC @ 10 V | ±20V | 7200 pF @ 25 V | - | 430W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-247 (IXTH) |
|
|
IXTH220N075TMOSFET N-CH 75V 220A TO247 |
8,502 |
|
데이터시트 |
TrenchMV™ | TO-247-3 | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 75 V | 220A (Tc) | 10V | 4.5mOhm @ 25A, 10V | 4V @ 250µA | 165 nC @ 10 V | ±20V | 7700 pF @ 25 V | - | 480W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-247 (IXTH) |
