DC 무브러시 팬(BLDC)
| 사진 | 제조업체 부품 번호 | 재고 상태 | 수량 | 데이터시트 | 시리즈 | 패키징 | 제품 상태 | 전압 - 정격 | 크기/치수 | 너비 | 공기 흐름 | 정압 | 베어링 유형 | 팬 유형 | 기능 | 소음 | 전력(와트) | RPM | 종단 | 침투 방지 | 작동 온도 | 승인 기관 | 무게 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

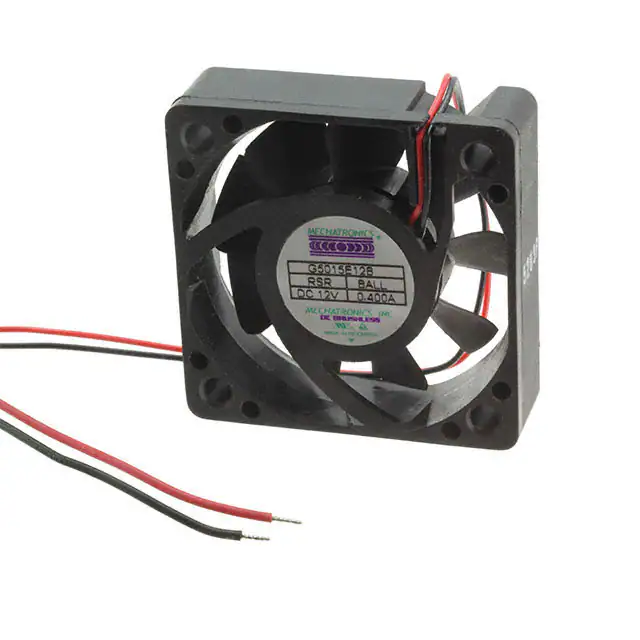

G5015M12B-RSRFAN AXIAL 50X15MM 12VDC WIRE |
0 |
|
데이터시트 |
G5015 | Bulk | Active | 12VDC | Square - 50mm L x 50mm H | 15.00mm | 11.0 CFM (0.308m³/min) | 0.110 in H2O (27.4 Pa) | Ball | Tubeaxial | Thermal Overload Protector (TOP) | 24.0dB(A) | - | 4500 RPM | 2 Wire Leads | - | - | CE, cUL, TUV, UL | 0.077 lb (34.93 g) |
|
|
G5015M24B-RSRFAN AXIAL 50X15MM 24VDC WIRE |
0 |
|
데이터시트 |
G5015 | Bulk | Active | 24VDC | Square - 50mm L x 50mm H | 15.00mm | 11.0 CFM (0.308m³/min) | 0.110 in H2O (27.4 Pa) | Ball | Tubeaxial | Thermal Overload Protector (TOP) | 24.0dB(A) | - | 4500 RPM | 2 Wire Leads | - | - | CE, cUL, TUV, UL | 0.077 lb (34.93 g) |
|
|
G5015S24B-RSRFAN AXIAL 50X15MM 24VDC WIRE |
0 |
|
데이터시트 |
G5015 | Bulk | Active | 24VDC | Square - 50mm L x 50mm H | 15.00mm | 5.0 CFM (0.140m³/min) | 0.040 in H2O (10.0 Pa) | Ball | Tubeaxial | Thermal Overload Protector (TOP) | 20.0dB(A) | - | 2500 RPM | 2 Wire Leads | - | - | CE, cUL, TUV, UL | 0.077 lb (34.93 g) |
|
G8020E12B1-RSRFAN AXIAL 80X20.8MM 12VDC WIRE |
0 |
|
데이터시트 |
G8020 | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 20.80mm | 49.0 CFM (1.37m³/min) | 0.200 in H2O (49.8 Pa) | Ball | Tubeaxial | Speed Sensor (Tach), Thermal Overload Protector (TOP) | 37.0dB(A) | - | 4000 RPM | 3 Wire Leads | - | - | CE, cUL, TUV, UL | 0.185 lb (83.91 g) |
|
|
G8020E24B1-RSR-TTLFAN AXIAL 80X20.8MM 24VDC WIRE |
0 |
|
데이터시트 |
G8020 | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 20.80mm | 49.0 CFM (1.37m³/min) | 0.200 in H2O (49.8 Pa) | Ball | Tubeaxial | Speed Sensor (Tach), Thermal Overload Protector (TOP) | 37.0dB(A) | - | 4000 RPM | 3 Wire Leads | - | - | CE, cUL, TUV, UL | 0.185 lb (83.91 g) |
|
|
G8020H12B1-RSRFAN AXIAL 80X20.8MM 12VDC WIRE |
0 |
|
데이터시트 |
G8020 | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 20.80mm | 43.0 CFM (1.20m³/min) | 0.170 in H2O (42.3 Pa) | Ball | Tubeaxial | Speed Sensor (Tach), Thermal Overload Protector (TOP) | 33.0dB(A) | - | 3500 RPM | 3 Wire Leads | - | - | CE, cUL, TUV, UL | 0.185 lb (83.91 g) |
|
|
G8020L12B1-RSRFAN AXIAL 80X20.8MM 12VDC WIRE |
0 |
|
데이터시트 |
G8020 | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 20.80mm | 31.0 CFM (0.868m³/min) | 0.100 in H2O (24.9 Pa) | Ball | Tubeaxial | Speed Sensor (Tach), Thermal Overload Protector (TOP) | 25.0dB(A) | - | 2500 RPM | 3 Wire Leads | - | - | CE, cUL, TUV, UL | 0.185 lb (83.91 g) |
|
|
G8020S12B1-RSRFAN AXIAL 80X20.8MM 12VDC WIRE |
0 |
|
데이터시트 |
G8020 | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 20.80mm | 24.0 CFM (0.672m³/min) | 0.060 in H2O (14.9 Pa) | Ball | Tubeaxial | Speed Sensor (Tach), Thermal Overload Protector (TOP) | 22.0dB(A) | - | 2000 RPM | 3 Wire Leads | - | - | CE, cUL, TUV, UL | 0.185 lb (83.91 g) |
|
G8020E24B1-RSR-WSFAN AXIAL 80X20.8MM 24VDC WIRE |
0 |
|
데이터시트 |
G8020 | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 20.80mm | 49.0 CFM (1.37m³/min) | 0.200 in H2O (49.8 Pa) | Ball | Tubeaxial | Alarm Sensor, Speed Sensor (Tach), Thermal Overload Protector (TOP) | 37.0dB(A) | - | 4000 RPM | 4 Wire Leads | - | - | CE, cUL, TUV, UL | 0.185 lb (83.91 g) |
|
|
G8020M24B2-FSR-WSFAN AXIAL 80X20.8MM 24VDC WIRE |
0 |
|
데이터시트 |
G8020 | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 20.80mm | 38.0 CFM (1.06m³/min) | 0.130 in H2O (32.4 Pa) | Ball | Tubeaxial | Alarm Sensor, Locked Rotor Sensor, Thermal Overload Protector (TOP) | 29.0dB(A) | - | 3000 RPM | 4 Wire Leads | - | - | CE, cUL, TUV, UL | 0.185 lb (83.91 g) |
|
|
G8025E12B2-FSRFAN 80X25MM BALL 12VDC WIRE |
0 |
|
데이터시트 |
G8025 | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 25.00mm | - | - | Ball | - | Locked Rotor Sensor | - | - | - | 3 Wire Leads | - | - | CE, cUL, TUV, UL | - |
|
|
G8025H12B2-FSRFAN 80X25MM BALL 12VDC WIRE |
0 |
|
데이터시트 |
G8025 | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 25.00mm | - | - | Ball | - | Locked Rotor Sensor | - | - | - | 3 Wire Leads | - | - | CE, cUL, TUV, UL | - |
|
|
2004KL-01W-B39-B00FAN AXIAL 50X10MM BALL 5VDC WIRE |
0 |
|
데이터시트 |
2004KL | Box | Active | 5VDC | Square - 50mm L x 50mm H | 10.00mm | 6.4 CFM (0.179m³/min) | 0.064 in H2O (16.0 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 23.0dB | 500 mW | 3500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.044 lb (19.96 g) |
|
|
2004KL-01W-B39-B50FAN AXIAL 50X10MM BALL 5VDC WIRE |
0 |
|
데이터시트 |
2004KL | Box | Active | 5VDC | Square - 50mm L x 50mm H | 10.00mm | 6.4 CFM (0.179m³/min) | 0.064 in H2O (16.0 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 23.0dB | 500 mW | 3500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.044 lb (19.96 g) |
|
|
2004KL-01W-B49-B00FAN AXIAL 50X10MM BALL 5VDC WIRE |
0 |
|
데이터시트 |
2004KL | Box | Active | 5VDC | Square - 50mm L x 50mm H | 10.00mm | 8.1 CFM (0.227m³/min) | 0.104 in H2O (26.0 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 28.5dB | 800 mW | 4500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.044 lb (19.96 g) |
|
|
2004KL-01W-B49-B50FAN AXIAL 50X10MM BALL 5VDC WIRE |
0 |
|
데이터시트 |
2004KL | Box | Active | 5VDC | Square - 50mm L x 50mm H | 10.00mm | 8.1 CFM (0.227m³/min) | 0.104 in H2O (26.0 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 28.5dB | 800 mW | 4500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.044 lb (19.96 g) |
|
|
2004KL-01W-B59-B50FAN AXIAL 50X10MM BALL 5VDC WIRE |
0 |
|
데이터시트 |
2004KL | Box | Active | 5VDC | Square - 50mm L x 50mm H | 10.00mm | 10.2 CFM (0.286m³/min) | 0.140 in H2O (34.9 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 34.0dB | 1.5 W | 5500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.044 lb (19.96 g) |
|
|
2004KL-04W-B39-B00FAN AXIAL 50X10MM 12VDC WIRE |
0 |
|
데이터시트 |
2004KL | Box | Active | 12VDC | Square - 50mm L x 50mm H | 10.00mm | 6.4 CFM (0.179m³/min) | 0.064 in H2O (16.0 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 23.0dB | 480 mW | 3500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.044 lb (19.96 g) |
|
|
2004KL-04W-B39-B50FAN AXIAL 50X10MM 12VDC WIRE |
0 |
|
데이터시트 |
2004KL | Box | Active | 12VDC | Square - 50mm L x 50mm H | 10.00mm | 6.4 CFM (0.179m³/min) | 0.064 in H2O (16.0 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 23.0dB | 480 mW | 3500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.044 lb (19.96 g) |
|
|
2004KL-04W-B49-B00FAN AXIAL 50X10MM 12VDC WIRE |
0 |
|
데이터시트 |
2004KL | Box | Active | 12VDC | Square - 50mm L x 50mm H | 10.00mm | 8.1 CFM (0.227m³/min) | 0.104 in H2O (26.0 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 28.5dB | 840 mW | 4500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.044 lb (19.96 g) |
