DC 무브러시 팬(BLDC)
| 사진 | 제조업체 부품 번호 | 재고 상태 | 수량 | 데이터시트 | 시리즈 | 패키징 | 제품 상태 | 전압 - 정격 | 크기/치수 | 너비 | 공기 흐름 | 정압 | 베어링 유형 | 팬 유형 | 기능 | 소음 | 전력(와트) | RPM | 종단 | 침투 방지 | 작동 온도 | 승인 기관 | 무게 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
OD2510-12LSFAN AXIAL 25X10MM 12VDC WIRE |
0 |
|
데이터시트 |
OD2510 | Bulk | Active | 12VDC | Square - 25mm L x 25mm H | 10.00mm | 1.8 CFM (0.050m³/min) | 0.120 in H2O (29.9 Pa) | Sleeve | Tubeaxial | Auto Restart | 16.0dB | 840 mW | 8000 RPM | 2 Wire Leads | - | 14 ~ 122°F (-10 ~ 50°C) | cURus, TUV | 0.022 lb (9.98 g) |
|
DC0701512J2B-2T2FAN 70X15MM 12VDC MOLEX 22-01-10 |
0 |
|
데이터시트 |
- | Bulk | Active | 12VDC | Square - 70mm L x 70mm H | 15.00mm | 21.1 CFM (0.591m³/min) | 0.090 in H2O (22.4 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 27.0dB(A) | 1.2 W | 2800 RPM | 2 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|

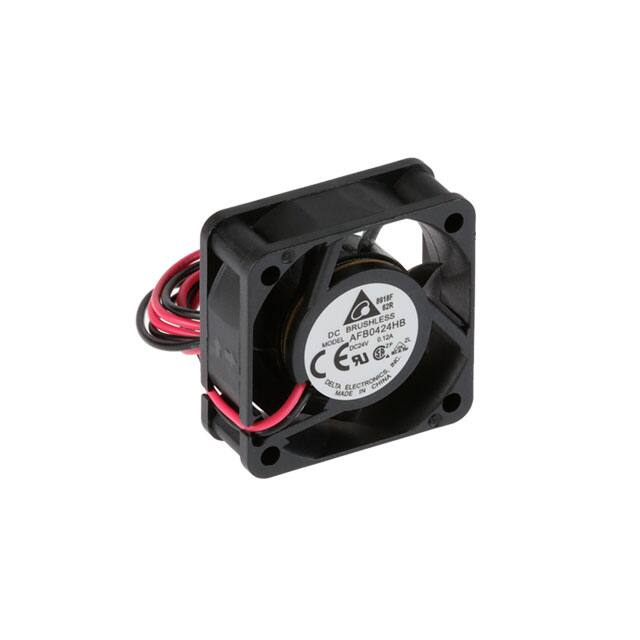

AFB0424HBFAN AXIAL 40X15MM 24VDC WIRE |
0 |
|
데이터시트 |
AFB | Box | Active | 24VDC | Square - 40mm L x 40mm H | 15.00mm | 9.5 CFM (0.266m³/min) | 0.272 in H2O (67.7 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 28.5dB(A) | 1.92 W | 7000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.057 lb (25.85 g) |
|
|
DC0602024U2B-2T2FAN 60X20MM 24VDC MOLEX 22-01-10 |
0 |
|
데이터시트 |
- | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 20.00mm | 19.6 CFM (0.549m³/min) | 0.270 in H2O (67.3 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 33.0dB(A) | 3.46 W | 4800 RPM | 2 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|
|
DC0602024H2B-2T2FAN 60X20MM 24VDC MOLEX 22-01-10 |
0 |
|
데이터시트 |
- | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 20.00mm | 18.1 CFM (0.507m³/min) | 0.230 in H2O (57.3 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 31.0dB(A) | 2.88 W | 4400 RPM | 2 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|
|
DC0601024U2B-2T2FAN 60X10MM 24VDC MOLEX 22-01-10 |
0 |
|
데이터시트 |
- | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 10.50mm | 19.9 CFM (0.557m³/min) | 0.160 in H2O (39.8 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 37.0dB(A) | 4.8 W | 4900 RPM | 2 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|
|
DC0501524U2B-2T2FAN 50X15MM 24VDC MOLEX 22-01-10 |
0 |
|
데이터시트 |
- | Bulk | Active | 24VDC | Square - 50mm L x 50mm H | 15.00mm | 17.0 CFM (0.476m³/min) | 0.230 in H2O (57.3 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 36.0dB(A) | 3.12 W | 6000 RPM | 2 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|
|
DC0601024M2B-2T2FAN 60X10MM 24VDC MOLEX 22-01-10 |
0 |
|
데이터시트 |
- | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 10.50mm | 17.1 CFM (0.479m³/min) | 0.120 in H2O (29.9 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 33.0dB(A) | 4.08 W | 4200 RPM | 2 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|
|
DC0601005M2B-2T2FAN 60X10MM 5VDC MOLEX 22-01-102 |
0 |
|
데이터시트 |
- | Bulk | Active | 5VDC | Square - 60mm L x 60mm H | 10.50mm | 17.1 CFM (0.479m³/min) | 0.120 in H2O (29.9 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 33.0dB(A) | 850 mW | 4200 RPM | 2 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|
|
DC0601524U2B-2T2FAN 60X15MM 24VDC MOLEX 22-01-10 |
0 |
|
데이터시트 |
- | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 15.00mm | 26.5 CFM (0.742m³/min) | 0.230 in H2O (57.3 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 37.0dB(A) | 6.24 W | 5000 RPM | 2 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|
|
DC0601005U2B-2T2FAN 60X10MM 5VDC MOLEX 22-01-102 |
0 |
|
데이터시트 |
- | Bulk | Active | 5VDC | Square - 60mm L x 60mm H | 10.50mm | 19.9 CFM (0.557m³/min) | 0.160 in H2O (39.8 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 37.0dB(A) | 1 W | 4900 RPM | 2 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|
|
DC0602024M2B-2T2FAN 60X20MM 24VDC MOLEX 22-01-10 |
0 |
|
데이터시트 |
- | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 20.00mm | 16.4 CFM (0.459m³/min) | 0.190 in H2O (47.3 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 29.0dB(A) | 2.64 W | 4000 RPM | 2 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|
|
DC0502024H2B-2T2FAN 50X20MM 24VDC MOLEX 22-01-10 |
0 |
|
데이터시트 |
- | Bulk | Active | 24VDC | Square - 50mm L x 50mm H | 20.00mm | 20.3 CFM (0.568m³/min) | 0.300 in H2O (74.7 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 38.0dB(A) | 7.2 W | 7000 RPM | 2 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|

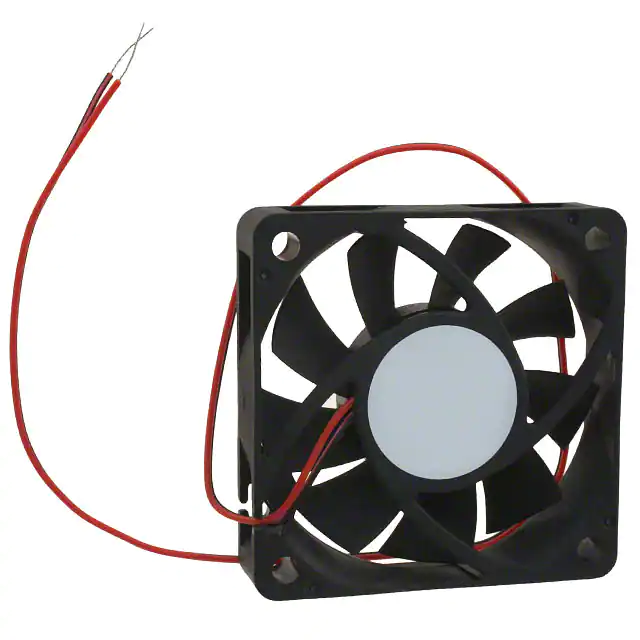

AFB0612VHCFAN AXIAL 60X13MM 12VDC WIRE |
0 |
|
데이터시트 |
AFB | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 13.00mm | 27.7 CFM (0.776m³/min) | 0.252 in H2O (62.8 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 38.0dB(A) | 2.88 W | 5400 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.074 lb (33.56 g) |
|
AFB0612MCFAN AXIAL 60X13MM 12VDC WIRE |
0 |
|
데이터시트 |
AFB | Box | Active | 12VDC | Square - 60mm L x 60mm H | 13.00mm | 18.2 CFM (0.510m³/min) | 0.119 in H2O (29.6 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 28.0dB(A) | 1.32 W | 3600 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.074 lb (33.56 g) |
|
|
DC0701524H2B-2T2FAN 70X15MM 24VDC MOLEX 22-01-10 |
0 |
|
데이터시트 |
- | Bulk | Active | 24VDC | Square - 70mm L x 70mm H | 15.00mm | 33.5 CFM (0.938m³/min) | 0.220 in H2O (54.8 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 39.0dB(A) | 6 W | 4300 RPM | 2 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|
|
DC0801524H2B-BT0FAN 80X15MM 24VDC PWM/TACH |
0 |
|
데이터시트 |
- | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 15.00mm | 37.6 CFM (1.05m³/min) | 0.150 in H2O (37.3 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 36.0dB(A) | 3.84 W | 3600 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|
|
DC0701524M2B-2T2FAN 70X15MM 24VDC MOLEX 22-01-10 |
0 |
|
데이터시트 |
- | Bulk | Active | 24VDC | Square - 70mm L x 70mm H | 15.00mm | 29.6 CFM (0.829m³/min) | 0.170 in H2O (42.3 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 35.0dB(A) | 4.08 W | 3800 RPM | 2 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|
G5015E24B-RSRFAN AXIAL 50X15MM 24VDC WIRE |
0 |
|
데이터시트 |
G5015 | Bulk | Active | 24VDC | Square - 50mm L x 50mm H | 15.00mm | 16.0 CFM (0.448m³/min) | 0.220 in H2O (54.8 Pa) | Ball | Tubeaxial | Thermal Overload Protector (TOP) | 34.0dB(A) | - | 6500 RPM | 2 Wire Leads | - | - | CE, cUL, TUV, UL | 0.077 lb (34.93 g) |
|
|
G5015H05B-RSRFAN AXIAL 50X15MM BALL 5VDC WIRE |
0 |
|
데이터시트 |
G5015 | Bulk | Active | 5VDC | Square - 50mm L x 50mm H | 15.00mm | 13.0 CFM (0.364m³/min) | 0.170 in H2O (42.3 Pa) | Ball | Tubeaxial | Thermal Overload Protector (TOP) | 29.0dB(A) | - | 5500 RPM | 2 Wire Leads | - | - | CE, cUL, TUV, UL | 0.077 lb (34.93 g) |
