방열판
| 사진 | 제조업체 부품 번호 | 재고 상태 | 수량 | 데이터시트 | 시리즈 | 패키징 | 제품 상태 | 유형 | 패키지 냉각 | 부착 방법 | 모양 | 길이 | 너비 | 직경 | 핀 높이 | 온도 상승 시 전력 소모 | 강제 공기 흐름 시 열 저항 | 자연 시 열 저항 | 소재 | 재료 마감 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ATS-1141-C1-R01/4 BRICK HEATSINK 37X58X22.9MM |
871 |
|
데이터시트 |
maxiFLOW | Bulk | Active | Top Mount | Quarter Brick DC/DC Converter | Bolt On | Rectangular, Angled Fins | 1.457" (37.00mm) | 2.323" (59.00mm) | - | 0.902" (22.90mm) | - | 1.60°C/W @ 200 LFM | - | Aluminum | Gold Anodized |
|
ATS-61400R-C1-R0MAXIGRIP FANSINK 40X40X19.5MM |
313 |
|
데이터시트 |
fanSINK, maxiGRIP | Bulk | Active | Top Mount | BGA | Clip, Thermal Material | Square, Pin Fins | 1.575" (40.00mm) | 1.575" (40.00mm) | - | 0.768" (19.50mm) | - | 1.50°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|
ATS-61310W-C2-R0MAXIGRIP FANSINK 31X31X24.5MM |
152 |
|
데이터시트 |
fanSINK, maxiGRIP | Bulk | Active | Top Mount | BGA | Clip, Thermal Material | Square, Pin Fins | 1.220" (31.00mm) | 1.220" (31.00mm) | - | 0.965" (24.50mm) | - | 1.65°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|

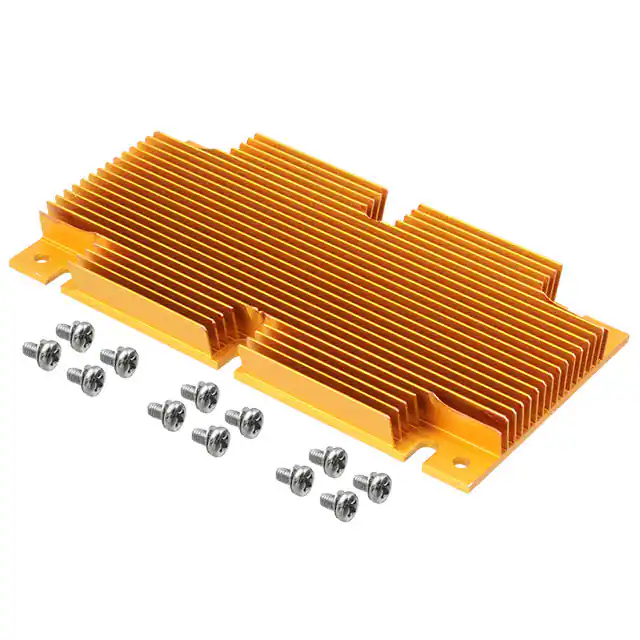

ATS-1109-C1-R0FULL BRICK HEATSINK 117X61X11.4M |
175 |
|
데이터시트 |
maxiFLOW | Bulk | Active | Top Mount | Full Brick DC/DC Converter | Bolt On | Rectangular, Angled Fins | 4.598" (116.80mm) | 2.401" (61.00mm) | - | 0.449" (11.40mm) | - | 5.20°C/W @ 200 LFM | - | Aluminum | Gold Anodized |
|
101110061ACTIVE HEAT SINK FOR JETSON NANO |
112 |
|
데이터시트 |
- | Bulk | Active | Top Mount | Nvidia Jetson Nano | Bolt On and Thermal Tape, Adhesive (Included) | Rectangular | 2.244" (57.00mm) | 1.614" (41.00mm) | - | - | - | - | - | - | - |
|

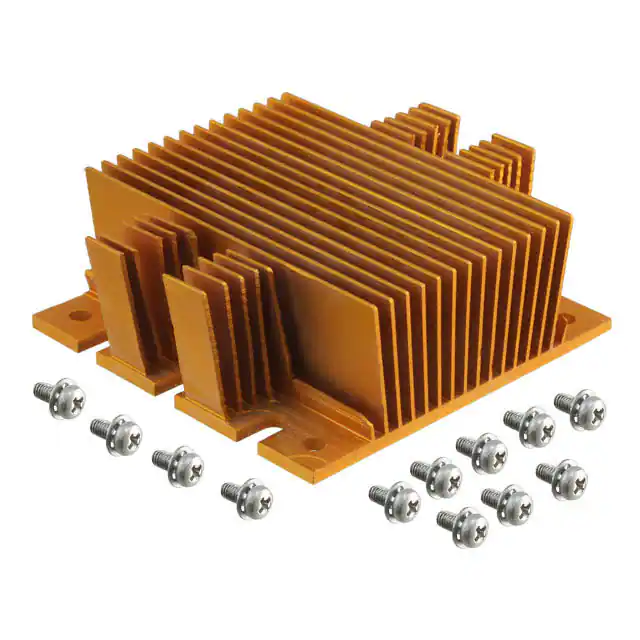

ATS-1146-C1-R01/2 BRICK HEATSINK 58X61X22.9MM |
319 |
|
데이터시트 |
maxiFLOW | Bulk | Active | Top Mount | Half Brick DC/DC Converter | Bolt On | Rectangular, Angled Fins | 2.323" (59.00mm) | 2.401" (61.00mm) | - | 0.902" (22.90mm) | - | 1.30°C/W @ 200 LFM | - | Aluminum | Gold Anodized |
|
ATS-61500W-C2-R0FANSINK ASSEMBLY W/ MOUNTING HAR |
159 |
|
데이터시트 |
fanSINK™ | Bulk | Active | Top Mount | BGA | Push Pin, Thermal Material | Square, Pin Fins | 2.087" (53.02mm) | 2.087" (53.02mm) | - | 0.965" (24.50mm) | - | - | - | - | - |
|

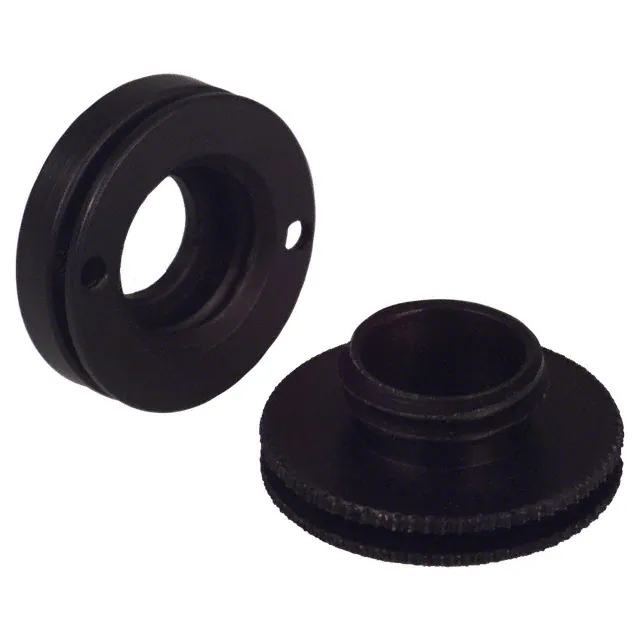

321527B00000GHEATSINK TO-5 2W BLK |
664 |
|
데이터시트 |
- | Bag | Active | Top Mount | TO-5, TO-39 | Threaded Coupling | Cylindrical | - | - | 0.750" (19.05mm) OD | 0.290" (7.37mm) | 0.5W @ 20°C | 20.00°C/W @ 300 LFM | 35.20°C/W | Aluminum | Black Anodized |
|
ATS-X50230P-C1-R0SUPERGRIP HEATSINK 23X23X17.5MM |
714 |
|
데이터시트 |
maxiFLOW, superGRIP™ | Bulk | Active | Top Mount | BGA | Clip, Thermal Material | Square, Angled Fins | 0.900" (23.00mm) | 0.906" (23.01mm) | - | 0.689" (17.50mm) | - | 5.10°C/W @ 200 LFM | - | Aluminum | Blue Anodized |
|

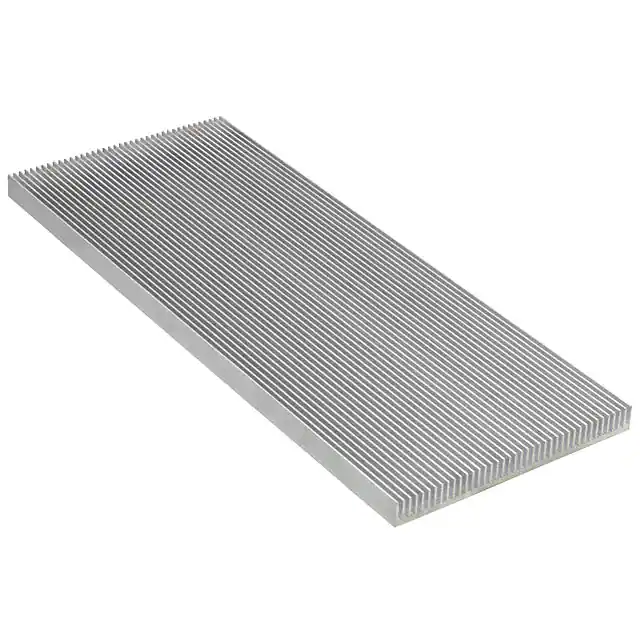

ATS-EXL1-254-R0HEATSINK AL6063 254X100X10MM |
472 |
|
데이터시트 |
- | Bulk | Active | Top Mount, Extrusion | - | Adhesive | Rectangular, Fins | 10.000" (254.00mm) | 3.967" (100.76mm) | - | 0.394" (10.00mm) | - | 2.20°C/W @ 200 LFM | 15.00°C/W | Aluminum | Degreased |
|

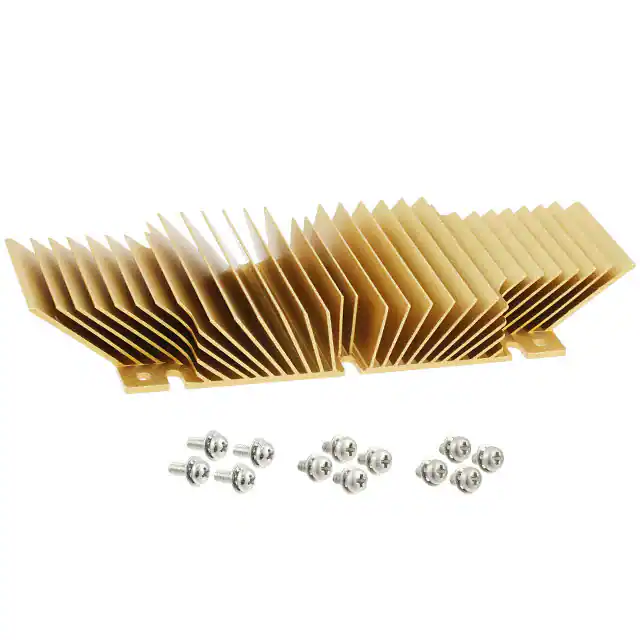

ATS-1151-C1-R0FULL BRICK HEATSINK 61X118X20MM |
1,910 |
|
데이터시트 |
maxiFLOW | Bulk | Active | Top Mount | Full Brick DC/DC Converter | Bolt On | Rectangular, Angled Fins | 2.402" (61.00mm) | 4.646" (118.00mm) | - | 0.769" (19.55mm) | - | 0.50°C/W @ 200 LFM | - | Aluminum | Gold Anodized |
|

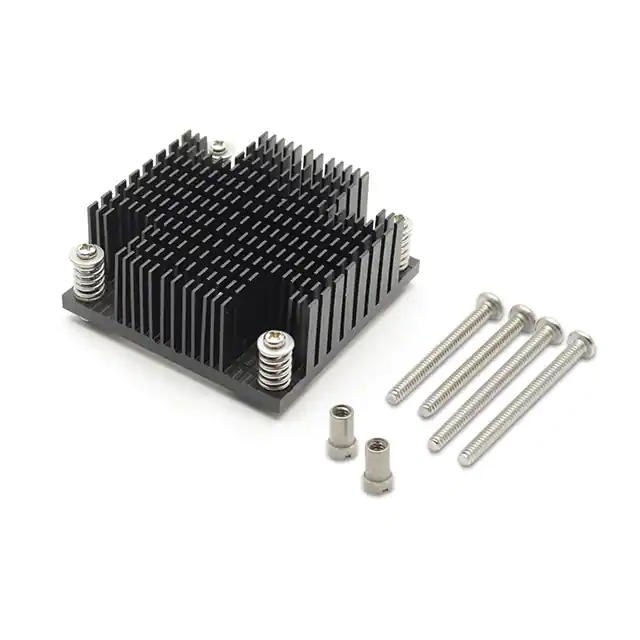

ATS-61600W-C2-R0FANSINK ASSEMBLY W/ MOUNTING HAR |
462 |
|
데이터시트 |
fanSINK™ | Bulk | Active | Top Mount | BGA | Push Pin, Thermal Material | Square, Pin Fins | 2.480" (63.00mm) | 2.480" (63.00mm) | - | 0.965" (24.50mm) | - | - | - | - | - |
|
394-1ABHEATSINK 3X1.5X5" SSR/IGBT/POWER |
114 |
|
데이터시트 |
394 | Bulk | Active | Top Mount | Power Modules | Bolt On | Rectangular, Fins | 3.000" (76.20mm) | 5.000" (127.00mm) | - | 1.500" (38.10mm) | - | 0.90°C/W @ 500 LFM | 1.80°C/W | Aluminum | Black Anodized |
|
FHP27-27-20/T710/MFAN AXIAL 26.6X20.9MM 5VDC 2510 |
146 |
|
데이터시트 |
FHP | Tray | Active | Board Level with Fan | - | Clip, Tape | Square, Fins | 1.063" (27.00mm) | 1.063" (27.00mm) | - | 0.790" (20.00mm) | - | - | 3.35°C/W | - | - |
|
ACC-HS4-SETACC HEATSINK ME ACC-HS4 |
165 |
|
데이터시트 |
ACC-HS4 | Box | Active | - | - | Bolt On | Rectangular | 2.913" (74.00mm) | 2.126" (54.00mm) | - | 0.571" (14.50mm) | - | - | - | - | - |
|
ACC-HS3-SETACC HEATSINK ME ACC-HS3 |
105 |
|
데이터시트 |
- | Box | Active | - | - | Bolt On | Rectangular | 2.205" (56.00mm) | 1.063" (27.00mm) | - | 0.571" (14.50mm) | - | - | - | - | - |
|

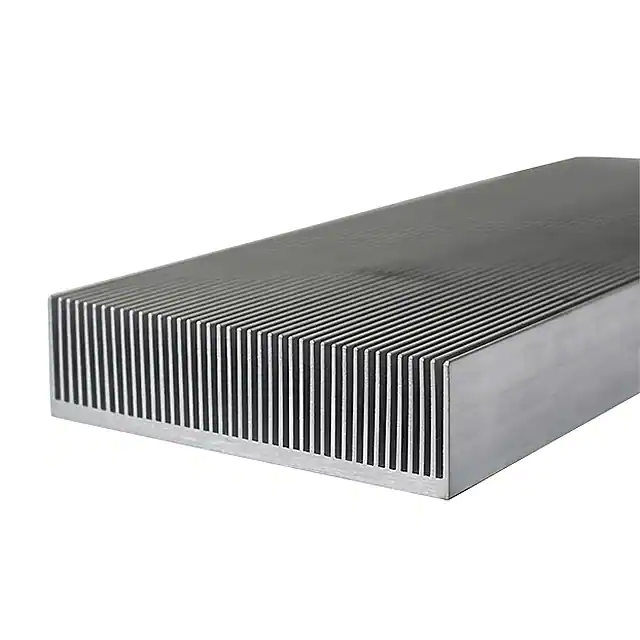

ATS-EXL6-254-R0HEATSINK AL6063 254X100X27MM |
135 |
|
데이터시트 |
- | Bulk | Active | Top Mount, Extrusion | - | Adhesive | Rectangular, Fins | 10.000" (254.00mm) | 3.967" (100.76mm) | - | 1.063" (27.00mm) | - | 0.70°C/W @ 200 LFM | 7.90°C/W | Aluminum | Degreased |
|

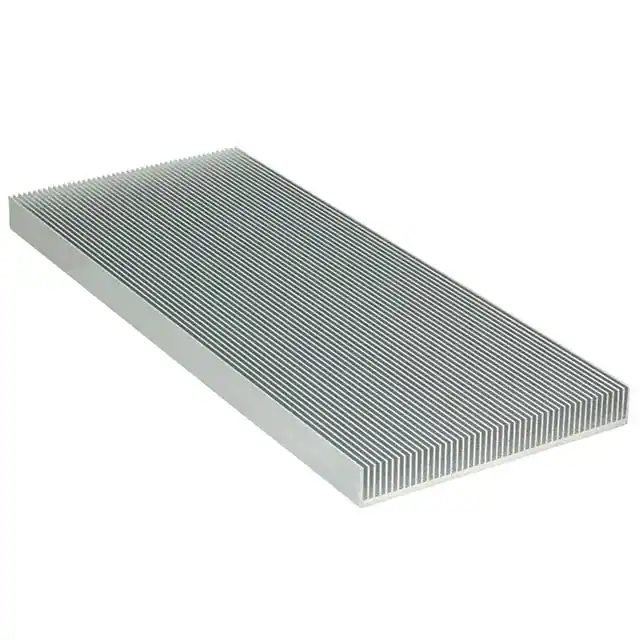

ATS-EXL77-300-R0HEATSINK AL6063 300X120.75X16.6M |
58 |
|
데이터시트 |
- | Bulk | Active | Top Mount, Extrusion | - | Adhesive | Rectangular, Fins | 11.811" (300.00mm) | 4.754" (120.75mm) | - | 0.654" (16.60mm) | - | 1.00°C/W @ 200 LFM | 12.00°C/W | Aluminum | Degreased |
|
|
AH50600V05000EEALUMINUM EXTRUSION 5" |
67 |
|
데이터시트 |
HS | Box | Active | Board Level, Vertical, Extrusion | Aluminum Housed Resistor | Bolt On | Rectangular, Fins | 5.000" (127.00mm) | 3.924" (99.67mm) | - | 1.210" (30.73mm) | - | - | 1.30°C/W | Aluminum Alloy | Unfinished |
|
AH50600V05000FEALUMINUM EXTRUSION 5" |
59 |
|
데이터시트 |
HS | Box | Active | Board Level, Vertical, Extrusion | Aluminum Housed Resistor | Bolt On | Rectangular, Fins | 5.000" (127.00mm) | 3.924" (99.67mm) | - | 1.210" (30.73mm) | - | - | 1.30°C/W | Aluminum Alloy | Unfinished |
