방열판
| 사진 | 제조업체 부품 번호 | 재고 상태 | 수량 | 데이터시트 | 시리즈 | 패키징 | 제품 상태 | 유형 | 패키지 냉각 | 부착 방법 | 모양 | 길이 | 너비 | 직경 | 핀 높이 | 온도 상승 시 전력 소모 | 강제 공기 흐름 시 열 저항 | 자연 시 열 저항 | 소재 | 재료 마감 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ATS-H1-09-C2-R0HEATSINK 45X45X20MM XCUT T766 |
98 |
|
데이터시트 |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.772" (45.00mm) | 1.772" (45.00mm) | - | 0.790" (20.00mm) | - | 10.58°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-21E-205-C2-R0HEATSINK 60X60X6MM XCUT T766 |
97 |
|
데이터시트 |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 2.362" (60.00mm) | 2.362" (60.00mm) | - | 0.236" (6.00mm) | - | 13.00°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-54150R-C0-R0HEATSINK 15X15X19.5MM W/OUT TIM |
65 |
|
데이터시트 |
- | Bulk | Active | Top Mount | BGA | Thermal Tape, Adhesive (Not Included) | Square, Fins | 0.591" (15.00mm) | 0.591" (15.00mm) | - | 0.768" (19.50mm) | - | 13.40°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|
904-27-1-23-2-B-0HEATSINK 27X27X23MM ELLIPTICAL |
72 |
|
데이터시트 |
904 | Box | Active | Top Mount | BGA | Push Pin | Square, Pin Fins | 1.063" (27.00mm) | 1.063" (27.00mm) | - | 0.892" (22.65mm) | - | 3.50°C/W @ 200 LFM | 9.40°C/W | Aluminum | Black Anodized |
|

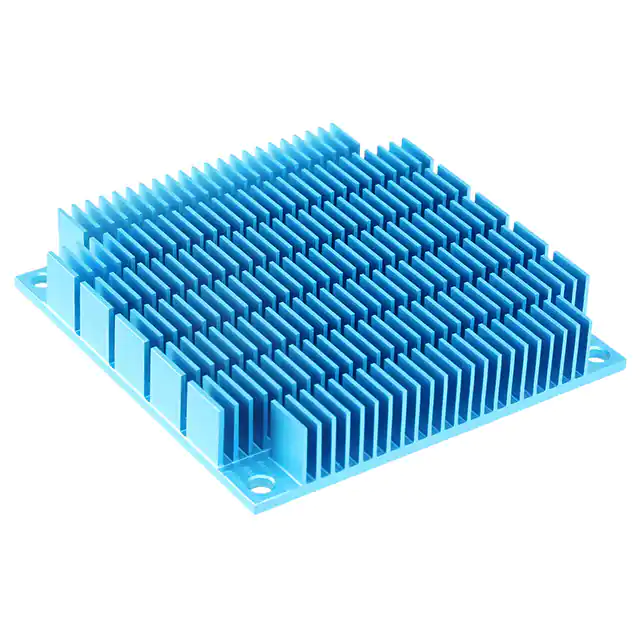

ATS-FPX070070013-27-C2-R0HEATSINK 70X70X12.7MM XCUT FP |
51 |
|
데이터시트 |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 2.756" (70.00mm) | 2.756" (70.00mm) | - | 0.500" (12.70mm) | - | 12.24°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|

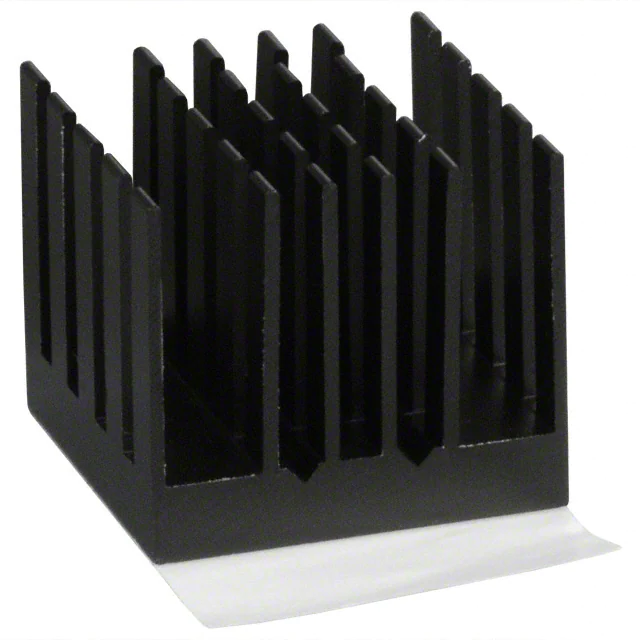

ATS-55230R-C1-R0HEAT SINK 23MM X 23MM X 19.5MM |
33 |
|
데이터시트 |
- | Bulk | Active | Top Mount | BGA | Thermal Tape, Adhesive (Included) | Square, Fins | 0.900" (23.00mm) | 0.906" (23.01mm) | - | 0.768" (19.50mm) | - | 7.80°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|
ATS-H1-12-C2-R0HEATSINK 50X50X12.7MM XCUT T766 |
87 |
|
데이터시트 |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.969" (50.00mm) | 1.969" (50.00mm) | - | 0.500" (12.70mm) | - | 15.86°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-16G-107-C2-R1HEATSINK 50.00MM X 50.00MM ALUM |
100 |
|
데이터시트 |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.969" (50.00mm) | 1.969" (50.00mm) | - | 0.374" (9.50mm) | - | 27.93°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|

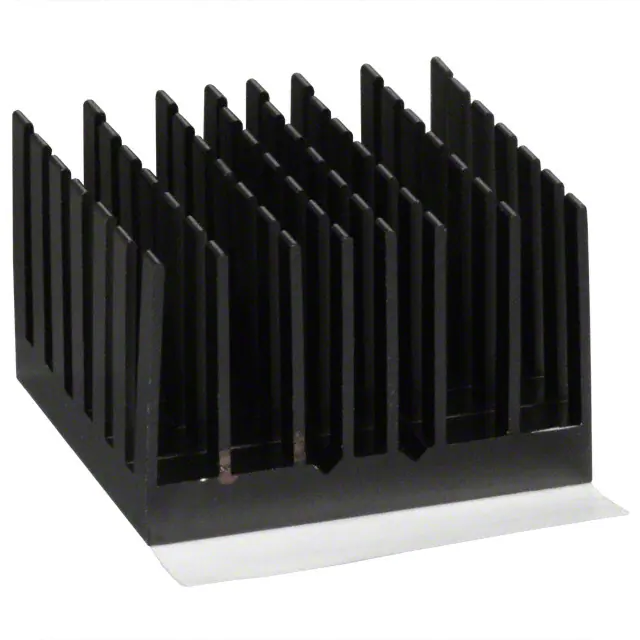

ATS-55310R-C1-R0HEAT SINK 31MM X 31MM X 19.5MM |
94 |
|
데이터시트 |
- | Bulk | Active | Top Mount | BGA | Thermal Tape, Adhesive (Included) | Square, Pin Fins | 1.220" (30.99mm) | 1.220" (30.99mm) | - | 0.768" (19.50mm) | - | 5.30°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|
ATS-CPX070070006-208-C3-R0HEATSINK 70X70X6MM XCUT CP |
70 |
|
데이터시트 |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 2.756" (70.00mm) | 2.756" (70.00mm) | - | 0.236" (6.00mm) | - | 10.56°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-P2-25-C2-R0HEATSINK 60X60X25MM XCUT T766 |
78 |
|
데이터시트 |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 2.362" (60.00mm) | 2.362" (60.00mm) | - | 0.984" (25.00mm) | - | 6.26°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-CPX070070010-209-C3-R0HEATSINK 70X70X10MM XCUT CP |
90 |
|
데이터시트 |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 2.756" (70.00mm) | 2.756" (70.00mm) | - | 0.394" (10.00mm) | - | 6.33°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|

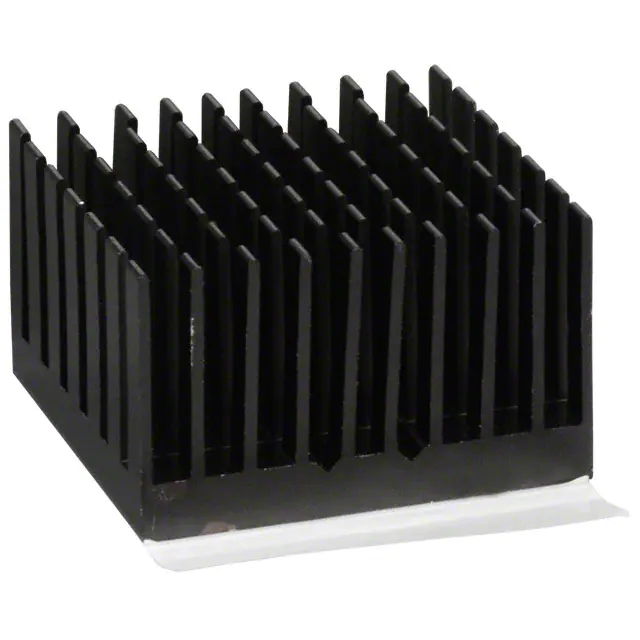

ATS-55330R-C1-R0HEAT SINK 33MM X 33MM X 19.5MM |
27 |
|
데이터시트 |
- | Bulk | Active | Top Mount | BGA | Thermal Tape, Adhesive (Included) | Square, Pin Fins | 1.299" (32.99mm) | 1.299" (32.99mm) | - | 0.768" (19.50mm) | - | 4.50°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|
ATS-P1-41-C2-R0HEATSINK 57.9X60.96X17.78MM T766 |
91 |
|
데이터시트 |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Rectangular, Fins | 2.280" (57.90mm) | 2.400" (60.96mm) | - | 0.700" (17.78mm) | - | 10.03°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|

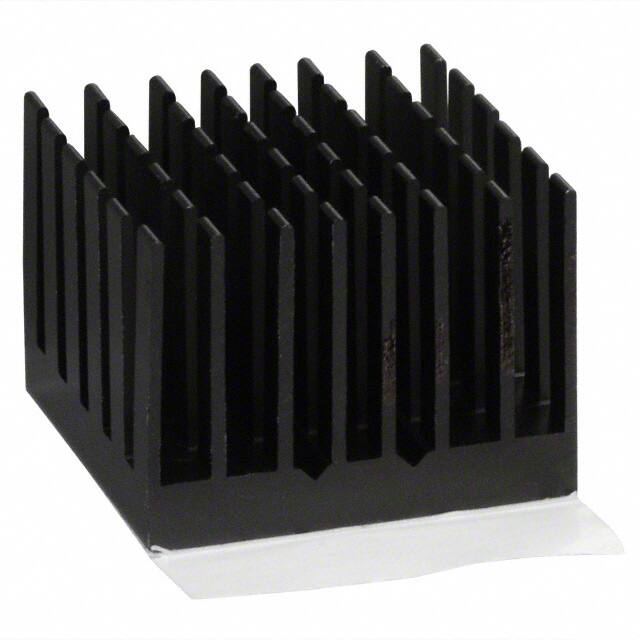

ATS-55270R-C1-R0HEAT SINK 27MM X 27MM X 19.5MM |
40 |
|
데이터시트 |
- | Bulk | Active | Top Mount | BGA | Thermal Tape, Adhesive (Included) | Square, Pin Fins | 1.063" (27.00mm) | 1.063" (27.00mm) | - | 0.768" (19.50mm) | - | 5.80°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|
ATS-H1-14-C2-R0HEATSINK 50X50X20MM XCUT T766 |
50 |
|
데이터시트 |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.969" (50.00mm) | 1.969" (50.00mm) | - | 0.790" (20.00mm) | - | 9.97°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-P1-111-C2-R1HEATSINK 60X60X9.5MM XCUT T766 |
65 |
|
데이터시트 |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 2.362" (60.00mm) | 2.362" (60.00mm) | - | 0.374" (9.50mm) | - | 26.74°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-P2-33-C2-R0HEATSINK 57.9X36.83X17.78MM T766 |
94 |
|
데이터시트 |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Rectangular, Fins | 2.280" (57.90mm) | 1.450" (36.83mm) | - | 0.700" (17.78mm) | - | 17.42°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-06D-207-C2-R0HEATSINK 60X60X12MM XCUT T766 |
51 |
|
데이터시트 |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 2.362" (60.00mm) | 2.362" (60.00mm) | - | 0.472" (12.00mm) | - | 6.39°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-55400D-C1-R0HEAT SINK 40MM X 40MM X 9.5MM |
41 |
|
데이터시트 |
- | Bulk | Active | Top Mount | BGA | Thermal Tape, Adhesive (Included) | Square, Pin Fins | 1.575" (40.00mm) | 1.575" (40.00mm) | - | 0.374" (9.50mm) | - | 10.00°C/W @ 200 LFM | - | Aluminum | Black Anodized |
