방열판
| 사진 | 제조업체 부품 번호 | 재고 상태 | 수량 | 데이터시트 | 시리즈 | 패키징 | 제품 상태 | 유형 | 패키지 냉각 | 부착 방법 | 모양 | 길이 | 너비 | 직경 | 핀 높이 | 온도 상승 시 전력 소모 | 강제 공기 흐름 시 열 저항 | 자연 시 열 저항 | 소재 | 재료 마감 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ATS-FPX040040030-65-C2-R0HEATSINK 40X40X30MM L-TAB FP |
92 |
|
데이터시트 |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.575" (40.00mm) | 1.575" (40.00mm) | - | 1.181" (30.00mm) | - | 7.29°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-CPX040040015-154-C3-R0HEATSINK 40X40X15MM L-TAB CP |
100 |
|
데이터시트 |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.575" (40.00mm) | 1.575" (40.00mm) | - | 0.590" (15.00mm) | - | 7.61°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-CPX060060015-130-C2-R0HEATSINK 60X60X15MM XCUT CP |
99 |
|
데이터시트 |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 2.362" (60.00mm) | 2.362" (60.00mm) | - | 0.590" (15.00mm) | - | 5.23°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-FPX045045025-100-C2-R0HEATSINK 45X45X25MM R-TAB FP |
75 |
|
데이터시트 |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.772" (45.00mm) | 1.772" (45.00mm) | - | 0.984" (25.00mm) | - | 8.70°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-FPX045045025-70-C2-R0HEATSINK 45X45X25MM L-TAB FP |
69 |
|
데이터시트 |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.772" (45.00mm) | 1.772" (45.00mm) | - | 0.984" (25.00mm) | - | 8.70°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-FPS037058023-38-C2-R0HEATSINK 36.83X57.6X22.86MM FP |
61 |
|
데이터시트 |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Rectangular, Fins | 1.450" (36.83mm) | 2.267" (57.60mm) | - | 0.900" (22.86mm) | - | 6.42°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-FPX040040035-96-C2-R0HEATSINK 40X40X35MM R-TAB FP |
49 |
|
데이터시트 |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.575" (40.00mm) | 1.575" (40.00mm) | - | 1.378" (35.00mm) | - | 5.63°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
CR101-75VEALUMINUM HEATSINK 75MM DEGREASED |
80 |
|
데이터시트 |
CR | Box | Active | Board Level, Vertical | TO-101 | 3 Clips and PC Pin | Rectangular, Fins | 2.953" (75.00mm) | 1.969" (50.00mm) | - | - | - | - | 4.20°C/W | Aluminum Alloy | Degreased |
|
ATS-10H-190-C2-R0HEATSINK 45X45X25MM R-TAB T766 |
75 |
|
데이터시트 |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.772" (45.00mm) | 1.772" (45.00mm) | - | 0.984" (25.00mm) | - | 3.62°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-FPX030030035-54-C2-R0HEATSINK 30X30X35MM L-TAB FP |
99 |
|
데이터시트 |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.181" (30.00mm) | 1.181" (30.00mm) | - | 1.378" (35.00mm) | - | 7.00°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|

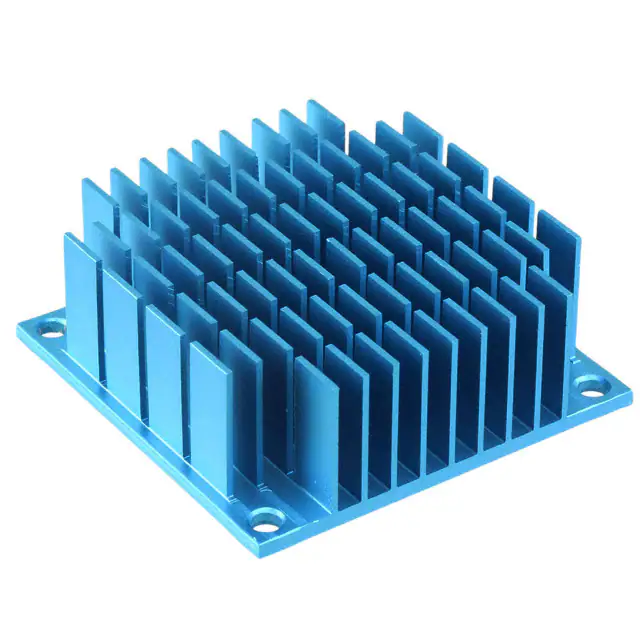

ATS-CPX054054020-127-C3-R0HEATSINK 54X54X20MM XCUT CP |
48 |
|
데이터시트 |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 2.126" (54.00mm) | 2.126" (54.00mm) | - | 0.790" (20.00mm) | - | 3.91°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-CPX040040015-182-C2-R0HEATSINK 40X40X15MM R-TAB CP |
191 |
|
데이터시트 |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.575" (40.00mm) | 1.575" (40.00mm) | - | 0.590" (15.00mm) | - | 7.51°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-CPX035035025-178-C2-R0HEATSINK 35X35X25MM R-TAB CP |
27 |
|
데이터시트 |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.378" (35.00mm) | 1.378" (35.00mm) | - | 0.984" (25.00mm) | - | 4.82°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-CPX060060020-131-C1-R0HEATSINK 60X60X20MM XCUT CP |
57 |
|
데이터시트 |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 2.362" (60.00mm) | 2.362" (60.00mm) | - | 0.790" (20.00mm) | - | 3.58°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|

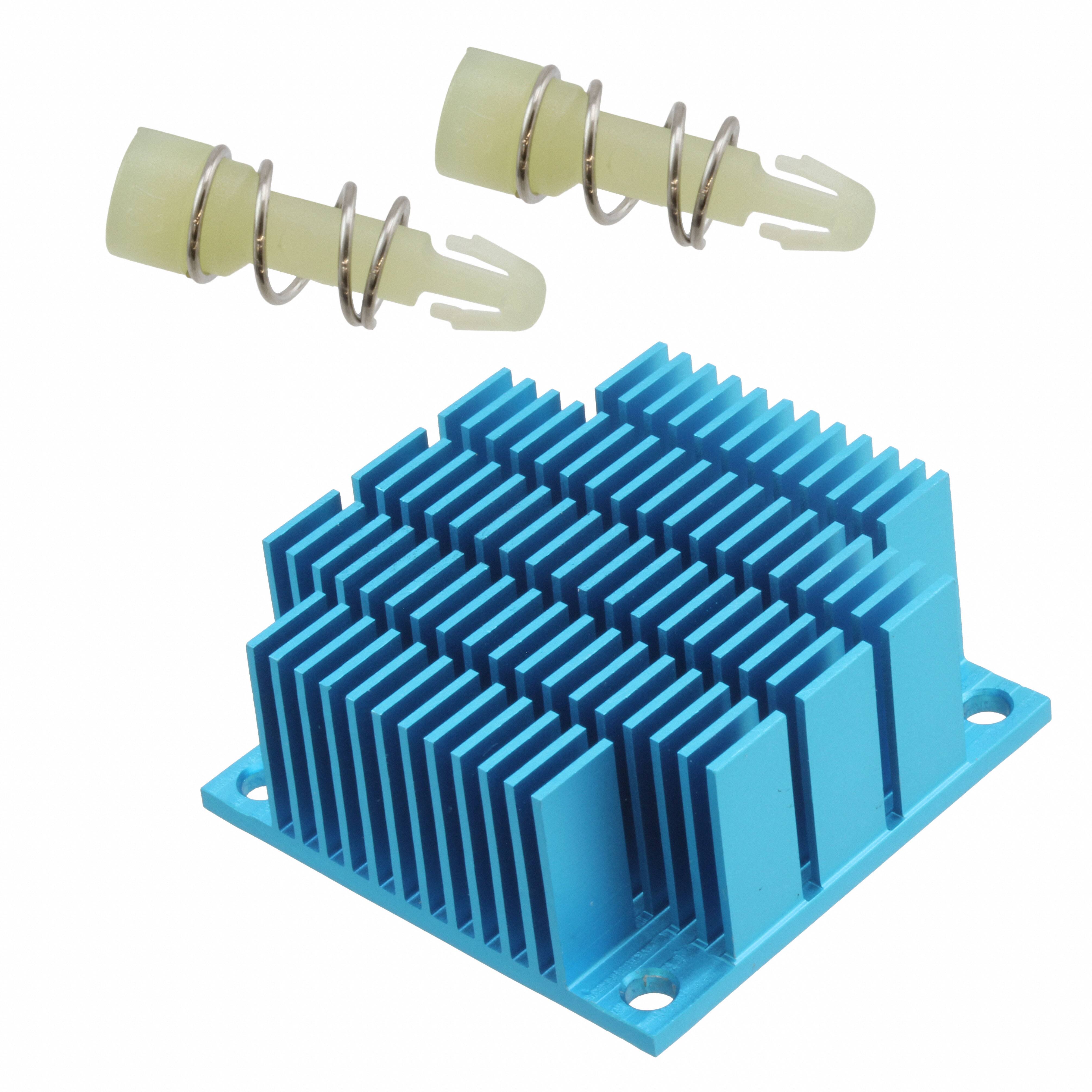

ATS-P1-09-C2-R0HEATSINK 45X45X20MM XCUT T766 |
52 |
|
데이터시트 |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.772" (45.00mm) | 1.772" (45.00mm) | - | 0.790" (20.00mm) | - | 10.58°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-FPX054054013-17-C3-R0HEATSINK 54X54X12.7MM XCUT FP |
99 |
|
데이터시트 |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 2.126" (54.00mm) | 2.126" (54.00mm) | - | 0.500" (12.70mm) | - | 15.51°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-FPX060060013-22-C1-R0HEATSINK 60X60X12.7MM XCUT FP |
95 |
|
데이터시트 |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 2.362" (60.00mm) | 2.362" (60.00mm) | - | 0.500" (12.70mm) | - | 13.82°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-CPX035035035-152-C2-R0HEATSINK 35X35X35MM L-TAB CP |
49 |
|
데이터시트 |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.378" (35.00mm) | 1.378" (35.00mm) | - | 1.378" (35.00mm) | - | 3.32°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|

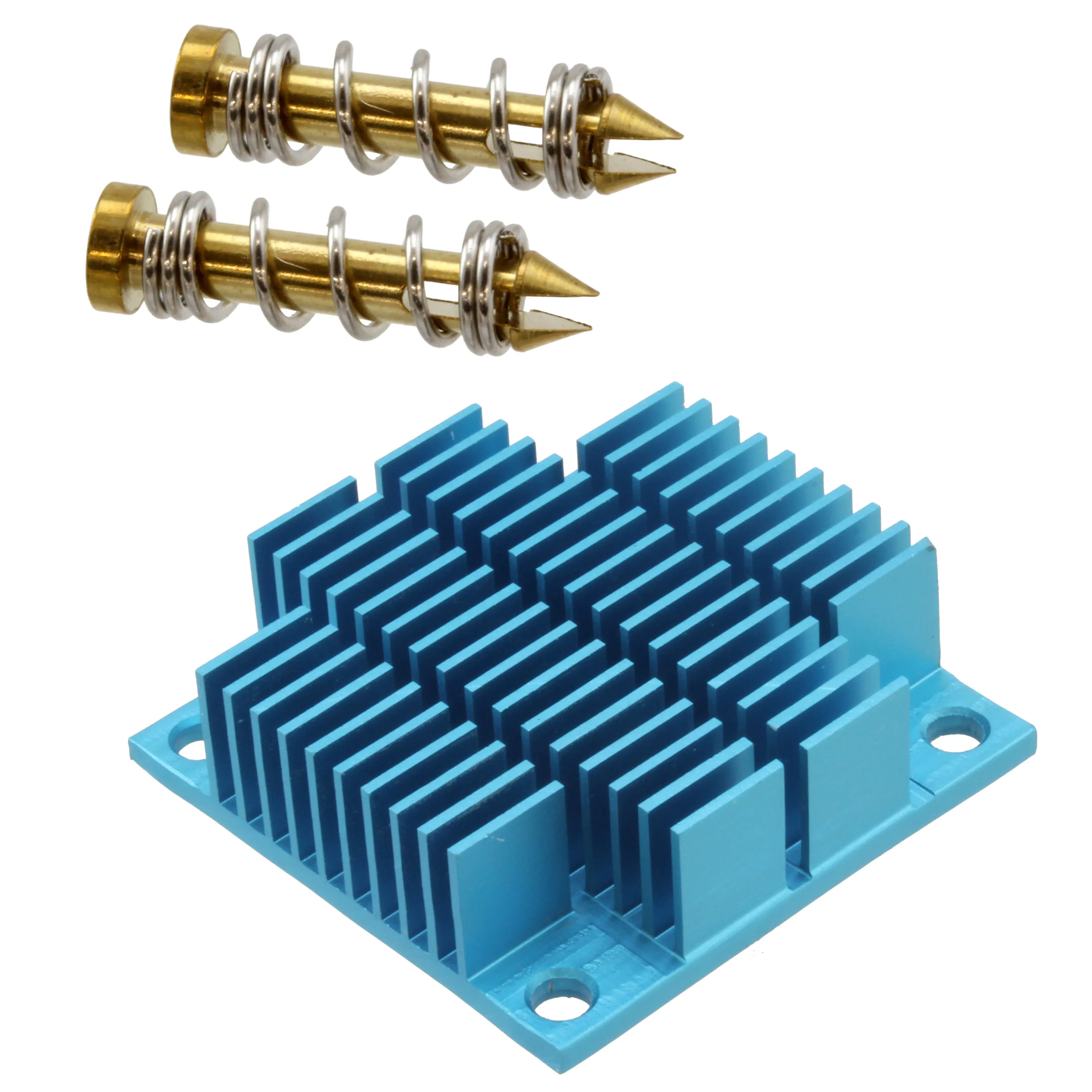

ATS-P2-02-C2-R0HEATSINK 40X40X12.7MM XCUT T766 |
92 |
|
데이터시트 |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.575" (40.00mm) | 1.575" (40.00mm) | - | 0.500" (12.70mm) | - | 18.32°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|

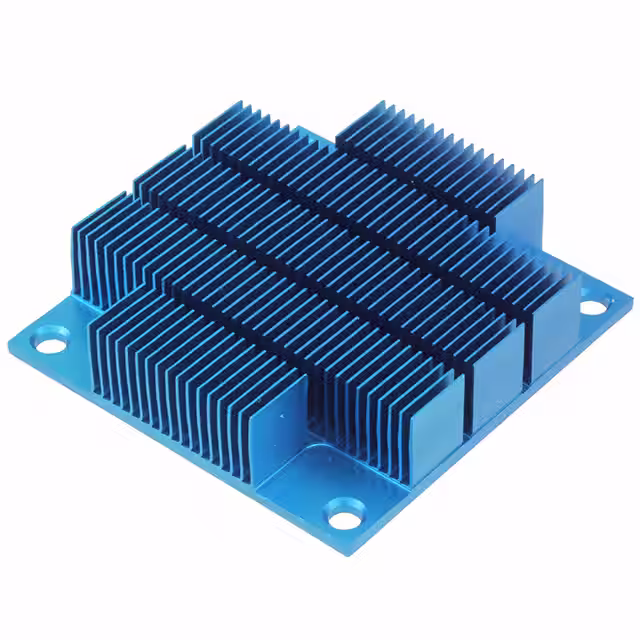

ATS-FPX050050013-108-C2-R1HEATSINK 50X50X12.7MM XCUT SFP |
69 |
|
데이터시트 |
pushPIN™ | Bulk | Active | Top Mount, Skived | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.969" (50.00mm) | 1.969" (50.00mm) | - | 0.500" (12.70mm) | - | 27.03°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
