스테퍼 모터
| 사진 | 제조업체 부품 번호 | 재고 상태 | 수량 | 데이터시트 | 시리즈 | 패키징 | 제품 상태 | 유형 | 코일 유형 | 전압 - 정격 | 전류 정격(암페어) | 회전당 단계 | 단계 각도 | 정확도 | 토크 - 유지(oz-in/ mNm) | 크기/치수 | NEMA 프레임 크기 | 직경 - 샤프트 | 길이 - 샤프트 및 베어링 | 장착 구멍 간격 | 종단 스타일 | 작동 온도 | 코일 저항 | 기능 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

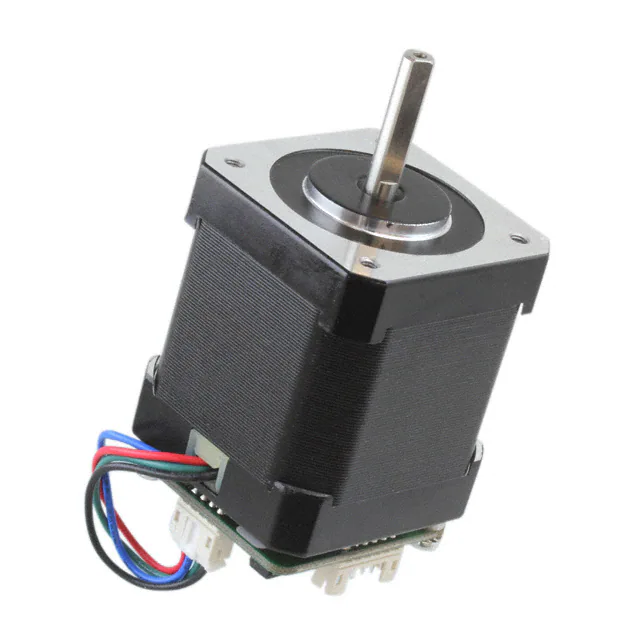

PD42-3-1140-TMCLSTEPPER MOTOR HYBRID BIPOLAR 24V |
5 |
|
데이터시트 |
PANdrive™ | Case | Active | Hybrid | Bipolar | 24VDC | 2 A | 200.0 | 1.8° | ±5% | 62.3 / 440 | Square - 1.654" x 1.654" (42.00mm x 42.00mm) | 17 | 0.197" (5.00mm) | 0.945" (24.00mm) | - | Wire Leads with Connector | - | - | Integrated Controller, Flatted Shaft |
|
PD42-2-1240-TMCLPANDRIVE NEMA17, 24V, 0.36NM |
2 |
|
데이터시트 |
PANdrive™ | Bulk | Active | Hybrid | Bipolar | 24VDC | 2 A | 200.0 | 1.8° | ±5% | 50.98 / 360 | Square - 1.654" x 1.654" (42.00mm x 42.00mm) | 17 | 0.197" (5.00mm) | 0.945" (24.00mm) | 1.220" (31.00mm) | Wire Leads with Connector | -20°C ~ 50°C | 1.2 Ohms | Integrated Controller, Flatted Shaft |
|
PD42-3-1241-CANOPENPANDRIVE NEMA17, 24V, 0.4NM |
13 |
|
데이터시트 |
PANdrive™ | Bulk | Active | Hybrid | Bipolar | 24VDC | 3 A | 200.0 | 1.8° | ±5% | 56.66 / 400 | Square - 1.654" x 1.654" (42.00mm x 42.00mm) | 17 | 0.197" (5.00mm) | 0.945" (24.00mm) | 1.220" (31.00mm) | Wire Leads with Connector | -20°C ~ 50°C | 0.5 Ohms | Integrated Controller, Flatted Shaft |
|

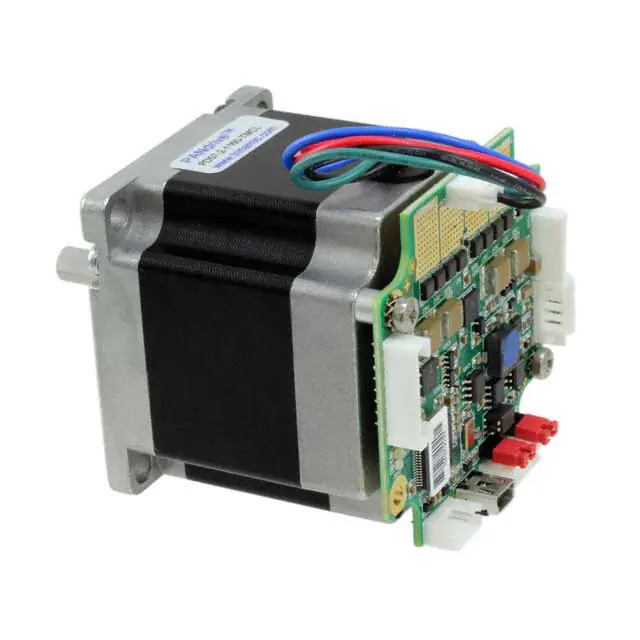

PD57-2-1160-TMCLSTEPPER MOTOR HYBRID BIPOLAR 48V |
6 |
|
데이터시트 |
PANdrive™ | Case | Active | Hybrid | Bipolar | 48VDC | 2.8 A | 200.0 | 1.8° | - | 143.05 / 1010 | Square - 2.362" x 2.362" (60.00mm x 60.00mm) | 24 | 0.250" (6.35mm) | 0.945" (24.00mm) | 1.856" (47.14mm) | Wire Leads with Connector | - | - | Integrated Controller, Flatted Shaft |
|
EMMS-ST-42-S-SE-G2STEPPER MOTOR |
3 |
|
데이터시트 |
- | Bulk | Last Time Buy | Hybrid | Bipolar | 48VDC | 1.8 A | 200.0 | 1.8° | ±5% | 70.82 / 500 | Square - 1.665" x 1.665" (42.30mm x 42.30mm) | - | 0.197" (5.00mm) | 0.945" (24.00mm) | 1.220" (31.00mm) | Connector | -10°C ~ 50°C | 1.75 Ohms | Round Shaft |
|

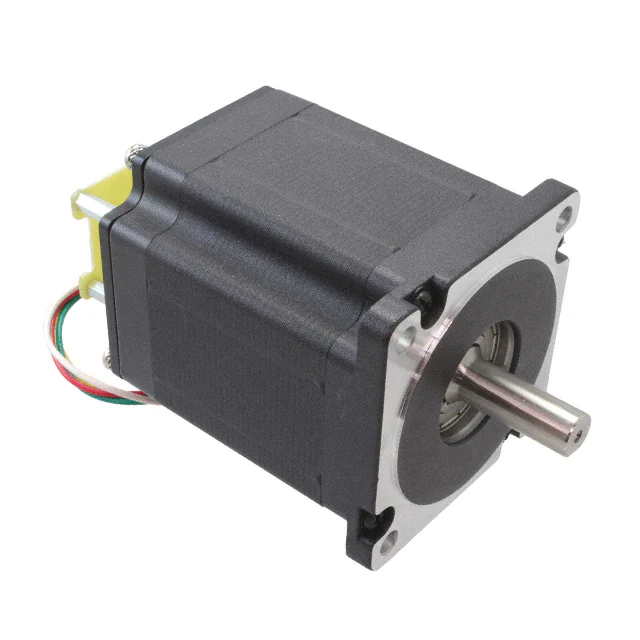

PD86-3-1260-TMCLPANDRIVE NEMA34, 48V, 7.0NM |
8 |
|
데이터시트 |
PANdrive™ | Bulk | Active | Hybrid | Bipolar | 48VDC | 5.5 A | 200.0 | 1.8° | - | 991.28 / 7000 | Square - 3.382" x 3.382" (85.90mm x 85.90mm) | 34 | 0.500" (12.70mm) | 1.310" (33.27mm) | 2.740" (69.60mm) | Wire Leads with Connector | - | 0.45 Ohms | Integrated Controller, Flatted Shaft |
|
PM20S-180-021PERMANENT MAGNET STEPPER MOTOR |
25 |
|
데이터시트 |
- | Tray | Active | - | Bipolar | 12VDC | 0.21 A | 20.0 | 18° | - | 1.18 / 8.34 | Round - 0.787" Dia (20.00mm) | - | 0.059" (1.50mm) | 0.394" (10.00mm) | 0.984" (25.00mm) | Wire Leads with Connector | -20°C ~ 50°C | 25 Ohms | Round Shaft |
|
|
PM25S-075-032PERMANENT MAGNET STEPPER MOTOR |
32 |
|
데이터시트 |
- | Tray | Active | - | Bipolar | 12VDC | 0.32 A | 48.0 | 7.5° | - | 2.2 / 15.7 | Round - 0.984" Dia (25.00mm) | - | 0.079" (2.00mm) | 0.394" (10.00mm) | 1.260" (32.00mm) | Wire Leads with Connector | -20°C ~ 50°C | 16 Ohms | - |
|
|
PM20L-180-043PERMANENT MAGNET STEPPER MOTOR |
18 |
|
데이터시트 |
- | Tray | Active | - | Bipolar | 12VDC | 0.43 A | 20.0 | 18° | - | 1.7 / 11.8 | Round - 0.787" Dia (20.00mm) | - | 0.059" (1.50mm) | 0.394" (10.00mm) | 0.984" (25.00mm) | Wire Leads with Connector | -20°C ~ 50°C | 7 Ohms | Round Shaft |
|
|
PM25S-075-050PERMANENT MAGNET STEPPER MOTOR |
15 |
|
데이터시트 |
- | Tray | Active | - | Bipolar | 12VDC | 0.5 A | 48.0 | 7.5° | - | 2.2 / 15.7 | Round - 0.984" Dia (25.00mm) | - | 0.079" (2.00mm) | 0.394" (10.00mm) | 1.260" (32.00mm) | Wire Leads with Connector | -20°C ~ 50°C | 6 Ohms | - |
|
|
PM35S-075-015PERMANENT MAGNET STEPPER MOTOR |
23 |
|
데이터시트 |
- | Tray | Active | - | Bipolar | 24VDC | 0.15 A | 48.0 | 7.5° | - | 6.4 / 45.2 | Round - 1.650" Dia (42.00mm) | - | 0.118" (3.00mm) | 0.394" (10.00mm) | 1.650" (42.00mm) | Wire Leads with Connector | -20°C ~ 50°C | 80 Ohms | - |
|
42M048C1USTEPPER MOTOR PM UNIPOLAR 5V |
76 |
|
데이터시트 |
42M | Bulk | Active | Permanent Magnet | Unipolar | 5VDC | 550 mA | 48.0 | 7.5° | ±15% | 9.4 / 66.2 | Round - 1.650" Dia (42.00mm) | - | 0.118" (3.00mm) | 0.450" (11.43mm) | 1.950" (49.48mm) | Wire Leads | -20°C ~ 70°C | 9.1 Ohms | Round Shaft |
|

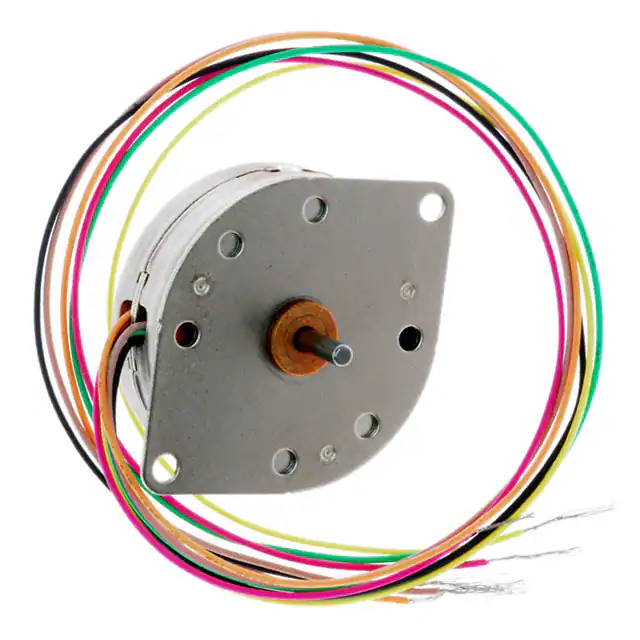

42M100B2USTEPPER MOTOR PM UNIPOLAR 12V |
71 |
|
데이터시트 |
42M | Bulk | Active | Permanent Magnet | Unipolar | 12VDC | 160 mA | 100.0 | 3.6° | ±11% | 6.4 / 45.2 | Round - 1.650" Dia (42.00mm) | - | 0.118" (3.00mm) | 0.450" (11.43mm) | 1.950" (49.48mm) | Wire Leads | -20°C ~ 70°C | 75 Ohms | Round Shaft |
|
SF2421-10B11STEP, F2, SQ.42, 1.8, , , BIPOLA |
18 |
|
데이터시트 |
SF | Box | Active | Hybrid, Dual Shaft | Bipolar | 24VDC | 1 A | 200.0 | 1.8° | - | 41.07 / 290 | Square - 1.654" x 1.654" (42.00mm x 42.00mm) | - | 0.197" (5.00mm) | 0.945" (24.00mm) | 1.220" (31.00mm) | Connector | -10°C ~ 50°C | 3.6 Ohms | - |
|
20M020D1BSTEPPER MOTOR PM BIPOLAR 5V |
100 |
|
데이터시트 |
20M | Bulk | Active | Permanent Magnet | Bipolar | 5VDC | 250 mA | 20.0 | 18° | ±12% | 1.55 / 10.95 | Round - 0.807" Dia (20.50mm) | - | 0.059" (1.50mm) | 0.335" (8.50mm) | 0.984" (25.00mm) | Wire Leads | -20°C ~ 70°C | 20 Ohms | Round Shaft |
|
WO-3518X-08STEPPER MOTOR |
85 |
|
데이터시트 |
- | Tray | Active | - | Bipolar | 24VDC | 350 mA | 200.0 | 1.8° | - | 7.5 / 52.96 | Square - 1.390" x 1.390" (35.30mm x 35.30mm) | 14 | 0.197" (5.00mm) | 0.591" (15.00mm) | 1.023" (26.00mm) | Wire Leads | -20°C ~ 50°C | 8.5 Ohms | Round Shaft |
|
PM20L-020-HHC3STEPPER MOTOR PM BIPOLAR 24V |
84 |
|
데이터시트 |
PM | Bulk | Active | Permanent Magnet | Bipolar | 24VDC | 400 mA | 20.0 | 18° | - | 2.1 / 15 | Round - 0.787" Dia (20.00mm) | - | 0.059" (1.50mm) | 0.315" (8.00mm) | 1.100" (28.00mm) | Wire Leads | - | 13 Ohms | Round Shaft |
|
35L048B1BSTEPPER MOTOR PM BIPOLAR 5V |
43 |
|
데이터시트 |
35L | Bulk | Active | Permanent Magnet | Bipolar | 5VDC | 450 mA | 48.0 | 7.5° | ±15% | 4 / 28.25 | Round - 1.420" Dia (35.94mm) | - | 0.079" (2.00mm) | 0.445" (11.30mm) | 1.650" (42.00mm) | Wire Leads | -20°C ~ 70°C | 11 Ohms | Round Shaft |
|

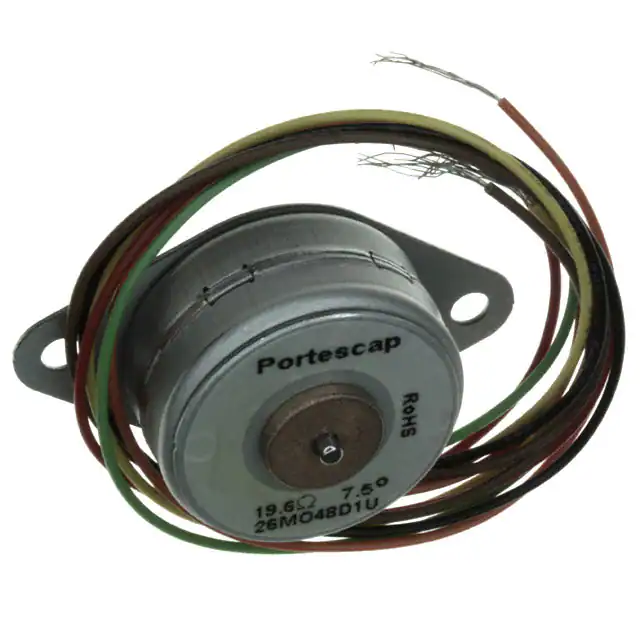

26M048D1USTEPPER MOTOR PM UNIPOLAR 5V |
67 |
|
데이터시트 |
26M | Bulk | Active | Permanent Magnet | Unipolar | 5VDC | 260 mA | 48.0 | 7.5° | ±15% | 1.6 / 11.3 | Round - 1.030" Dia (26.16mm) | - | 0.079" (2.00mm) | 0.445" (11.30mm) | 1.370" (34.90mm) | Wire Leads | -20°C ~ 70°C | 19.6 Ohms | Round Shaft |
|
PM42L-048-HHC9STEPPER MOTOR PM BIPOLAR 24V |
12 |
|
데이터시트 |
PM | Bulk | Active | Permanent Magnet | Bipolar | 24VDC | 600 mA | 48.0 | 7.5° | - | 17.6 / 124 | Round - 1.650" Dia (42.00mm) | - | 0.118" (3.00mm) | 0.472" (12.00mm) | 1.950" (49.48mm) | Wire Leads | - | 7 Ohms | Round Shaft |
