스피커
| 사진 | 제조업체 부품 번호 | 재고 상태 | 수량 | 데이터시트 | 시리즈 | 패키징 | 제품 상태 | 기술 | 유형 | 주파수 범위 | 주파수 - 자기 공진 | 임피던스 | 효율성 - dBA | 효율성 - 테스트 | 효율성 - 유형 | 전력 - 정격 | 전력 - 최대 | 포트 위치 | 모양 | 재료 - 콘 | 소재 - 자석 | 침투 방지 | 정격 | 종단 | 크기/치수 | 높이 - 앉은 상태(최대) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
U0066040NP004ARLoudspeaker 66mm ; 40 Ohms, 0.5W |
300 |
|
데이터시트 |
- | Tray | Active | Magnetic | General Purpose | 320 Hz ~ 5 kHz | 320Hz | 40 Ohms | 94.00 | 1W/500mm | Sound Pressure Level (SPL) | 500 mW | 1 W | Top | Round | Paper | Nd-Fe-B | - | - | Wire Leads with Connector | 2.598" Dia (66.00mm) | 0.586" (14.90mm) |
|
HCM2606BXSPEAKER TOP PT 95DB RND SQ FRAME |
500 |
|
데이터시트 |
HCM26BX | Tray | Active | Magnetic | General Purpose | 300 Hz ~ 500 Hz | - | - | 95.00 | - | Sound Pressure Level (SPL) | - | - | Top | Round, Square Frame | - | - | - | - | PC Pins | 1.024" L x 1.024" W (26.00mm x 26.00mm) | 0.768" (19.50mm) |
|
|
BMS2014P-11C-08H3.2RW070 LFSPEAKER 8OHM 700MW TOP PORT 87DB |
2,995 |
|
데이터시트 |
- | Tray | Active | Magnetic | General Purpose | 1 Hz ~ 4 kHz | 800Hz | 8 Ohms | 87.00 | 100mW/100mm | Sound Pressure Level (SPL) | 700 mW | 1 W | Top | Oval, Rectangular Frame | Polybutylene Terephthalate (PBT) | Nd-Fe-B | - | - | Wire Leads | 0.787" L x 0.551" W (20.00mm x 14.00mm) | 0.126" (3.20mm) |
|
|
D4242008NR10WERLoudspeaker 42x42 mm, 8Ohms 5W |
336 |
|
데이터시트 |
- | Tray | Active | Magnetic | General Purpose | 160 Hz ~ 15 kHz | 160Hz | 8 Ohms | 81.00 | 1W/1M | Sound Pressure Level (SPL) | 5 W | 6 W | Top | Round, Square Frame | - | Nd-Fe-B | - | - | Wire Leads | 1.654" L x 1.654" W (42.00mm x 42.00mm) | 1.051" (26.70mm) |
|
|
D0050008NM14BARLoudspeaker, 50 mm ; 8 Ohms, 0.5 |
500 |
|
데이터시트 |
- | Tray | Active | Magnetic | General Purpose | 650 Hz ~ 4 kHz | 650Hz | 8 Ohms | 90.00 | 1W/500mm | Sound Pressure Level (SPL) | 500 mW | 1 W | Top | Round | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | Solder Eyelet(s) | 1.969" Dia (50.00mm) | 0.492" (12.50mm) |
|
NS40D-08005-02SPEAKER 8OHM 500MW 89DB |
461 |
|
데이터시트 |
- | Tray | Active | Magnetic | - | 240 Hz ~ 20 kHz | 300Hz | 8 Ohms | 89.00 | - | Sound Pressure Level (SPL) | 500 mW | 1 W | - | Round | Paper, Polyurethane (PU) | Nd-Fe-B | - | - | Terminal Block | 1.575" Dia (40.00mm) | 0.583" (14.80mm) |
|
|
P0038008NM001ARLoudspeaker, 38mm, 8 Ohms, 1.2W |
137 |
|
데이터시트 |
- | Tray | Active | Magnetic | General Purpose | 100 Hz ~ 20 kHz | 520Hz | 8 Ohms | 88.00 | 1W/500mm | Sound Pressure Level (SPL) | 1.2 W | 1.5 W | Top | Round | - | - | Waterproof | - | Wire Leads | 1.575" Dia (40.00mm) | 0.362" (9.20mm) |
|

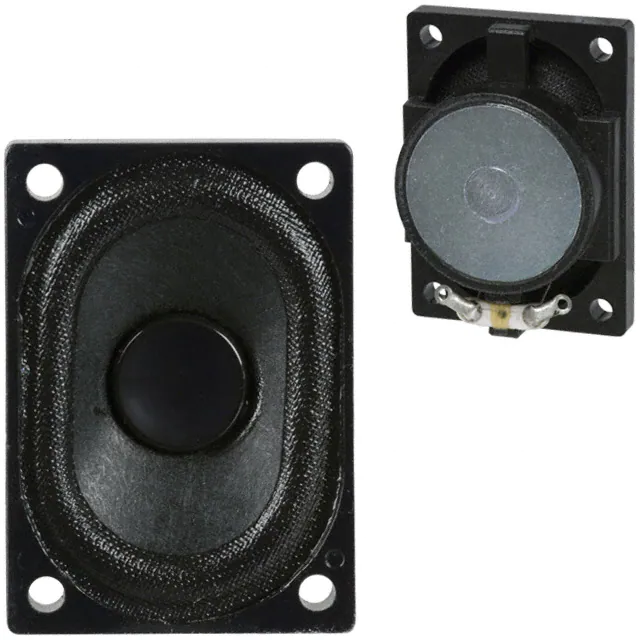

AS04004PO-WR-RSPEAKER 4OHM 2W TOP PORT 86DB |
48 |
|
데이터시트 |
AS | Tray | Active | Magnetic | General Purpose | 370 Hz ~ 20 kHz | 370Hz | 4 Ohms | 86.00 | 1W/500mm | Sound Pressure Level (SPL) | 2 W | 4 W | Top | Oval, Rectangular Frame | Paper, Coated | Nd-Fe-B | Water Resistant | - | Solder Eyelet(s) | 1.575" L x 1.118" W (40.00mm x 28.40mm) | 0.524" (13.30mm) |
|
K 28 GI - 8 OHMSPEAKER 8OHM 500MW TOP PORT 84DB |
75 |
|
데이터시트 |
Miniature Speaker | Bulk | Active | - | General Purpose | 500 Hz ~ 7 kHz | - | 8 Ohms | 84.00 | 1W/1M | Sound Pressure Level (SPL) | 500 mW | 1 W | Top | Round | - | - | - | - | Spring Type | 1.102" Dia (28.00mm) | 0.213" (5.40mm) |
|
CSS-40408NSPEAKER 8OHM 5W TOP PORT 100DB |
17 |
|
데이터시트 |
CSS | Tray | Active | Magnetic | General Purpose | 352 Hz ~ 20 kHz | 440Hz | 8 Ohms | 100.00 | 1W/100mm | Sound Pressure Level (SPL) | 5 W | 8 W | Top | Round, Square Frame | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | Solder Eyelet(s) | 1.579" L x 1.579" W (40.10mm x 40.10mm) | 0.571" (14.50mm) |
|
FRWS 5 - 8 OHMSPEAKER 8OHM 4W TOP PORT 84DB |
56 |
|
데이터시트 |
- | Bulk | Active | Magnetic | General Purpose | 150 Hz ~ 20 kHz | 250Hz | 8 Ohms | 84.00 | 1W/1M | Sound Pressure Level (SPL) | 4 W | 10 W | Top | Round, Square Frame | - | - | - | - | Solder Pads | 1.969" L x 1.969" W (50.00mm x 50.00mm) | 0.846" (21.50mm) |
|
FRS 5 XWP - 8 OHMSPEAKER 8OHM 5W TOP PORT 86DB |
83 |
|
데이터시트 |
- | Bulk | Active | - | General Purpose | 120 Hz ~ 20 kHz | 190Hz | 8 Ohms | 86.00 | 1W/1M | Sound Pressure Level (SPL) | 5 W | 8 W | Top | Round | Polyester, Polyethylene Terephthalate (PET) | - | Waterproof | - | Quick Connect | 1.969" Dia (50.00mm) | 1.319" (33.50mm) |
|
FRS 8 - 8 OHMSPEAKER 8OHM 30W TOP PORT 82DB |
100 |
|
데이터시트 |
- | Bulk | Active | Magnetic | General Purpose | 100 Hz ~ 20 kHz | 120Hz | 8 Ohms | 82.00 | 1W/1M | Sound Pressure Level (SPL) | 30 W | 50 W | Top | Round, Square Frame | - | - | - | - | Quick Connect | 3.071" L x 3.071" W (78.00mm x 78.00mm) | 1.575" (40.00mm) |
|
RAB-32063-000SPEAKER 46.3OHM TOP PORT 103.5DB |
97 |
|
데이터시트 |
RAB | Tray | Active | Magnetic | Receiver, Balanced Armature | 80 Hz ~ 10.8 kHz | - | 46.3 Ohms | 103.50 | - | Sound Pressure Level (SPL) | - | - | Top | Rectangular | - | - | - | - | Solder Pads | 0.203" L x 1.117" W (5.15mm x 2.96mm) | 0.203" (5.15mm) |
|
FR 8 WP - 8 OHM (BLACK)SPEAKER 8OHM 15W TOP PORT 84DB |
78 |
|
데이터시트 |
- | Bulk | Active | Magnetic | General Purpose | 100 Hz ~ 20 kHz | 158Hz | 8 Ohms | 84.00 | 1W/1M | Sound Pressure Level (SPL) | 15 W | 25 W | Top | Round | Plastic | - | Waterproof | - | Quick Connect | 3.543" Dia (90.00mm) | 1.929" (49.00mm) |
|
ASX11504-SW-RSPEAKER 4OHM 50W TOP PT EXCITER |
19 |
|
데이터시트 |
ASX | Box | Active | Magnetic | Exciter | 5 Hz ~ 500 Hz | 35Hz | 4 Ohms | - | - | - | 50 W | 100 W | Top | Round | Aluminum (AI) | Nd-Fe-B | - | - | Quick Connect | - | 1.811" (46.00mm) |
|

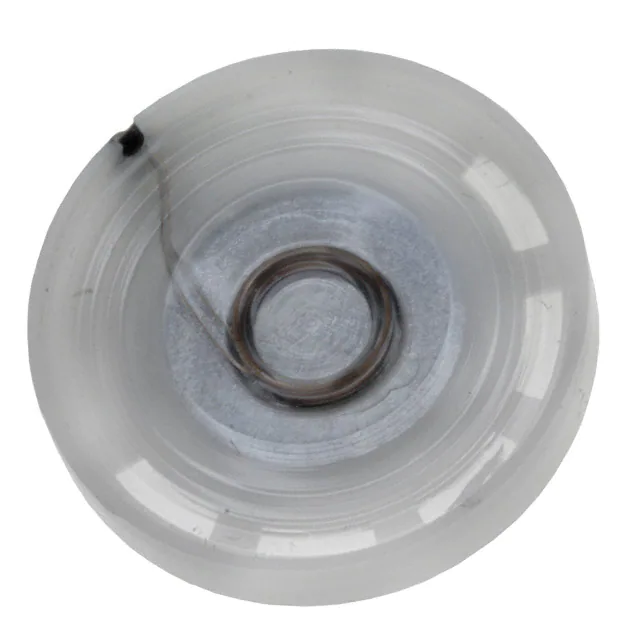

PSR-23F08S-JQSPEAKER 8OHM 250MW TOP PORT 81DB |
833 |
|
데이터시트 |
PSR | Bulk | Active | Magnetic | General Purpose | 900 Hz ~ 6.5 kHz | 900Hz | 8 Ohms | 81.00 | 1W/1M | Sound Pressure Level (SPL) | 250 mW | 300 mW | Top | Round | Polyester, Polyethylene Terephthalate (PET) | Ferrite | - | - | Solder Pads | 0.906" Dia (23.00mm) | 0.197" (5.00mm) |
|
|
PSR-20F08S-YHQSPEAKER 8OHM 250MW TOP PORT 74DB |
211 |
|
데이터시트 |
PSR | Bulk | Active | Magnetic | General Purpose | 1.05 kHz ~ 20 kHz | 1.05kHz | 8 Ohms | 74.00 | 1W/1M | Sound Pressure Level (SPL) | 250 mW | 250 mW | Top | Round | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | Solder Pads | 0.787" Dia (20.00mm) | 0.197" (5.00mm) |
|
SP-1605-5SPEAKER 8OHM 500MW TOP PORT 88DB |
91 |
|
데이터시트 |
SP | Tray | Active | Magnetic | General Purpose | 300 Hz ~ 8 kHz | 1kHz | 8 Ohms | 88.00 | 100mW/100mm | Sound Pressure Level (SPL) | 500 mW | 800 mW | Top | Round | Polyethylene Naphthalate (PEN) | - | - | - | Wire Leads | 0.630" Dia (16.00mm) | 0.185" (4.70mm) |
|
|
COM-21311THIN SPEAKER - 4 OHM, 2.5W, 28MM |
44 |
|
데이터시트 |
- | Bulk | Active | - | - | - | - | 4 Ohms | - | - | - | 2.5 W | - | Top | Round | - | - | - | - | Wire Leads | 1.102" Dia (28.00mm) | 0.157" (4.00mm) |
