스피커
| 사진 | 제조업체 부품 번호 | 재고 상태 | 수량 | 데이터시트 | 시리즈 | 패키징 | 제품 상태 | 기술 | 유형 | 주파수 범위 | 주파수 - 자기 공진 | 임피던스 | 효율성 - dBA | 효율성 - 테스트 | 효율성 - 유형 | 전력 - 정격 | 전력 - 최대 | 포트 위치 | 모양 | 재료 - 콘 | 소재 - 자석 | 침투 방지 | 정격 | 종단 | 크기/치수 | 높이 - 앉은 상태(최대) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

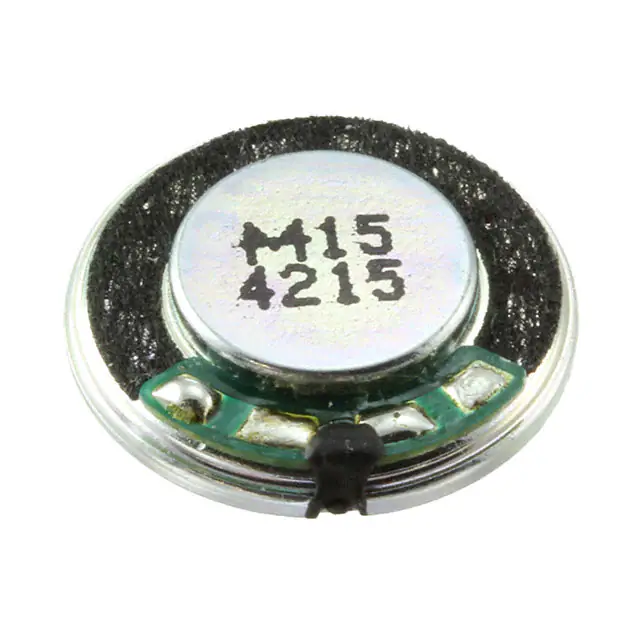

PSR15N08AKSPEAKER 8OHM 500MW TOP PORT 72DB |
384 |
|
데이터시트 |
PSR | Bulk | Active | Magnetic | General Purpose | 750 Hz ~ 20 kHz | 750Hz | 8 Ohms | 72.00 | 1W/1M | Sound Pressure Level (SPL) | 500 mW | 800 mW | Top | Round | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | Solder Pads | 0.591" Dia (15.00mm) | 0.130" (3.30mm) |
|

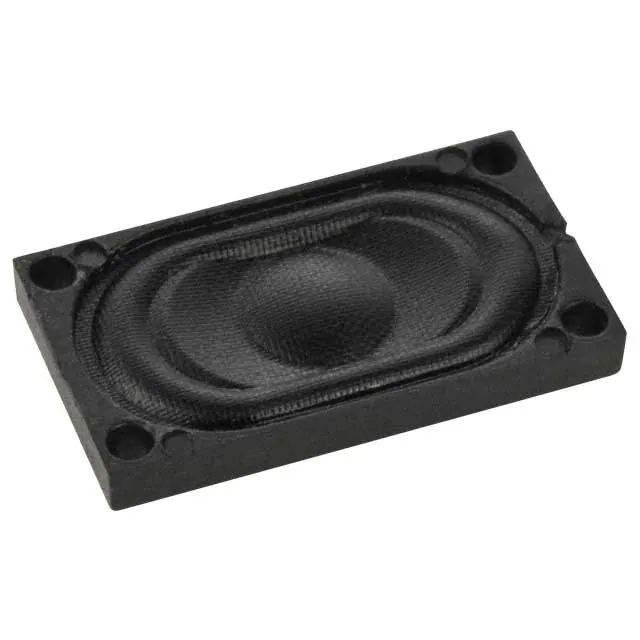

CDS-25148SPEAKER 8OHM 1.5W TOP PORT 73DB |
2,226 |
|
데이터시트 |
CDS | Tray | Active | Magnetic | General Purpose | 600 Hz ~ 20 kHz | 750Hz | 8 Ohms | 73.00 | 1W/1M | Sound Pressure Level (SPL) | 1.5 W | 2 W | Top | Rectangular | Cloth | Nd-Fe-B | - | - | Solder Pads | 0.984" L x 0.551" W (25.00mm x 14.00mm) | 0.177" (4.50mm) |
|

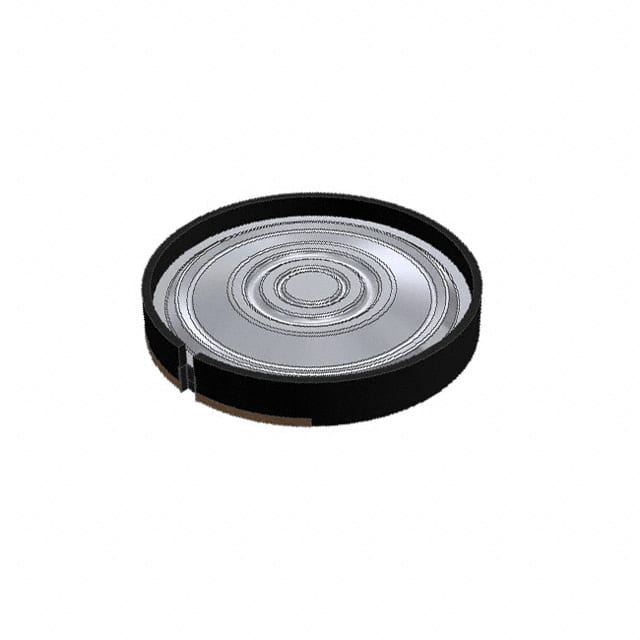

ADS02008MR-RSPEAKER 8OHM 80MW TOP PORT 86DB |
334 |
|
데이터시트 |
- | Tray | Active | Magnetic | General Purpose | 750 Hz ~ 5 kHz | 750Hz | 8 Ohms | 86.00 | 80mW/100mm | Sound Pressure Level (SPL) | 80 mW | 200 mW | Top | Round | Polyester | Nd-Fe-B | - | - | Solder Pads | 0.783" Dia (19.90mm) | 0.177" (4.50mm) |
|
AS01008MR-2-RSPEAKER 8OHM 300MW TOP PORT 86DB |
101 |
|
데이터시트 |
AS | Tray | Active | Magnetic | General Purpose | 1.2 kHz ~ 20 kHz | 1200Hz | 8 Ohms | 86.00 | 300mW/100mm | Sound Pressure Level (SPL) | 300 mW | 500 mW | Top | Round | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | Solder Pads | 0.394" Dia (10.00mm) | 0.114" (2.90mm) |
|
CMS-15116-SPSPEAKER 6OHM 940MW TOP PORT 89DB |
431 |
|
데이터시트 |
CMS | Tray | Active | Magnetic | Low Profile | 467.5 Hz ~ 15 kHz | 550Hz | 6 Ohms | 89.00 | 940mW/100mm | Sound Pressure Level (SPL) | 940 mW | 1.3 W | Top | Rectangular | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | Spring Type | 0.591" L x 0.433" W (15.00mm x 11.00mm) | 0.118" (3.00mm) |
|
CVS-2308SPEAKER 8OHM 100MW TOP PORT 77DB |
979 |
|
데이터시트 |
CVS | Tray | Active | Magnetic | General Purpose | 1.2 kHz ~ 6 kHz | 1500Hz | 8 Ohms | 77.00 | 1W/1M | Sound Pressure Level (SPL) | 100 mW | 150 mW | Top | Round | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | Washable | PC Pins | 0.906" Dia (23.00mm) | 0.331" (8.40mm) |
|
SPKM.2030.8.ASPEAKER 8OHM 500MW TOP PORT 93DB |
873 |
|
데이터시트 |
- | Bulk | Active | Magnetic | General Purpose | 100 Hz ~ 10 kHz | 900Hz | 8 Ohms | 93.00 | 500mW/100mm | Sound Pressure Level (SPL) | 500 mW | 1 W | Top | Round, Rectangular Frame | - | Nd-Fe-B | - | - | Wire Leads with Connector | 1.181" L x 0.787" W (30.00mm x 20.00mm) | 0.150" (3.80mm) |
|
AS03808PR-RSPEAKER 8OHM 100MW TOP PORT 89DB |
455 |
|
데이터시트 |
AS | Tray | Active | Magnetic | General Purpose | 800 Hz ~ 5 kHz | 800Hz | 8 Ohms | 89.00 | 100mW/100mm | Sound Pressure Level (SPL) | 100 mW | 200 mW | Top | Round | Paper | Nd-Fe-B | - | - | Solder Eyelet(s) | 1.496" Dia (38.00mm) | 0.362" (9.20mm) |
|

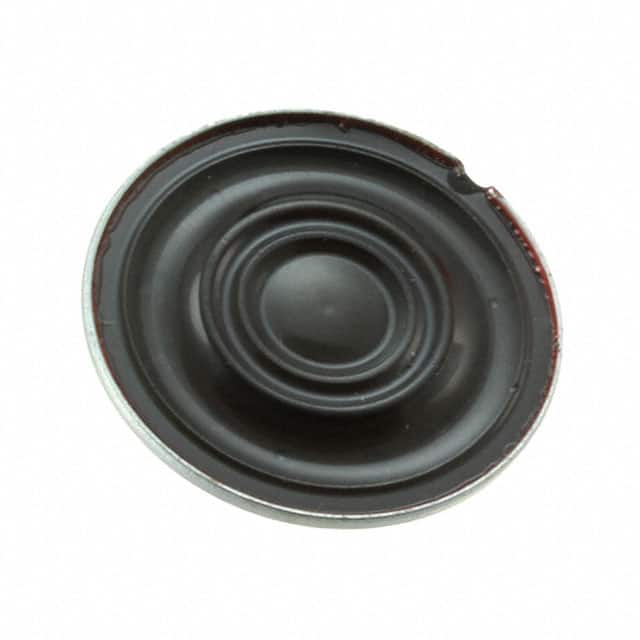

PSR20N08AKSPEAKER 8OHM 300MW TOP PORT 78DB |
119 |
|
데이터시트 |
PSR | Bulk | Active | Magnetic | General Purpose | 560 Hz ~ 7 kHz | 560Hz | 8 Ohms | 78.00 | 1W/1M | Sound Pressure Level (SPL) | 300 mW | 500 mW | Top | Round | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | Solder Pads | 0.787" Dia (20.00mm) | 0.122" (3.10mm) |
|
SPKM.23.8.ASPEAKER 8OHM 500MW TOP PORT 85DB |
938 |
|
데이터시트 |
- | Bulk | Active | Magnetic | General Purpose | 10 Hz ~ 11 kHz | 1kHz | 8 Ohms | 85.00 | 500mW/100mm | Sound Pressure Level (SPL) | 500 mW | 1 W | Top | Round | - | Nd-Fe-B | - | - | Wire Leads with Connector | 0.906" Dia (23.00mm) | 0.236" (6.00mm) |
|
SP500408-1SPEAKER 8OHM 1W TOP PORT 85DB |
486 |
|
데이터시트 |
- | Tray | Active | Magnetic | General Purpose | 450 Hz ~ 5 kHz | 450Hz | 8 Ohms | 85.00 | 100mm | Sound Pressure Level (SPL) | 1 W | 1.5 W | Top | Round | Paper | - | - | - | Solder Eyelet(s) | 1.969" Dia (50.00mm) | 0.480" (12.20mm) |
|
CDS-2844-32-SPSPEAKR 32OHM 250MW TOP PORT 91DB |
890 |
|
데이터시트 |
CDS | Box | Active | Magnetic | General Purpose | 480 Hz ~ 6.5 kHz | 600Hz | 32 Ohms | 91.00 | 100mW/100mm | Sound Pressure Level (SPL) | 250 mW | 500 mW | Top | Round | Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | Solder Pads | 1.102" Dia (28.00mm) | 0.173" (4.40mm) |
|
CDS-4028-16SPEAKER 16OHM 2W TOP PORT 86DB |
288 |
|
데이터시트 |
CDS | Box | Active | Magnetic | General Purpose | 360 Hz ~ 20 kHz | 450Hz | 16 Ohms | 86.00 | 100mW/500mm | Sound Pressure Level (SPL) | 2 W | 3 W | Top | Oval, Rectangular Frame | Cloth | Nd-Fe-B | - | - | Solder Eyelet(s) | 1.575" L x 1.114" W (40.00mm x 28.30mm) | 0.472" (12.00mm) |
|

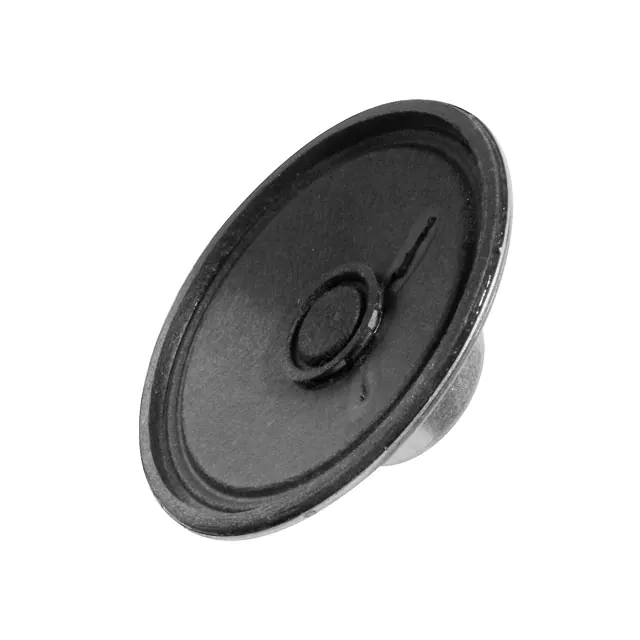

SP660308-1SPEAKER 8OHM 500MW TOP PORT 95DB |
433 |
|
데이터시트 |
- | Tray | Active | Magnetic | General Purpose | 380 Hz ~ 4 kHz | 380Hz | 8 Ohms | 95.00 | 100mm | Sound Pressure Level (SPL) | 500 mW | 800 mW | Top | Round | Paper | - | - | - | Solder Eyelet(s) | 2.598" Dia (66.00mm) | 0.492" (12.50mm) |
|
CDS-203-32-SPSPEAKR 32OHM 500MW TOP PORT 89DB |
925 |
|
데이터시트 |
CDS | Box | Active | Magnetic | General Purpose | 680 Hz ~ 10 kHz | 850Hz | 32 Ohms | 89.00 | 100mW/100mm | Sound Pressure Level (SPL) | 500 mW | 1 W | Top | Round | Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | Solder Pads | 0.787" Dia (20.00mm) | 0.118" (3.00mm) |
|
SPKM.289.8.ASPEAKER 8OHM 500MW TOP PORT 82DB |
1,018 |
|
데이터시트 |
- | Bulk | Active | Magnetic | General Purpose | 10 Hz ~ 11 kHz | 1kHz | 8 Ohms | 82.00 | 500mW/100mm | Sound Pressure Level (SPL) | 500 mW | 1 W | Top | Oval, Rectangular Frame | - | Nd-Fe-B | - | - | Wire Leads with Connector | 1.102" L x 0.354" W (28.00mm x 9.00mm) | 0.138" (3.50mm) |
|
AS04008PO-2-LW152-WR-RSPEAKER 8OHM 1W TOP PORT 84DB |
429 |
|
데이터시트 |
AS | Tray | Active | Magnetic | General Purpose | 450 Hz ~ 20 kHz | 450Hz | 8 Ohms | 84.00 | 1W/500mm | Sound Pressure Level (SPL) | 1 W | 2 W | Top | Rectangular | Paper, Coated | Nd-Fe-B | Water Resistant | - | Wire Leads | 1.575" L x 1.114" W (40.00mm x 28.30mm) | 0.492" (12.50mm) |
|
SW200908-1SPEAKER 8OHM 1W TOP PORT 90DB |
433 |
|
데이터시트 |
SW | Tray | Active | Magnetic | General Purpose | 900 Hz ~ 10 kHz | 900Hz | 8 Ohms | 90.00 | 100mm | Sound Pressure Level (SPL) | 1 W | 1.5 W | Top | Round | Polyester, Polyethylene Terephthalate (PET) | - | IP67 - Dust Tight, Waterproof | - | Spring Type | 0.787" Dia (20.00mm) | 0.189" (4.80mm) |
|
SP-3215SPEAKER 8OHM 200MW TOP PORT 83DB |
192 |
|
데이터시트 |
SP Micro Speaker | Tray | Active | Magnetic | General Purpose | 1.2 kHz ~ 20 kHz | 1200Hz | 8 Ohms | 83.00 | 100mm | Sound Pressure Level (SPL) | 200 mW | 300 mW | Top | Round | Polyester, Polyethylene Terephthalate (PET) | Ferrite | - | - | PC Pins | 1.248" Dia (31.70mm) | 0.591" (15.00mm) |
|
AS01508MS-SC15-WP-RSPEAKER 8OHM 700MW TOP PORT 91DB |
217 |
|
데이터시트 |
AS | Tray | Active | Magnetic | Receiver | 550 Hz ~ 20 kHz | 550Hz | 8 Ohms | 91.00 | - | Sensitivity | 700 mW | 1 W | Top | Rectangular | - | Nd-Fe-B | IP67 - Dust Tight, Waterproof | - | Spring Type | 0.591" L x 0.433" W (15.00mm x 11.00mm) | 0.098" (2.50mm) |
