스피커
| 사진 | 제조업체 부품 번호 | 재고 상태 | 수량 | 데이터시트 | 시리즈 | 패키징 | 제품 상태 | 기술 | 유형 | 주파수 범위 | 주파수 - 자기 공진 | 임피던스 | 효율성 - dBA | 효율성 - 테스트 | 효율성 - 유형 | 전력 - 정격 | 전력 - 최대 | 포트 위치 | 모양 | 재료 - 콘 | 소재 - 자석 | 침투 방지 | 정격 | 종단 | 크기/치수 | 높이 - 앉은 상태(최대) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FEC-60575-I06SPEAKER |
0 |
|
데이터시트 |
FEC | Tray | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
WSP-3604YSPEAKER 16OHM 1.4W TOP PORT 82DB |
0 |
|
데이터시트 |
- | Tray | Obsolete | Magnetic | General Purpose | 600 Hz ~ 5 kHz | 600Hz | 16 Ohms | 82.00 | 1W/1M | Sound Pressure Level (SPL) | 1.4 W | 2.1 W | Top | Round | Polyethylene Terephthalate (PET) | Nd-Fe-B | IP67 - Dust Tight, Waterproof | - | Solder Pads | 1.417" Dia (36.00mm) | 0.183" (4.65mm) |
|
|
DK 130 X - 100 VSPEAKER 106DB ROUND RE-ENT HORN |
0 |
|
데이터시트 |
- | Bulk | Obsolete | - | - | 500 Hz ~ 7 kHz | - | - | 106.00 | 1W/1M | Sound Pressure Level (SPL) | - | - | User Defined | Round | - | - | IP67 - Dust Tight, Waterproof | - | Wire Leads | 5.118" Dia (130.00mm) | 6.890" (175.00mm) |
|
|
SUB CP 130 S - 16 OHMSPEAKR 16OHM 100W SIDE PORT 80DB |
0 |
|
데이터시트 |
- | Bulk | Obsolete | - | Subwoofer | - | - | 16 Ohms | 80.00 | 1W/1M | Sound Pressure Level (SPL) | 100 W | 160 W | Side | Round, Square Frame | - | - | - | - | - | 7.087" L x 7.087" W (180.00mm x 180.00mm) | 19.685" (500.00mm) |
|
|
STELLA PCSPEAKER RECTANGULAR |
0 |
|
데이터시트 |
- | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | Rectangular | - | - | - | - | - | 35.433" L x 4.724" W (900.00mm x 120.00mm) | 11.024" (280.00mm) |
|
|
BS 130 4 OHMSPEAKER 4OHM 50W TOP PORT |
0 |
|
데이터시트 |
- | Bulk | Active | - | Exciter | - | 25Hz | 4 Ohms | - | - | - | 50 W | 100 W | Top | - | - | - | - | - | Wire Leads | - | 2.165" (55.00mm) |
|

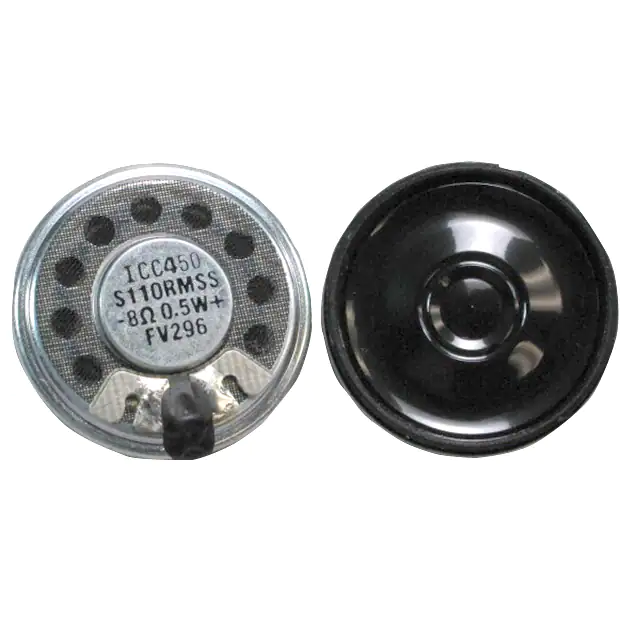

S110RMSSSPEAKER 8OHM 1W TOP PORT |
0 |
|
데이터시트 |
- | Tray | Active | Magnetic | General Purpose | 560 Hz ~ 7 kHz | 560Hz | 8 Ohms | - | - | - | 1 W | 500 mW | Top | Round | Polyester | Rare Earth | - | - | Solder Eyelet | 1.102" Dia (28.00mm) | 0.189" (4.80mm) |
|
S15X25VASPEAKER 8OHM 3W TOP PORT |
0 |
|
데이터시트 |
- | Box | Active | Magnetic | General Purpose | 250 Hz ~ 20 kHz | 250Hz | 8 Ohms | - | - | - | 3 W | 5 W | Top | Oval, Rectangular Frame | Paper | Rare Earth | - | - | Solder Eyelet(s) | 2.795" L x 1.575" W (71.00mm x 40.00mm) | 1.004" (25.50mm) |
|
BR815S15YN32SPEAKER 32OHM 10MW TOP PORT 89DB |
0 |
|
데이터시트 |
- | Tray | Active | - | General Purpose | 200 Hz ~ 7 kHz | 300Hz | 32 Ohms | 89.00 | 10mW/10mm | Sensitivity | 10 mW | 30 mW | Top | Rectangular | - | - | - | - | Spring Type | 0.591" L x 0.315" W (15.00mm x 8.00mm) | 0.059" (1.50mm) |
|
BOX1-18082-2B100SPEAKER 8OHM 800MW TOP PORT 72DB |
0 |
|
데이터시트 |
- | Tray | Active | Magnetic | General Purpose, Enclosure Included | 900 Hz ~ 10 kHz | 900Hz | 8 Ohms | 72.00 | 1W/1M | Sensitivity | 800 mW | 1 W | Top | Rectangular | Polyetheretherketone (PEEK) | Nd-Fe-B | - | - | Wire Leads | 1.575" L x 0.472" W (40.00mm x 12.00mm) | 0.157" (4.00mm) |
|
SOC36S05B8-1SPEAKER 8OHM 1W TOP PORT 78DB |
0 |
|
데이터시트 |
- | Tray | Active | - | General Purpose | 300 Hz ~ 20 kHz | 380Hz | 8 Ohms | 78.00 | 1W/1M | Sensitivity | 1 W | 1.5 W | Top | Round | Polyacrylonitrile Butadiene Styrene (ABS) | - | - | - | Quick Connect | 1.417" Dia (36.00mm) | 0.228" (5.80mm) |
|
SOC40S19DN4SPEAKER 4OHM 5W TOP PORT 87DB |
0 |
|
데이터시트 |
- | Tray | Active | Magnetic | General Purpose | 160 Hz ~ 15 kHz | 160Hz | 4 Ohms | 87.00 | 1W/1M | Sensitivity | 5 W | 10 W | Top | Round | Paper | Nd-Fe-B | - | - | Solder Pads | 1.575" Dia (40.00mm) | 0.748" (19.00mm) |
|
BLS50-1-08H18.2B-03SPEAKER 8OHM 1W 81DB ROUND |
0 |
|
데이터시트 |
BLS | Box | Active | Magnetic | - | 300 Hz ~ 10 kHz | 300Hz | 8 Ohms | 81.00 | 1W/1M | Sound Pressure Level (SPL) | 1 W | 2 W | - | Round | - | Nd-Fe-B | - | - | Solder Pads | 1.969" Dia (50.00mm) | 0.669" (17.00mm) |
|

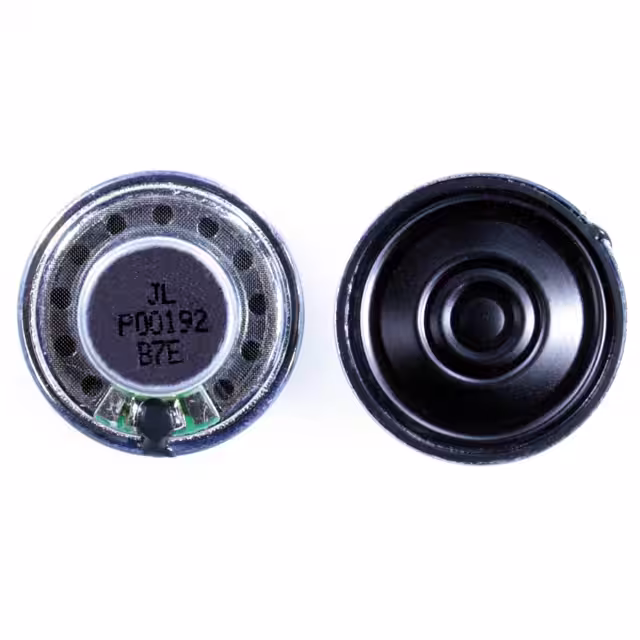

P00192SPEAKR 4OHM 500MW TOP PORT 105DB |
0 |
|
데이터시트 |
P00 | Box | Active | Magnetic | General Purpose | 1 kHz ~ 6 kHz | 1kHz | 4 Ohms | 105.00 | 500mW/100mm | Sound Pressure Level (SPL) | 500 mW | 1 W | Top | Round | Polyethylene Terephthalate (PET) | - | - | - | Solder Pads | 1.181" Dia (30.00mm) | 0.354" (9.00mm) |
|
BPS2030H1.3-01SPEAKER TOP PORT 93DB RECTANGLE |
0 |
|
데이터시트 |
BPS | Box | Active | Piezo | General Purpose | - | 800Hz | - | 93.00 | - | - | - | - | Top | Rectangle | - | - | - | - | Solder Pads | 1.181" L x 0.787" W (30.00mm x 20.00mm) | 0.051" (1.30mm) |
|

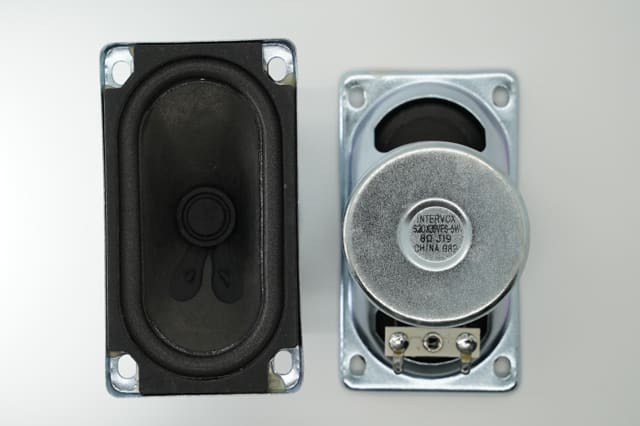

S20X35VFS-5WSPEAKER 8OHM 5W TOP PORT 86DB |
0 |
|
데이터시트 |
- | Tray | Active | Magnetic | General Purpose | 240 Hz ~ 15 kHz | 240Hz | 8 Ohms | 86.00 | 1W/500mm | Sound Pressure Level (SPL) | 5 W | 8 W | Top | Oval, Rectangular Frame | Paper | Ferrite | - | - | Solder Eyelet(s) | 3.543" L x 1.969" W (90.00mm x 50.00mm) | 1.535" (39.00mm) |
|
S11X16VNSSPEAKER 8OHM 1W TOP PORT 82DB |
0 |
|
데이터시트 |
- | Tray | Active | Magnetic | General Purpose | 250 Hz ~ 20 kHz | 390Hz | 8 Ohms | 82.00 | 1W/500mm | Sound Pressure Level (SPL) | 1 W | 2 W | Top | Oval, Rectangular Frame | Paper | Rare Earth | - | - | Solder Eyelet(s) | 1.575" L x 1.122" W (40.00mm x 28.50mm) | 0.453" (11.50mm) |
|

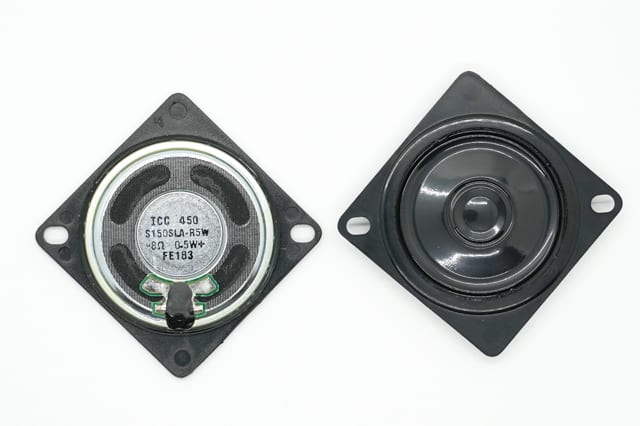

S150SLA-R5WSPEAKER 8OHM 500MW TOP PORT 85DB |
0 |
|
데이터시트 |
- | Tray | Active | Magnetic | Low Profile | 200 Hz ~ 5 kHz | 540Hz | 8 Ohms | 85.00 | 500mW/500mm | Sound Pressure Level (SPL) | 500 mW | 1 W | Top | Round, Square Frame | Polyester, Polyethylene Terephthalate (PET) | Rare Earth | - | - | Solder Pads | 1.575" L x 1.575" W (40.00mm x 40.00mm) | 0.217" (5.50mm) |
|
SUFR8515SPEAKER 8OHM 15W TOP PORT 85DB |
0 |
|
데이터시트 |
SUFR | Box | Active | Magnetic | General Purpose | 200 Hz ~ 20 kHz | 210Hz | 8 Ohms | 85.00 | 1W/1M | Sound Pressure Level (SPL) | 15 W | 20 W | Top | Rectangular | Paper | Ferrite | - | - | Solder Eyelet(s) | 2.992" L x 1.890" W (76.00mm x 48.00mm) | 1.890" (48.00mm) |
|
SUFR7010SPEAKER 4OHM 10W TOP PORT 79DB |
0 |
|
데이터시트 |
SUFR | Box | Active | Magnetic | General Purpose | 100 Hz ~ 20 kHz | 108Hz | 4 Ohms | 79.00 | 1W/1M | Sound Pressure Level (SPL) | 10 W | 15 W | Top | Rectangular | Paper | Ferrite | - | - | Solder Eyelet(s) | 3.071" L x 3.071" W (78.00mm x 78.00mm) | 1.772" (45.00mm) |
