스피커
| 사진 | 제조업체 부품 번호 | 재고 상태 | 수량 | 데이터시트 | 시리즈 | 패키징 | 제품 상태 | 기술 | 유형 | 주파수 범위 | 주파수 - 자기 공진 | 임피던스 | 효율성 - dBA | 효율성 - 테스트 | 효율성 - 유형 | 전력 - 정격 | 전력 - 최대 | 포트 위치 | 모양 | 재료 - 콘 | 소재 - 자석 | 침투 방지 | 정격 | 종단 | 크기/치수 | 높이 - 앉은 상태(최대) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
8018SC 8 N 8 OHM |
0 |
|
데이터시트 |
- | Retail Package | Active | Magnetic | General Purpose | 70 Hz ~ 20 kHz | 110Hz | 8 Ohms | 81.00 | 1W/1M | Sound Pressure Level (SPL) | 30 W | 50 W | Top | Round, Square Frame | - | - | - | - | Solder Eyelet(s) | 5.835" Dia x 3.051" L (148.20mm x 77.50mm) | 1.898" (48.20mm) |
|
BK-21615-000SPEAKER 1.2 KOHM TOP PORT 126DB |
0 |
|
데이터시트 |
BK | Tray | Active | Magnetic | Receiver, Balanced Armature | 200 Hz ~ 4 kHz | - | 1.2 kOhms | 126.00 | - | Sensitivity | - | - | Top | Rectangular | - | - | - | - | Solder Pads | 0.310" L x 0.220" W (7.87mm x 5.59mm) | 0.310" (7.87mm) |
|
BK-30039-000SPEAKER RECTANGULAR |
0 |
|
데이터시트 |
BK | Bulk | Active | Magnetic | Receiver, Balanced Armature | - | - | - | - | - | - | - | - | - | Rectangular | - | - | - | - | Solder Pads | - | - |
|
|
8011SC 10 N 8 OHM |
0 |
|
데이터시트 |
- | Retail Package | Active | Magnetic | General Purpose | 1 kHz ~ 20 kHz | 1.7kHz | 8 Ohms | 90.00 | 1W/1M | Sound Pressure Level (SPL) | - | - | Top | Round | - | - | - | - | - | 4.094" Dia (104.00mm) | 1.437" (36.50mm) |
|
D26NC05-06SPEAKR 5.99OHM 30W TOP PT 87.4DB |
0 |
|
데이터시트 |
D | Bulk | Active | Magnetic | Tweeter | 1.3 kHz ~ 20 kHz | 1579.09Hz | 5.99 Ohms | 87.40 | 1W/1M | Half Space Sensitivity | 30 W | - | Top | Round | Cloth | Nd-Fe-B | - | - | Solder Eyelet(s) | 1.772" Dia (45.00mm) | 0.881" (22.37mm) |
|
4692FX 10 4 OHM |
0 |
|
데이터시트 |
- | Retail Package | Active | Magnetic | General Purpose | 70 Hz ~ 22 kHz | 110Hz | 4 Ohms | 84.00 | 1W/1M | Sound Pressure Level (SPL) | 40 W | 70 W | Top | Round | Polypropylene (PP) | - | Waterproof | - | Quick Connect | - | 1.811" (46.00mm) |
|
|
50097DL 5 8 OHM |
0 |
|
데이터시트 |
- | Retail Package | Active | Magnetic | General Purpose | 150 Hz ~ 20 kHz | 280Hz | 8 Ohms | 89.00 | 1W/1M | Sound Pressure Level (SPL) | 4 W | 10 W | Top | Round | - | - | IP54 | - | Terminal Block | 2.087" Dia (53.00mm) | 1.358" (34.50mm) |
|
|
FED-26554-I04SPEAKER 510OHM TOP PORT 102.5DB |
0 |
|
데이터시트 |
FED | Bulk | Obsolete | Magnetic | Receiver, Balanced Armature | 200 Hz ~ 4 kHz | - | 510 Ohms | 102.50 | - | Sound Pressure Level (SPL) | - | - | Top | Rectangular | - | Ferrite | - | - | Solder Pads | 0.248" L x 0.169" W (6.30mm x 4.29mm) | 0.248" (6.30mm) |
|
|
FED-26565-I04SPEAKER 128OHM TOP PORT 102.5DB |
0 |
|
데이터시트 |
FED | Bulk | Obsolete | Magnetic | Receiver, Balanced Armature | 200 Hz ~ 4 kHz | - | 128 Ohms | 102.50 | - | Sound Pressure Level (SPL) | - | - | Top | Rectangular | - | Ferrite | - | - | Solder Pads | 0.248" L x 0.169" W (6.30mm x 4.29mm) | 0.248" (6.30mm) |
|
|
FED-26788-I04SPEAKER 52OHM SIDE PORT 102.5DB |
0 |
|
데이터시트 |
FED | Bulk | Obsolete | Magnetic | Receiver, Balanced Armature | 200 Hz ~ 4 kHz | - | 52 Ohms | 102.50 | - | - | - | - | Side | Rectangular | - | Ferrite | - | - | Solder Pads | 0.248" L x 0.169" W (6.30mm x 4.29mm) | 0.119" (3.02mm) |
|
|
FED-26849-I06SPEAKER 100OHM TOP PORT 102.5DB |
0 |
|
데이터시트 |
FED | Bulk | Obsolete | Magnetic | Receiver, Balanced Armature | 200 Hz ~ 4 kHz | - | 100 Ohms | 102.50 | - | Sound Pressure Level (SPL) | - | - | Top | Rectangular | - | Ferrite | - | - | Solder Pads | 0.248" L x 0.169" W (6.30mm x 4.29mm) | 0.248" (6.30mm) |
|
|
FED-26859-I06SPEAKER 100OHM TOP PORT 102.5DB |
0 |
|
데이터시트 |
FED | Bulk | Obsolete | Magnetic | Receiver, Balanced Armature | 200 Hz ~ 4 kHz | - | 100 Ohms | 102.50 | - | Sound Pressure Level (SPL) | - | - | Top | Rectangular | - | Ferrite | - | - | Solder Pads | 0.248" L x 0.169" W (6.30mm x 4.29mm) | 0.248" (6.30mm) |
|
|
FED-27235-I04SPEAKR 1.54 KOHM SIDE PORT 103DB |
0 |
|
데이터시트 |
FED | Bulk | Obsolete | Magnetic | Receiver, Balanced Armature | 200 Hz ~ 4 kHz | - | 1.54 kOhms | 103.00 | - | - | - | - | Side | Rectangular | - | Ferrite | - | - | Solder Pads | 0.248" L x 0.169" W (6.30mm x 4.29mm) | 0.119" (3.02mm) |
|
|
TEC-30033-B22SPEAKER 31OHM TOP PORT 107DB |
0 |
|
데이터시트 |
TEC | Tray | Obsolete | Magnetic | Receiver, Balanced Armature | 200 Hz ~ 6.49 kHz | - | 31 Ohms | 107.00 | - | Sound Pressure Level (SPL) | - | - | Top | Rectangular | - | - | - | - | Solder Pads | - | - |
|
SDS-P830855SPEAKR 6.43OHM 30W TOP PT 83.8DB |
0 |
|
데이터시트 |
SDS | Bulk | Active | Magnetic | Woofer | 60 Hz ~ 5 kHz | 63.26Hz | 6.43 Ohms | 83.80 | 1W/1M | Half Space Sensitivity | 30 W | - | Top | Round | Paper, Coated | Ferrite | - | - | Solder Eyelet(s) | 4.854" Dia (123.30mm) | 2.492" (63.30mm) |
|
|
4532EX 30 S 8 OHM |
0 |
|
데이터시트 |
- | Retail Package | Active | - | Exciter | - | - | 8 Ohms | - | - | - | - | 10 W | Top | Round, Square Frame | - | - | - | - | Quick Connect | 1.181" L x 1.181" W (30.00mm x 30.00mm) | 0.748" (19.00mm) |
|

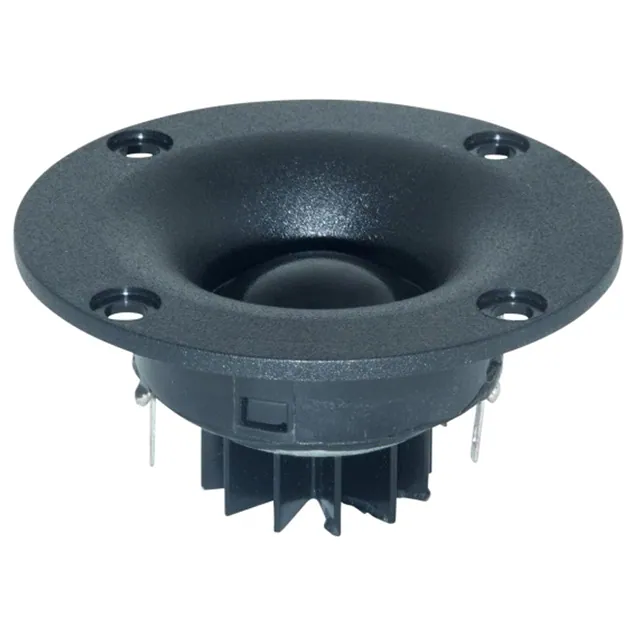

BC25SC08-08SPEAKR 8.2OHM 100W TOP PT 94.1DB |
0 |
|
데이터시트 |
BC | Bulk | Active | Magnetic | Tweeter | 2.5 kHz ~ 20 kHz | 1731.62Hz | 8.2 Ohms | 94.10 | 1W/1M | Half Space Sensitivity | 100 W | - | Top | Round | Cloth | Nd-Fe-B | - | - | Solder Eyelet(s) | 2.756" Dia (70.00mm) | 1.350" (34.30mm) |
|
|
EF-27534-017SPEAKER 110OHM 126DB RECT |
0 |
|
데이터시트 |
EF | Tray | Active | Magnetic | Receiver, Balanced Armature | 200 Hz ~ 6.3 kHz | - | 110 Ohms | 126.00 | - | Sensitivity | - | - | - | Rectangular | - | - | - | - | Solder Pads | 0.310" L x 0.220" W (7.87mm x 5.59mm) | 0.160" (4.06mm) |
|
|
ED-21739-000SPEAKER 1.5 KOHM TOP PORT 107DB |
0 |
|
데이터시트 |
ED | Bulk | Active | Magnetic | Receiver, Balanced Armature | 200 Hz ~ 5 kHz | - | 1.5 kOhms | 107.00 | - | Sensitivity | - | - | Top | Rectangular | - | - | - | - | Solder Pads | 0.248" L x 0.169" W (6.30mm x 4.29mm) | 0.248" (6.30mm) |
|
|
ED-21992-000SPEAKER 760OHM TOP PORT 107DB |
0 |
|
데이터시트 |
ED | Bulk | Active | Magnetic | Receiver, Balanced Armature | 200 Hz ~ 5 kHz | - | 760 Ohms | 107.00 | - | Sensitivity | - | - | Top | Rectangular | - | - | - | - | Solder Pads | 0.248" L x 0.169" W (6.30mm x 4.29mm) | 0.248" (6.30mm) |
