DC DC 컨버터
| 사진 | 제조업체 부품 번호 | 재고 상태 | 수량 | 데이터시트 | 시리즈 | 패키지/케이스 | 패키징 | 제품 상태 | 유형 | 출력 수 | 전압 - 입력(최소) | 전압 - 입력(최대) | 전압 - 출력 1 | 전압 - 출력 2 | 전압 - 출력 3 | 전압 - 출력 4 | 전류 - 출력(최대) | 전력(와트) | 전압 - 절연 | 응용 프로그램 | 기능 | 작동 온도 | 효율성 | 등급 | 자격 | 장착 유형 | 크기/치수 | 공급자 장치 패키지 | 제어 기능 | 승인 기관 | 표준 번호 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PMD5118OWSRDC DC CONVERTER 0.9-5.5V 12W |
0 |
|
데이터시트 |
PMD 5000 (12.4W) | 6-SMD Module | Tray | Obsolete | Non-Isolated PoL Module | 1 | 4.5V | 14V | 0.9 ~ 5.5V | - | - | - | 2.25A | 12 W | - | ITE (Commercial) | Adjustable Output, Remote On/Off | -40°C ~ 85°C (With Derating) | 93.2% | - | - | Surface Mount | 0.74" L x 0.49" W x 0.33" H (18.9mm x 12.6mm x 8.5mm) | - | Enable, Active Low | CB, CSA, IEC, TUV, UL | 62368-1 |
|
|
PMR8210PDC DC CONVERTER 3-5.25V 210W |
0 |
|
데이터시트 |
PMR 8000 (210W) | 22-DIP Module | Tray | Obsolete | Non-Isolated PoL Module | 1 | 8V | 14V | 3 ~ 5.25V | - | - | - | 40A | 210 W | - | ITE (Commercial) | Adjustable Output, Remote On/Off, Remote Sense | -40°C ~ 85°C (With Derating) | 95.6% | - | - | Through Hole | 1.52" L x 1.02" W x 0.38" H (38.6mm x 25.9mm x 9.6mm) | - | Enable, Active Low | CB, CSA, IEC, TUV, UL | 62368-1 |
|
|
PKM4515EPIDC DC CONVERTER 15V 50W |
0 |
|
데이터시트 |
PKM 4000E (50W) | Quarter Brick | Tray | Obsolete | Isolated Module | 1 | 36V | 75V | 15V | - | - | - | 3.3A | 50 W | 1.5 kV | ITE (Commercial) | Adjustable Output, Remote On/Off, Remote Sense | -40°C ~ 110°C (With Derating) | 90% | - | - | Through Hole | 2.28" L x 1.45" W x 0.33" H (57.9mm x 36.8mm x 8.5mm) | Quarter Brick | Enable, Active Low | CB, CSA, IEC, TUV, UL | 62368-1 |
|
|
PKR4910ASIDC DC CONVERTER 3.3V 10W |
0 |
|
데이터시트 |
PKR 4000A (15W) | 18-SMD Module | Tape & Reel (TR) | Obsolete | Isolated Module | 1 | 36V | 75V | 3.3V | - | - | - | 3A | 10 W | 1.5 kV | ITE (Commercial) | Adjustable Output, Remote On/Off | -45°C ~ 110°C (With Derating) | 80% | - | - | Surface Mount | 1.88" L x 1.11" W x 0.31" H (47.8mm x 28.1mm x 8.0mm) | - | Enable, Active Low | CB, CSA, IEC, TUV, UL | 62368-1 |
|
|
PMH8318TPDC DC CONVERTER 0.8-1.8V 32W |
0 |
|
데이터시트 |
PMH 8000 (99W) | 10-DIP Module | Tray | Obsolete | Non-Isolated PoL Module | 1 | 10.8V | 13.2V | 0.8 ~ 1.8V | - | - | - | 18A | 32 W | - | ITE (Commercial) | Adjustable Output, Remote On/Off, Remote Sense | -40°C ~ 85°C (With Derating) | 89.5% | - | - | Through Hole | 1.49" L x 0.87" W x 0.35" H (38.0mm x 22.1mm x 9.0mm) | - | Enable, Active Low | CB, CSA, IEC, TUV, UL | 62368-1 |
|
|
PMF5318TPDC DC CONVERTER 0.8-3.6V 36W |
0 |
|
데이터시트 |
PMF 5000 (36W) | 10-DIP Module | Tray | Obsolete | Non-Isolated PoL Module | 1 | 4.5V | 5.5V | 0.8 ~ 3.6V | - | - | - | 10A | 36 W | - | ITE (Commercial) | Adjustable Output, Remote On/Off, Remote Sense | -40°C ~ 85°C (With Derating) | 94.8% | - | - | Through Hole | 0.99" L x 0.62" W x 0.35" H (25.3mm x 15.8mm x 9.0mm) | - | Enable, Active Low | CB, CSA, IEC, TUV, UL | 62368-1 |
|
|
PKB5113WPIHSDC DC CONVERTER 12V 120W |
0 |
|
데이터시트 |
PKB5000W (120W) | Eighth Brick | Tray | Obsolete | Isolated Module | 1 | 18V | 75V | 12V | - | - | - | 10A | 120 W | 2.25 kV | ITE (Commercial) | Adjustable Output, Baseplate, Remote On/Off, Remote Sense | -40°C ~ 110°C (With Derating) | 91.5% | - | - | Through Hole | 2.30" L x 0.90" W x 0.50" H (58.4mm x 22.9mm x 12.7mm) | Eighth Brick | Enable, Active Low | CB, CSA, IEC, TUV, UL | 62368-1 |
|
|
PKM4810EPIDC DC CONVERTER 3.3V 83W |
0 |
|
데이터시트 |
PKM 4000E (82.5W) | Quarter Brick | Tray | Obsolete | Isolated Module | 1 | 36V | 75V | 3.3V | - | - | - | 25A | 83 W | 1.5 kV | ITE (Commercial) | Adjustable Output, Remote On/Off, Remote Sense | -40°C ~ 120°C (With Derating) | 92% | - | - | Through Hole | 2.28" L x 1.45" W x 0.33" H (57.9mm x 36.8mm x 8.5mm) | Quarter Brick | Enable, Active Low | CB, CSA, IEC, TUV, UL | 62368-1 |
|
|
PKV5110PIDC DC CONVERTER 3.3V 2W |
0 |
|
데이터시트 |
PKV (3W) | 24-DIP Module, 10 Leads | Tray | Obsolete | Isolated Module | 1 | 18V | 72V | 3.3V | - | - | - | 500mA | 2 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 95°C (With Derating) | 73% | - | - | Through Hole | 1.25" L x 0.80" W x 0.42" H (31.8mm x 20.3mm x 10.7mm) | - | - | CB, CSA, IEC, TUV, UL | 62368-1 |
|
|
PMJ8118LPDC DC CONVERTER 0.8-5.5V 143W |
0 |
|
데이터시트 |
PMJ 8000 (143W) | 13-DIP Module | Tray | Obsolete | Non-Isolated PoL Module | 1 | 10.8V | 13.2V | 0.8 ~ 5.5V | - | - | - | 26A | 143 W | - | ITE (Commercial) | Adjustable Output, Remote On/Off, Remote Sense | -40°C ~ 85°C (With Derating) | 94.1% | - | - | Through Hole | 1.37" L x 1.12" W x 0.35" H (34.8mm x 28.5mm x 9.0mm) | - | Enable, Active Low | CB, CSA, IEC, TUV, UL | 62368-1 |
|
|
PMF4218TSRDC DC CONVERTER 0.8-2.5V 25W |
0 |
|
데이터시트 |
PMF 4000 (25W) | 10-SMD Module | Tray | Obsolete | Non-Isolated PoL Module | 1 | 2.95V | 3.65V | 0.8 ~ 2.5V | - | - | - | 10A | 25 W | - | ITE (Commercial) | Adjustable Output, Remote On/Off, Remote Sense | -40°C ~ 85°C (With Derating) | 94.1% | - | - | Surface Mount | 0.99" L x 0.62" W x 0.35" H (25.3mm x 15.8mm x 9.0mm) | - | Enable, Active Low | CB, CSA, IEC, TUV, UL | 62368-1 |
|
|
PME4118VPFDC DC CONVERTER 0.55-1.8V 11W |
0 |
|
데이터시트 |
PME 4000F (10.8W) | 6-DIP Module | Tray | Obsolete | Non-Isolated PoL Module | 1 | 2.95V | 3.65V | 0.55 ~ 1.8V | - | - | - | 6A | 11 W | - | ITE (Commercial) | Adjustable Output, Remote On/Off | -40°C ~ 85°C (With Derating) | 88.9% | - | - | Through Hole | 0.87" L x 0.49" W x 0.34" H (22.1mm x 12.6mm x 8.5mm) | - | Enable, Active Low | CB, CSA, IEC, TUV, UL | 62368-1 |
|
|
PMD4118OWSRDC DC CONVERTER 0.9-3.6V 11W |
0 |
|
데이터시트 |
PMD 4000 (10.8W) | 6-SMD Module | Tray | Obsolete | Non-Isolated PoL Module | 1 | 3V | 5.5V | 0.9 ~ 3.6V | - | - | - | 3A | 11 W | - | ITE (Commercial) | Adjustable Output, Remote On/Off | -40°C ~ 125°C (With Derating) | 93.2% | - | - | Surface Mount | 0.74" L x 0.49" W x 0.33" H (18.9mm x 12.6mm x 8.5mm) | - | - | CB, CSA, IEC, TUV, UL | 62368-1 |
|
|
PMJ5918TPDC DC CONVERTER 0.8-3.3V 99W |
0 |
|
데이터시트 |
PMJ 5000 (108W) | 13-DIP Module | Tray | Obsolete | Non-Isolated PoL Module | 1 | 4.5V | 5.5V | 0.8 ~ 3.3V | - | - | - | 30A | 99 W | - | ITE (Commercial) | Adjustable Output, Remote On/Off, Remote Sense | -40°C ~ 85°C (With Derating) | 95.5% | - | - | Through Hole | 1.37" L x 1.12" W x 0.35" H (34.8mm x 28.5mm x 9.0mm) | - | Enable, Active Low | CB, CSA, IEC, TUV, UL | 62368-1 |
|
|
PMM8218TPDC DC CONVERTER 0.8-5.5V 275W |
0 |
|
데이터시트 |
PMM 8000 (275W) | 20-DIP Module | Tray | Obsolete | Non-Isolated PoL Module | 1 | 8V | 14V | 0.8 ~ 5.5V | - | - | - | 50A | 275 W | - | ITE (Commercial) | Adjustable Output, Remote On/Off, Remote Sense | -40°C ~ 85°C (With Derating) | 95.7% | - | - | Through Hole | 2.04" L x 1.04" W x 0.36" H (51.9mm x 26.5mm x 9.1mm) | - | Enable, Active Low | CB, CSA, IEC, TUV, UL | 62368-1 |
|
|
PKR4110BSIDC DC CONVERTER 3.3V 15W |
0 |
|
데이터시트 |
PKR 4000B (15W) | 18-SMD Module | Tape & Reel (TR) | Obsolete | Isolated Module | 1 | 36V | 75V | 3.3V | - | - | - | 4.5A | 15 W | 1.5 kV | ITE (Commercial) | Adjustable Output, Remote On/Off | -45°C ~ 110°C (With Derating) | 86% | - | - | Surface Mount | 1.88" L x 1.11" W x 0.31" H (47.8mm x 28.1mm x 8.0mm) | - | Enable, Active Low | CB, CSA, IEC, TUV, UL | 62368-1 |
|

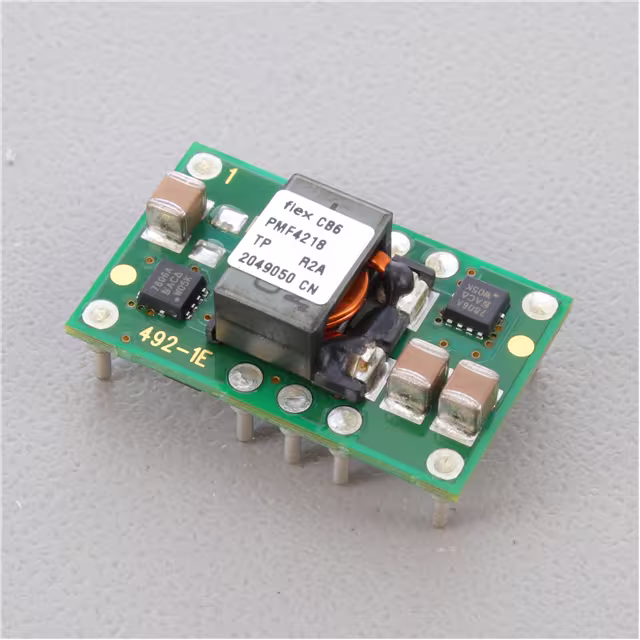

PMF4218TPDC DC CONVERTER 0.8-2.5V 25W |
0 |
|
데이터시트 |
PMF 4000 (25W) | 10-DIP Module | Tray | Obsolete | Non-Isolated PoL Module | 1 | 2.95V | 3.65V | 0.8 ~ 2.5V | - | - | - | 10A | 25 W | - | ITE (Commercial) | Adjustable Output, Remote On/Off, Remote Sense | -40°C ~ 85°C (With Derating) | 94.1% | - | - | Through Hole | 0.99" L x 0.62" W x 0.35" H (25.3mm x 15.8mm x 9.0mm) | - | Enable, Active Low | CB, CSA, IEC, TUV, UL | 62368-1 |
|
|
PMH8918LSRDC DC CONVERTER 0.8-1.8V 32W |
0 |
|
데이터시트 |
PMH 8000 (99W) | 10-SMD Module | Tray | Obsolete | Non-Isolated PoL Module | 1 | 10.8V | 13.2V | 0.8 ~ 1.8V | - | - | - | 18A | 32 W | - | ITE (Commercial) | Adjustable Output, Remote On/Off, Remote Sense | -40°C ~ 85°C (With Derating) | 89.5% | - | - | Surface Mount | 1.49" L x 0.87" W x 0.35" H (38.0mm x 22.1mm x 9.0mm) | - | Enable, Active Low | CB, CSA, IEC, TUV, UL | 62368-1 |
|
|
PMG8618LPDC DC CONVERTER 1.2-5.5V 66W |
0 |
|
데이터시트 |
PMG 8000 (66W) | 10-DIP Module | Tray | Obsolete | Non-Isolated PoL Module | 1 | 10.8V | 13.2V | 1.2 ~ 5.5V | - | - | - | 12A | 66 W | - | ITE (Commercial) | Adjustable Output, Remote On/Off, Remote Sense | -40°C ~ 85°C (With Derating) | 94.5% | - | - | Through Hole | 1.37" L x 0.62" W x 0.35" H (34.8mm x 15.8mm x 9.0mm) | - | Enable, Active Low | CB, CSA, IEC, TUV, UL | 62368-1 |
|
|
PME8318LPDC DC CONVERTER 0.8-1.8V 11W |
0 |
|
데이터시트 |
PME 8000 (33W) | 6-DIP Module | Tray | Obsolete | Non-Isolated PoL Module | 1 | 10.8V | 13.2V | 0.8 ~ 1.8V | - | - | - | 6A | 11 W | - | ITE (Commercial) | Adjustable Output, Remote On/Off | -40°C ~ 85°C (With Derating) | 88.1% | - | - | Through Hole | 0.87" L x 0.49" W x 0.34" H (22.1mm x 12.6mm x 8.5mm) | - | Enable, Active Low | CB, CSA, IEC, TUV, UL | 62368-1 |
