DC DC 컨버터
| 사진 | 제조업체 부품 번호 | 재고 상태 | 수량 | 데이터시트 | 시리즈 | 패키지/케이스 | 패키징 | 제품 상태 | 유형 | 출력 수 | 전압 - 입력(최소) | 전압 - 입력(최대) | 전압 - 출력 1 | 전압 - 출력 2 | 전압 - 출력 3 | 전압 - 출력 4 | 전류 - 출력(최대) | 전력(와트) | 전압 - 절연 | 응용 프로그램 | 기능 | 작동 온도 | 효율성 | 등급 | 자격 | 장착 유형 | 크기/치수 | 공급자 장치 패키지 | 제어 기능 | 승인 기관 | 표준 번호 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MTE1S1512MCDC DC CONVERTER 12V 1W |
0 |
|
데이터시트 |
MTE1 (1W) | 8-SMD Module | Tube | Obsolete | Isolated Module | 1 | 13.5V | 16.5V | 12V | - | - | - | 83mA | 1 W | 1 kV | ITE (Commercial) | - | -40°C ~ 85°C | 87% | - | - | Surface Mount | 0.50" L x 0.42" W x 0.28" H (12.8mm x 10.7mm x 7.0mm) | - | - | - | - |
|
|
MTE1S1515MCDC DC CONVERTER 15V 1W |
0 |
|
데이터시트 |
MTE1 (1W) | 8-SMD Module | Tube | Obsolete | Isolated Module | 1 | 13.5V | 16.5V | 15V | - | - | - | 67mA | 1 W | 1 kV | ITE (Commercial) | - | -40°C ~ 85°C | 88% | - | - | Surface Mount | 0.50" L x 0.42" W x 0.28" H (12.8mm x 10.7mm x 7.0mm) | - | - | - | - |
|
BP5225DC DC CONVERTER 5V 0.15A |
0 |
|
데이터시트 |
- | 5-SIP, 4 Leads | Tray | Obsolete | Non-Isolated PoL Module | 1 | 10V | 26.4V | 5V | - | - | - | 150mA | - | - | ITE (Commercial) | - | -20°C ~ 80°C | - | - | - | Through Hole | 0.67" L x 0.38" W x 0.66" H (17.0mm x 9.7mm x 16.8mm) | - | - | - | - |
|
PDS1-S24-S9-SDC DC CONVERTER 9V 1W |
0 |
|
데이터시트 |
PDS1-S (1W) | 4-SIP Module | Tube | Obsolete | Isolated Module | 1 | 21.6V | 26.4V | 9V | - | - | - | 111mA | 1 W | 1.5 kV | ITE (Commercial) | SCP | -40°C ~ 105°C (With Derating) | 80% | - | - | Through Hole | 0.46" L x 0.24" W x 0.40" H (11.6mm x 6.0mm x 10.2mm) | - | - | CB Scheme, EN, IEC, UL | 55024; 55032 Class A; 60950-1 |
|
PDS1-S5-S9-DDC DC CONVERTER 9V 1W |
0 |
|
데이터시트 |
PDS1-D (1W) | 7-DIP Module, 4 Leads | Tube | Obsolete | Isolated Module | 1 | 4.5V | 5.5V | 9V | - | - | - | 111mA | 1 W | 1.5 kV | ITE (Commercial) | SCP | -40°C ~ 105°C | 80% | - | - | Through Hole | 0.50" L x 0.39" W x 0.30" H (12.8mm x 10.0mm x 7.7mm) | - | - | CB Scheme, EN, IEC, UL | 55024; 55032 Class A; 60950-1 |
|
PEM1-S5-D15-SDC DC CONVERTER +/-15V 1W |
0 |
|
데이터시트 |
PEM1-S (1W) | 7-SIP Module, 5 Leads | Tube | Obsolete | Isolated Module | 2 | 4.5V | 5.5V | 15V | -15V | - | - | 33mA, 33mA | 1 W | 3 kV | ITE (Commercial) | SCP | -40°C ~ 105°C | 81% | - | - | Through Hole | 0.77" L x 0.24" W x 0.37" H (19.5mm x 6.0mm x 9.3mm) | - | - | CB Scheme, EN, IEC, UL | 55024; 55032 Class A; 60950-1 |
|

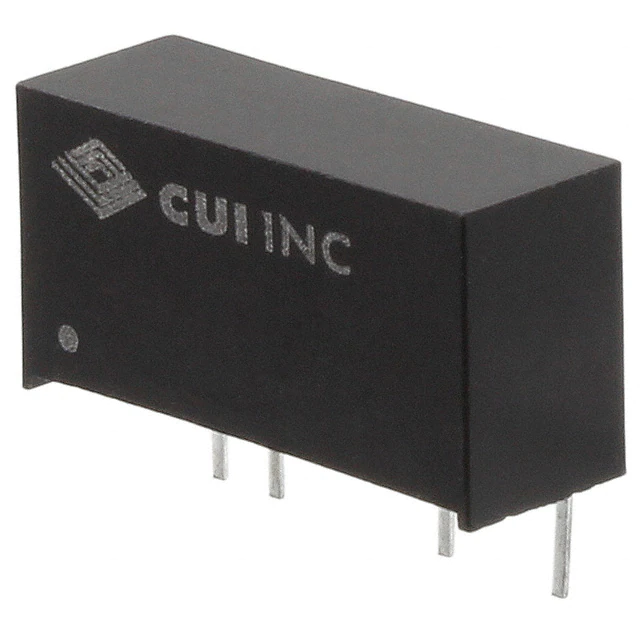

PEM2-S12-S15-SDC DC CONVERTER 15V 2W |
0 |
|
데이터시트 |
PEM2-S (2W) | 7-SIP Module, 4 Leads | Tube | Obsolete | Isolated Module | 1 | 10.8V | 13.2V | 15V | - | - | - | 133.3mA | 2 W | 3 kV | ITE (Commercial) | SCP | -40°C ~ 105°C | 84% | - | - | Through Hole | 0.77" L x 0.28" W x 0.39" H (19.6mm x 7.0mm x 10.0mm) | - | - | CB Scheme, EN, IEC, UL | 55024; 55032 Class A; 60950-1 |
|
PQM3-D24-S12-M-TRDC DC CONVERTER 12V 3W |
0 |
|
데이터시트 |
PQM3-M (3W) | 16-SMD Module, 6 Leads | Tape & Reel (TR) | Obsolete | Isolated Module | 1 | 18V | 36V | 12V | - | - | - | 250mA | 3 W | 1.5 kV | ITE (Commercial) | SCP | -40°C ~ 105°C (With Derating) | 80% | - | - | Surface Mount | 0.94" L x 0.54" W x 0.31" H (23.9mm x 13.7mm x 8.0mm) | - | - | EN | 55024; 55032 Class A |
|
PDM1-S24-D5-SDC DC CONVERTER +/-5V 1W |
0 |
|
데이터시트 |
PDM1-S (1W) | 6-SIP Module, 5 Leads | Tube | Obsolete | Isolated Module | 2 | 21.6V | 26.4V | 5V | -5V | - | - | 100mA, 100mA | 1 W | 1.5 kV | ITE (Commercial) | SCP | -40°C ~ 105°C | 80% | - | - | Through Hole | 0.77" L x 0.24" W x 0.37" H (19.5mm x 6.0mm x 9.3mm) | - | - | CB Scheme, EN, IEC, UL | 55024; 55032 Class A; 60950-1 |
|
|
PDM1-S5-D5-SDC DC CONVERTER +/-5V 1W |
0 |
|
데이터시트 |
PDM1-S (1W) | 6-SIP Module, 5 Leads | Tube | Obsolete | Isolated Module | 2 | 4.5V | 5.5V | 5V | -5V | - | - | 100mA, 100mA | 1 W | 1.5 kV | ITE (Commercial) | SCP | -40°C ~ 105°C | 80% | - | - | Through Hole | 0.77" L x 0.24" W x 0.37" H (19.5mm x 6.0mm x 9.3mm) | - | - | CB Scheme, EN, IEC, UL | 55024; 55032 Class A; 60950-1 |
|
|
PDM2-S24-D12-SDC DC CONVERTER +/-12V 2W |
0 |
|
데이터시트 |
PDM2-S (2W) | 6-SIP Module, 5 Leads | Tube | Obsolete | Isolated Module | 2 | 21.6V | 26.4V | 12V | -12V | - | - | 83mA, 83mA | 2 W | 1.5 kV | ITE (Commercial) | SCP | -40°C ~ 105°C | 84% | - | - | Through Hole | 0.77" L x 0.28" W x 0.39" H (19.6mm x 7.0mm x 10.0mm) | - | - | CB Scheme, EN, IEC, UL | 55024; 55032 Class A; 60950-1 |
|
|
ZL9006MIRZDC DC CONVERTER 0.6-3.3V 20W |
0 |
|
데이터시트 |
ZL9006M | 32-SMD Module | Tray | Obsolete | Non-Isolated PoL Module, Digital | 1 | 4.5V | 13.2V | 0.6 ~ 3.3V | - | - | - | 6A | - | - | ITE (Commercial) | OCP, OTP, OVP, UVLO | -40°C ~ 85°C | - | - | - | Surface Mount | 0.68" L x 0.45" W x 0.10" H (17.2mm x 11.5mm x 2.5mm) | - | - | - | - |
|
|
ZL9010MIRZDC DC CONVERTER 0.6-3.6V 36W |
0 |
|
데이터시트 |
ZL9010M | 32-SMD Module | Tray | Obsolete | Non-Isolated PoL Module, Digital | 1 | 4.5V | 13.2V | 0.6 ~ 3.6V | - | - | - | 10A | - | - | ITE (Commercial) | OCP, OTP, OVP, UVLO | -40°C ~ 85°C | - | - | - | Surface Mount | 0.68" L x 0.45" W x 0.10" H (17.2mm x 11.5mm x 2.5mm) | - | - | - | - |
|
|
MEJ1D1215SCDC DC CONVERTER +/-15V 1W |
0 |
|
데이터시트 |
MEJ1 (1W) | 7-SIP Module, 5 Leads | Tube | Obsolete | Isolated Module | 2 | 10.8V | 13.2V | 15V | -15V | - | - | 33mA, 33mA | 1 W | 5.2 kV | ITE (Commercial), Medical | SCP | -40°C ~ 85°C | 77% | - | - | Through Hole | 0.77" L x 0.39" W x 0.50" H (19.7mm x 10.0mm x 12.7mm) | - | - | - | - |
|
|
MEJ1D1505SCDC DC CONVERTER +/-5V 1W |
0 |
|
데이터시트 |
MEJ1 (1W) | 7-SIP Module, 5 Leads | Tube | Active | Isolated Module | 2 | 13.5V | 16.5V | 5V | -5V | - | - | 100mA, 100mA | 1 W | 5.2 kV | ITE (Commercial), Medical | SCP | -40°C ~ 85°C | 75% | - | - | Through Hole | 0.77" L x 0.39" W x 0.50" H (19.7mm x 10.0mm x 12.7mm) | - | - | - | - |
|
|
MEJ1D1509SCDC DC CONVERTER +/-9V 1W |
0 |
|
데이터시트 |
MEJ1 (1W) | 7-SIP Module, 5 Leads | Tube | Obsolete | Isolated Module | 2 | 13.5V | 16.5V | 9V | -9V | - | - | 55mA, 55mA | 1 W | 5.2 kV | ITE (Commercial), Medical | SCP | -40°C ~ 85°C | 76.5% | - | - | Through Hole | 0.77" L x 0.39" W x 0.50" H (19.7mm x 10.0mm x 12.7mm) | - | - | - | - |
|
MEJ1D1512SCDC DC CONVERTER +/-12V 1W |
0 |
|
데이터시트 |
MEJ1 (1W) | 7-SIP Module, 5 Leads | Tube | Obsolete | Isolated Module | 2 | 13.5V | 16.5V | 12V | -12V | - | - | 42mA, 42mA | 1 W | 5.2 kV | ITE (Commercial), Medical | SCP | -40°C ~ 85°C | 77% | - | - | Through Hole | 0.77" L x 0.39" W x 0.50" H (19.7mm x 10.0mm x 12.7mm) | - | - | - | - |
|
|
MEJ1D0515SCDC DC CONVERTER +/-15V 1W |
0 |
|
데이터시트 |
MEJ1 (1W) | 7-SIP Module, 5 Leads | Tube | Active | Isolated Module | 2 | 4.5V | 5.5V | 15V | -15V | - | - | 33mA, 33mA | 1 W | 5.2 kV | ITE (Commercial), Medical | SCP | -40°C ~ 85°C | 75.5% | - | - | Through Hole | 0.77" L x 0.39" W x 0.50" H (19.7mm x 10.0mm x 12.7mm) | - | - | - | - |
|
|
MEJ1D1203SCDC DC CONVERTER +/-3.3V 1W |
0 |
|
데이터시트 |
MEJ1 (1W) | 7-SIP Module, 5 Leads | Tube | Obsolete | Isolated Module | 2 | 10.8V | 13.2V | 3.3V | -3.3V | - | - | 151mA, 151mA | 1 W | 5.2 kV | ITE (Commercial), Medical | SCP | -40°C ~ 85°C | 73% | - | - | Through Hole | 0.77" L x 0.39" W x 0.50" H (19.7mm x 10.0mm x 12.7mm) | - | - | - | - |
|
|
MEJ1D1205SCDC DC CONVERTER +/-5V 1W |
0 |
|
데이터시트 |
MEJ1 (1W) | 7-SIP Module, 5 Leads | Tube | Obsolete | Isolated Module | 2 | 10.8V | 13.2V | 5V | -5V | - | - | 100mA, 100mA | 1 W | 5.2 kV | ITE (Commercial), Medical | SCP | -40°C ~ 85°C | 75.5% | - | - | Through Hole | 0.77" L x 0.39" W x 0.50" H (19.7mm x 10.0mm x 12.7mm) | - | - | - | - |
