DC DC 컨버터
| 사진 | 제조업체 부품 번호 | 재고 상태 | 수량 | 데이터시트 | 시리즈 | 패키지/케이스 | 패키징 | 제품 상태 | 유형 | 출력 수 | 전압 - 입력(최소) | 전압 - 입력(최대) | 전압 - 출력 1 | 전압 - 출력 2 | 전압 - 출력 3 | 전압 - 출력 4 | 전류 - 출력(최대) | 전력(와트) | 전압 - 절연 | 응용 프로그램 | 기능 | 작동 온도 | 효율성 | 등급 | 자격 | 장착 유형 | 크기/치수 | 공급자 장치 패키지 | 제어 기능 | 승인 기관 | 표준 번호 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

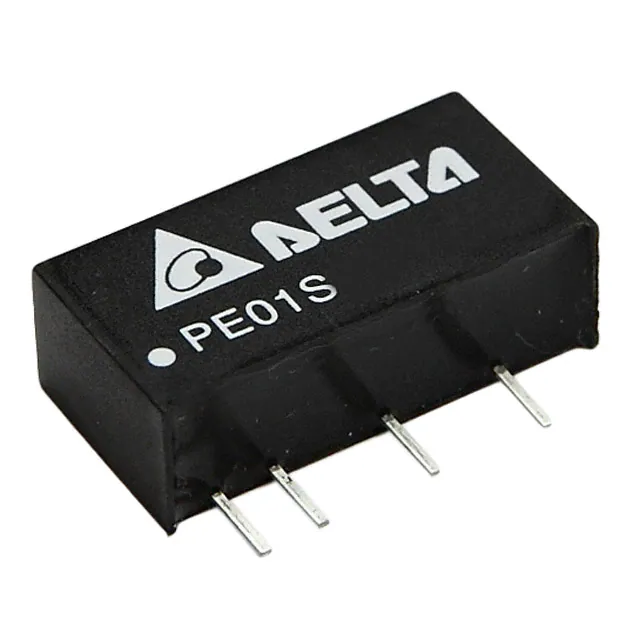

PE01S1205ADC DC CONVERTER 5V 1W |
0 |
|
데이터시트 |
PE01S/D (1W) | 6-SIP Module, 4 Leads | Tube | Obsolete | Isolated Module | 1 | 10.8V | 13.2V | 5V | - | - | - | 200mA | 1 W | 1 kV | Medical | SCP | -40°C ~ 85°C | 84% | - | - | Through Hole | 0.77" L x 0.24" W x 0.40" H (19.6mm x 6.0mm x 10.2mm) | - | - | - | - |
|
|
PE01S1215ADC DC CONVERTER 15V 1W |
0 |
|
데이터시트 |
PE01S/D (1W) | 6-SIP Module, 4 Leads | Tube | Obsolete | Isolated Module | 1 | 10.8V | 13.2V | 15V | - | - | - | 67mA | 1 W | 1 kV | Medical | SCP | -40°C ~ 85°C | 87.5% | - | - | Through Hole | 0.77" L x 0.24" W x 0.40" H (19.6mm x 6.0mm x 10.2mm) | - | - | - | - |
|
|
PE01S2405ADC DC CONVERTER 5V 1W |
0 |
|
데이터시트 |
PE01S/D (1W) | 6-SIP Module, 4 Leads | Tube | Obsolete | Isolated Module | 1 | 21.6V | 26.4V | 5V | - | - | - | 200mA | 1 W | 1 kV | Medical | SCP | -40°C ~ 85°C | 84% | - | - | Through Hole | 0.77" L x 0.24" W x 0.40" H (19.6mm x 6.0mm x 10.2mm) | - | - | - | - |
|
|
PE01S2409ADC DC CONVERTER 9V 1W |
0 |
|
데이터시트 |
PE01S/D (1W) | 6-SIP Module, 4 Leads | Tube | Obsolete | Isolated Module | 1 | 21.6V | 26.4V | 9V | - | - | - | 110mA | 1 W | 1 kV | Medical | SCP | -40°C ~ 85°C | 86.5% | - | - | Through Hole | 0.77" L x 0.24" W x 0.40" H (19.6mm x 6.0mm x 10.2mm) | - | - | - | - |
|
PH02D2412ADC DC CONVERTER +/-12V 2W |
0 |
|
데이터시트 |
PH02S/D (2W) | 9-SIP Module, 7 Leads | Tube | Obsolete | Isolated Module | 2 | 9V | 36V | 12V | -12V | - | - | 83mA, 83mA | 2 W | 1.5 kV | Medical | Remote On/Off, SCP, UVLO | -40°C ~ 85°C | 77% | - | - | Through Hole | 1.02" L x 0.36" W x 0.49" H (25.9mm x 9.1mm x 12.4mm) | - | Enable, Active Low | - | - |
|
|
PH02D4805ADC DC CONVERTER +/-5V 2W |
0 |
|
데이터시트 |
PH02S/D (2W) | 9-SIP Module, 7 Leads | Tube | Obsolete | Isolated Module | 2 | 18V | 75V | 5V | -5V | - | - | 200mA, 200mA | 2 W | 1.5 kV | Medical | Remote On/Off, SCP, UVLO | -40°C ~ 85°C | 70% | - | - | Through Hole | 1.02" L x 0.36" W x 0.49" H (25.9mm x 9.1mm x 12.4mm) | - | Enable, Active Low | - | - |
|
|
PH02D4812ADC DC CONVERTER +/-12V 2W |
0 |
|
데이터시트 |
PH02S/D (2W) | 9-SIP Module, 7 Leads | Tube | Obsolete | Isolated Module | 2 | 18V | 75V | 12V | -12V | - | - | 83mA, 83mA | 2 W | 1.5 kV | Medical | Remote On/Off, SCP, UVLO | -40°C ~ 85°C | 76% | - | - | Through Hole | 1.02" L x 0.36" W x 0.49" H (25.9mm x 9.1mm x 12.4mm) | - | Enable, Active Low | - | - |
|
|
PH02D4815ADC DC CONVERTER +/-15V 2W |
0 |
|
데이터시트 |
PH02S/D (2W) | 9-SIP Module, 7 Leads | Tube | Obsolete | Isolated Module | 2 | 18V | 75V | 15V | -15V | - | - | 67mA, 67mA | 2 W | 1.5 kV | Medical | Remote On/Off, SCP, UVLO | -40°C ~ 85°C | 76% | - | - | Through Hole | 1.02" L x 0.36" W x 0.49" H (25.9mm x 9.1mm x 12.4mm) | - | Enable, Active Low | - | - |
|
PI01D0505ADC DC CONVERTER +/-5V 1W |
0 |
|
데이터시트 |
PI01S/D (1W) | 7-SIP Module, 5 Leads | Tube | Obsolete | Isolated Module | 2 | 4.5V | 5.5V | 5V | -5V | - | - | 100mA, 100mA | 1 W | 6 kV | Medical | SCP | -25°C ~ 85°C | 66% | - | - | Through Hole | 0.87" L x 0.30" W x 0.49" H (22.0mm x 7.5mm x 12.5mm) | - | - | - | - |
|
|
PI01D0512ADC DC CONVERTER +/-12V 1W |
0 |
|
데이터시트 |
PI01S/D (1W) | 7-SIP Module, 5 Leads | Tube | Obsolete | Isolated Module | 2 | 4.5V | 5.5V | 12V | -12V | - | - | 40mA, 40mA | 1 W | 6 kV | Medical | SCP | -25°C ~ 85°C | 72% | - | - | Through Hole | 0.87" L x 0.30" W x 0.49" H (22.0mm x 7.5mm x 12.5mm) | - | - | - | - |
|
|
PI01D1205ADC DC CONVERTER +/-5V 1W |
0 |
|
데이터시트 |
PI01S/D (1W) | 7-SIP Module, 5 Leads | Tube | Obsolete | Isolated Module | 2 | 10.8V | 13.2V | 5V | -5V | - | - | 100mA, 100mA | 1 W | 6 kV | Medical | SCP | -25°C ~ 85°C | 66% | - | - | Through Hole | 0.87" L x 0.30" W x 0.49" H (22.0mm x 7.5mm x 12.5mm) | - | - | - | - |
|
PC02D0505ADC DC CONVERTER +/-5V 2W |
0 |
|
데이터시트 |
PC02S/D (2W) | 6-SIP Module, 5 Leads | Tube | Obsolete | Isolated Module | 2 | 4.5V | 5.5V | 5V | -5V | - | - | 200mA, 200mA | 2 W | 1 kV | Medical | SCP | -40°C ~ 85°C | 77% | - | - | Through Hole | 0.77" L x 0.30" W x 0.40" H (19.6mm x 7.6mm x 10.2mm) | - | - | - | - |
|
|
PC02D0512ADC DC CONVERTER +/-12V 2W |
0 |
|
데이터시트 |
PC02S/D (2W) | 6-SIP Module, 5 Leads | Tube | Obsolete | Isolated Module | 2 | 4.5V | 5.5V | 12V | -12V | - | - | 83mA, 83mA | 2 W | 1 kV | Medical | SCP | -40°C ~ 85°C | 79% | - | - | Through Hole | 0.77" L x 0.30" W x 0.40" H (19.6mm x 7.6mm x 10.2mm) | - | - | - | - |
|
|
PC02D0515ADC DC CONVERTER +/-15V 2W |
0 |
|
데이터시트 |
PC02S/D (2W) | 6-SIP Module, 5 Leads | Tube | Obsolete | Isolated Module | 2 | 4.5V | 5.5V | 15V | -15V | - | - | 66mA, 66mA | 2 W | 1 kV | Medical | SCP | -40°C ~ 85°C | 79% | - | - | Through Hole | 0.77" L x 0.30" W x 0.40" H (19.6mm x 7.6mm x 10.2mm) | - | - | - | - |
|
|
PC02D1212ADC DC CONVERTER +/-12V 2W |
0 |
|
데이터시트 |
PC02S/D (2W) | 6-SIP Module, 5 Leads | Tube | Obsolete | Isolated Module | 2 | 10.8V | 13.2V | 12V | -12V | - | - | 83mA, 83mA | 2 W | 1 kV | Medical | SCP | -40°C ~ 85°C | 82% | - | - | Through Hole | 0.77" L x 0.30" W x 0.40" H (19.6mm x 7.6mm x 10.2mm) | - | - | - | - |
|
|
PC02D2415ADC DC CONVERTER +/-15V 2W |
0 |
|
데이터시트 |
PC02S/D (2W) | 6-SIP Module, 5 Leads | Tube | Obsolete | Isolated Module | 2 | 21.6V | 26.4V | 15V | -15V | - | - | 66mA, 66mA | 2 W | 1 kV | Medical | SCP | -40°C ~ 85°C | 82% | - | - | Through Hole | 0.77" L x 0.30" W x 0.40" H (19.6mm x 7.6mm x 10.2mm) | - | - | - | - |
|
SA01D0505ADC DC CONVERTER +/-5V 1W |
0 |
|
데이터시트 |
SA01D (1W) | 8-SMD Module | Tube | Obsolete | Isolated Module | 2 | 4.5V | 5.5V | 5V | -5V | - | - | 100mA, 100mA | 1 W | 1 kV | Medical | SCP | -40°C ~ 85°C | 75% | - | - | Surface Mount | 0.50" L x 0.42" W x 0.28" H (12.8mm x 10.7mm x 7.0mm) | - | - | - | - |
|
|
SA01D0509ADC DC CONVERTER +/-9V 1W |
0 |
|
데이터시트 |
SA01D (1W) | 8-SMD Module | Tube | Obsolete | Isolated Module | 2 | 4.5V | 5.5V | 9V | -9V | - | - | 55mA, 55mA | 1 W | 1 kV | Medical | SCP | -40°C ~ 85°C | 76% | - | - | Surface Mount | 0.50" L x 0.42" W x 0.28" H (12.8mm x 10.7mm x 7.0mm) | - | - | - | - |
|
|
SA01D0512ADC DC CONVERTER +/-12V 1W |
0 |
|
데이터시트 |
SA01D (1W) | 8-SMD Module | Tube | Obsolete | Isolated Module | 2 | 4.5V | 5.5V | 12V | -12V | - | - | 42mA, 42mA | 1 W | 1 kV | Medical | SCP | -40°C ~ 85°C | 79% | - | - | Surface Mount | 0.50" L x 0.42" W x 0.28" H (12.8mm x 10.7mm x 7.0mm) | - | - | - | - |
|
|
SA01D0515ADC DC CONVERTER +/-15V 1W |
0 |
|
데이터시트 |
SA01D (1W) | 8-SMD Module | Tube | Obsolete | Isolated Module | 2 | 4.5V | 5.5V | 15V | -15V | - | - | 33mA, 33mA | 1 W | 1 kV | Medical | SCP | -40°C ~ 85°C | 79% | - | - | Surface Mount | 0.50" L x 0.42" W x 0.28" H (12.8mm x 10.7mm x 7.0mm) | - | - | - | - |
