DC DC 컨버터
| 사진 | 제조업체 부품 번호 | 재고 상태 | 수량 | 데이터시트 | 시리즈 | 패키지/케이스 | 패키징 | 제품 상태 | 유형 | 출력 수 | 전압 - 입력(최소) | 전압 - 입력(최대) | 전압 - 출력 1 | 전압 - 출력 2 | 전압 - 출력 3 | 전압 - 출력 4 | 전류 - 출력(최대) | 전력(와트) | 전압 - 절연 | 응용 프로그램 | 기능 | 작동 온도 | 효율성 | 등급 | 자격 | 장착 유형 | 크기/치수 | 공급자 장치 패키지 | 제어 기능 | 승인 기관 | 표준 번호 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
URF4812P-6WR3DC DC CONVERTER 12V 6W |
186 |
|
데이터시트 |
URF4812P-6WR3 (6W) | 24-DIP Module, 7 Leads | Tube | Not For New Designs | Isolated Module | 1 | 18V | 75V | 12V | - | - | - | 500mA | 6 W | 3 kV | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 87% | - | - | Through Hole | 1.24" L x 0.80" W x 0.40" H (31.6mm x 20.3mm x 10.2mm) | - | - | CB, CE, cURus, UKCA, UL | 60950-1; 62368-1 |
|
|
URF2405P-6WR3DC DC CONVERTER 5V 6W |
143 |
|
데이터시트 |
URF2405P-6WR3 (6W) | 24-DIP Module, 7 Leads | Tube | Not For New Designs | Isolated Module | 1 | 9V | 36V | 5V | - | - | - | 1.2A | 6 W | 3 kV | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 81% | - | - | Through Hole | 1.24" L x 0.80" W x 0.40" H (31.6mm x 20.3mm x 10.2mm) | - | - | CB, CE, cURus, UKCA, UL | 60950-1; 62368-1 |
|
2S7B_0505S6UPDC-DC INDUSTRIAL |
445 |
|
데이터시트 |
2S7B_6UP (2W) | 7-SIP Module, 4 Leads | Tube | Obsolete | Isolated Module | 1 | 4.5V | 5.5V | 5V | - | - | - | 400mA | 2 W | 6 kV | Medical | - | -40°C ~ 85°C (With Derating) | 78% | - | - | Through Hole | 0.77" L x 0.39" W x 0.49" H (19.5mm x 9.8mm x 12.5mm) | - | - | cURus | 60601-1 |
|
SB01D1212ADC DC CONVERTER +/-12V 1W |
310 |
|
데이터시트 |
SB01S/D (2W) | 12-SMD Module, 10 Leads | Tube | Obsolete | Isolated Module | 2 | 10.8V | 13.2V | 12V | -12V | - | - | 42mA, 42mA | 1 W | 3 kV | Medical | SCP | -40°C ~ 85°C | 80% | - | - | Surface Mount | 0.60" L x 0.42" W x 0.28" H (15.2mm x 10.7mm x 7.0mm) | - | - | - | - |
|
URA2409S-6WR3DC DC CONVERTER +/-9V 6W |
121 |
|
데이터시트 |
URA2409S-6WR3 (6W) | 8-SIP Module, 7 Leads | Tube | Not For New Designs | Isolated Module | 2 | 9V | 36V | 9V | -9V | - | - | 333mA, 333mA | 5.9 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 83% | - | - | Through Hole | 0.87" L x 0.37" W x 0.47" H (22.0mm x 9.5mm x 12.0mm) | - | - | CE, UKCA | 62368-1 |
|
AM1D-0524DH40ZDC DC CONVERTER +/-24V 1W |
134 |
|
데이터시트 |
AM1D-Z (1W) | 7-SIP Module | Tube | Active | Isolated Module | 2 | 4.5V | 5.5V | -24 ~ 24V | -24V | - | - | 21mA, 21mA | 1 W | 4 kV | ITE (Commercial) | - | -40°C ~ 85°C | 81% | - | - | Through Hole | 0.76" L x 0.24" W x 0.39" H (19.5mm x 6.0mm x 10.0mm) | - | - | CE, cULus, cURus | - |
|
IR1209SDC DC CONVERTER +/-9V 3W |
112 |
|
데이터시트 |
IR (3W) | 7-SIP Module, 5 Leads | Tube | Active | Isolated Module | 2 | 10.8V | 13.2V | 9V | -9V | - | - | 167mA | 3 W | 1 kV | ITE (Commercial) | - | -40°C ~ 85°C | 88% | - | - | Through Hole | 0.77" L x 0.28" W x 0.39" H (19.5mm x 7.2mm x 10.0mm) | - | - | - | - |
|
PQP3-D24-S3-MDC DC CONVERTER 3.3V 2.5W |
331 |
|
데이터시트 |
PQP3-M | 8-SMD Module, 5 Leads | Tube | Not For New Designs | Isolated Module | 1 | 18V | 36V | 3.3V | - | - | - | 758mA | 2.5 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 74% | - | - | Surface Mount | 0.55" L x 0.55" W x 0.36" H (14.0mm x 14.0mm x 9.1mm) | - | - | CE | - |
|
|
PQP3-D24-S3-M-TRDC DC CONVERTER 3.3V 2.5W |
211 |
|
데이터시트 |
PQP3-M | 8-SMD Module, 5 Leads | Tape & Reel (TR) | Not For New Designs | Isolated Module | 1 | 18V | 36V | 3.3V | - | - | - | 758mA | 2.5 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 74% | - | - | Surface Mount | 0.55" L x 0.55" W x 0.36" H (14.0mm x 14.0mm x 9.1mm) | - | - | CE | - |
.jpg)
|
RTD-2412/HPDC DC CONVERTER +/-12V 2W |
132 |
|
데이터시트 |
ECONOLINE RTD (2W) | 10-SMD Module, 6 Leads | Tube | Obsolete | Isolated Module | 2 | 21.6V | 26.4V | 12V | -12V | - | - | 83mA, 83mA | 2 W | 3 kV | ITE (Commercial), Medical | SCP | -40°C ~ 85°C | 83% | - | - | Surface Mount | 0.60" L x 0.37" W x 0.35" H (15.2mm x 9.3mm x 9.0mm) | - | - | - | - |
|
|
AM1G-4805SH30ZDC DC CONVERTER 5V 1W |
200 |
|
데이터시트 |
AM1G-Z (1W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 1 | 36V | 72V | 5V | - | - | - | 200mA | 1 W | 3 kV | ITE (Commercial) | - | -40°C ~ 85°C | 68% | - | - | Through Hole | 0.86" L x 0.36" W x 0.44" H (21.9mm x 9.2mm x 11.2mm) | - | - | CE, cURus | - |
|
|
AM1G-2405SZDC DC CONVERTER 5V 1W |
170 |
|
데이터시트 |
AM1G-Z (1W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 1 | 18V | 36V | 5V | - | - | - | 200mA | 1 W | 1 kV | ITE (Commercial) | - | -40°C ~ 85°C | 72% | - | - | Through Hole | 0.86" L x 0.36" W x 0.44" H (21.9mm x 9.2mm x 11.2mm) | - | - | CE, cURus | - |
|
|
AM1G-0505SZDC DC CONVERTER 5V 1W |
107 |
|
데이터시트 |
AM1G-Z (1W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 1 | 4.5V | 9V | 5V | - | - | - | 200mA | 1 W | 1 kV | ITE (Commercial) | - | -40°C ~ 85°C | 67% | - | - | Through Hole | 0.86" L x 0.36" W x 0.44" H (21.9mm x 9.2mm x 11.2mm) | - | - | CE, cURus | - |
|
PRM1W-E12-D12-SDC-DC ISOLATED, 1 W, 4.5~36 VDC |
112 |
|
데이터시트 |
PRM1W-S (1W) | 8-SIP Module, 7 Leads | Tube | Not For New Designs | Isolated Module | 2 | 4.5V | 36V | 12V | -12V | - | - | 42mA, 42mA | 1 W | 3 kV | ITE (Commercial) | Adjustable Output | -40°C ~ 105°C (With Derating) | 74% | - | - | Through Hole | 0.87" L x 0.37" W x 0.47" H (22.0mm x 9.5mm x 12.0mm) | - | - | CE | 62368-1 |
|
PTH05000WASTDC DC CONVERTER 0.9-3.6V |
0 |
|
데이터시트 |
PTH05000W | 5-SMD Module | Tape & Reel (TR) | Obsolete | Non-Isolated PoL Module | 1 | 4.5V | 5.5V | 0.9 ~ 3.6V | - | - | - | 6A | - | - | ITE (Commercial) | OTP, UVLO | -40°C ~ 85°C | 92% | - | - | Surface Mount | 0.75" L x 0.50" W x 0.36" H (19.1mm x 12.7mm x 9.1mm) | - | - | - | - |
|
PTH05000WAZTDC DC CONVERTER 0.9-3.6V |
0 |
|
데이터시트 |
PTH05000W | 5-SMD Module | Tape & Reel (TR) | Active | Non-Isolated PoL Module | 1 | 4.5V | 5.5V | 0.9 ~ 3.6V | - | - | - | 6A | - | - | ITE (Commercial) | OTP, UVLO | -40°C ~ 85°C | 92% | - | - | Surface Mount | 0.75" L x 0.50" W x 0.36" H (19.1mm x 12.7mm x 9.1mm) | - | - | - | - |
|
|
EP5358LUIDC DC CONVERTER 0.6-5.2V 3W |
24,139 |
|
데이터시트 |
Enpirion® 5300 | 16-PowerTFQFN Module | Tape & Reel (TR) | Obsolete | Non-Isolated PoL Module | 1 | 2.4V | 5.5V | 0.6 ~ 5.2V | - | - | - | 600mA | - | - | ITE (Commercial) | Remote On/Off, OCP, OTP, SCP, UVLO | -40°C ~ 85°C | 93% | - | - | Surface Mount | 0.10" L x 0.09" W x 0.04" H (2.5mm x 2.3mm x 1.1mm) | 16-µQFN (2.5x2.25) | Enable, Active High | - | - |
|

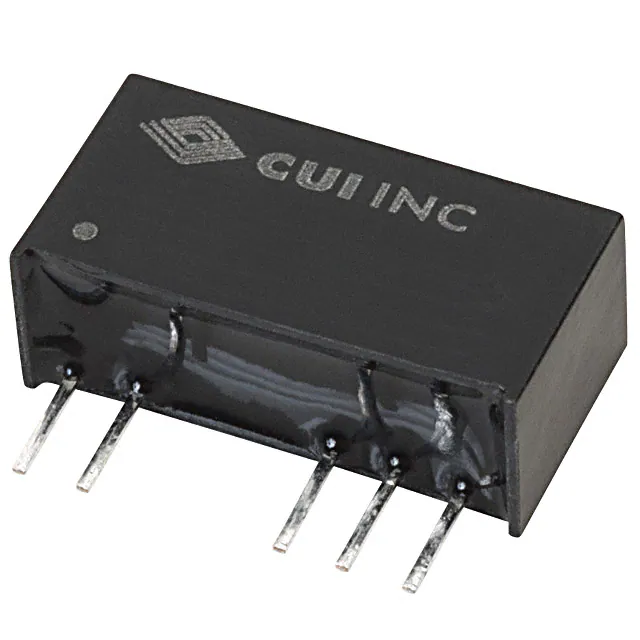

PEM2-S12-D15-SDC DC CONVERTER +/-15V 2W |
139 |
|
데이터시트 |
PEM2-S (2W) | 7-SIP Module, 5 Leads | Tube | Obsolete | Isolated Module | 2 | 10.8V | 13.2V | 15V | -15V | - | - | 66.6mA, 66.6mA | 2 W | 3 kV | ITE (Commercial) | SCP | -40°C ~ 105°C | 84% | - | - | Through Hole | 0.77" L x 0.28" W x 0.39" H (19.6mm x 7.0mm x 10.0mm) | - | - | CB Scheme, EN, IEC, UL | 55024; 55032 Class A; 60950-1 |
|

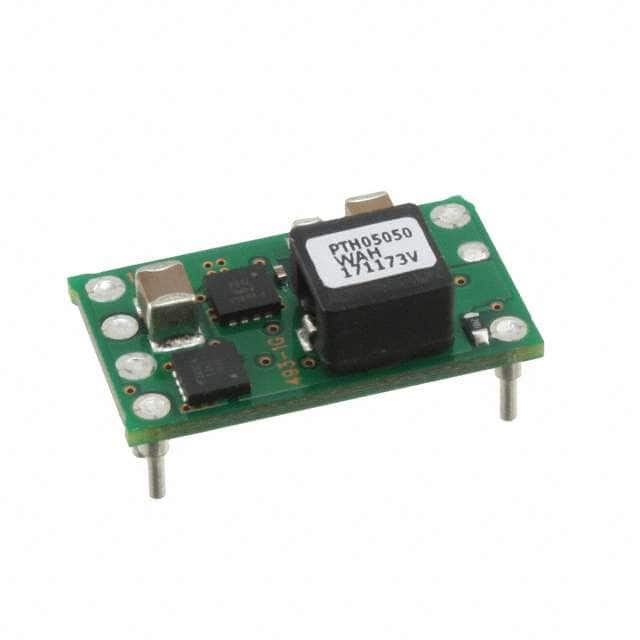

PTH05050WADDC DC CONVERTER 0.8-3.6V 21W |
717 |
|
데이터시트 |
PTH05050W (21W) | 6-DIP Module | Tray | Obsolete | Non-Isolated PoL Module | 1 | 4.5V | 5.5V | 0.8 ~ 3.6V | - | - | - | 6A | 21 W | - | ITE (Commercial) | UVLO | -40°C ~ 85°C | 95% | - | - | Through Hole | 0.87" L x 0.50" W x 0.34" H (22.1mm x 12.7mm x 8.6mm) | - | - | - | - |
|
|
URD24S24-10WDC DC CONVERTER 24V 10W |
20,000 |
|
데이터시트 |
- | 5-DIP Module | Bulk | Active | Isolated Module | 1 | 18V | 72V | 24V | - | - | - | 410mA | 10 W | 3 kV | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | - | - | - | Through Hole | 2.00" L x 1.00" W x 0.41" H (50.8mm x 25.4mm x 10.5mm) | - | - | - | - |
