DC DC 컨버터
| 사진 | 제조업체 부품 번호 | 재고 상태 | 수량 | 데이터시트 | 시리즈 | 패키지/케이스 | 패키징 | 제품 상태 | 유형 | 출력 수 | 전압 - 입력(최소) | 전압 - 입력(최대) | 전압 - 출력 1 | 전압 - 출력 2 | 전압 - 출력 3 | 전압 - 출력 4 | 전류 - 출력(최대) | 전력(와트) | 전압 - 절연 | 응용 프로그램 | 기능 | 작동 온도 | 효율성 | 등급 | 자격 | 장착 유형 | 크기/치수 | 공급자 장치 패키지 | 제어 기능 | 승인 기관 | 표준 번호 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

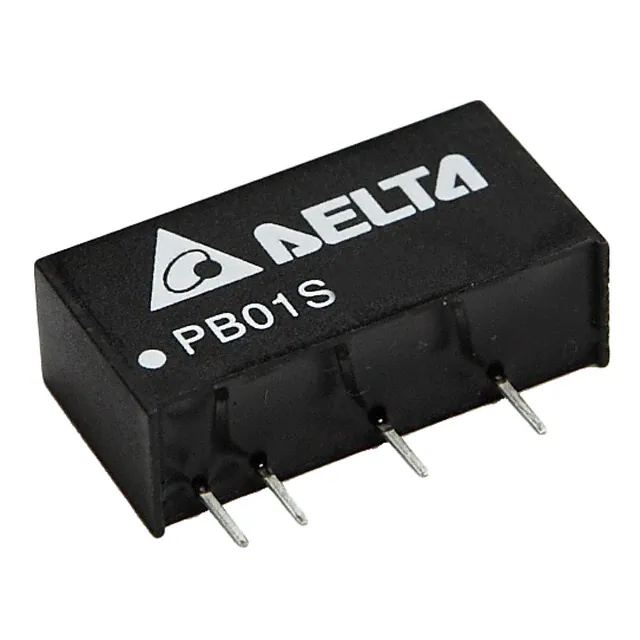

PB01S2409ADC DC CONVERTER 9V 1W |
231 |
|
데이터시트 |
PB01S/D (1W) | 5-SIP Module | Tube | Active | Isolated Module | 1 | 21.6V | 26.4V | 9V | - | - | - | 110mA | 1 W | 1 kV | Medical | SCP | -40°C ~ 85°C | 76% | - | - | Through Hole | 0.77" L x 0.24" W x 0.40" H (19.6mm x 6.0mm x 10.2mm) | - | - | - | - |
|
EPM6122V-05R-200SRDC DC CONV 1W 12VIN 5VOUT 200MA |
295 |
|
데이터시트 |
EPM6-2V (1W) | 7-DIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 10.8V | 13.2V | 5V | - | - | - | 200mA | 1 W | 3 kV | ITE (Commercial) | - | -40°C ~ 100°C (With Derating) | 82% | - | - | Through Hole | 0.77" L x 0.24" W x 0.40" H (19.7mm x 6.0mm x 10.2mm) | - | - | - | 62368-1 |
|
IE2415DDC DC CONVERTER 15V 1W |
370 |
|
데이터시트 |
IE (1W) | 4-DIP Module | Tube | Active | Isolated Module | 1 | 21.6V | 26.4V | 15V | - | - | - | 66mA | 1 W | 1 kV | ITE (Commercial) | - | -40°C ~ 85°C | 78% | - | - | Through Hole | 0.50" L x 0.40" W x 0.27" H (12.7mm x 10.1mm x 6.9mm) | - | - | - | - |
|
|
IE2424DDC DC CONVERTER 24V 1W |
239 |
|
데이터시트 |
IE (1W) | 4-DIP Module | Tube | Active | Isolated Module | 1 | 21.6V | 26.4V | 24V | - | - | - | 42mA | 1 W | 1 kV | ITE (Commercial) | - | -40°C ~ 85°C | 80% | - | - | Through Hole | 0.50" L x 0.40" W x 0.27" H (12.7mm x 10.2mm x 6.9mm) | - | - | - | - |
|
IE0303SDC DC CONVERTER 3.3V 1W |
160 |
|
데이터시트 |
IE (1W) | 4-SIP Module | Tube | Active | Isolated Module | 1 | 2.97V | 3.63V | 3.3V | - | - | - | 300mA | 1 W | 1 kV | ITE (Commercial) | - | -40°C ~ 85°C | 71% | - | - | Through Hole | 0.46" L x 0.24" W x 0.40" H (11.7mm x 6.0mm x 10.2mm) | - | - | - | - |
|
|
IE0512SDC DC CONVERTER 12V 1W |
118 |
|
데이터시트 |
IE (1W) | 4-SIP Module | Tube | Active | Isolated Module | 1 | 4.5V | 5.5V | 12V | - | - | - | 84mA | 1 W | 1 kV | ITE (Commercial) | - | -40°C ~ 85°C | 78% | - | - | Through Hole | 0.46" L x 0.24" W x 0.50" H (11.7mm x 6.0mm x 12.7mm) | - | - | - | - |
|
|
IE2403SDC DC CONVERTER 3.3V 1W |
107 |
|
데이터시트 |
IE (1W) | 4-SIP Module | Tube | Active | Isolated Module | 1 | 21.6V | 26.4V | 3.3V | - | - | - | 300mA | 1 W | 1 kV | ITE (Commercial) | - | -40°C ~ 85°C | 72% | - | - | Through Hole | 0.46" L x 0.24" W x 0.50" H (11.7mm x 6.0mm x 12.7mm) | - | - | - | - |
|
|
IE2412SDC DC CONVERTER 12V 1W |
105 |
|
데이터시트 |
IE (1W) | 4-SIP Module | Tube | Active | Isolated Module | 1 | 21.6V | 26.4V | 12V | - | - | - | 84mA | 1 W | 1 kV | ITE (Commercial) | - | -40°C ~ 85°C | 80% | - | - | Through Hole | 0.46" L x 0.24" W x 0.50" H (11.7mm x 6.0mm x 12.7mm) | - | - | - | - |
|
ADUM6010ARSZDC DC CONVERTER 3.15-5.25V 150MW |
220 |
|
데이터시트 |
ADuM6010 | 20-SSOP (0.209", 5.30mm Width) | Tube | Active | Isolated Module | 1 | 3V | 5.5V | 3.15 ~ 5.25V | - | - | - | 30mA | 150 mW | 3.75 kV | ITE (Commercial) | OTP, UVLO | -40°C ~ 105°C | - | - | - | Surface Mount | 0.28" L x 0.21" W x 0.07" H (7.2mm x 5.3mm x 1.9mm) | 20-SSOP | - | - | - |
|
EPM78V2-03R3-01R0RSWITCH REG DCDC CONV 1000MA 3.3V |
113 |
|
데이터시트 |
- | 3-SIP Module | Tube | Active | Non-Isolated PoL Module | 1 | 4.75V | 32V | 3.3V | - | - | - | 1A | - | - | ITE (Commercial) | Adjustable Output | -40°C ~ 90°C (With Derating) | 90% | - | - | Through Hole | 0.46" L x 0.30" W x 0.40" H (11.6mm x 7.6mm x 10.2mm) | - | - | - | - |
|
1S7BE_0505S6UISOLATED MODULE DC DC CONVERTERS |
508 |
|
데이터시트 |
1S7B_6U (1W) | 7-SIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 4.75V | 5.25V | 5V | - | - | - | 200mA | 1 W | 6 kV | ITE (Commercial) | - | -40°C ~ 85°C | 70% | - | - | Through Hole | 0.77" L x 0.28" W x 0.39" H (19.5mm x 7.1mm x 10.0mm) | - | - | - | - |
|

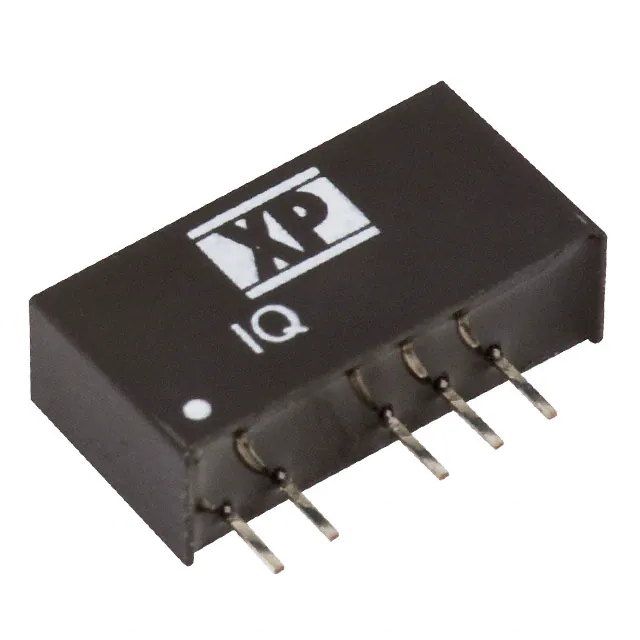

IQ0505SADC DC CONVERTER 5V 1W |
186 |
|
데이터시트 |
IQ (1W) | 7-SIP Module, 6 Leads | Tube | Active | Isolated Module | 1 | 4.5V | 5.5V | 5V | - | - | - | 200mA | 1 W | 1 kV | ITE (Commercial) | - | -40°C ~ 85°C | 83% | - | - | Through Hole | 0.76" L x 0.24" W x 0.39" H (19.3mm x 6.0mm x 10.0mm) | - | - | - | - |
|
RPX-0.5Q-R0.5A DC/DC-CONVERTER 'INNOLINE' |
3,447 |
|
데이터시트 |
RPX-0.5Q | 17-PowerLFQFN Module | Tape & Reel (TR) | Active | Non-Isolated PoL Module | 1 | 4V | 36V | 0.8 ~ 34V | - | - | - | 500mA | - | - | ITE (Commercial) | Adjustable Output, Remote On/Off | -40°C ~ 125°C | 90% | - | - | Surface Mount, Wettable Flank | 0.20" L x 0.12" W x 0.06" H (5.0mm x 3.0mm x 1.6mm) | 17-QFN (3x5) | - | - | - |
|
PCN1-S24-D5-SDC DC CONVERTER +/-5V 1W |
134 |
|
데이터시트 |
PCN1-S (1W) | 6-SIP Module, 5 Leads | Tube | Active | Isolated Module | 2 | 21.6V | 26.4V | 5V | -5V | - | - | 100mA, 100mA | 1 W | 1.5 kV | ITE (Commercial) | SCP | -40°C ~ 100°C | 79% | - | - | Through Hole | 0.77" L x 0.28" W x 0.40" H (19.5mm x 7.2mm x 10.2mm) | - | - | EN | 55032 Class A |
|
|
EPM6052V-05R-200SRDC DC CONV 1W 5VIN 5VOUT 200MA |
318 |
|
데이터시트 |
EPM6-2V (1W) | 7-DIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 4.5V | 5.5V | 5V | - | - | - | 200mA | 1 W | 3 kV | ITE (Commercial) | - | -40°C ~ 100°C (With Derating) | 79% | - | - | Through Hole | 0.77" L x 0.24" W x 0.40" H (19.7mm x 6.0mm x 10.2mm) | - | - | - | 62368-1 |
|
NXF1S0505MC-R7DC DC CONVERTER 5V 1W |
260 |
|
데이터시트 |
NXF1 (1W) | 14-SMD Module, 5 Leads | Tape & Reel (TR) | Active | Isolated Module | 1 | 4.75V | 5.25V | 5V | - | - | - | 200mA | 1 W | 3 kV | ITE (Commercial) | SCP | -40°C ~ 105°C (With Derating) | 65% | - | - | Surface Mount | 0.60" L x 0.42" W x 0.20" H (15.2mm x 10.7mm x 5.0mm) | - | - | - | - |
|
SRS-0505DC DC CONVERTER 5V 500MW |
1,022 |
|
데이터시트 |
SRS (0.5W) | 16-DIP Module, 8 Leads | Tube | Active | Isolated Module | 1 | 4.5V | 5.5V | 5V | - | - | - | 100mA | 500 mW | 1 kV | ITE (Commercial) | OCP, SCP | -25°C ~ 71°C (With Derating) | 60% | - | - | Through Hole | 0.89" L x 0.39" W x 0.33" H (22.6mm x 9.9mm x 8.4mm) | - | - | - | - |
|
TME 0512SDC DC CONVERTER 12V 1W |
462 |
|
데이터시트 |
TME (1W) | 4-SIP Module | Tube | Active | Isolated Module | 1 | 4.5V | 5.5V | 12V | - | - | - | 84mA | 1 W | 1 kV | ITE (Commercial) | SCP | -40°C ~ 85°C (With Derating) | 77% | - | - | Through Hole | 0.45" L x 0.28" W x 0.40" H (11.5mm x 7.1mm x 10.2mm) | - | - | - | - |
|
TPS84410RKGRDC DC CONVERTER 0.8-3.6V |
2,314 |
|
데이터시트 |
- | 39-BQFN Exposed Pad | Tape & Reel (TR) | Active | Non-Isolated PoL Module | 1 | 2.95V | 6V | 0.8 ~ 3.6V | - | - | - | 4A | - | - | ITE (Commercial) | UVLO | -40°C ~ 85°C | 96% | - | - | Surface Mount | 0.43" L x 0.35" W x 0.11" H (11.0mm x 9.0mm x 2.8mm) | 39-B1QFN (11x9) | Enable, Active High | - | - |
|
IK0515SADC DC CONVERTER 15V 250MW |
649 |
|
데이터시트 |
IK (0.25W) | 4-SIP Module | Tube | Active | Isolated Module | 1 | 4.5V | 5.5V | 15V | - | - | - | 16.67mA | 250 mW | 1 kV | ITE (Commercial) | - | -40°C ~ 85°C | 68% | - | - | Through Hole | 0.46" L x 0.24" W x 0.50" H (11.7mm x 6.0mm x 12.7mm) | - | - | - | - |
