DC DC 컨버터
| 사진 | 제조업체 부품 번호 | 재고 상태 | 수량 | 데이터시트 | 시리즈 | 패키지/케이스 | 패키징 | 제품 상태 | 유형 | 출력 수 | 전압 - 입력(최소) | 전압 - 입력(최대) | 전압 - 출력 1 | 전압 - 출력 2 | 전압 - 출력 3 | 전압 - 출력 4 | 전류 - 출력(최대) | 전력(와트) | 전압 - 절연 | 응용 프로그램 | 기능 | 작동 온도 | 효율성 | 등급 | 자격 | 장착 유형 | 크기/치수 | 공급자 장치 패키지 | 제어 기능 | 승인 기관 | 표준 번호 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
BMR4696001/001DC DC CONVERTER 0.6-5V 250W |
1,430 |
|
데이터시트 |
BMR469 (100W) | 28-SMD Module | Tape & Reel (TR) | Active | Non-Isolated PoL Module, Digital | 1 | 7.5V | 14V | 0.6 ~ 5V | - | - | - | 50A | 250 W | - | ITE (Commercial) | Adjustable Output, PMBus™, Remote On/Off, Remote Sense | -40°C ~ 125°C (With Derating) | 94.4% | - | - | Surface Mount | 1.00" L x 0.57" W x 0.23" H (25.4mm x 14.5mm x 5.8mm) | - | Enable, Active High | CB, CSA, IEC, TUV, UL | 62368-1 |
|
R-743.3PDC DC CONVERTER 3.3V 13W |
242 |
|
데이터시트 |
INNOLINE R-7xxx | 12-SIP Module | Tube | Active | Non-Isolated PoL Module | 1 | 4.5V | 28V | 3.3V | - | - | - | 4A | 13 W | - | ITE (Commercial) | Remote On/Off, OCP, SCP | -40°C ~ 85°C | 93% | - | - | Through Hole | 1.27" L x 0.36" W x 0.59" H (32.2mm x 9.1mm x 15.0mm) | - | Enable, Active High | - | - |
|
TEN 8-1211DC DC CONVERTER 5V 7.5W |
114 |
|
데이터시트 |
TEN 8 (8W) | 24-DIP Module, 9 Leads | Tube | Active | Isolated Module | 1 | 9V | 18V | 5V | - | - | - | 1.5A | 7.5 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, SCP | -40°C ~ 85°C (With Derating) | 83% | - | - | Through Hole | 1.26" L x 0.80" W x 0.40" H (32.0mm x 20.3mm x 10.2mm) | - | - | - | - |
|
TMR 6-2412WIRDC DC CONVERTER 12V 6W |
636 |
|
데이터시트 |
TMR 6WIR (6W) | 8-SIP Module | Tube | Active | Isolated Module | 1 | 9V | 36V | 12V | - | - | - | 500mA | 6 W | 3 kV | ITE (Commercial), Railway | Remote On/Off, OCP, SCP | -40°C ~ 80°C (With Derating) | 87% | - | - | Through Hole | 0.86" L x 0.38" W x 0.44" H (21.8mm x 9.6mm x 11.2mm) | - | - | - | - |
|
TMR 6-2415WIRDC DC CONVERTER 24V 6W |
180 |
|
데이터시트 |
TMR 6WIR (6W) | 8-SIP Module | Tube | Active | Isolated Module | 1 | 9V | 36V | 24V | - | - | - | 250mA | 6 W | 3 kV | ITE (Commercial), Railway | Remote On/Off, OCP, SCP | -40°C ~ 80°C (With Derating) | 87% | - | - | Through Hole | 0.86" L x 0.38" W x 0.44" H (21.8mm x 9.6mm x 11.2mm) | - | - | - | - |
|
LTM8001IY#PBFDC DC CNVRTR 1.2-24V 3X0-24V |
236 |
|
데이터시트 |
LTM®, uModule® | 121-BBGA | Tray | Active | Non-Isolated PoL Module | 6 | 6V | 36V | 1.2 ~ 24V | 0 ~ 24V | 0 ~ 24V | 0 ~ 24V | 5A | - | - | ITE (Commercial) | OTP, OVP, SCP, UVLO | -40°C ~ 125°C | - | - | - | Surface Mount | 0.59" L x 0.59" W x 0.14" H (15.0mm x 15.0mm x 3.6mm) | 121-BGA (15x15) | - | - | - |
|
S24SE05003NDFADC DC CONVERTER 5V 15W |
141 |
|
데이터시트 |
S24SE (15W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 9V | 36V | 5V | - | - | - | 3A | 15 W | 1.6 kV | ITE (Commercial) | Remote On/Off, UVLO | -40°C ~ 85°C | 89% | - | - | Through Hole | 1.00" L x 1.00" W x 0.40" H (25.4mm x 25.4mm x 10.2mm) | - | Enable, Active Low | - | - |
|

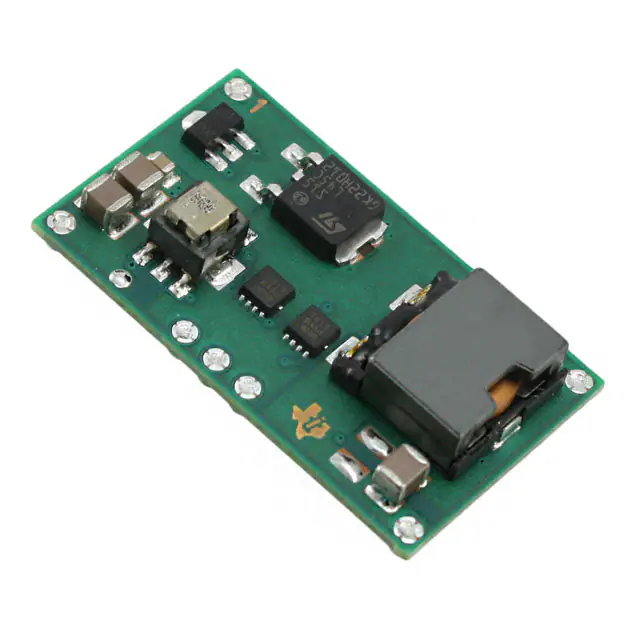

PTN78020WAZDC DC CONVERTER 2.5-12.6V |
517 |
|
데이터시트 |
PTN78020W | 7-SMD Module | Tray | Active | Non-Isolated PoL Module | 1 | 7V | 36V | 2.5 ~ 12.6V | - | - | - | 6A | - | - | ITE (Commercial) | Remote On/Off, OCP, OTP, UVLO | -40°C ~ 85°C | 94% | - | - | Surface Mount | 1.50" L x 0.87" W x 0.38" H (38.1mm x 22.1mm x 9.7mm) | - | - | - | - |
|
PKU4116HDPIOPLC36-60VIN; 55VOUT; 110W; ISOLATED |
118 |
|
데이터시트 |
PKU4116HD | Sixteenth Brick | Tape & Reel (TR) | Active | Isolated Module | 1 | 36V | 60V | 55V | - | - | - | 2A | 110 W | 2.25 kV | ITE (Commercial) | Remote On/Off | -40°C ~ 125°C | 92.4% | - | - | Through Hole | 1.30" L x 0.90" W x 0.39" H (33.0mm x 22.9mm x 9.8mm) | Sixteenth Brick | - | cURus, UL | 62368-1 |
|
LTM8029MPY#PBFDC DC CONVERTER 1.2-18V |
226 |
|
데이터시트 |
µModule® | 35-BBGA Module | Tray | Active | Non-Isolated PoL Module | 1 | 4.5V | 36V | 1.2 ~ 18V | - | - | - | 600mA | - | - | ITE (Commercial) | - | -55°C ~ 125°C | - | - | - | Surface Mount | 0.44" L x 0.25" W x 0.13" H (11.3mm x 6.3mm x 3.4mm) | 35-BGA (11.25x6.25) | - | - | - |
|
EC4BW04DC DC CONVERTER +/-12V 10W |
118 |
|
데이터시트 |
EC4BW (10W) | 5-DIP Module | Tube | Active | Isolated Module | 2 | 9V | 36V | 12V | -12V | - | - | 415mA, 415mA | 10 W | 500 V | ITE (Commercial) | SCP | -40°C ~ 100°C (With Derating) | 80% | - | - | Through Hole | 2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm) | - | - | CE | - |
|
MGFS104805DC DC CONVERTER 5V 10W |
223 |
|
데이터시트 |
MGFS (10W) | 7-SIP Module | Tube | Active | Isolated Module | 1 | 18V | 76V | 5V | - | - | - | 2A | 10 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP | -40°C ~ 85°C (With Derating) | 88% | - | - | Through Hole | 0.87" L x 0.37" W x 0.47" H (22.0mm x 9.5mm x 12.0mm) | - | - | - | - |
|
THD 10-2423WINDC DC CONVERTER +/-15V 10W |
116 |
|
데이터시트 |
THD 10WIN (10W) | 24-DIP Module, 9 Leads | Tube | Active | Isolated Module | 2 | 9V | 36V | 15V | -15V | - | - | 333mA, 333mA | 10 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, SCP | -40°C ~ 85°C (With Derating) | 87% | - | - | Through Hole | 1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm) | - | - | - | - |
|
|
S24DE150R5PDFADC DC CONVERTER +/-15V 15W |
505 |
|
데이터시트 |
S24DE (15W) | 6-DIP Module | Tray | Active | Isolated Module | 2 | 9V | 36V | 15V | -15V | - | - | 500mA, 500mA | 15 W | 1.6 kV | ITE (Commercial) | Remote On/Off, UVLO | -40°C ~ 85°C | 87.5% | - | - | Through Hole | 1.00" L x 1.00" W x 0.40" H (25.4mm x 25.4mm x 10.2mm) | - | Enable, Active High | - | - |
|

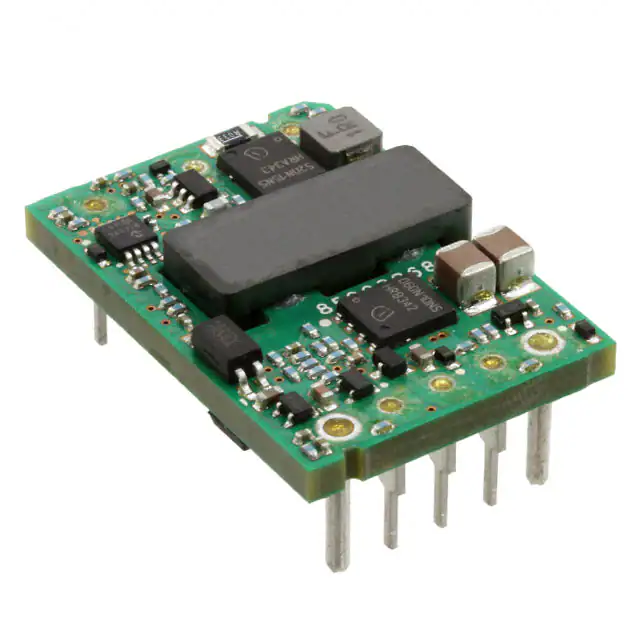

KSTW004A2B41ZDC DC CONVERTER 12V 50W |
405 |
|
데이터시트 |
Barracuda™ KSTW004A2B (50W) | 8-DIP Module, 1/16 Brick | Tray | Active | Isolated Module | 1 | 36V | 75V | 12V | - | - | - | 4.2A | 50 W | 2.25 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, UVLO | -40°C ~ 85°C | 90% | - | - | Through Hole | 1.30" L x 0.90" W x 0.37" H (33.0mm x 22.9mm x 9.3mm) | - | Enable, Active Low | - | - |
|

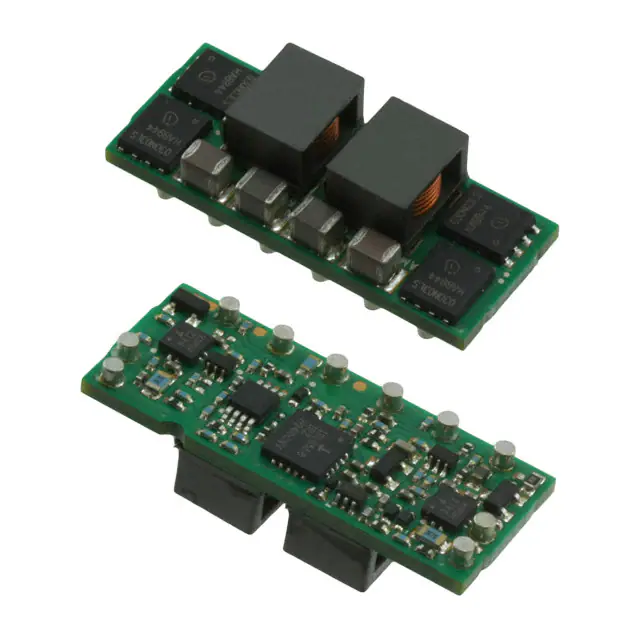

APTS030A0X3-SRPHZDC DC CONVERTER 0.8-2.75V 82W |
614 |
|
데이터시트 |
Austin MegaTLynx™ | Module | Tape & Reel (TR) | Active | Non-Isolated PoL Module | 1 | 6V | 14V | 0.8 ~ 2.75V | - | - | - | 30A | 82 W | - | ITE (Commercial) | Remote On/Off, OCP, OTP, UVLO | -40°C ~ 85°C | 91.8% | - | - | Surface Mount | 1.30" L x 0.53" W x 0.39" H (33.0mm x 13.5mm x 10.0mm) | - | Enable, Active Low | CSA, UL, VDE | - |
|
ASA00B18-LSDC DC CONVERTER 12V 6W |
1,574 |
|
데이터시트 |
ASA (6W) | 8-DIP Module | Tube | Active | Isolated Module | 1 | 9V | 36V | 12V | - | - | - | 500mA | 6 W | 1.5 kV | ITE (Commercial) | SCP | -40°C ~ 71°C | 81% | - | - | Through Hole | 1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm) | - | - | - | - |
|
JTF1248S05DC DC CONVERTER 5V 12W |
886 |
|
데이터시트 |
JTF (15W) | 24-DIP Module, 8 Leads | Tube | Active | Isolated Module | 1 | 18V | 75V | 5.1V | - | - | - | 2.4A | 12 W | 1.6 kV | ITE (Commercial) | Remote On/Off, OCP, OVP, SCP | -40°C ~ 105°C | 89% | - | - | Through Hole | 1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm) | - | Enable, Active High | - | 62368-1 |
|
|
JTF1224S05DC DC CONVERTER 5V 12W |
300 |
|
데이터시트 |
JTF (15W) | 24-DIP Module, 8 Leads | Tube | Active | Isolated Module | 1 | 9V | 36V | 5V | - | - | - | 2.4A | 12 W | 1.6 kV | ITE (Commercial) | Remote On/Off, OCP, OVP, SCP | -40°C ~ 105°C | 89% | - | - | Through Hole | 1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm) | - | Enable, Active High | - | 62368-1 |
|
JCK1524S05DC DC CONVERTER 5V 15W |
262 |
|
데이터시트 |
JCK (15W) | 5-DIP Module | Tube | Active | Isolated Module | 1 | 18V | 36V | 5V | - | - | - | 3A | 15 W | 1.5 kV | ITE (Commercial) | OCP, SCP, UVLO | -40°C ~ 100°C | 85% | - | - | Through Hole | 2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm) | - | - | - | - |
