DC DC 컨버터
| 사진 | 제조업체 부품 번호 | 재고 상태 | 수량 | 데이터시트 | 시리즈 | 패키지/케이스 | 패키징 | 제품 상태 | 유형 | 출력 수 | 전압 - 입력(최소) | 전압 - 입력(최대) | 전압 - 출력 1 | 전압 - 출력 2 | 전압 - 출력 3 | 전압 - 출력 4 | 전류 - 출력(최대) | 전력(와트) | 전압 - 절연 | 응용 프로그램 | 기능 | 작동 온도 | 효율성 | 등급 | 자격 | 장착 유형 | 크기/치수 | 공급자 장치 패키지 | 제어 기능 | 승인 기관 | 표준 번호 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TBA 1-1212DC DC CONVERTER 12V 960MW |
138 |
|
데이터시트 |
TBA 1 (1W) | 4-SIP Module | Tube | Active | Isolated Module | 1 | 10.8V | 13.2V | 12V | - | - | - | 80mA | 960 mW | 1.5 kV | ITE (Commercial) | SCP | -40°C ~ 95°C (With Derating) | 80% | - | - | Through Hole | 0.46" L x 0.24" W x 0.40" H (11.7mm x 6.0mm x 10.2mm) | - | - | - | - |
|

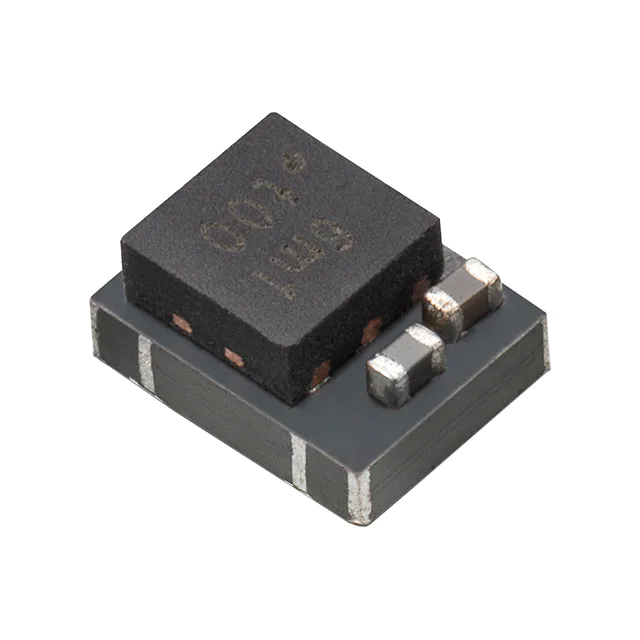

171960501DC DC CONVERTER 0.6-5.5V |
2,805 |
|
데이터시트 |
MagI³C, VDRM | 6-LGA Module | Tape & Reel (TR) | Active | Non-Isolated PoL Module | 1 | 2.7V | 5.5V | 0.6 ~ 5.5V | - | - | - | 600mA | - | - | ITE (Commercial) | OCP, OTP, SCP, UVLO | -40°C ~ 85°C | 96% | - | - | Surface Mount | 0.13" L x 0.10" W x 0.06" H (3.2mm x 2.5mm x 1.6mm) | 6-LGA-EP (3.2x2.5) | Enable, Active High | - | - |
|
LMS78_05-0.5RDC-DC STEP DOWN REGULATORS |
226 |
|
데이터시트 |
LMS78_0.5R | 3-SIP Module | Tube | Active | Non-Isolated PoL Module | 2 | 6.5V | 36V | 5V | -5V | - | - | 500mA, 300mA | 3 W | - | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 85% | - | - | Through Hole | 0.46" L x 0.30" W x 0.40" H (11.6mm x 7.6mm x 10.2mm) | - | - | cURus | 60950-1 |
|
|
LMS78_12-0.5RDC-DC STEP DOWN REGULATORS |
170 |
|
데이터시트 |
LMS78_0.5R | 3-SIP Module | Tube | Active | Non-Isolated PoL Module | 2 | 8V | 36V | 12V | -12V | - | - | 500mA, 150mA | 7.8 W | - | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 92% | - | - | Through Hole | 0.46" L x 0.30" W x 0.40" H (11.6mm x 7.6mm x 10.2mm) | - | - | cURus | 60950-1 |
|

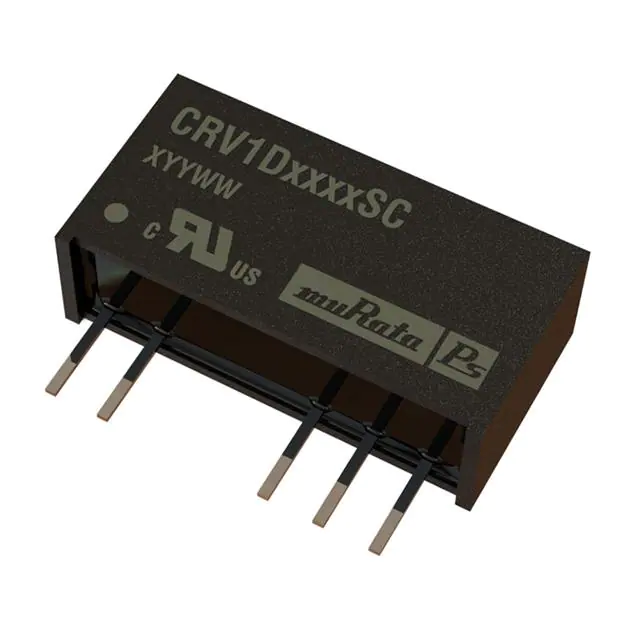

CRV1D0512SCDC DC CONVERTER +/-12V 1W |
1,959 |
|
데이터시트 |
CRV1 (1W) | 7-SIP Module, 5 Leads | Tube | Active | Isolated Module | 2 | 4.5V | 5.5V | 12V | -12V | - | - | 42mA, 42mA | 1 W | 3 kV | ITE (Commercial) | - | -40°C ~ 85°C | 79% | - | - | Through Hole | 0.77" L x 0.24" W x 0.39" H (19.5mm x 6.0mm x 10.0mm) | - | - | - | - |
|
|
TPSM365R15RDNR3-V TO 65-V INPUT, 1-V TO 15-V O |
2,077 |
|
데이터시트 |
- | 11-PowerFQFN Module | Tape & Reel (TR) | Active | Non-Isolated PoL Module | 1 | 3V | 65V | 3.3V | - | - | - | 150mA | 495 mW | - | ITE (Commercial) | Adjustable Output, Remote On/Off | -40°C ~ 125°C | - | - | - | Surface Mount, Wettable Flank | 0.18" L x 0.14" W x 0.08" H (4.5mm x 3.5mm x 2.1mm) | 11-QFN-FCMOD (4.5x3.5) | Enable, Active High | - | - |
|
|
TPSM33615FRDNR3-V TO 36-V INPUT, 1 TO 15-V OUT |
1,723 |
|
데이터시트 |
HotRod™ | 11-PowerFQFN Module | Tape & Reel (TR) | Active | Non-Isolated PoL Module | 1 | 3V | 36V | 1 ~ 15V | - | - | - | 1.5A | - | - | ITE (Commercial) | Adjustable Output, Remote On/Off | -40°C ~ 105°C | 95% | - | - | Surface Mount, Wettable Flank | 0.18" L x 0.14" W x 0.08" H (4.5mm x 3.5mm x 2.1mm) | 11-QFN-FCMOD (4.5x3.5) | Enable, Active High | - | - |
|
MPM3805GQB-PDC DC CONVERTER 0.6-6V |
650 |
|
데이터시트 |
- | 12-PowerVFQFN Module | Tape & Reel (TR) | Active | Non-Isolated PoL Module | 1 | 2.5V | 6V | 0.6 ~ 6V | - | - | - | 600mA | - | - | ITE (Commercial) | OCP, OTP, UVLO | -40°C ~ 125°C | - | - | - | Surface Mount | 0.12" L x 0.10" W x 0.04" H (3.0mm x 2.5mm x 0.9mm) | 12-QFN (3x2.5) | Enable, Active High | - | - |
|
|
R-78K3.3-1.01A DC/DC-CONVERTER 'INNOLINE' SI |
279 |
|
데이터시트 |
INNOLINE R-78K-1.0 | 3-SIP Module | Tube | Active | Non-Isolated PoL Module | 1 | 4.5V | 36V | 3.3V | - | - | - | 1A | - | - | ITE (Commercial) | - | -40°C ~ 90°C (With Derating) | 88% | - | - | Through Hole | 0.45" L x 0.30" W x 0.40" H (11.5mm x 7.6mm x 10.2mm) | - | - | CB | 62368-1 |
|
|
RAA210030GLG#HD03A 5V DC/DC STEP DOWN POWER SUPP |
4,331 |
|
데이터시트 |
RAA210030 | 10-FDFN Exposed Pad | Tape & Reel (TR) | Active | Non-Isolated PoL Module | 1 | 2.7V | 5.5V | 0.6 ~ 5V | - | - | - | 3A | - | - | ITE (Commercial) | Adjustable Output, Remote On/Off | -40°C ~ 125°C | 95% | - | - | Surface Mount | 0.12" L x 0.12" W x 0.05" H (3.0mm x 3.0mm x 1.3mm) | 10-DFN (3x3) | - | - | - |
|
|
2S7A_0518S1UDC-DC INDUSTRIAL |
424 |
|
데이터시트 |
2S7A_1U (2W) | 7-SIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 4.5V | 5.5V | 18V | - | - | - | 111.1mA | 1.999 W | 1 kV | ITE (Commercial) | - | -40°C ~ 85°C | 82% | - | - | Through Hole | 0.77" L x 0.24" W x 0.39" H (19.5mm x 6.0mm x 10.0mm) | - | - | CE | 60950-1 |
|
TR10S3V3DC DC CONVERTER 3.3V |
888 |
|
데이터시트 |
TR | 3-SIP Module | Tube | Active | Linear Regulator Replacement | 1 | 7V | 28V | 3.3V | - | - | - | 1A | - | - | ITE (Commercial) | SCP | -40°C ~ 85°C | 89% | - | - | Through Hole | 0.46" L x 0.30" W x 0.40" H (11.7mm x 7.5mm x 10.2mm) | 3-SIP | - | - | - |
|
XCL210C181GR-GDC DC CONVERTER 1.8V |
39,463 |
|
데이터시트 |
XCL210 | 8-TDFN Exposed Pad | Tape & Reel (TR) | Active | Non-Isolated PoL Module | 1 | 2V | 6V | 1.8V | - | - | - | 200mA | - | - | ITE (Commercial) | SCP, UVLO | -40°C ~ 85°C | 93% | - | - | Surface Mount | 0.10" L x 0.08" W x 0.04" H (2.5mm x 2.0mm x 1.0mm) | CL-2025-02 | Enable, Active High | - | - |
|
|
XCL210C331GR-GDC DC CONVERTER 3.3V |
20,205 |
|
데이터시트 |
XCL210 | 8-TDFN Exposed Pad | Tape & Reel (TR) | Active | Non-Isolated PoL Module | 1 | 2V | 6V | 3.3V | - | - | - | 200mA | - | - | ITE (Commercial) | SCP, UVLO | -40°C ~ 85°C | 93% | - | - | Surface Mount | 0.10" L x 0.08" W x 0.04" H (2.5mm x 2.0mm x 1.0mm) | CL-2025-02 | Enable, Active High | - | - |
|
MPM3606AGQV-ZDC DC CONVERTER 4.5-21V |
9,789 |
|
데이터시트 |
- | 20-PowerLFQFN Module | Tape & Reel (TR) | Active | Non-Isolated PoL Module | 1 | 4.5V | 21V | 0.8 ~ 18.48V | - | - | - | 600mA | - | - | ITE (Commercial) | OCP, OTP, UVLO | -40°C ~ 125°C | - | - | - | Surface Mount | 0.20" L x 0.12" W x 0.06" H (5.0mm x 3.0mm x 1.6mm) | 20-QFN (3x5) | Enable, Active High | - | - |
|
|
MPM3606GQV-ZDC DC CONVERTER 4.5-21V |
5,603 |
|
데이터시트 |
- | 20-PowerLFQFN Module | Tape & Reel (TR) | Active | Non-Isolated PoL Module | 1 | 4.5V | 21V | 0.8 ~ 5.5V | - | - | - | 600mA | - | - | ITE (Commercial) | OCP, OTP, UVLO | -40°C ~ 125°C | - | - | - | Surface Mount | 0.20" L x 0.12" W x 0.06" H (5.0mm x 3.0mm x 1.6mm) | 20-QFN (3x5) | Enable, Active High | - | - |
|
NXJ1S0305MC-R13DC DC CONVERTER 5V 1W |
933 |
|
데이터시트 |
NXJ1 (1W) | 14-SMD Module, 5 Leads | Tape & Reel (TR) | Active | Isolated Module | 1 | 2.97V | 3.63V | 5V | - | - | - | 200mA | 1 W | 4.2 kV | ITE (Commercial), Medical | SCP | -40°C ~ 85°C | 72% | - | - | Surface Mount | 0.54" L x 0.41" W x 0.17" H (13.7mm x 10.5mm x 4.4mm) | - | - | - | - |
|
|
NXJ1S0303MC-R7DC DC CONVERTER 3.3V 1W |
515 |
|
데이터시트 |
NXJ1 (1W) | 14-SMD Module, 5 Leads | Tape & Reel (TR) | Active | Isolated Module | 1 | 2.97V | 3.63V | 3.3V | - | - | - | 333mA | 1 W | 4.2 kV | ITE (Commercial), Medical | SCP | -40°C ~ 85°C | 69.5% | - | - | Surface Mount | 0.54" L x 0.41" W x 0.17" H (13.7mm x 10.5mm x 4.4mm) | - | - | - | - |
|
|
NXJ1S0305MC-R7DC DC CONVERTER 5V 1W |
114 |
|
데이터시트 |
NXJ1 (1W) | 14-SMD Module, 5 Leads | Tape & Reel (TR) | Active | Isolated Module | 1 | 2.97V | 3.63V | 5V | - | - | - | 200mA | 1 W | 4.2 kV | ITE (Commercial), Medical | SCP | -40°C ~ 85°C | 72% | - | - | Surface Mount | 0.54" L x 0.41" W x 0.17" H (13.7mm x 10.5mm x 4.4mm) | - | - | - | - |
|
|
TPSM365R3FRDNR3-V TO 65-V INPUT, 1-V TO 13-V O |
1,937 |
|
데이터시트 |
HotRod™ | 11-PowerFQFN Module | Tape & Reel (TR) | Active | Non-Isolated PoL Module | 1 | 3V | 65V | 1 ~ 13V | - | - | - | 300mA | - | - | ITE (Commercial) | Adjustable Output, Remote On/Off | -40°C ~ 125°C | 88.4% | - | - | Surface Mount, Wettable Flank | 0.18" L x 0.14" W x 0.08" H (4.5mm x 3.5mm x 2.1mm) | 11-QFN-FCMOD (4.5x3.5) | Enable, Active High | - | - |
