아날로그 스위치, 멀티플렉서, 디멀티플렉서

제조업체	시리즈	패키징	제품 상태	스위치 회로	멀티플렉서/디멀티플렉서 회로	회로 수	온 상태 저항(최대)	채널 간 매칭(ΔRon)	전압 - 공급, 단일(V+)	전압 - 공급, 이중(V±)	스위치 시간(Ton, Toff)(최대)	-3db 대역폭	전하 주입	채널 캐패시턴스(CS(off), CD(off))	전류 - 누설(IS(off))(최대)	크로스토크	작동 온도	등급	자격	장착 유형	공급자 장치 패키지
3PEAK ABLIC Inc. ADSANTEC Advanced Linear Devices Inc. Alpha Digital ams-OSRAM USA INC. Analog Devices Inc. Analog Devices Inc./Maxim Integrated Broadcom Limited Burr Brown Diodes Incorporated Dioo Microcircuits Co., Ltd. EVVO Fairchild Semiconductor Gennum Harris Corporation Holt Integrated Circuits Inc. IDT, Integrated Device Technology Inc Intersil Linear Technology (Analog Devices, Inc.) MACOM Technology Solutions Microchip Technology Monolithic Power Systems Inc. Motorola National Semiconductor Nexperia USA Inc. Nisshinbo Micro Devices Inc. Nuvoton Technology Corporation NXP Semiconductors onsemi Quality Semiconductor Renesas Rochester Electronics, LLC ROHM Semiconductor Runic Technology SparkFun Electronics STMicroelectronics TAEJIN Texas Instruments Torex Semiconductor Ltd Toshiba Semiconductor and Storage UMW UNION SEMICONDUCTOR INTERNATIONAL LIMITED Vishay Siliconix	* - 4000B 54HC 74AHC 74AUC 74HC 74HCT 74LV 74LVC 74LVX 74S 74V 74VHC AD7511DI ADG202A ADG508A ADG527 ADG527A ADG741 ADI0012 Beyond-the-Rails™ CLC532A DG300A_MIL DG442 LC²MOS SOTiny™ SW06 TMUX13xxA TMUX13xxA-Q1 UM3156 UM3670 UM3699A UM7227	- Bag Bulk Cut Tape (CT) Strip Tape & Reel (TR) Tray Tube	Active Discontinued Last Time Buy Not For New Designs Obsolete	- 16PST 4PDT 4PST 4PST - NO 5PST - NO 8PST DP3T DP4T DP8T DPDT DPDT - NO/NC DPDT, SPDT DPST DPST - NC DPST - NO DPST - NO/NC DPST, SPDT SP16T SP3T SP3T - Open/Closed SP4T SP4T - Closed SP4T - NC SP4T - NO SP4T - NO/NC SP4T - Open SP4T - Open/Closed SP8T SP8T - NC SP8T - NO SP8T - NO/NC SP8T - Open SP8T - Open/Closed SPDT SPDT - NO SPDT - NO/NC SPDT - Open/Closed SPST SPST - Closed SPST - NC SPST - NC - Closed SPST - NO SPST - NO/NC SPST - Open SPST - Open/Closed	- 16:1 16:16 16:2 16:8 1:01 1:1 1:2 1:2, 2:1 1:4 2:1 2:1, 2:2 2:2 2:4 32:1 3:1 4:1 4:2 4:4 7:3 8:1 8:2 8:4 8PST	- 1 10 12 14 16 2 3 32 4 5 6 64 8	- 1.15Ohm 1.1Ohm 1.25Ohm 1.2kOhm 1.2Ohm 1.3Ohm 1.4Ohm 1.5kOhm 1.5Ohm 1.5Ohm (Typ) 1.6Ohm 1.6Ohm (Typ) 1.85Ohm 1.8kOhm 1.8Ohm 10.5Ohm 100Ohm 101Ohm 103Ohm 105Ohm 106Ohm 10Ohm 11.5Ohm 110Ohm 115Ohm 118Ohm 11Ohm 11Ohm (Typ) 12.5Ohm 120Ohm 125mOhm 125Ohm 12Ohm 12Ohm (Typ) 13.5Ohm 13.8Ohm 130Ohm 135Ohm 13Ohm 140mOhm (Typ) 140Ohm 145Ohm 14Ohm 15.5Ohm 150Ohm 155Ohm 15Ohm 160mOhm 160Ohm 165Ohm 16Ohm 170Ohm 175Ohm 17Ohm 180Ohm 182Ohm 18Ohm 190Ohm 195Ohm 19Ohm 1kOhm 1Ohm 2.1Ohm 2.1Ohm (Typ) 2.2Ohm (Typ) 2.3Ohm 2.4Ohm 2.5kOhm 2.5Ohm 2.7Ohm 2.8Ohm 2.9Ohm 200Ohm 20Ohm 20Ohm (Typ) 210Ohm 220mOhm (Typ) 22Ohm 23Ohm 240Ohm 24Ohm 250mOhm 250mOhm (Typ) 250Ohm 25Ohm 25Ohm (Typ) 260Ohm, 625Ohm 26Ohm 270Ohm 270Ohm (Typ) 280Ohm 29Ohm 2Ohm 3.1Ohm 3.2Ohm 3.3Ohm 3.5kOhm 3.5Ohm 3.7Ohm 300mOhm 300mOhm (Typ) 300Ohm 300Ohm (Typ) 30Ohm 30Ohm (Typ) 31Ohm 330mOhm 335Ohm 34Ohm 350mOhm 350mOhm (Typ) 350Ohm 35Ohm 360mOhm (Typ) 360Ohm 370mOhm 37Ohm 380mOhm 380Ohm 38Ohm 39Ohm 3kOhm 3Ohm 3Ohm (Typ) 4.2Ohm 4.5Ohm 4.6Ohm 4.7Ohm 4.8Ohm 400mOhm 400mOhm (Typ) 400Ohm 400Ohm (Typ) 40Ohm 430mOhm 450mOhm 450mOhm (Typ) 450Ohm 45Ohm 480mOhm 480mOhm (Typ) 480Ohm 48Ohm 4Ohm 4Ohm (Typ) 5.1Ohm 5.2Ohm 5.3Ohm 5.4Ohm 5.5Ohm 5.5Ohm (Typ) 5.8Ohm 500mOhm 500mOhm (Typ) 500Ohm 50Ohm 520mOhm (Typ) 520Ohm 550mOhm 550mOhm (Typ) 580Ohm 58Ohm 5Ohm 5Ohm (Typ) 6.2Ohm 6.5Ohm 6.7Ohm (Typ) 600mOhm 600mOhm (Typ) 600Ohm 60Ohm 650mOhm 650Ohm 65Ohm 6Ohm 6Ohm (Typ) 7.5Ohm 7.7Ohm 7.8Ohm 700mOhm 700Ohm (Typ) 70Ohm 720mOhm 740mOhm 750mOhm 750Ohm 75Ohm 78Ohm 7Ohm 7Ohm (Typ) 8.4Ohm 800mOhm 800Ohm 80Ohm 80Ohm (Typ) 850mOhm 850Ohm 85Ohm 860mOhm (Typ) 8Ohm 8Ohm (Typ) 9.3Ohm 9.5Ohm 9.9Ohm 900mOhm 900mOhm (Typ) 900Ohm 90Ohm 950mOhm 95Ohm 96Ohm 9Ohm	- 1.02Ohm 1.11mOhm 1.1mOhm 1.1Ohm 1.24Ohm 1.25Ohm 1.2Ohm 1.3Ohm 1.3Ohm (Typ) 1.5Ohm 1.5Ohm (Typ) 1.7Ohm 1.8Ohm 1.8Ohm (Typ) 1.9Ohm 100mOhm 100mOhm (Max) 100mOhm (Typ) 105Ohm 10mOhm 10mOhm (Typ) 10Ohm 11.25Ohm 110mOhm 11Ohm, 27Ohm 120mOhm 120mOhm (Max) 126Ohm 12Ohm 12Ohm (Max) 130mOhm 130mOhm (Max) 130Ohm 150mOhm 150mOhm (Max) 150mOhm (Typ) 15mOhm 15Ohm 15Ohm (Max) 15Ohm (Typ) 16.5Ohm 160mOhm 16Ohm (Max) 175Ohm 175Ohm (Typ) 180mOhm 180Ohm 18mOhm 18Ohm 18Ohm (Typ) 190mOhm 19Ohm 1Ohm 1Ohm (Max) 1Ohm (Typ) 2.4mOhm 2.4Ohm 2.5Ohm 2.5Ohm (Max) 2.5Ohm (Typ) 2.7Ohm 200mOhm 200mOhm (Max) 200mOhm (Typ) 20mOhm 20Ohm 20Ohm (Max) 210mOhm 21mOhm 21Ohm 21Ohm (Typ) 22.5Ohm 22.5Ohm (Typ) 23.4Ohm 24Ohm 250mOhm 250mOhm (Max) 250mOhm (Typ) 25Ohm 26.6Ohm 270mOhm 27Ohm 29Ohm 2mOhm 2Ohm 2Ohm (Max) 2Ohm (Typ) 3.1Ohm 3.5Ohm 3.5Ohm (Typ) 3.6Ohm (Max) 300mOhm 300mOhm (Max) 300mOhm (Typ) 300Ohm 30mOhm 30mOhm (Max) 30Ohm 320mOhm 350mOhm 35Ohm 380mOhm 3mOhm 3Ohm 3Ohm (Max) 3Ohm (Typ) 4.2mOhm 4.5Ohm 400mOhm 400mOhm (Max) 400mOhm (Typ) 40mOhm 40mOhm (Min) 40mOhm (Typ) 44Ohm 45mOhm 45Ohm 46mOhm 4mOhm 4Ohm 4Ohm (Max) 4Ohm (Typ) 5.1mOhm 5.1Ohm 5.75Ohm 500mOhm 500mOhm (Max) 500mOhm (Typ) 50mOhm 50mOhm (Max) 50mOhm (Typ) 50Ohm 550mOhm 55mOhm 5mOhm 5Ohm 5Ohm (Max) 5Ohm (Typ) 6.25Ohm 600mOhm 600mOhm (Max) 600mOhm (Typ) 60mOhm 60mOhm (Max) 60mOhm (Typ) 60Ohm 60Ohm (Max) 650mOhm 6Ohm 6Ohm (Max) 6Ohm (Typ) 700mOhm 70mOhm 70mOhm (Max) 70Ohm 70Ohm (Typ) 750mOhm 75Ohm 780mOhm (Max) 7Ohm 8.1Ohm 8.5Ohm 800mOhm 800mOhm (Typ) 80mOhm 80mOhm (Max) 80Ohm 850mOhm 8Ohm 8Ohm (Typ) 900mOhm 90mOhm 90Ohm 910mOhm 950mOhm 96Ohm 9Ohm	- -3.3V, 3.3V -3V ~ -3.6V -4.5V ~ -8.8V -4.5V ~ -8.8V, 4.5V ~ 5.5V 0.8V ~ 2.7V 1.08V ~ 3.6V 1.08V ~ 5.5V 1.1V ~ 4.5V 1.35V, 1.5V, 1.8V 1.4V ~ 4.3V 1.5V ~ 2V 1.5V ~ 3.6V 1.5V ~ 4.2V 1.5V ~ 5.5V 1.62V ~ 1.98V 1.62V ~ 3.63V 1.62V ~ 5.5V 1.65V ~ 2.75V 1.65V ~ 3.3V 1.65V ~ 3.6V 1.65V ~ 4.2V 1.65V ~ 4.3V 1.65V ~ 4.45V 1.65V ~ 4.4V 1.65V ~ 4.5V 1.65V ~ 4.8V 1.65V ~ 5.5V 1.65V ~ 5V 1.65V ~ 6V 1.6V ~ 3.6V 1.6V ~ 4.2V 1.6V ~ 4.3V 1.6V ~ 5.5V 1.6V ~ 6V 1.71V ~ 1.91V, 3V ~ 3.6V 1.71V ~ 1.98V, 3V ~ 3.6V 1.7V ~ 1.9V 1.7V ~ 5.5V 1.8V ~ 12V 1.8V ~ 3.6V 1.8V ~ 4.2V 1.8V ~ 4.3V 1.8V ~ 4.4V 1.8V ~ 4.5V 1.8V ~ 5.5V 1.8V ~ 5V 1.8V ~ 6.5V 10.8V ~ 16.5V 10V ~ 100V 10V ~ 12.5V 10V ~ 14V 10V ~ 15V 10V ~ 16.5V 10V ~ 18V 10V ~ 20V 10V ~ 30V 10V ~ 36V 10V ~ 70V 12V 12V ~ 16.5V 12V ~ 20V 12V ~ 36V 12V ~ 44V 13V 13V ~ 18V 13V ~ 36V 13V ~ 44V 14V 15V 1V ~ 5.5V 1V ~ 6V 2.25V ~ 5.5V 2.3V ~ 3.6V 2.3V ~ 4.3V 2.3V ~ 4.8V 2.3V ~ 5.5V 2.4V ~ 12V 2.4V ~ 5.5V 2.5V ~ 16V 2.5V ~ 4.3V 2.5V ~ 5.5V 2.5V ~ 5V 2.5V ~ 6V 2.6V ~ 4.3V 2.7V 2.7V ~ 11V 2.7V ~ 12V 2.7V ~ 13.2V 2.7V ~ 15V 2.7V ~ 16.5V 2.7V ~ 16V 2.7V ~ 3.3V 2.7V ~ 3.6V 2.7V ~ 4.3V 2.7V ~ 4.5V 2.7V ~ 4.6V 2.7V ~ 5.5V 2.7V ~ 5.5V, 2.7V ~ 15.5V 2.7V ~ 5V 2.7V ~ 6V 2.7V ~ 8V 2.8V ~ 4.5V 2.97V ~ 3.63V 20V 20V ~ 110V 20V ~ 72V 2V ~ 10V 2V ~ 11V 2V ~ 12.6V 2V ~ 12V 2V ~ 15V 2V ~ 16V 2V ~ 5.5V 2V ~ 5.5V, 4.5V ~ 10V 2V ~ 6V 2V ~ 6V, 2V ~ 12V 3.1V ~ 3.5V 3.3V ~ 15V 3.3V ~ 16V 3.3V ~ 5V 3.3V, 5V 3.4V ~ 3.8V 30V 33V 36V 3V 3V ~ 10V 3V ~ 12V 3V ~ 15V 3V ~ 16V 3V ~ 18V 3V ~ 20V 3V ~ 3.6V 3V ~ 30V 3V ~ 4.3V 3V ~ 5.5V 3V ~ 5V 4.5V ~ 10.5V 4.5V ~ 15.5V 4.5V ~ 18V 4.5V ~ 20V 4.5V ~ 24V 4.5V ~ 25V 4.5V ~ 30V 4.5V ~ 36V 4.5V ~ 40V 4.5V ~ 44V 4.5V ~ 5.5V 4.5V ~ 6.3V 4.5V ~ 9V, 20V ~ 36V 4.75V ~ 5.25V 40V 40V ~ 200V 40V ~ 250V 44V 4V ~ 12V 4V ~ 15V 4V ~ 44V 4V ~ 5.5V 5V 5V ~ 15V 5V ~ 16.5V 5V ~ 18V 5V ~ 20V 5V ~ 24V 5V ~ 30V 5V ~ 34V 5V ~ 36V 5V ~ 40V 5V ~ 44V 7.5V ~ 44V 7V ~ 36V 8V ~ 22V 8V ~ 44V 9.5V ~ 10.5V 9V ~ 10V 9V ~ 15V 9V ~ 36V 9V ~ 40V ±4.5V ~ 18V	- ±1.5V ~ 5V ±1.5V ~ 6V ±1.8V ~ 2.5V ±10.8V ~ 16.5V ±10V ~ 15V ±10V ~ 35V ±10V ~ 36V ±10V ~ 50V ±12V ±13.5V ~ 16.5V ±13V ±14V ±15V ±15V ~ 16.5V ±160V ±18V ±18V ~ 44V ±1V ~ 5V ±1V ~ 6V ±2.5V ±2.5V ~ 5V ±2.5V ~ 6V ±2.5V ~ 7.5V ±2.5V ~ 9V ±2.6V ~ 6V ±2.75V ±2.7V ~ 5.5V ±2.7V ~ 5V ±2.7V ~ 6V ±2.7V ~ 8V ±20V ±20V ~ 110V ±22V ±2V ~ 5.5V ±2V ~ 6V ±3.3V ~ 15V ±3.3V ~ 8V ±3V ±3V ~ 10V ±3V ~ 15V ±3V ~ 20V ±3V ~ 5.5V ±3V ~ 5V ±3V ~ 6.6V ±3V ~ 6V ±3V ~ 8V ±4.5V ~ 15V ±4.5V ~ 16.5V ±4.5V ~ 18V ±4.5V ~ 20V ±4.5V ~ 22V ±4.5V ~ 5.5V ±4.5V ~ 7.5V ±4.5V ~ 9V, ±20V ~ 36V ±4.75V ~ 5.25V ±4V ~ 22V ±5.5V ±5V ±5V ~ 15V ±5V ~ 16.5V ±5V ~ 17V ±5V ~ 18V ±5V ~ 20V ±5V ~ 22V ±5V ~ 25V ±6V ±7V ~ 18V ±7V ~ 22V ±9V ~ 22V	- -, - -, 3.5ns 1.2µs (Typ), 200ns (Typ) 1.4ns, 1.5ns 1.5µs (Typ), 800ns (Typ) 1.5µs, 1.2µs 1.5µs, 1.5µs 1.5µs, 1µs 1.6µs, 100ns (Typ) 1.7ms, 13.5ms (Typ) 1.8µs, 1ns 10.2µs, 360ns 100ns, 100ns 100ns, 50ns 100ns, 60ns 100ns, 75ns 100ns, 90ns 100µs, 100µs 100µs, 50ns 100µs, 50ns (Typ) 100µs, 6µs 105ns, 125ns 105ns, 45ns 105ns, 80ns 107ns, 88ns 108ns, 92ns 10ms, 1.7ms 10ms, 2.25ms 10ns, 10ns 10ns, 16ns 10ns, 30ns 10ns, 6.5ns 110ns, 120ns 110ns, 135ns 110ns, 140ns 110ns, 150ns 110ns, 30ns 110ns, 60ns 110ns, 70ns (Typ) 110ns, 85ns (Typ) 110ns, 90ns 110ns, 91ns 115ns, 45ns 118ns, 97ns 11ns, 11ns 11ns, 6ns (Typ) 11ns, 7ns 11µs, 95ns (Typ) 12.5ns, 9.5ns 120ns, 120ns 120ns, 130ns 120ns, 135ns 120ns, 156ns 120ns, 70ns 120ns, 75ns 120ns, 80ns 125ns, 50ns 125ns, 80ns 128ns, 109ns 12ns, 10ns 12ns, 12ns 12ns, 18ns 12ns, 24ns 12ns, 5ns (Typ) 12ns, 6ns 12ns, 6ns (Typ) 12ns, 8ns 12ns, 8ns (Typ) 130ns, 100ns 130ns, 105ns 130ns, 115ns 130ns, 130ns 130ns, 160ns 130ns, 165ns 130ns, 60ns 130ns, 75ns 130ns, 85ns 130ns, 95ns 130ns, 9ns 133ns, 200ns 135ns, 190ns 135ns, 80ns 136ns, 75ns 136ns, 78ns 13ns, 10ns 13ns, 12ns 13ns, 38ns 13ns, 38ns (Typ) 13ns, 8ns 13µs, 5µs (Typ) 140ns, 110ns 140ns, 150ns 140ns, 185ns 140ns, 45ns 140ns, 50ns 140ns, 80ns 145ns, 145ns 146ns, 104ns 149ns, 166ns 14ns (Typ), 11ns 14ns (Typ), 5ns (Typ) 14ns, 14ns 14ns, 20ns 14ns, 24ns 14ns, 26ns 14ns, 3ns (Typ) 14ns, 5ns 14ns, 5ns (Typ) 14ns, 6ns 14ns, 6ns (Typ) 14ns, 7.8ns 14ns, 7ns (Typ) 14ns, 8ns 14ns, 8ns (Typ) 14ns, 9ns 15.9µs, 160ns 150ns, 100ns 150ns, 120ns 150ns, 125ns 150ns, 130ns 150ns, 130ns (Typ) 150ns, 150ns 150ns, 80ns 150ns, 90ns 150µs, 2µs 154ns, 195ns 156ns, 87ns 15ns (Typ), 10ns (Typ) 15ns, 10ns 15ns, 12ns 15ns, 13ns 15ns, 5ns 15ns, 7ns 15ns, 8ns 15µs, 3µs 160ns, 100ns 160ns, 150ns 160ns, 210ns 160ns, 240ns 160ns, 420ns (Typ) 165ns, 153ns 165ns, 155ns 166ns, 108ns 168ns, 180ns 16ns, 15ns 16ns, 16ns 16ns, 26ns 16ns, 28ns 16ns, 8.5ns 16µs, 500ns 170ns, 105ns 170ns, 140ns 170ns, 180ns 170ns, 75ns 175ns, 100ns 175ns, 125ns 175ns, 145ns 175ns, 150ns 175ns, 155ns 175ns, 175ns 175ns, 180ns 175ns, 185ns 175µs, - 17ns, 10ns 17ns, 14ns 17ns, 6ns 17ns, 9ns 180ns, 110ns 180ns, 140ns 180ns, 150ns 180ns, 180ns 180ns, 200ns 180ns, 210ns 180ns, 220ns 180ns, 350ns (Typ) 185ns (Typ), 220ns (Typ) 185ns, 130ns 185ns, 142ns 185ns, 175ns 185ns, 205ns 185ns, 210ns 185ns, 220ns (Typ) 186ns, 104ns 187ns, 138ns 18ns, 11ns 18ns, 12ns 18ns, 15ns 18ns, 18ns 18ns, 20ns 18ns, 29ns 18ns, 29ns (Typ) 18ns, 6ns 18ns, 7ns 190ns, 180ns 195ns, 165ns 199ns, 184ns 19ns, 12ns 19ns, 5ns 1µs (Typ), 400ns (Typ) 1µs (Typ), 500ns (Typ) 1µs, 400ns 1µs, 400ns (Typ) 1µs, 500ns 1µs, 700ns 1µs, 700ns (Typ) 2.1µs, 130ns 2.2ns, 2.3ns 2.3ns, 2ns 2.5µs, 500ns 2.6ns, 2.6ns 20.7µs, 100ns 200ns (Typ), 120ns (Typ) 200ns, 100ns 200ns, 120ns (Typ) 200ns, 150ns 200ns, 180ns 200ns, 200ns 200ns, 250ns (Typ) 200ns, 290ns 200ns, 300ns 200ns, 95ns 200µs, 30µs 200µs, 400µs 205ns, 268ns 205ns, 270ns 205ns, 300ns 209ns, 253ns 20ns, 10ns 20ns, 10ns (Typ) 20ns, 12ns 20ns, 14ns 20ns, 15ns 20ns, 20ns 20ns, 27ns 20ns, 30ns 20ns, 40ns 20ns, 8ns (Typ) 20µs 210ns, 160ns 210ns, 191ns 213ns, 152ns 215ns, 85ns 21ns, 10.5ns 21ns, 10ns (Typ) 21ns, 23ns 220ns, 120ns 220ns, 225ns 220ns, 75ns 225ns, 185ns 225ns, 215ns 22ns, 14ns 22ns, 15ns 22ns, 8ns 230ns, 130ns 230ns, 185ns 239ns, 185ns 23ns, 13ns 23ns, 21ns 23ns, 23ns 23ns, 32ns 23ns, 8.5ns 23ns, 8ns 240ns (Typ), 500ns (Typ) 240ns, 130ns 240ns, 170ns 240ns, 500ns (Typ) 245ns, 135ns 245ns, 260ns 24ns, 10ns 24ns, 16ns 24ns, 20ns 24ns, 20ns (Typ) 24ns, 35ns 24ns, 7ns 24ns, 8ns 24ns, 9ns 250ns (Typ), 250ns (Typ) 250ns, 120ns 250ns, 125ns 250ns, 130ns 250ns, 140ns 250ns, 150ns 250ns, 170ns 250ns, 200ns 250ns, 210ns 250ns, 240ns 250ns, 250ns 250ns, 250ns (Typ) 250ns, 350ns 250µs, 10µs 250µs, 85µs (Typ) 25ns, 10ns 25ns, 15ns 25ns, 17ns (Typ) 25ns, 20ns 25ns, 21ns 25ns, 23ns 25ns, 24ns (Typ) 25ns, 25ns 25ns, 35ns 25ns, 4ns (Typ) 25ns, 5ns 25ns, 80ns 25µs, 2µs 26ns, 10ns 26ns, 7ns 270µs, 65µs (Typ) 275ns, 150ns 275ns, 175ns 275ns, 200ns 275ns, 335ns 27ns, 12ns 27ns, 18ns 27ns, 20ns 28ns, 13ns 28ns, 20ns 28ns, 21ns 28ns, 22ns 29ns (Typ), 17ns (Typ) 29ns, 26ns 29ns, 6ns 2ms, 1.5ms 2ns, 5ns 2ns, 7.5ns 2µs, 2µs 2µs, 400ns 2µs, 500ns 2µs, 600ns 2µs, 600ns (Typ) 3.2ns, 4.1ns 3.5µs, 3.5µs 3.8ns, 3.8ns 3.9ns, 4ns 3.9ns, 5ns 3.9ns, 6.3ns 300ns (Typ), 300ns (Typ) 300ns, 100ns 300ns, 110ns 300ns, 150ns 300ns, 200ns 300ns, 250ns 300ns, 300ns 300ns, 300ns (Typ) 300ns, 400ns 300µs, 1ns 300µs, 30µs 30ns (Typ), 25ns (Typ) 30ns, - 30ns, 12ns 30ns, 17ns 30ns, 18ns 30ns, 20ns 30ns, 22ns 30ns, 24ns 30ns, 25ns 30ns, 28ns 30ns, 30ns 30ns, 35ns 30ns, 40ns 30ns, 44ns 31ns, 24ns 31ns, 29ns 31ns, 34ns 32.5ms, 8.8ms (Typ) 320ns, 150ns 320ns, 195ns 32ns, 16ns (Typ) 32ns, 26ns 32ns, 28ns 32ns, 40ns 32µs, 500ns 33ns, 16ns 33ns, 25ns 34ns, 23ns (Typ) 34ns, 24ns 34ns, 29ns 34ns, 31ns 34ns, 32ns 34ns, 50ns 350ns (Typ), 180ns (Typ) 350ns, 150ns 350ns, 180ns 350ns, 180ns (Typ) 350ns, 250ns 350ns, 300ns 35ns, 10ns 35ns, 15ns 35ns, 16ns 35ns, 18ns 35ns, 20ns 35ns, 20ns (Typ) 35ns, 21ns 35ns, 22ns (Typ) 35ns, 23ns 35ns, 25ns 35ns, 30ns 35ns, 31ns 35ns, 40ns 35µs (Max), 5.5µs (Typ) 35µs, 95ns 36ns, 22ns 36ns, 30ns 374ns, 325ns 37ns, 23ns 37ns, 36ns 37ns, 37ns 37ns, 45ns 381ns, 363ns 38ns, 152ns 38ns, 17ns 38ns, 32ns 38ns, 38ns 38ns, 42ns 390ns, 450ns 39ns, 27ns 39ns, 32ns 39ns, 78ns 3ns, 6ns 3µs, 650ns (Typ) 4.2ns, 5ns 4.5ns, 5.5ns 4.5ns, 8ns 4.9ns, 6ns 400ns, 200ns 400ns, 200ns (Typ) 400ns, 300ns 400ns, 300ns (Typ) 400ns, 400ns 403ns, 221ns 40ns, 15ns 40ns, 20ns 40ns, 25ns 40ns, 30ns 40ns, 33ns 40ns, 35ns 40ns, 40ns 40µs, 100µs 415ns, 397ns 41ns, 32ns 41ns, 37ns 41ns, 44ns 42ns, 32ns 42ns, 34ns 439ns, 204ns 43ns, 31ns 440ns, 340ns 44ns, 29ns 44ns, 30ns 450ns, 300ns 45ns, 15ns 45ns, 16ns 45ns, 20ns 45ns, 25ns 45ns, 26ns 45ns, 35ns 45ns, 42ns 45ns, 45ns 45ns, 47ns 45ns, 59ns 460ns, 450ns 46ns 46ns, 32ns 46ns, 38ns 46ns, 55ns 475ns, 190ns 480ns (Typ), 370ns (Typ) 48ns, 33ns 48ns, 44ns 490ns, 225ns 4ns, 3.5ns 4ns, 4.5ns 4ns, 7.5ns 4µs, 100ns (Typ) 4µs, 4µs 5.2ns, 3.5ns 5.2ns, 4.5ns 5.2ns, 4.8ns 5.2µs, 180ns 5.5ns, 10ns 5.5ns, 4.5ns 5.5ns, 4ns 5.5ns, 6.5ns 5.7ns, 3.8ns 5.8ns, 3.6ns 5.9ns, 8.3ns 500ns, 175ns 500ns, 1µs 500ns, 350ns 500ns, 400ns 500ns, 450ns 500ns, 500ns 500ns, 515ns 500ns, 90ns 500ns, 90ns (Typ) 500p, 500p 50ns (Typ), 15ns (Typ) 50ns, 20ns 50ns, 25ns 50ns, 27ns 50ns, 30ns 50ns, 32ns 50ns, 35ns 50ns, 40ns 50ns, 45ns 50ns, 50ns 50µs, 1µs 50µs, 8ns 51ns, 33ns 51ns, 35ns 51ns, 42ns 51ns, 49ns 520ns, 210ns 530ns, 230ns 535ns, 205ns 53ns, 38ns 54ns, 52ns 550ns, 340ns 550ns, 450ns 55ns, 25ns 55ns, 30ns 55ns, 35ns 55ns, 40ns 55ns, 45ns 55ns, 48ns 55ns, 50ns 55ns, 65ns 560ns, 450ns 56ns, 61ns 57ns, 45ns 58ns, 48ns 58ns, 49ns 59ns, 49ns 59ns, 60.6ns 5ns (Typ), 5ns (Typ) 5ns, 3.4ns 5ns, 3.9ns 5ns, 4ns 5ns, 6.5ns 5ns, 9ns 5µs, 3.5µs 5µs, 5µs 6.2ns, 3.8ns 6.5ns, 3.7ns 6.5ns, 6ns 6.6ns, 4.5ns 6.8ns, 4.1ns 600ns (Typ), 400ns (Typ) 600ns, 220ns 600ns, 300ns (Typ) 600ns, 450ns 600µs, 160µs 60ms, 3µs 60ns, 20ns 60ns, 30ns 60ns, 35ns 60ns, 40ns 60ns, 48ns 60ns, 50ns 60ns, 52ns 60ns, 55ns 60µs, 160µs 60µs, 1µs 60µs, 3µs 60µs, 4µs 62ns, 53ns 62ns, 87ns 630ms, 2µs 65ns (Typ), 80ns (Typ) 65ns, 28ns 65ns, 330ns 65ns, 40ns 65ns, 50ns 65ns, 60ns 65ns, 65ns 67ns, 40ns 69ns, 39ns 69ns, 54ns 69ns, 57ns 6ns, 13ns 6ns, 2ns 6ns, 4ns 6ns, 6.5ns 6ns, 6ns 6ns, 7.5ns 6µs, 4µs 6µs, 6µs 7.2ns, 6.9ns 7.5ns, 11ns 7.5ns, 17ns 700ns (Typ), 400ns (Typ) 700ns, 500ns 701ns, 250ns 70ns (Typ), 80ns (Typ) 70ns, 44ns 70ns, 45ns 70ns, 50ns 70ns, 55ns 70ns, 60ns (Typ) 70ns, 65ns 70ns, 75ns 71ns, 59ns 72ns, 318ns 72ns, 43ns 72ns, 47ns 72ns, 57ns 73ns, 91ns 740ns, 100ns 750ns, 210ns 750ns, 500ns 750ns, 650ns 75ns, 45ns 75ns, 50ns 75ns, 59ns 75ns, 60ns 75ns, 75ns 75ns, 88ns 78ns, - 78ns, 58ns 78ns, 68ns 78ns, 78ns 7ns, 11.5ns 7ns, 3ns (Typ) 7ns, 4.5ns 7ns, 4.5ns (Typ) 7ns, 4ns 7ns, 5ns (Typ) 8.5ns, 20ns 8.5ns, 6.5ns 8.7ns, 6.8ns 800ns, 400ns 800ns, 600ns 800ns, 650ns 800ns, 800ns 800ns, 800ns (Typ) 80ns, 100ns 80ns, 25ns 80ns, 30ns 80ns, 40ns 80ns, 45ns 80ns, 50ns 80ns, 70ns 80ns, 85ns 80µs, 400ns (Typ) 81ns, 48ns 82ns, 73ns 85ns, 110ns 85ns, 35ns 85ns, 45ns 85ns, 53ns 85ns, 85ns 86ns, 64ns 86ns, 76ns 88ns, 16ns 89ns, 80ns 8ns, 12ns 8ns, 20ns 8ns, 4ns 8ns, 6.5ns 8ns, 6ns 8ns, 8ns 9.5ns, 3.5ns 9.5ns, 7.7ns 90ns (Typ), 70ns (Typ) 90ns, 60ns 90ns, 70ns 90ns, 80ns (Typ) 93ns, 35ns 94ns, 93ns 95ns, 100ns 95ns, 161ns 95ns, 173ns 95ns, 40ns 95ns, 50ns 95ns, 85ns 95ns, 85ns (Typ) 9ns, 10ns 9ns, 4ns 9ns, 7ns 9ns, 8.5ns	- 1.1GHz 1.2GHz 1.3GHz 1.4GHz 1.5GHz 1.6GHz 1.8GHz 100MHz 104MHz 105MHz 109MHz 10MHz 11.5MHz 110MHz 114MHz 115MHz 117MHz 120MHz 121MHz 123MHz 125MHz 12GHz 12MHz 130MHz 135MHz 137MHz 13GHz 140MHz 145MHz 147MHz 14MHz 150MHz 152MHz 155MHz 15MHz 160MHz 161MHz 165MHz 166MHz 170MHz 171MHz 175MHz 17MHz 18.3MHz 180MHz 184MHz 185MHz 186MHz 18MHz 190MHz 196MHz 19MHz 1GHz 2.5GHz 200MHz 20MHz 210MHz 215MHz 217MHz 21MHz 220MHz 221MHz 225MHz 22MHz 230MHz 235MHz 23MHz 240MHz 242MHz 245MHz 24MHz 250MHz 252MHz 255MHz 256MHz 25MHz 25MHz (Min) 260MHz 266MHz 270MHz 27MHz 280MHz 28MHz 29MHz 2GHz 3.3GHz 300MHz 308MHz 30MHz 310MHz 314MHz 31MHz 320MHz 326MHz 32GHz 32MHz 330MHz 334MHz 338MHz 33MHz 340MHz 34MHz 350MHz 353MHz 356MHz 35MHz 360MHz 366MHz 367MHz 36MHz 370MHz 371MHz 37MHz 380MHz 38MHz 395MHz 3GHz 400MHz 40MHz 414MHz 420MHz 42MHz 430MHz 43MHz 449MHz 44MHz 450MHz 457MHz 45MHz 460MHz 464MHz 46MHz 480MHz 48MHz 490MHz 496MHz 49MHz 5.5GHz 500MHz 50MHz 51MHz 520MHz 52MHz 530MHz 540MHz 54MHz 550MHz 55MHz 57MHz 580MHz 58MHz 6.1GHz 6.5GHz 600MHz 60MHz 610MHz 620MHz 62MHz 630MHz 650MHz 65MHz 660MHz 66MHz 670MHz 680MHz 6GHz 7.4GHz 7.5GHz 700MHz 70MHz 714MHz 720MHz 72MHz 730MHz 73MHz 750MHz 75MHz 77MHz 78MHz 800MHz 80MHz 82MHz 830MHz 840MHz 84MHz 850MHz 85MHz 88MHz 89MHz 8GHz 8MHz 9.5GHz 9.5MHz 900MHz 90MHz 92MHz 930MHz 93MHz 95MHz 960MHz 97MHz	- -0.19pC -0.33pC -0.3pC -0.41pC -0.4pC -0.5pC -0.6pC -0.78pC -0.7pC -0.8pC -1.2pC -1.3nC -1.4pC -1.5pC -1.68nC -10.5pC -10pC -11.5pC -110pC -11pC -12.4pC -12.5pC -120pC -125pC -12pC -1300pC -13pC -14pC -150pC -15pC -16pC -17pC -1800pC -18pC -19.4pC -19pC -1pC -2.1nC -2.46pC -2.6pC -20pC -21pC -2200pC -230pC -245pC -25pC -2pC -300pC -330pC -39pC -4.4pC -41pC -45pC -50pC -5pC -6.5pC -60pC -640pC -65pC -6pC -737pC -7pC -82pC -8pC -96pC -97pC 0.0035pC 0.05pC 0.1pC 0.25pC 0.2pC 0.31pC 0.36pC 0.38pC 0.3pC 0.45pC 0.4pC 0.51pC 0.5pC 0.67pC 0.6pC 0.79pC 0.7pC 0.81pC 0.86pC 0.8pC 1.2pC 1.3pC 1.4pC 1.5pC 1.6pC 1.8pC 10.4pC 1000pC 100pC 103pC 104pC 10pC 10pC (Max) 110pC 111pC 11pC 12.5pC 120pC 125pC 126pC 128pC 12pC 1370pC 139pC 13pC 140pC 14pC 15.5pC 150pC 155pC 15pC 160pC 162pC 168pC 16pC 170pC 1720pC 176pC 17pC 18pC 192pC 19pC 1pC 2.2pC 2.4pC 2.8pC 200pC 20pC 21pC 224pC 225pC 22pC 23.5pC 230pC 23pC 248pC 24pC 250pC 25pC 260pC 26pC 275pC 27pC 28pC 290pC 292pC 29pC 2pC 3.4pC 3.5pC 300pC 30pC 310pC 330pC 33pC 35pC 36.5pC 36pC 37pC 38pC 3pC 4.1pC 4.5pC 40pC 42pC 43pC 44pC 450pC 45pC 46pC 480pC 48pC 49pC 4pC 5.5pC 5.84pC 5.8pC 500pC 50pC 51pC 52pC 53pC 54pC 550pC 55pC 57pC 580pC 58pC 5pC 5pC (Max) 6.4pC 6.5pC 6.6pC 60pC 64pC 65pC 695pC 6pC 7.4pC 7.5pC 70pC 71pC 75pC 780pC 78pC 79pC 7pC 8.75pC 80pC 820pC 850pC 85pC 87pC 89pC 8pC 90pC 92pC 94pC 95pC 97pC 9pC	- 0.2pF 0.2pF, 18pF 0.2pF, 30pF 0.2pF, 35pF 0.2pF, 55pF 0.2pF, 5pF 0.2pF, 9pF 0.5pF, 13.1pF 0.5pF, 23.4pF 0.5pF, 5.5pF 0.5pF, 5pF 0.5pF, 8.2pF 0.5pF, 9pF 0.6pF 0.6pF, 0.6pF 0.75pF, 5pF 1.1pF, 1.2pF 1.3pF, 1.3pF 1.4pF, 1.5pF 1.5pF 1.5pF, 11pF 1.5pF, 4.2pF 1.5pF, 4.5pF 1.5pF, 7pF 1.6pF 1.6pF, 1.6pF 1.6pF, 11pF 1.6pF, 3.8pF 1.6pF, 5pF 1.7pF, 1.7pF 1.7pF, 1.8pF 1.8pF 1.8pF, 4pF 1.8pF, 8pF 1.9pF, 2.2pF 1.9pF, 2.4pF 1.9pF, 4.3pF 100pF 102pF 102pF, 104pF 103pF 104pF 106pF 10pF 10pF, 10pF 10pF, 12pF 10pF, 13pF 10pF, 14pF 10pF, 15pF 10pF, 16pF 10pF, 17pF 10pF, 19pF 10pF, 20pF 10pF, 24pF 10pF, 25pF 10pF, 25pF (Max) 10pF, 26pF 10pF, 30pF 10pF, 35pF 10pF, 3pF 10pF, 40pF 10pF, 52pF 10pF, 5pF 10pF, 65pF 11.5pF 11.5pF, 11.5pF 115pF 115pF, 115pF 117pF 11pF 11pF, 11pF 11pF, 12pF 11pF, 20pF 11pF, 22pF 11pF, 23pF 11pF, 24pF 11pF, 32pF 11pF, 40pF 11pF, 47pF 11pF, 80pF 11pF, 8pF 12.7pF 12pF 12pF, 11pF 12pF, 12pF 12pF, 14pF 12pF, 22pF 12pF, 46pF 130pF 130pF, 130pF 13pF 13pF, 130pF 13pF, 137pF 13pF, 13pF 13pF, 180pF 13pF, 260pF 13pF, 275pF 13pF, 30pF 13pF, 38pF 13pF, 42pF 13pF, 43pF 13pF, 45pF 13pF, 52pF 13pF, 76pF 13pF, 8.5pF 13pF, 85pF 13pF, 90pF 14.5pF 140pF 143pF 145pF 14pF 14pF, 130pF 14pF, 14pF 14pF, 25pF 14pF, 28pF 14pF, 40pF 14pF, 7pF 14pF, 80pF 14pF, 89pF 15pF 15pF, 10pF 15pF, 135pF 15pF, 138pF 15pF, 15pF 15pF, 17pF 15pF, 20pF 15pF, 23pF 15pF, 25pF 15pF, 47pF 15pF, 60pF 15pF, 67pF 15pF, 68pF 15pF, 9pF 160pF, 160pF 16pF 16pF, 14pF 16pF, 16pF 16pF, 26pF 16pF, 28pF 16pF, 42pF 17pF 17pF, 17pF 17pF, 28pF 17pF, 48pF 17pF, 98pF 180pF, 180pF 180pF, 300pF 182pF, 182pF 18pF 18pF, 120pF 18pF, 18pF 18pF, 22pF 18pF, 240pF 18pF, 54pF 18pF, 63pF 18pF, 88pF 19.5pF 19pF 19pF, 117pF 19pF, 17pF 19pF, 18pF 19pF, 32pF 19pF, 33pF 19pF, 36pF 19pF, 44pF 19pF, 59pF 19pF, 8pF 1pF 1pF, 2pF 1pF, 5pF 1pF, 9pF 2.1pF, 11.1pF 2.1pF, 4.2pF 2.1pF, 4.8pF 2.1pF, 6.4pF 2.2pF 2.2pF, 2.2pF 2.2pF, 4.8pF 2.2pF, 6.6pF 2.2pF, 9.2pF 2.3pF 2.3pF, - 2.4pF 2.4pF, 2.8pF 2.4pF, 4.3pF 2.4pF, 6.9pF 2.4pF, 7.5pF 2.5pF 2.5pF, 10pF 2.5pF, 12pF 2.5pF, 13pF 2.5pF, 2.4pF 2.5pF, 2.5pF 2.5pF, 4.5pF 2.5pF, 4pF 2.5pF, 6pF 2.5pF, 7pF 2.5pF, 8pF 2.7pF 2.7pF, 10.7pF 2.7pF, 7.3pF 2.8pF 2.8pF, 17pF 2.8pF, 33pF 2.8pF, 4.8pF 2.9pF, 2.8pF 208pF, 102pF 20pF 20pF, 12pF 20pF, 20pF 20pF, 21pF 21pF 21pF, 17pF 21pF, 211pF 21pF, 23pF 22pF 22pF, 23pF 23pF 23pF, 112pF 23pF, 20pF 23pF, 23pF 23pF, 50pF 23pF, 90pF 24pF, 105pF 24pF, 23pF 25pF 25pF, 25pF 26pF 26pF, 35pF 26pF, 9pF 27pF, 58pF 28pF 28pF, 45pF 29pF 2pF 2pF, 10pF 2pF, 12pF 2pF, 20pF 2pF, 23.4pF 2pF, 23pF 2pF, 2pF 2pF, 3.1pF 2pF, 3pF 2pF, 4.6pF 2pF, 40pF 2pF, 4pF 2pF, 7.5pF 2pF, 70pF 2pF, 7pF 2pF, 8.2pF 2pF, 9pF 3.1pF, 4pF 3.3pF 3.3pf, 32pF 3.3pF, 5.1pF 3.3pf, 62pF 3.5pF 3.5pF, 14pF 3.5pF, 28pF 3.5pF, 3.5pF 3.5pF, 3pF 3.5pF, 4.5pF 3.6pF 3.6pF, 31pF 3.7pF 3.7pF, 4.4pF 3.8pF 30pF 30pF, 15pF 30pF, 35pF 31pF 31pF, 30pF 31pF, 31pF 31pf, 34pF 32pF 32pF, 32pF 33pF 33pF, 117pF 33pF, 33pF 33pF, 48pF 33pF, 60pF 34pF, 34pF 34pF, 36pF 34pF, 48pF 35pF 35pF, 35pF 35pF, 40pF 35pF, 49pF 36pF 36pF, 41pF 37pF 37pF, 37pF 37pF, 85pF 38pF 38pF, 158pF 38pF, 310pF 38pF, 75pF 39pF 3pF 3pF, 10pF 3pF, 11pF 3pF, 12.2pF 3pF, 12pF 3pF, 13pF 3pF, 14pF 3pF, 15pF 3pF, 17pF 3pF, 18pF 3pF, 20pF 3pF, 21pF 3pF, 22pF 3pF, 26pF 3pF, 2pF 3pF, 3.3pF 3pF, 3pF 3pF, 4.5pF 3pF, 4pF 3pF, 5pF 3pF, 6pF 3pF, 7.5pF 3pF, 7pF 3pF, 8pF 3pF, 9pF 4.1pF 4.2pF, 6.8pF 4.4pF, 3.8pF 4.5pF 4.5pF, 10.5pF 4.5pF, 10pF 4.5pF, 19pF 4.5pF, 9pF 40pF 40pF, 40pF 42pF 42pF, 83pF 43pF 44pF 44pF, 149pF 45pF 45pF, 45pF 45pF, 55pF 45pF, 60pF 45pF, 65pF 45pF, 66pF 45pF, 68pF 46pF 47pF 48pF 49pF, 37pF 4pF 4pF, 10pF 4pF, 11pF 4pF, 12pF 4pF, 13pF 4pF, 14pF 4pF, 15pF 4pF, 16pF 4pF, 18pF 4pF, 20pF 4pF, 23pF 4pF, 28pF 4pF, 31pF 4pF, 3pF 4pF, 4pF 4pF, 6pF 4pF, 7pF 4pF, 8pF 5.2pF 5.2pF, 5.2pF 5.5pF 5.5pF, 13.5pF 5.5pF, 25pF 5.5pF, 5.5pF 5.6pF, 7.4pF 50pF 50pF, 50pF 50pF, 85pF 51pF 52pF 54pF 54pF, 54pF 55pF 55pF, 55pF 56pF, 56pF 58pF 5pF 5pF, 10pF 5pF, 10pF (Max) 5pF, 11pF 5pF, 12pF 5pF, 14pF 5pF, 15pF 5pF, 16pF 5pF, 17pF 5pF, 18pF 5pF, 20pF 5pF, 22pF 5pF, 24pF 5pF, 25pF 5pF, 27pF 5pF, 30pF 5pF, 40pF 5pF, 44pF 5pF, 45pF 5pF, 4pF 5pF, 50pF 5pF, 5pF 5pF, 6.5pF 5pF, 6pF 5pF, 7.5pF 5pF, 7pF 5pF, 8.5pF 5pF, 8pF 5pF, 90pF 5pF, 9pF 6.5pF 6.5pF, 6.5pF 6.6pF 6.7pF, 22pF 6.8pF 6.8pF, 6.8pF 60pF 60pF, 270pF 60pF, 60pF 62pF 62pF, 218pF 63pF 63pF, 63pF 64pF, 64pF 65pF 65pF, 120pF 65pF, 470pF 65pF, 65pF 67pF 67pF, 134pF 68pF 68pF, 68pF 6pF 6pF, 1.9pF 6pF, 108pF 6pF, 10pF 6pF, 12pF 6pF, 14pF 6pF, 17pF 6pF, 20pF 6pF, 23pF 6pF, 28pF 6pF, 45pF 6pF, 54pF 6pF, 5pF 6pF, 6pF 6pF, 8pF 6pF, 9.5pF 7.5pF 7.5pF, 32pF 7.5pF, 7.5pF 7.5pF, 7.8pF 7.7pF 7.7pF, 11pF 70pF 70pF, 70pF 72pF 74pF 74pF, 148pF 75pF 75pF, 55pF 76pF 76pF, 76pF 78pF 7pF 7pF, - 7pF, 10pF 7pF, 13pF 7pF, 15pF 7pF, 20pF 7pF, 43pF 7pF, 5.5pF 7pF, 60pF 7pF, 7pF 7pF, 9pF 80pF 80pF, 80pF 81pF 83pF, 83pF 84pF 84pF, 37pF 85pF 85pF, 85pF 85pF, 98pF 8pF 8pF, 11pF 8pF, 130pF 8pF, 14pF 8pF, 160pF 8pF, 1pF 8pF, 45pF 8pF, 65pF 8pF, 80pF 8pF, 8pF 8pF, 90pf 8pF, 9pF 90pF 90pF, 90pF 9pF 9pF, 11pF 9pF, 20pF 9pF, 28pF 9pF, 36pF 9pF, 37pF 9pF, 40pF 9pF, 58pF 9pF, 61pF 9pF, 68pF 9pF, 6pF 9pF, 9pF	- 1.2nA 1.5nA 1.5µA 100nA 100nA (Max) 100nA (Typ) 100pA 100pA (Typ) 100µA 10nA 10nA (Typ) 10pA 10pA (Typ) 10µA 10µA (Typ) 12.5nA 125nA 12µA 150nA 150pA 15nA 15µA 180nA 185µA 1nA 1nA (Typ) 1pA (Typ) 1µA 2.5nA 200nA 200pA 200pA (Typ) 20nA 20nA (Typ) 20pA 20pA (Typ) 20µA 250nA 250pA 25nA 2nA 2nA (Max) 2nA (Typ) 2pA (Typ) 2µA 2µA (Typ) 300nA 300pA 30nA 30pA 30pA (Typ) 30µA 320nA 3nA 3µA 400nA 400pA 40nA 40pA 4nA 4µA 5.3nA 500nA 500pA 500pA (Typ) 50nA 50nA (Typ) 50pA 50pA (Typ) 550pA 5nA 5nA (Max) 5nA (Typ) 5µA 60nA 60pA (Typ) 650nA 650pA 6nA 6µA 700pA 70nA 70nA (Typ) 750pA 75nA 75nA (Typ) 8.13nA 800nA 80nA 80pA 8nA 900nA (Typ) 900pA	- -100dB @ 100kHz -100dB @ 10MHz -100dB @ 1MHz -100dB @ 5MHz -100dB ~ -115dB @ 1MHz -101dB @ 100kHz -103dB @ 100kHz -103dB @ 1MHz -104dB @ 1MHz -105dB @ 100kHz -105dB @ 1MHz -105dB ~ -92dB @ 1MHz -106dB @ 1MHz -108dB @ 1MHz -109dB @ 100kHz -109dB @ 1MHz -110dB @ 100kHz -110dB @ 1MHz -110dB @ 20kHz -112dB @ 100kHz -114dB @ 1MHz -115dB @ 1MHz -120dB @ 100Hz -120dB @ 100kHz -120dB @ 1kHz -120dB @ 1MHz -124dB @ 1kHz -21dB @ 240kHz -21dB @ 240MHz -23dB @ 240MHz -27dB @ 10GHz -30dB @ 300MHz -30dB @ 6GHz -32dB @ 240MHz -35dB @ 240MHz -35dB @ 4Ghz -36dB @ 240MHz -37dB @ 200MHz -37dB @ 240MHz -38dB @ 240MHz -38dB @ 5GHz -38dB @ 8GHz -39dB @ 200MHz -40dB @ 1.25GHz -40dB @ 10MHz -40dB @ 1MHz -40dB @ 3MHz -40dB @ 6MHz -41dB @ 100kHz -41dB @ 10MHz -41dB @ 240MHz -42dB @ 10MHz -42dB @ 250MHz -43dB @ 10MHz -45dB @ 10MHz -45dB @ 1MHz -45dB @ 240MHz -45dB @ 250MHz -48dB @ 10MHz -48dB @ 250MHz -49dB @ 1MHz -49dB @ 240MHz -50dB @ 1.5MHz -50dB @ 10kHz -50dB @ 1kHz -50dB @ 1MHz -50dB @ 2.5GHz -50dB @ 200kHz -50dB @ 25MHz -50dB @ 8MHz -50dB @ 900kHz -51dB @ 100MHz -52dB @ 10MHz -52dB @ 1MHz -53dB @ 1MHz -54dB @ 100kHz -54dB @ 10GHz -54dB @ 10MHz -54dB @ 1MHz -54dB @ 25MHz -55dB @ 100kHz -55dB @ 10MHz -55dB @ 1MHz -56dB @ 10MHz -56dB @ 1MHz -57dB @ 100kHz -57dB @ 10MHz -57dB @ 1MHz -58.7dB @ 10MHz -58dB @ 100MHz -58dB @ 1MHz -59dB @ 1MHz -60dB @ 100kHz -60dB @ 100MHz -60dB @ 10MHz -60dB @ 1kHz -60dB @ 1MHz -60dB @ 300kHz -60dB @ 5MHz -61dB @ 10MHz -61dB @ 1MHz -61dB @ 300kHz -62dB @ 100kHz -62dB @ 10MHz -62dB @ 1MHz -62dB @ 5MHz -62dB @ 6MHz -62dB ~ -42dB @ 1MHz ~ 10MHz -63dB @ 1MHz -64dB @ 100kHz -64dB @ 10MHz -64dB @ 1MHz -65dB @ 10MHz -65dB @ 1MHz -65dB @ 240MHz -65dB @ 5MHz -65dB ~ -45dB @ 1MHz ~ 10MHz -66dB @ 10MHz -66dB @ 1MHz -67dB @ 10MHz -67dB @ 1MHz -68dB @ 100kHz -68dB @ 10MHz -68dB @ 1MHz -68dB @ 5.5MHz -68dB @ 5MHz -69dB @ 100kHz -69dB @ 1MHz -69dB @ 5MHz -70dB @ 100kHz -70dB @ 100MHz -70dB @ 10MHz -70dB @ 1MHz -70dB @ 30MHz -70dB @ 5.5MHz -70dB @ 500kHz -70dB @ 5MHz -71dB @ 100kHz -71dB @ 1MHz -72dB @ 100kHz -72dB @ 1MHz -72dB @ 30MHz -73dB @ 100kHz -73dB @ 1MHz -74dB @ 10MHz -74dB @ 1MHz -74dB @ 500kHz -75dB @ 100kHz -75dB @ 10MHz -75dB @ 1MHz -75dB @ 30MHz -75dB @ 500kHz -75dB @ 5MHz -76dB @ 100kHz -76dB @ 1MHz -76dB @ 5MHz -77dB @ 1MHz -78dB @ 100kHz -78dB @ 1MHz -79dB @ 1MHz -80dB @ 100kHz -80dB @ 10MHz -80dB @ 1MHz -80dB @ 5MHz -81dB @ 100kHz -81dB @ 10MHz -81dB @ 1MHz -82dB @ 100kHz -82dB @ 1MHz -83dB @ 100kHz -83dB @ 1MHz -84dB @ 100kHz -84dB @ 1MHz -85dB @ 100kHz -85dB @ 10kHz -85dB @ 10MHz -85dB @ 1MHz -85dB @ 30kHz -85dB @ 5MHz -86dB @ 100kHz -86dB @ 1MHz -87dB @ 100kHz -87dB @ 100MHz -87dB @ 10MHz -87dB @ 1MHz -87dB @ 5MHz -88dB @ 100kHz -88dB @ 10MHz -88dB @ 1MHz -89dB @ 100kHz -89dB @ 1MHz -90dB @ 100kHz -90dB @ 10MHz -90dB @ 1MHz -90dB @ 20kHz -90dB ~ -80dB @ 1MHz ~ 10MHz -92dB -92dB @ 100kHz -92dB @ 10MHz -92dB @ 1MHz -92dB @ 30MHz -93dB @ 100kHz -93dB @ 1MHz -94.8dB @ 1MHz -94dB @ 100kHz -95dB @ 100kHz -95dB @ 1MHz -96dB @ 100kHz -96dB @ 10MHz -96dB @ 1MHz -97dB @ 1MHz -97dB @ 20kHz -98dB @ 100kHz -98dB @ 1MHz -98dB @ 20kHz -99dB @ 100kHz -99db @ 1MHz 50dB @ 10MHz 60dB @ 100kHz	- -10°C ~ 85°C (TA) -20°C ~ 85°C -20°C ~ 85°C (TA) -25°C ~ 125°C -25°C ~ 85°C -25°C ~ 85°C (TA) -40°C ~ 105°C (TA) -40°C ~ 125°C -40°C ~ 125°C (TA) -40°C ~ 70°C -40°C ~ 70°C (TA) -40°C ~ 80°C (TA) -40°C ~ 85°C -40°C ~ 85°C (TA) -55°C ~ 125°C -55°C ~ 125°C (TA) -55°C ~ 175°C -55°C ~ 210°C (TA) -55°C ~ 85°C (TA) 0°C ~ 70°C 0°C ~ 70°C (TA) 0°C ~ 75°C 0°C ~ 75°C (TA) 0°C ~ 85°C 0°C ~ 85°C (TA) 25°C	- Automotive Military	- AEC-Q100 MIL-PRF-38535L	- Surface Mount Surface Mount, Wettable Flank Through Hole	- 10-CSP (1.86x1.36) 10-CSP (2.05x1.55) 10-CSP (2.07x1.55) 10-DFN (2.3x2) 10-DFN (3x3) 10-DQFN (1.8x1.4) 10-DSBGA 10-HVSON (3x3) 10-LFCSP (3x2) 10-LFCSP-UQ (1.6x1.3) 10-LFCSP-WD (3x3) 10-Micro 10-Micro Foot® (2x1.5) 10-Microbump 10-MicroPak™ 10-miniQFN (1.4x1.8) 10-MSOP 10-QFN (1.4x1.8) 10-QFN (1.6x2.1) 10-QFN (1.8x1.4) 10-QFN (2x2) 10-TDFN (2.5x1.3) 10-TDFN (2.5x1.4) 10-TDFN (2.5x2) 10-TDFN (3x3) 10-TDFN (3x4) 10-TDFN-EP (3x3) 10-TQFN (1.4x1.8) 10-TSSOP 10-UCSP 10-uDFN (2x2) 10-uMAX 10-uMAX/uSOP 10-UMLP (1.8x1.4) 10-UQFN (1.4x1.8) 10-UQFN (1.5x2) 10-UQFN (1.8x1.4) 10-UQFN (2.0x1.5) 10-USON (2.5x1) 10-UTQFN (1.4x1.8) 10-UTQFN (1.8x1.4) 10-VSON (3x3) 10-VSSOP 10-WLCSP (2x1.5) 10-WQFN (1.4x1.8) 10-WSON (3x4) 10-XQFN (1.4x1.8) 10-XQFN (1.55x2) 10-µDFN (2x2) 100-CQFP 100-LQFP (14x14) 100-TQFP (14x14) 11-FlipChip 110-WLP (5.4x5.8) 110-WLP (5.5x5.44) 12-CSP (2.0x1.5) 12-DFN (3x1) 12-DSBGA (1.57x1.17) 12-DSBGA (1.9x1.4) 12-FlipChip 12-LFCSP (3x3) 12-LFCSP-VQ (3x3) 12-QFN (2.2x1.4) 12-QFN (3x3) 12-STQFN (1.6x1.6) 12-TDFN (3.5x3) 12-TDFN (3x1) 12-TQFN (3x3) 12-UCSP 12-UQFN (1.7x2) 12-uSMD (1.59x2.33) 12-UTQFN (2.2x1.4) 12-WLCSP (1.41x1.575) 12-WLCSP (1.6x1.2) 12-WLP (1.22x1.62) 12-WLP (2.14x1.56) 12-WQFN (1.8x1.8) 121-TFBGA (10x10) 128-LQFP (14x14) 14-CDIP 14-CERDIP 14-CFP 14-DHVQFN (2.5x3) 14-DIP 14-DMP 14-MDIP 14-PDIP 14-QFN (2x2) 14-SBDIP 14-SO 14-SOIC 14-SOP 14-SSOP 14-SSOP-B 14-TSSOP 14-TSSOPB 14-TVSOP 14-VQFN (3.5x3.5) 14-WQFN (3.5x3.5) 144-BGA (10x10) 16-CDIP 16-CERDIP 16-CFlatPack 16-CSP (5x5) 16-DHVQFN (2.5x3.5) 16-DHXQFN (2x2.4) 16-DIP 16-DMP 16-DQFN (2.5x3.5) 16-Flatpack 16-HXQFN (3x3) 16-LFCSP (3x3) 16-LFCSP (4x4) 16-LFCSP-UQ (2.1x2.1) 16-LFCSP-VQ (3x3) 16-LFCSP-VQ (4x4) 16-LFCSP-WQ (3x3) 16-LFCSP-WQ (4x4) 16-Micro Foot™ (2x2) 16-miniQFN (1.8x2.6) 16-MLP (3x3) 16-PDIP 16-QFN (2.5x2.5) 16-QFN (2.5x3.5) 16-QFN (2.6x1.8) 16-QFN (3x3) 16-QFN (4x4) 16-QFN (5x5) 16-QSOP 16-SBDIP 16-SO 16-SOEIAJ 16-SOG 16-SOIC 16-SOP 16-SOT-23-THIN 16-SSOP 16-SSOP-B 16-TQFN (3x3) 16-TQFN (4x4) 16-TQFN (5x5) 16-TQFN-EP (3x3) 16-TSSOP 16-TSSOPB 16-TVSOP 16-UCSP (2.02x2.02) 16-UCSP (2x2) 16-UFQFPN (3x3) 16-UMLP (1.8x2.6) 16-UQFN (1.8x2.6) 16-UQFN (2.6x1.8) 16-UTQFN (2.6x1.8) 16-VQFN (3x3) 16-VQFN (4x3.5) 16-WCSP (1.44x1.44) 16-WLCSP (1.34x1.34) 16-WLCSP (2x2) 16-WLP 16-WQFN (1.8x2.6) 16-WQFN (2.5x3.5) 16-WQFN (3.5x2.5) 16-WQFN (3x3) 16-WQFN (4x4) 16-XQFN (1.8x2.6) 169-BGA (9x9) 169-LFBGA (11x11) 18-CDIP 18-CERDIP 18-PDIP 18-SOIC 18-X2QFN (2.4x2) 20-BGA Microstar Junior (2.5x3.0) 20-CDIP 20-CERDIP 20-CLCC (8.89x8.89) 20-CLCC (9x9) 20-DIP 20-LCC 20-LCC (8.89x8.89) 20-LCC (8.9x8.9) 20-LCCC (8.89x8.89) 20-LFCSP (4x4) 20-PDIP 20-PLCC (8.97x8.97) 20-PLCC (9x9) 20-QFN (2.5x4.5) 20-QFN (4x4) 20-QFN (5x5) 20-QSOP 20-SO 20-SOIC 20-SSOP 20-TQFN (4x4) 20-TQFN (5x5) 20-TSSOP 20-VQFN (4.5x2.5) 20-WLP (1.63x2.03) 20-WQFN (4x4) 24-BGA MICROSTAR JUNIOR (3x3) 24-CDIP 24-CQFN (4x4) 24-CQFP (8x8) 24-DHVQFN (5.5x3.5) 24-DIP 24-LFCSP (4x4) 24-LFCSP-VQ (4x4) 24-LFCSP-WQ (4x4) 24-PDIP 24-QSOP 24-SO 24-SOIC 24-SSOP 24-TQFN (4x4) 24-TSSOP 24-VQFN (4x4) 24-WQFN (4x4) 25-UCSP (2.54x2.54) 25-UCSP (2.56x2.56) 28-CDIP 28-CERDIP 28-CLCC 28-CLCC (11.46x11.46) 28-LCC (11.43x11.43) 28-PDIP 28-PLCC (11.51x11.51) 28-PLCC (11.5x11.5) 28-SOIC 28-SSOP 28-TQFN (4x4) 28-TSSOP 30-LGA (4x5) 32-CSMT (5x5) 32-LFCSP (5x5) 32-LFCSP-VQ (5x5) 32-LFCSP-WQ (5x5) 32-QFN (4x4) 32-SSOP 32-TQFN (5x5) 32-WQFN (5x5) 330-BGA (13x13) 36-DSBGA 36-TQFN (6x6) 36-UCSP (3x3) 36-WLCSP (2.43x2.43) 36-WLP (3.07x3.07) 4-WLCSP (0.82x0.82) 40-PDIP 40-WQFN (6x3) 42-TQFN (3.5x9) 42-TQFN (9x3.5) 42-TQFN-EP (3.5x9) 42-WQFN (3.5x9) 44-CQFP 44-CQFP (11.4x11.4) 44-PLCC (16.58x16.58) 441-BGA (15x15) 48-LFCSP (7x7) 48-LQFP (7x7) 48-QVSOP 48-TFBGA (3x8) 48-TFBGA (4.5x4.5) 48-TQFN (6x6) 48-TQFN (7x7) 48-TQFP (7x7) 5-DSBGA (1.4x0.9) 5-SOT 5-SSOP 5-TSOP 5-TSSOP 5-X2SON (0.80x0.80) 5-XSON (1.1x0.85) 52-TQFN (3.5x9) 56-QFN (11x5) 56-TQFN (8x8) 6-DFN (1.2x1) 6-DFN (1.2x1.0) 6-DFN (1.2x1.1) 6-DFN (1.45x1) 6-DSBGA 6-DSBGA (1.39x.89) 6-FC2QFN (1.25x1.75) 6-FlipChip (1.23x0.83) 6-Micro Foot™ (1.5x1) 6-MicroPak 6-MicroPak2™ 6-miniQFN (1x1.2) 6-SON (1.45x1) 6-SON (1x1) 6-SOT 6-TDFN (1.5x1) 6-TDFN (2.3x2) 6-TMLP (1X1) 6-TSOP 6-TSSOP 6-UCSP (1.57x1.05) 6-UDFN (1.2x1) 6-UDFN (1.45x1) 6-UDFN (1x1) 6-ULLGA (1x1) 6-UTDFN (1.2x1) 6-WDFN (1.2x1) 6-WLCSP (1.14x2.18) 6-WLCSP (1.23x0.88) 6-WLP 6-WLP (1.24x0.84) 6-WLP (1.31x0.83) 6-X1DFN (1x1) 6-X2SON (0.8x1) 6-X2SON (1.0x0.8) 6-XLLGA (1x1) 6-XSON (0.9x1) 6-XSON (1.45x1) 6-XSON, SOT1202 (1x1) 6-XSON, SOT886 (1.45x1) 6-XSON, SOT891 (1x1) 6-µDFN (1.5x1) 6-µDFN (1x1) 64-CTBGA (7x7) 64-VQFN (9x9) 7-FlipChip 72-CSBGA (6x5.35) 72-QFN (10x10) 8-CERDIP 8-DSBGA 8-DSBGA (1.9x0.9) 8-FlipChip 8-LFCSP (2x3) 8-LFCSP-WD (2x3) 8-LFCSP-WD (3x3) 8-MicroPak™ 8-miniQFN (1.4x1.4) 8-MSOP 8-MSOPB 8-PDIP 8-SO 8-SOIC 8-SOIC-EP 8-SON (4x4) 8-SSOP 8-TDFN (2x2) 8-TDFN (3x3) 8-TDFN-EP (2x2) 8-TDFN-EP (3x3) 8-TSSOP 8-UCSP (1.52x1.52) 8-UDFN (1.8x1.2) 8-UDFN (1.95x1) 8-uMAX-EP\|8-uSOP-EP 8-uMAX/uSOP 8-UQFN (1.5x1.5) 8-VSSOP 8-WLCSP (1.89x0.89) 8-WLCSP (1.91x0.91) 8-WSON (3x2) 8-XFBGA, DSBGA 8-XQFN (1.6x1.6) 8-XQFNU (1.6x1.6) 8-XSON (1.2x1) 8-XSON (1.35x1) 8-XSON (1.95x1) 8-XSON (2x3) 8-XSON, SOT833-1 (1.95x1) 8-XSON, SOT996-2 (2x3) 8-µDFN (2x2) 8-µMAX 80-BGA (7x7) 80-LQFP (12x12) 80-LQFP (14x14) 9-DSBGA (1.6x1.6) 9-UCSP (1.52x1.52) 9-WLP 9-WLP (1.26x1.26) 9-WLP (1.61x1.61) Dice Die FlipChip 30 PowerPAK® 1212-8SH SC-70 SC-70-5 SC-70-6 SC-70-6 (SOT-363) SC-74A SC-88 (SC-70-6) SC-88/SC70-6/SOT-363 SC-88A (SC-70-5/SOT-353) SC-89-6 (SOT-666) SC70-6 SM8 SMP5 SMV SOEIAJ-14 SOT-23-5 SOT-23-6 SOT-23-8 SOT-323-5 SOT-323-6L SOT-353 (SC-70-5) SOT-363 SOT-363-6 (SC-70) SOT-5 SOT-5X3 SOT-6 SOT-66 SSOT-25 TO-100-10 TSOT-23-6 US8 USV X2-DFN1410-6

모두 초기화

모두 적용

결과

제조업체 부품 번호	재고 상태	가격	수량	데이터시트	시리즈	패키징	제품 상태	스위치 회로	멀티플렉서/디멀티플렉서 회로	회로 수	온 상태 저항(최대)	채널 간 매칭(ΔRon)	전압 - 공급, 단일(V+)	전압 - 공급, 이중(V±)	스위치 시간(Ton, Toff)(최대)	-3db 대역폭	전하 주입	채널 캐패시턴스(CS(off), CD(off))	전류 - 누설(IS(off))(최대)	크로스토크	작동 온도	등급	자격	장착 유형	공급자 장치 패키지
ADG5412BCPZ-REEL7 IC SW SPST-NOX4 10OHM 16LFCSP Analog Devices Inc.	4,579	-	RFQ	데이터시트	-	Tape & Reel (TR)	Active	SPST - NO	1:1	4	10Ohm	350mOhm	9V ~ 40V	±9V ~ 22V	187ns, 138ns	160MHz	310pC	17pF, 17pF	250pA	-70dB @ 1MHz	-40°C ~ 125°C (TA)	-	-	Surface Mount	16-LFCSP-WQ (4x4)
ADG5413BCPZ-REEL7 IC SW SPST-NO/NCX4 10OHM 16LFCSP Analog Devices Inc.	4,500	-	RFQ	데이터시트	-	Tape & Reel (TR)	Active	SPST - NO/NC	1:1	4	10Ohm	350mOhm	9V ~ 40V	±9V ~ 22V	187ns, 138ns	160MHz	310pC	17pF, 17pF	250pA	-70dB @ 1MHz	-40°C ~ 125°C (TA)	-	-	Surface Mount	16-LFCSP-WQ (4x4)
ADG728BRUZ-REEL7 IC MUX 8:1 4.5OHM 16TSSOP Analog Devices Inc.	2,440	-	RFQ	데이터시트	-	Tape & Reel (TR)	Active	-	8:1	1	4.5Ohm	-	2.7V ~ 5.5V	-	95ns, 85ns (Typ)	65MHz	3pC	13pF, 85pF	100pA	-75dB @ 1MHz	-40°C ~ 85°C (TA)	-	-	Surface Mount	16-TSSOP
ADG728BRUZ IC MUX 8:1 4.5OHM 16TSSOP Analog Devices Inc.	1,796	-	RFQ	데이터시트	-	Tube	Active	-	8:1	1	4.5Ohm	-	2.7V ~ 5.5V	-	95ns, 85ns (Typ)	65MHz	3pC	13pF, 85pF	100pA	-75dB @ 1MHz	-40°C ~ 85°C (TA)	-	-	Surface Mount	16-TSSOP
ADG729BRUZ-REEL7 IC SWITCH SP4TX2 4.5OHM 16TSSOP Analog Devices Inc.	1,388	-	RFQ	데이터시트	-	Tape & Reel (TR)	Active	SP4T	4:1	2	4.5Ohm	-	2.7V ~ 5.5V	-	95ns, 85ns (Typ)	100MHz	3pC	13pF, 42pF	100pA	-75dB @ 1MHz	-40°C ~ 85°C (TA)	-	-	Surface Mount	16-TSSOP

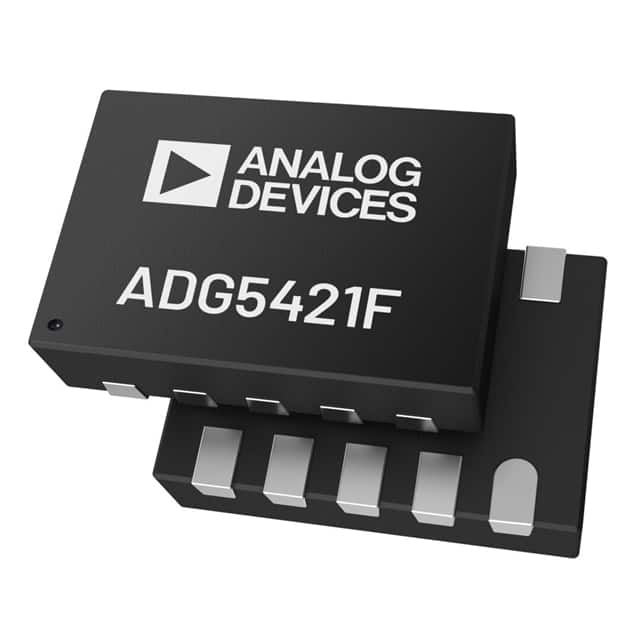

ADG5421FBCPZ-RL7 IC SW SPST-NCX2 14OHM 10LFCSP Analog Devices Inc.	0	-	RFQ	데이터시트	-	Tape & Reel (TR)	Active	SPST - NC	1:1	2	14Ohm	20mOhm	8V ~ 44V	±5V ~ 22V	15.9µs, 160ns	630MHz	-150pC	6pF, 5pF	200pA	-78dB @ 1MHz	-40°C ~ 125°C	-	-	Surface Mount	10-LFCSP (3x2)
MAX4782EUE+T IC SWITCH SP4T X 2 1OHM 16TSSOP Analog Devices Inc./Maxim Integrated	1,482	-	RFQ	데이터시트	-	Tape & Reel (TR)	Active	SP4T	4:1	2	1Ohm	300mOhm	1.6V ~ 3.6V	-	25ns, 15ns	-	-110pC	38pF, 158pF	2nA	-80dB @ 1MHz	-40°C ~ 85°C (TA)	-	-	Surface Mount	16-TSSOP
MAX4052AESE+T IC SWITCH SP4T X 2 100OHM 16SOIC Analog Devices Inc./Maxim Integrated	623	-	RFQ	데이터시트	-	Tape & Reel (TR)	Active	SP4T	4:1	2	100Ohm	6Ohm (Max)	2V ~ 16V	±2.7V ~ 8V	175ns, 150ns	-	2pC	2pF, 2pF	100pA	-90dB @ 100kHz	-40°C ~ 85°C (TA)	-	-	Surface Mount	16-SOIC
MAX4051ACSE+T IC MUX 8:1 100OHM 16SOIC Analog Devices Inc./Maxim Integrated	775	-	RFQ	데이터시트	-	Tape & Reel (TR)	Active	-	8:1	1	100Ohm	6Ohm (Max)	2V ~ 16V	±2.7V ~ 8V	175ns, 150ns	-	2pC	2pF, 2pF	100pA	-90dB @ 100kHz	0°C ~ 70°C (TA)	-	-	Surface Mount	16-SOIC
MAX4660EUA+T IC SWITCH SPDT X 1 25OHM 8UMAX Analog Devices Inc./Maxim Integrated	5,955	-	RFQ	데이터시트	-	Tape & Reel (TR)	Active	SPDT	2:1	1	25Ohm	400mOhm	9V ~ 40V	±4.5V ~ 20V	-	225MHz	1.5pC	6pF	1nA	-76dB @ 1MHz	-40°C ~ 85°C (TA)	-	-	Surface Mount	8-uMAX-EP\|8-uSOP-EP
MAX4659ESA+T IC SWITCH SPDT X 1 25OHM 8SOIC Analog Devices Inc./Maxim Integrated	1,419	-	RFQ	데이터시트	-	Tape & Reel (TR)	Active	SPDT	2:1	1	25Ohm	400mOhm	9V ~ 40V	±4.5V ~ 20V	-	225MHz	1.5pC	6pF	1nA	-76dB @ 1MHz	-40°C ~ 85°C (TA)	-	-	Surface Mount	8-SOIC
ADG1412YRUZ IC SW SPST-NOX4 1.8OHM 16TSSOP Analog Devices Inc.	5,247	-	RFQ	데이터시트	-	Tube	Active	SPST - NO	1:1	4	1.8Ohm	100mOhm	5V ~ 16.5V	±4.5V ~ 16.5V	150ns, 120ns	170MHz	-20pC	23pF, 23pF	550pA	-100dB @ 1MHz	-40°C ~ 125°C (TA)	-	-	Surface Mount	16-TSSOP
ADG5412BRUZ-REEL7 IC SW SPST-NOX4 10OHM 16TSSOP Analog Devices Inc.	3,025	-	RFQ	데이터시트	-	Tape & Reel (TR)	Active	SPST - NO	1:1	4	10Ohm	350mOhm	9V ~ 40V	±9V ~ 22V	187ns, 138ns	160MHz	310pC	17pF, 17pF	250pA	-70dB @ 1MHz	-40°C ~ 125°C (TA)	-	-	Surface Mount	16-TSSOP
MAX392CSE+ IC SWITCH SPST-NOX4 35OHM 16SOIC Analog Devices Inc./Maxim Integrated	1,833	-	RFQ	데이터시트	-	Tube	Active	SPST - NO	1:1	4	35Ohm	300mOhm	3V ~ 15V	±3V ~ 8V	130ns, 75ns	-	2pC	9pF, 9pF	100pA	-85dB @ 1MHz	0°C ~ 70°C (TA)	-	-	Surface Mount	16-SOIC
ADG5412BRUZ IC SW SPST-NOX4 10OHM 16TSSOP Analog Devices Inc.	1,133	-	RFQ	데이터시트	-	Tube	Active	SPST - NO	1:1	4	10Ohm	350mOhm	9V ~ 40V	±9V ~ 22V	187ns, 138ns	160MHz	310pC	17pF, 17pF	250pA	-70dB @ 1MHz	-40°C ~ 125°C (TA)	-	-	Surface Mount	16-TSSOP
ADG608BRUZ-REEL7 IC MUX 8:1 30OHM 16TSSOP Analog Devices Inc.	8,652	-	RFQ	데이터시트	-	Tape & Reel (TR)	Active	-	8:1	1	30Ohm	5Ohm (Max)	3.3V ~ 5V	±5V	75ns, 45ns	-	6pC	9pF, 40pF	500pA	-85dB @ 100kHz	-40°C ~ 85°C (TA)	-	-	Surface Mount	16-TSSOP
MAX4052AEEE+ IC SWITCH SP4T X 2 100OHM 16QSOP Analog Devices Inc./Maxim Integrated	450	-	RFQ	데이터시트	-	Tube	Active	SP4T	4:1	2	100Ohm	6Ohm (Max)	2V ~ 16V	±2.7V ~ 8V	175ns, 150ns	-	2pC	2pF, 2pF	100pA	-90dB @ 100kHz	-40°C ~ 85°C (TA)	-	-	Surface Mount	16-QSOP
MAX4659EUA+T IC SWITCH SPDT X 1 25OHM 8UMAX Analog Devices Inc./Maxim Integrated	3,411	-	RFQ	데이터시트	-	Tape & Reel (TR)	Active	SPDT	2:1	1	25Ohm	400mOhm	9V ~ 40V	±4.5V ~ 20V	-	225MHz	1.5pC	6pF	1nA	-76dB @ 1MHz	-40°C ~ 85°C (TA)	-	-	Surface Mount	8-uMAX/uSOP

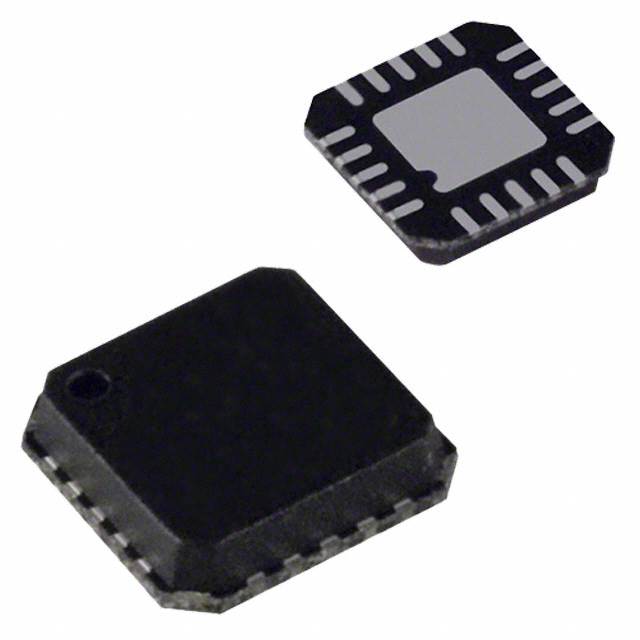

ADG1634BCPZ-REEL7 IC SWITCH SPDTX4 4.5OHM 20LFCSP Analog Devices Inc.	16,001	-	RFQ	데이터시트	-	Tape & Reel (TR)	Active	SPDT	2:1	4	4.5Ohm	120mOhm	3.3V ~ 16V	±3.3V ~ 8V	38ns, 152ns	109MHz	-12.4pC	19pF, 32pF	100pA	-64dB @ 1MHz	-40°C ~ 125°C (TA)	-	-	Surface Mount	20-LFCSP (4x4)
MAX4617ESE+ IC MUX 8:1 10OHM 16SOIC Analog Devices Inc./Maxim Integrated	2,408	-	RFQ	데이터시트	-	Tube	Active	-	8:1	1	10Ohm	200mOhm	2V ~ 5.5V	-	15ns, 10ns	-	3pC	5pF, 27pF	1nA	-96dB @ 100kHz	-40°C ~ 85°C (TA)	-	-	Surface Mount	16-SOIC

Total 10226 Record«Prev 1... 16 17 18 192021 22 23...512 Next»
