FET, MOSFET
| 사진 | 제조업체 부품 번호 | 재고 상태 | 수량 | 데이터시트 | 시리즈 | 패키지/케이스 | 패키징 | 제품 상태 | FET 유형 | 기술 | 드레인-소스 전압(Vdss) | 전류 - 연속 드레인(Id) @ 25°C | 구동 전압(최대 Rds 켜짐, 최소 Rds 켜짐) | Rds 켜짐(최대) @ Id, Vgs | Vgs(th) (최대) @ Id | 게이트 충전(Qg) (최대) @ Vgs | Vgs (최대) | 입력 커패시턴스(Ciss) (최대) @ Vds | FET 기능 | 전력 소모(최대) | 작동 온도 | 등급 | 자격 | 장착 유형 | 공급자 장치 패키지 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

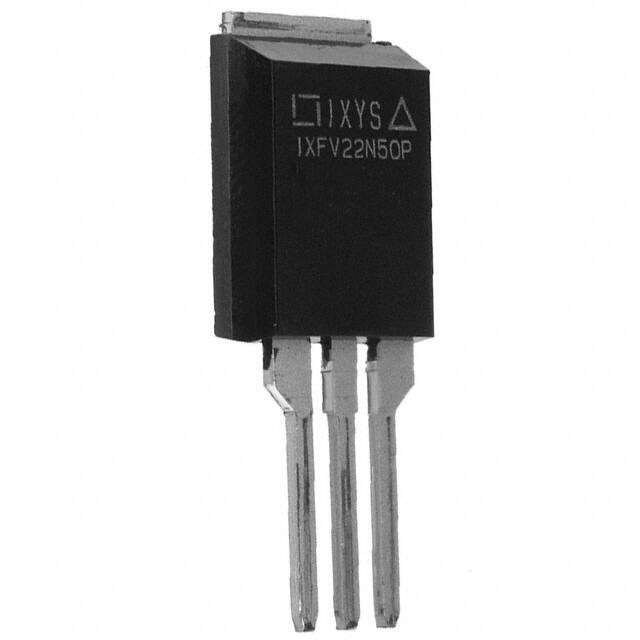

IXFV22N50PMOSFET N-CH 500V 22A PLUS220 |
5,672 |
|
데이터시트 |
HiPerFET™, PolarHT™ | TO-220-3, Short Tab | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 500 V | 22A (Tc) | 10V | 270mOhm @ 11A, 10V | 5.5V @ 2.5mA | 50 nC @ 10 V | ±30V | 2630 pF @ 25 V | - | 350W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | PLUS220 |
|
IXFV22N50PSMOSFET N-CH 500V 22A PLUS-220SMD |
9,508 |
|
데이터시트 |
HiPerFET™, PolarHT™ | PLUS-220SMD | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 500 V | 22A (Tc) | 10V | 270mOhm @ 11A, 10V | 5.5V @ 2.5mA | 50 nC @ 10 V | ±30V | 2630 pF @ 25 V | - | 350W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | PLUS-220SMD |
|
IXFV26N50PMOSFET N-CH 500V 26A PLUS220 |
4,523 |
|
데이터시트 |
HiPerFET™, PolarHT™ | TO-220-3, Short Tab | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 500 V | 26A (Tc) | 10V | 230mOhm @ 13A, 10V | 5.5V @ 4mA | 60 nC @ 10 V | ±30V | 3600 pF @ 25 V | - | 400W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | PLUS220 |
|
|
IXFV26N50PSMOSFET N-CH 500V 26A PLUS-220SMD |
8,092 |
|
데이터시트 |
HiPerFET™, PolarHT™ | PLUS-220SMD | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 500 V | 26A (Tc) | 10V | 230mOhm @ 13A, 10V | 5.5V @ 4mA | 60 nC @ 10 V | ±30V | 3600 pF @ 25 V | - | 400W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | PLUS-220SMD |
|
IXFV30N50PMOSFET N-CH 500V 30A PLUS220 |
8,892 |
|
데이터시트 |
HiPerFET™, PolarHT™ | TO-220-3, Short Tab | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 500 V | 30A (Tc) | 10V | 200mOhm @ 15A, 10V | 5V @ 4mA | 70 nC @ 10 V | ±30V | 4150 pF @ 25 V | - | 460W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | PLUS220 |
|
|
IXFV30N50PSMOSFET N-CH 500V 30A PLUS-220SMD |
2,184 |
|
데이터시트 |
HiPerFET™, PolarHT™ | PLUS-220SMD | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 500 V | 30A (Tc) | 10V | 200mOhm @ 15A, 10V | 5V @ 4mA | 70 nC @ 10 V | ±30V | 4150 pF @ 25 V | - | 460W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | PLUS-220SMD |
|
|
IXFV36N50PMOSFET N-CH 500V 36A PLUS220 |
6,246 |
|
데이터시트 |
HiPerFET™, PolarP2™ | TO-220-3, Short Tab | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 500 V | 36A (Tc) | 10V | 170mOhm @ 500mA, 10V | 5V @ 4mA | 93 nC @ 10 V | ±30V | 5500 pF @ 25 V | - | 540W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | PLUS220 |
|
|
IXFV36N50PSMOSFET N-CH 500V 36A PLUS-220SMD |
6,678 |
|
데이터시트 |
HiPerFET™, PolarP2™ | PLUS-220SMD | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 500 V | 36A (Tc) | 10V | 170mOhm @ 500mA, 10V | 5V @ 4mA | 93 nC @ 10 V | ±30V | 5500 pF @ 25 V | - | 540W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | PLUS-220SMD |
|
|
IXFV18N60PMOSFET N-CH 600V 18A PLUS220 |
4,653 |
|
데이터시트 |
HiPerFET™, PolarHT™ | TO-220-3, Short Tab | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 600 V | 18A (Tc) | 10V | 400mOhm @ 500mA, 10V | 5.5V @ 2.5mA | 50 nC @ 10 V | ±30V | 2500 pF @ 25 V | - | 360W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | PLUS220 |
|
|
IXFV18N60PSMOSFET N-CH 600V 18A PLUS-220SMD |
9,230 |
|
데이터시트 |
HiPerFET™, PolarHT™ | PLUS-220SMD | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 600 V | 18A (Tc) | 10V | 400mOhm @ 500mA, 10V | 5.5V @ 2.5mA | 50 nC @ 10 V | ±30V | 2500 pF @ 25 V | - | 360W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | PLUS-220SMD |
|

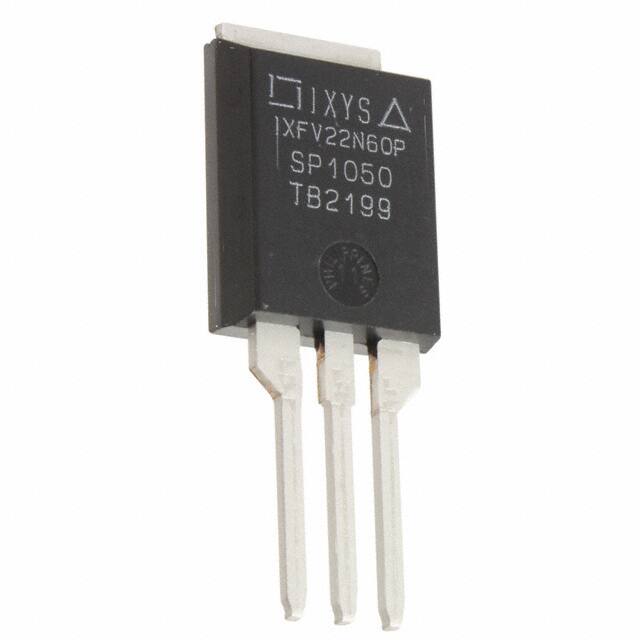

IXFV22N60PMOSFET N-CH 600V 22A PLUS220 |
6,194 |
|
데이터시트 |
HiPerFET™, PolarHT™ | TO-220-3, Short Tab | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 600 V | 22A (Tc) | 10V | 350mOhm @ 11A, 10V | 5.5V @ 4mA | 58 nC @ 10 V | ±30V | 3600 pF @ 25 V | - | 400W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | PLUS220 |
|
IXFV22N60PSMOSFET N-CH 600V 22A PLUS-220SMD |
9,280 |
|
데이터시트 |
HiPerFET™, PolarHT™ | PLUS-220SMD | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 600 V | 22A (Tc) | 10V | 350mOhm @ 11A, 10V | 5.5V @ 4mA | 58 nC @ 10 V | ±30V | 3600 pF @ 25 V | - | 400W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | PLUS-220SMD |
|

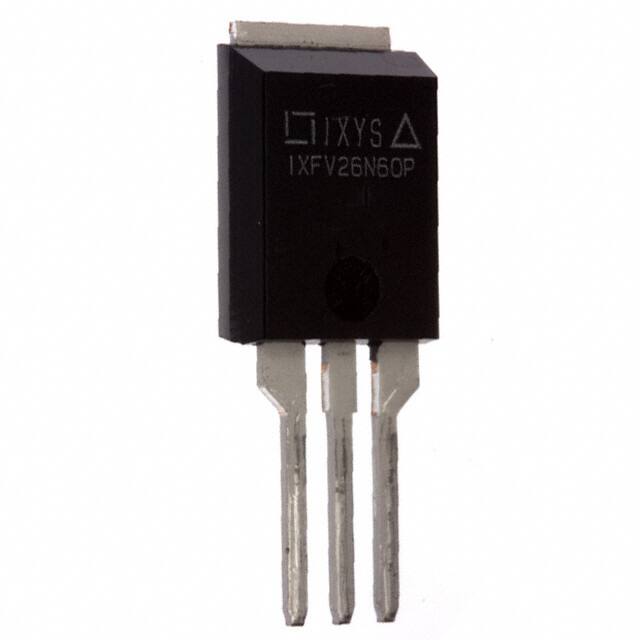

IXFV26N60PMOSFET N-CH 600V 26A PLUS220 |
9,818 |
|
데이터시트 |
PolarHV™ | TO-220-3, Short Tab | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 600 V | 26A (Tc) | 10V | 270mOhm @ 500mA, 10V | 5V @ 4mA | 72 nC @ 10 V | ±30V | 4150 pF @ 25 V | - | 460W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | PLUS220 |
|

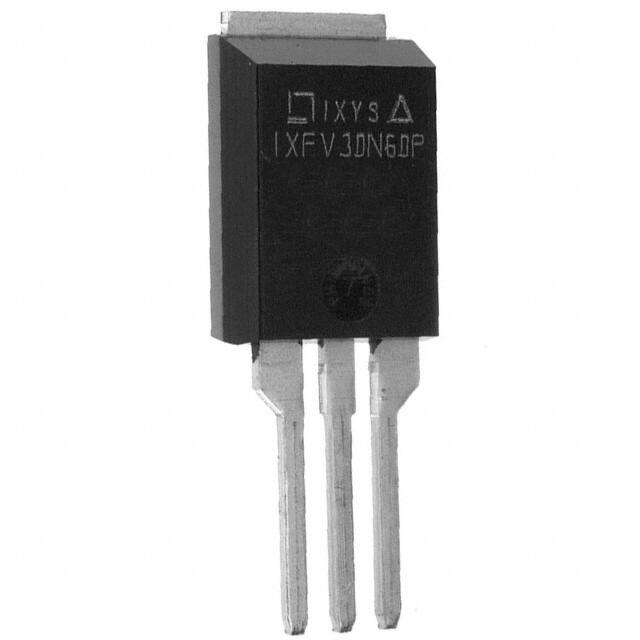

IXFV30N60PMOSFET N-CH 600V 30A PLUS220 |
3,250 |
|
데이터시트 |
HiPerFET™, PolarHT™ | TO-220-3, Short Tab | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 600 V | 30A (Tc) | 10V | 240mOhm @ 15A, 10V | 5V @ 4mA | 82 nC @ 10 V | ±30V | 4000 pF @ 25 V | - | 500W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | PLUS220 |
|
|
IXFV30N60PSMOSFET N-CH 600V 30A PLUS-220SMD |
8,796 |
|
데이터시트 |
HiPerFET™, PolarHT™ | PLUS-220SMD | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 600 V | 30A (Tc) | 10V | 240mOhm @ 15A, 10V | 5V @ 4mA | 82 nC @ 10 V | ±30V | 4000 pF @ 25 V | - | 500W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | PLUS-220SMD |
|
NTB5605PGMOSFET P-CH 60V 18.5A D2PAK |
8,231 |
|
데이터시트 |
- | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tube | Obsolete | P-Channel | MOSFET (Metal Oxide) | 60 V | 18.5A (Ta) | 5V | 140mOhm @ 8.5A, 5V | 2V @ 250µA | 22 nC @ 5 V | ±20V | 1190 pF @ 25 V | - | 88W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | D2PAK |
|
NTF3055L108T3GMOSFET N-CH 60V 3A SOT223 |
4,766 |
|
데이터시트 |
- | TO-261-4, TO-261AA | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 60 V | 3A (Ta) | 5V | 120mOhm @ 1.5A, 5V | 2V @ 250µA | 15 nC @ 5 V | ±15V | 440 pF @ 25 V | - | 1.3W (Ta) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | SOT-223 (TO-261) |
|
NTMFS4833NT1GMOSFET N-CH 30V 16A/156A 5DFN |
5,138 |
|
데이터시트 |
- | 8-PowerTDFN, 5 Leads | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 16A (Ta), 156A (Tc) | 4.5V, 10V | 2mOhm @ 30A, 10V | 2.5V @ 250µA | 88 nC @ 11.5 V | ±20V | 5600 pF @ 12 V | - | 910mW (Ta), 125W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 5-DFN (5x6) (8-SOFL) |
|
NTMSD6N303R2SGMOSFET N-CH 30V 6A 8SOIC |
9,391 |
|
데이터시트 |
FETKY™ | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 6A (Ta) | 4.5V, 10V | 32mOhm @ 6A, 10V | 2.5V @ 250µA | 30 nC @ 10 V | ±20V | 950 pF @ 24 V | Schottky Diode (Isolated) | 2W (Ta) | - | - | - | Surface Mount | 8-SOIC |
|
IRF6609TR1PBFMOSFET N-CH 20V 31A DIRECTFET |
5,544 |
|
데이터시트 |
HEXFET® | DirectFET™ Isometric MT | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 20 V | 31A (Ta), 150A (Tc) | 4.5V, 10V | 2mOhm @ 31A, 10V | 2.45V @ 250µA | 69 nC @ 4.5 V | ±20V | 6290 pF @ 10 V | - | 1.8W (Ta), 89W (Tc) | -40°C ~ 150°C (TJ) | - | - | Surface Mount | DIRECTFET™ MT |
