FET, MOSFET
| 사진 | 제조업체 부품 번호 | 재고 상태 | 수량 | 데이터시트 | 시리즈 | 패키지/케이스 | 패키징 | 제품 상태 | FET 유형 | 기술 | 드레인-소스 전압(Vdss) | 전류 - 연속 드레인(Id) @ 25°C | 구동 전압(최대 Rds 켜짐, 최소 Rds 켜짐) | Rds 켜짐(최대) @ Id, Vgs | Vgs(th) (최대) @ Id | 게이트 충전(Qg) (최대) @ Vgs | Vgs (최대) | 입력 커패시턴스(Ciss) (최대) @ Vds | FET 기능 | 전력 소모(최대) | 작동 온도 | 등급 | 자격 | 장착 유형 | 공급자 장치 패키지 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IRFZ24NSTRRPBFMOSFET N-CH 55V 17A D2PAK |
5,178 |
|
데이터시트 |
HEXFET® | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 55 V | 17A (Tc) | 10V | 70mOhm @ 10A, 10V | 4V @ 250µA | 20 nC @ 10 V | ±20V | 370 pF @ 25 V | - | 3.8W (Ta), 45W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | D2PAK |
|
IRFZ44NSTRRPBFMOSFET N-CH 55V 49A D2PAK |
5,825 |
|
데이터시트 |
HEXFET® | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Discontinued | N-Channel | MOSFET (Metal Oxide) | 55 V | 49A (Tc) | 10V | 17.5mOhm @ 25A, 10V | 4V @ 250µA | 63 nC @ 10 V | ±20V | 1470 pF @ 25 V | - | 3.8W (Ta), 94W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | D2PAK |
|
|
IRL540NSTRRPBFMOSFET N-CH 100V 36A D2PAK |
3,589 |
|
데이터시트 |
HEXFET® | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Discontinued | N-Channel | MOSFET (Metal Oxide) | 100 V | 36A (Tc) | 4V, 10V | 44mOhm @ 18A, 10V | 2V @ 250µA | 74 nC @ 5 V | ±16V | 1800 pF @ 25 V | - | 3.8W (Ta), 140W (Tc) | - | - | - | Surface Mount | D2PAK |
|
IRLR3103TRLPBFMOSFET N-CH 30V 55A DPAK |
6,474 |
|
데이터시트 |
HEXFET® | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Discontinued | N-Channel | MOSFET (Metal Oxide) | 30 V | 55A (Tc) | 4.5V, 10V | 19mOhm @ 33A, 10V | 1V @ 250µA | 50 nC @ 4.5 V | ±16V | 1600 pF @ 25 V | - | 107W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | TO-252AA (DPAK) |
|
|
IRLR3303TRLPBFMOSFET N-CH 30V 35A DPAK |
3,600 |
|
데이터시트 |
HEXFET® | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 35A (Tc) | 4.5V, 10V | 31mOhm @ 21A, 10V | 1V @ 250µA | 26 nC @ 4.5 V | ±16V | 870 pF @ 25 V | - | 68W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | TO-252AA (DPAK) |
|
|
IRLR3410TRRPBFMOSFET N-CH 100V 17A DPAK |
4,582 |
|
데이터시트 |
HEXFET® | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 100 V | 17A (Tc) | 4V, 10V | 105mOhm @ 10A, 10V | 2V @ 250µA | 34 nC @ 5 V | ±16V | 800 pF @ 25 V | - | 79W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | TO-252AA (DPAK) |
|
|
IRLR3714TRLPBFMOSFET N-CH 20V 36A DPAK |
2,108 |
|
데이터시트 |
HEXFET® | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 20 V | 36A (Tc) | 4.5V, 10V | 20mOhm @ 18A, 10V | 3V @ 250µA | 9.7 nC @ 4.5 V | ±20V | 670 pF @ 10 V | - | 47W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | TO-252AA (DPAK) |
|
|
IRLR3715ZPBFMOSFET N-CH 20V 49A DPAK |
2,793 |
|
데이터시트 |
HEXFET® | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 20 V | 49A (Tc) | 4.5V, 10V | 11mOhm @ 15A, 10V | 2.55V @ 250µA | 11 nC @ 4.5 V | ±20V | 810 pF @ 10 V | - | 40W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | TO-252AA (DPAK) |
|
|
IRLR3715ZTRLPBFMOSFET N-CH 20V 49A DPAK |
5,644 |
|
데이터시트 |
HEXFET® | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 20 V | 49A (Tc) | 4.5V, 10V | 11mOhm @ 15A, 10V | 2.55V @ 250µA | 11 nC @ 4.5 V | ±20V | 810 pF @ 10 V | - | 40W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | TO-252AA (DPAK) |
|
|
IRLR7807ZPBFMOSFET N-CH 30V 43A DPAK |
9,841 |
|
데이터시트 |
HEXFET® | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tube | Discontinued | N-Channel | MOSFET (Metal Oxide) | 30 V | 43A (Tc) | 4.5V, 10V | 13.8mOhm @ 15A, 10V | 2.25V @ 250µA | 11 nC @ 4.5 V | ±20V | 780 pF @ 15 V | - | 40W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | TO-252AA (DPAK) |
|
|
IRLR7821PBFMOSFET N-CH 30V 65A DPAK |
6,272 |
|
데이터시트 |
HEXFET® | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tube | Discontinued | N-Channel | MOSFET (Metal Oxide) | 30 V | 65A (Tc) | 4.5V, 10V | 10mOhm @ 15A, 10V | 1V @ 250µA | 14 nC @ 4.5 V | ±20V | 1030 pF @ 15 V | - | 75W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | TO-252AA (DPAK) |
|
|
IRLR7833PBFMOSFET N-CH 30V 140A DPAK |
7,838 |
|
데이터시트 |
HEXFET® | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tube | Discontinued | N-Channel | MOSFET (Metal Oxide) | 30 V | 140A (Tc) | 4.5V, 10V | 4.5mOhm @ 15A, 10V | 2.3V @ 250µA | 50 nC @ 4.5 V | ±20V | 4010 pF @ 15 V | - | 140W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | TO-252AA (DPAK) |
|
|
IRLR7833TRRPBFMOSFET N-CH 30V 140A DPAK |
2,374 |
|
데이터시트 |
HEXFET® | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 140A (Tc) | 4.5V, 10V | 4.5mOhm @ 15A, 10V | 2.3V @ 250µA | 50 nC @ 4.5 V | ±20V | 4010 pF @ 15 V | - | 140W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | TO-252AA (DPAK) |
|
|
IRLR7843PBFMOSFET N-CH 30V 161A DPAK |
2,359 |
|
데이터시트 |
HEXFET® | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tube | Discontinued | N-Channel | MOSFET (Metal Oxide) | 30 V | 161A (Tc) | 4.5V, 10V | 3.3mOhm @ 15A, 10V | 2.3V @ 250µA | 50 nC @ 4.5 V | ±20V | 4380 pF @ 15 V | - | 140W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | TO-252AA (DPAK) |
|
|
IRLR8113PBFMOSFET N-CH 30V 94A DPAK |
2,670 |
|
데이터시트 |
HEXFET® | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 94A (Tc) | 4.5V, 10V | 6mOhm @ 15A, 10V | 2.25V @ 250µA | 32 nC @ 4.5 V | ±20V | 2920 pF @ 15 V | - | 89W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | TO-252AA (DPAK) |
|
|
IRLR8503TRRPBFMOSFET N-CH 30V 44A DPAK |
4,276 |
|
데이터시트 |
HEXFET® | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 44A (Tc) | 4.5V, 10V | 16mOhm @ 15A, 10V | 3V @ 250µA | 20 nC @ 5 V | ±20V | 1650 pF @ 25 V | - | 62W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | TO-252AA (DPAK) |
|
|
IRLZ44NSTRRPBFMOSFET N-CH 55V 47A D2PAK |
3,369 |
|
데이터시트 |
HEXFET® | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 55 V | 47A (Tc) | 4V, 10V | 22mOhm @ 25A, 10V | 2V @ 250µA | 48 nC @ 5 V | ±16V | 1700 pF @ 25 V | - | 3.8W (Ta), 110W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | D2PAK |
|
SI4435DYPBFMOSFET P-CH 30V 8A 8SO |
2,018 |
|
데이터시트 |
HEXFET® | 8-SOIC (0.154", 3.90mm Width) | Tube | Discontinued | P-Channel | MOSFET (Metal Oxide) | 30 V | 8A (Tc) | 4.5V, 10V | 20mOhm @ 8A, 10V | 1V @ 250µA | 60 nC @ 10 V | ±20V | 2320 pF @ 15 V | - | 2.5W (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SO |
|
2SK2963(TE12L,F)MOSFET N-CH 100V 1A PW-MINI |
5,983 |
|
데이터시트 |
- | TO-243AA | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 100 V | 1A (Ta) | 4V, 10V | 700mOhm @ 500mA, 10V | 2V @ 1mA | 6.3 nC @ 10 V | ±20V | 140 pF @ 10 V | - | 500mW (Ta) | 150°C (TJ) | - | - | Surface Mount | PW-MINI |
.JPG)
|

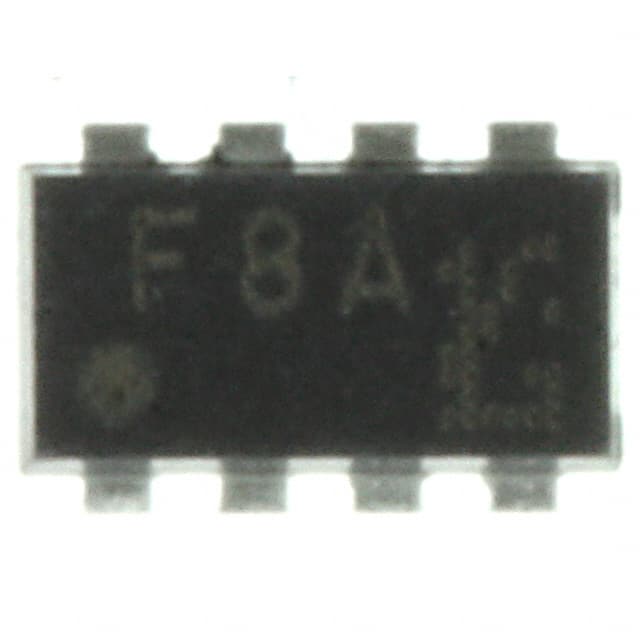

TPCF8B01(TE85L,F,MMOSFET P-CH 20V 2.7A VS-8 |
5,864 |
|
데이터시트 |
U-MOSIII | 8-SMD, Flat Leads | Tape & Reel (TR) | Obsolete | P-Channel | MOSFET (Metal Oxide) | 20 V | 2.7A (Ta) | 1.8V, 4.5V | 110mOhm @ 1.4A, 4.5V | 1.2V @ 200µA | 6 nC @ 5 V | ±8V | 470 pF @ 10 V | Schottky Diode (Isolated) | 330mW (Ta) | 150°C (TJ) | - | - | Surface Mount | VS-8 (2.9x1.5) |
