FET, MOSFET
| 사진 | 제조업체 부품 번호 | 재고 상태 | 수량 | 데이터시트 | 시리즈 | 패키지/케이스 | 패키징 | 제품 상태 | FET 유형 | 기술 | 드레인-소스 전압(Vdss) | 전류 - 연속 드레인(Id) @ 25°C | 구동 전압(최대 Rds 켜짐, 최소 Rds 켜짐) | Rds 켜짐(최대) @ Id, Vgs | Vgs(th) (최대) @ Id | 게이트 충전(Qg) (최대) @ Vgs | Vgs (최대) | 입력 커패시턴스(Ciss) (최대) @ Vds | FET 기능 | 전력 소모(최대) | 작동 온도 | 등급 | 자격 | 장착 유형 | 공급자 장치 패키지 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IXFN50N80Q2MOSFET N-CH 800V 50A SOT-227B |
5,257 |
|
데이터시트 |
HiPerFET™, Q2 Class | SOT-227-4, miniBLOC | Tube | Not For New Designs | N-Channel | MOSFET (Metal Oxide) | 800 V | 50A (Tc) | 10V | 160mOhm @ 500mA, 10V | 5.5V @ 8mA | 260 nC @ 10 V | ±30V | 13500 pF @ 25 V | - | 1135W (Tc) | -55°C ~ 150°C (TJ) | - | - | Chassis Mount | SOT-227B |
|
|
IXFN150N10MOSFET N-CH 100V 150A SOT-227 |
4,148 |
|
데이터시트 |
HiPerFET™ | SOT-227-4, miniBLOC | Bulk | Obsolete | N-Channel | MOSFET (Metal Oxide) | 100 V | 150A (Tc) | 10V | 12mOhm @ 75A, 10V | 4V @ 8mA | 360 nC @ 10 V | ±20V | 9000 pF @ 25 V | - | 520W (Tc) | -55°C ~ 150°C (TJ) | - | - | Chassis Mount | SOT-227B |
|
APT6010LLLGMOSFET N-CH 600V 54A TO264 |
2,970 |
|
데이터시트 |
POWER MOS 7® | TO-264-3, TO-264AA | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 54A (Tc) | - | 100mOhm @ 27A, 10V | 5V @ 2.5mA | 150 nC @ 10 V | - | 6710 pF @ 25 V | - | - | - | - | - | Through Hole | TO-264 [L] |
|
IXFL38N100Q2MOSFET N-CH 1000V 29A ISOPLUS264 |
8,408 |
|
데이터시트 |
HiPerFET™, Q2 Class | TO-264-3, TO-264AA | Tube | Not For New Designs | N-Channel | MOSFET (Metal Oxide) | 1000 V | 29A (Tc) | 10V | 280mOhm @ 19A, 10V | 5.5V @ 8mA | 250 nC @ 10 V | ±30V | 13500 pF @ 25 V | - | 380W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | ISOPLUS264™ |
|
|
IXFN130N30MOSFET N-CH 300V 130A SOT-227B |
7,128 |
|
데이터시트 |
HiPerFET™ | SOT-227-4, miniBLOC | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 300 V | 130A (Tc) | 10V | 22mOhm @ 500mA, 10V | 4V @ 8mA | 380 nC @ 10 V | ±20V | 14500 pF @ 25 V | - | 700W (Tc) | -55°C ~ 150°C (TJ) | - | - | Chassis Mount | SOT-227B |
|
|
IXFN80N48MOSFET N-CH 480V 80A SOT-227B |
8,418 |
|
데이터시트 |
HiPerFET™ | SOT-227-4, miniBLOC | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 480 V | 80A (Tc) | 10V | 45mOhm @ 500mA, 10V | 4V @ 8mA | 380 nC @ 10 V | ±20V | 9890 pF @ 25 V | - | 700W (Tc) | -55°C ~ 150°C (TJ) | - | - | Chassis Mount | SOT-227B |
|
|
IXFN200N07MOSFET N-CH 70V 200A SOT-227B |
2,704 |
|
데이터시트 |
HiPerFET™ | SOT-227-4, miniBLOC | Tube | Not For New Designs | N-Channel | MOSFET (Metal Oxide) | 70 V | 200A (Tc) | 10V | 6mOhm @ 500mA, 10V | 4V @ 8mA | 480 nC @ 10 V | ±20V | 9000 pF @ 25 V | - | 520W (Tc) | -55°C ~ 150°C (TJ) | - | - | Chassis Mount | SOT-227B |
|

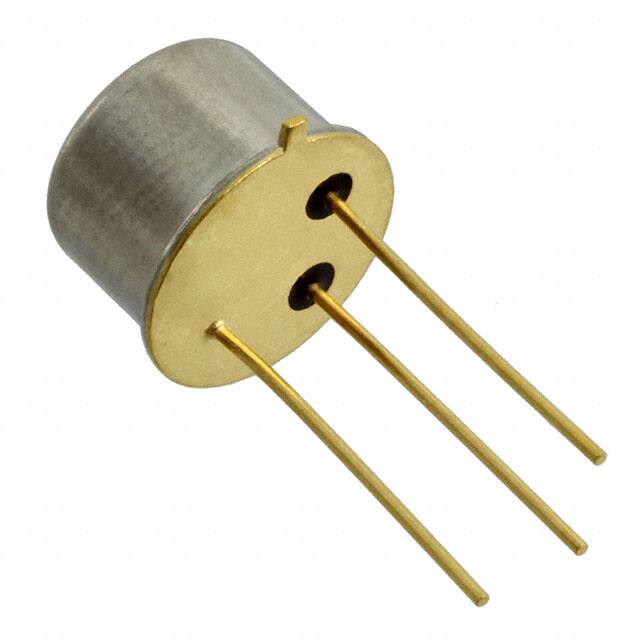

2N6661MOSFET N-CH 90V 860MA TO39 |
2,269 |
|
데이터시트 |
- | TO-205AD, TO-39-3 Metal Can | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 90 V | 860mA (Tc) | 5V, 10V | 4Ohm @ 1A, 10V | 2V @ 1mA | - | ±20V | 50 pF @ 25 V | - | 725mW (Ta), 6.25W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-39 |
|
2N6661-E3MOSFET N-CH 90V 860MA TO39 |
9,232 |
|
데이터시트 |
- | TO-205AD, TO-39-3 Metal Can | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 90 V | 860mA (Tc) | 5V, 10V | 4Ohm @ 1A, 10V | 2V @ 1mA | - | ±20V | 50 pF @ 25 V | - | 725mW (Ta), 6.25W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-39 |
|
APT39M60JMOSFET N-CH 600V 42A ISOTOP |
5,355 |
|
데이터시트 |
POWER MOS 8™ | SOT-227-4, miniBLOC | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 42A (Tc) | 10V | 110mOhm @ 28A, 10V | 5V @ 2.5mA | 280 nC @ 10 V | ±30V | 11300 pF @ 25 V | - | 480W (Tc) | -55°C ~ 150°C (TJ) | - | - | Chassis Mount | ISOTOP® |
|
STE140NF20DMOSFET N-CH 200V 140A ISOTOP |
5,077 |
|
데이터시트 |
STripFET™ II | ISOTOP | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 200 V | 140A (Tc) | 10V | 12mOhm @ 70A, 10V | 4V @ 250µA | 338 nC @ 10 V | ±20V | 11100 pF @ 25 V | - | 500W (Tc) | -55°C ~ 150°C (TJ) | - | - | Chassis Mount | ISOTOP |
|
IXFR130N65X3DISCRETE MOSFET 130A 650V X3 ISO |
7,322 |
|
데이터시트 |
- | - | Tube | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
IXFR140N60X3DISCRETE MOSFET 140A 600V X3 ISO |
3,377 |
|
데이터시트 |
- | - | Tube | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
.jpg)
|
IXTX17N120LMOSFET N-CH 1200V 17A PLUS247-3 |
8,923 |
|
데이터시트 |
Linear | TO-247-3 Variant | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 1200 V | 17A (Tc) | 20V | 900mOhm @ 8.5A, 20V | 5V @ 250µA | 155 nC @ 15 V | ±30V | 8300 pF @ 25 V | - | 700W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | PLUS247™-3 |
|
APT20M20JLLMOSFET N-CH 200V 104A ISOTOP |
8,484 |
|
데이터시트 |
POWER MOS V® | SOT-227-4, miniBLOC | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 200 V | 104A (Tc) | - | 20mOhm @ 52A, 10V | 5V @ 2.5mA | 110 nC @ 10 V | - | 6850 pF @ 25 V | - | - | - | - | - | Chassis Mount | ISOTOP® |
|
IXFB100N50PMOSFET N-CH 500V 100A PLUS264 |
5,652 |
|
데이터시트 |
HiPerFET™, Polar | TO-264-3, TO-264AA | Tube | Discontinued | N-Channel | MOSFET (Metal Oxide) | 500 V | 100A (Tc) | 10V | 49mOhm @ 50A, 10V | 5V @ 8mA | 240 nC @ 10 V | ±30V | 20000 pF @ 25 V | - | 1890W (Tc) | - | - | - | Through Hole | PLUS264™ |
|
|
APT80SM120BSICFET N-CH 1200V 80A TO247 |
8,807 |
|
데이터시트 |
- | TO-247-3 | Bulk | Obsolete | N-Channel | SiCFET (Silicon Carbide) | 1200 V | 80A (Tc) | 20V | 55mOhm @ 40A, 20V | 2.5V @ 1mA | 235 nC @ 20 V | +25V, -10V | - | - | 555W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-247 |
|
|
IMSQ120R012M2HHXUMA1SIC DISCRETE |
9,081 |
|
데이터시트 |
- | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
APT39F60JMOSFET N-CH 600V 42A ISOTOP |
8,983 |
|
데이터시트 |
POWER MOS 8™ | SOT-227-4, miniBLOC | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 42A (Tc) | 10V | 110mOhm @ 28A, 10V | 5V @ 2.5mA | 280 nC @ 10 V | ±30V | 11300 pF @ 25 V | - | 480W (Tc) | -55°C ~ 150°C (TJ) | - | - | Chassis Mount | ISOTOP® |
|
|
APT40SM120JMOSFET N-CH 1200V 32A SOT227 |
7,671 |
|
데이터시트 |
- | SOT-227-4, miniBLOC | Bulk | Obsolete | N-Channel | MOSFET (Metal Oxide) | 1200 V | 32A (Tc) | 20V | 100mOhm @ 20A, 20V | 3V @ 1mA (Typ) | 130 nC @ 20 V | +25V, -10V | 2560 pF @ 1000 V | - | 165W (Tc) | -55°C ~ 175°C (TJ) | - | - | Chassis Mount | SOT-227 |
