DC 무브러시 팬(BLDC)
| 사진 | 제조업체 부품 번호 | 재고 상태 | 수량 | 데이터시트 | 시리즈 | 패키징 | 제품 상태 | 전압 - 정격 | 크기/치수 | 너비 | 공기 흐름 | 정압 | 베어링 유형 | 팬 유형 | 기능 | 소음 | 전력(와트) | RPM | 종단 | 침투 방지 | 작동 온도 | 승인 기관 | 무게 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
9GV1524M5D01FAN AXIAL 150X50MM 24VDC WIRE |
0 |
|
데이터시트 |
San Ace 150 | Box | Active | 24VDC | Square - 150mm L x 150mm H | 50.00mm | 224.0 CFM (6.27m³/min) | 0.530 in H2O (132.0 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 53.0dB(A) | 14.4 W | 3000 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.993 lb (450.42 g) |
|
|
9GV1524M5011FAN AXIAL 150X50MM 24VDC WIRE |
0 |
|
데이터시트 |
San Ace 150 | Box | Active | 24VDC | Square - 150mm L x 150mm H | 50.00mm | 224.0 CFM (6.27m³/min) | 0.533 in H2O (132.8 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 53.0dB(A) | 14.4 W | 3000 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.993 lb (450.42 g) |
|
|
9WF1224H102FAN AXIAL 119X38MM 24VDC WIRE |
0 |
|
데이터시트 |
San Ace 120WF | Box | Active | 24VDC | Square - 119mm L x 119mm H | 38.00mm | 118.0 CFM (3.30m³/min) | 0.400 in H2O (99.6 Pa) | Ball | Tubeaxial | - | 46.0dB(A) | 7.68 W | 3100 RPM | 2 Wire Leads | Oil Resistant | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.784 lb (355.62 g) |
|
|
5015KL-04W-B50-E00FAN AXIAL 127X38.4MM 12VDC WIRE |
0 |
|
데이터시트 |
5015KL | Box | Active | 12VDC | Square - 127mm L x 127mm H | 38.40mm | 199.0 CFM (5.57m³/min) | 0.708 in H2O (176.5 Pa) | Ball | Tubeaxial | - | 60.5dB | 24.5 W | 4400 RPM | 2 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, UL, VDE | 0.794 lb (360.15 g) |
|
|
5015KL-05W-B30-E00FAN AXIAL 127X38.4MM 24VDC WIRE |
0 |
|
데이터시트 |
5015KL | Box | Active | 24VDC | Square - 127mm L x 127mm H | 38.40mm | 163.0 CFM (4.56m³/min) | 0.480 in H2O (119.6 Pa) | Ball | Tubeaxial | - | 55.0dB | 12.2 W | 3600 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, UL, VDE | 0.794 lb (360.15 g) |
|
|
5015KL-05W-B50-E00FAN AXIAL 127X38.4MM 24VDC WIRE |
0 |
|
데이터시트 |
5015KL | Box | Active | 24VDC | Square - 127mm L x 127mm H | 38.40mm | 199.0 CFM (5.57m³/min) | 0.708 in H2O (176.5 Pa) | Ball | Tubeaxial | - | 60.5dB | 21.6 W | 4400 RPM | 2 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, UL, VDE | 0.794 lb (360.15 g) |
|
|
5015KL-07W-B50-E00FAN AXIAL 127X38.4MM 48VDC WIRE |
0 |
|
데이터시트 |
5015KL | Box | Active | 48VDC | Square - 127mm L x 127mm H | 38.40mm | 199.0 CFM (5.57m³/min) | 0.708 in H2O (176.5 Pa) | Ball | Tubeaxial | - | 60.5dB | 21.6 W | 4400 RPM | 2 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, UL, VDE | 0.794 lb (360.15 g) |
|
|
8105GFAN AXIAL 80X38MM 5VDC WIRE |
0 |
|
데이터시트 |
8100 | - | Obsolete | 5VDC | Square - 80mm L x 80mm H | 38.00mm | 35.0 CFM (0.980m³/min) | - | Sintec | Tubeaxial | - | 38.0dB(A) | 3 W | - | 2 Wire Leads | - | - | - | 0.937 lb (425.02 g) |
|
|
8124GFAN AXIAL 80X38MM 24VDC WIRE |
0 |
|
데이터시트 |
8100 | - | Obsolete | 24VDC | Square - 80mm L x 80mm H | 38.00mm | 35.0 CFM (0.980m³/min) | - | Sintec | Tubeaxial | - | 38.0dB(A) | 3 W | 3450 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | 0.937 lb (425.02 g) |
|

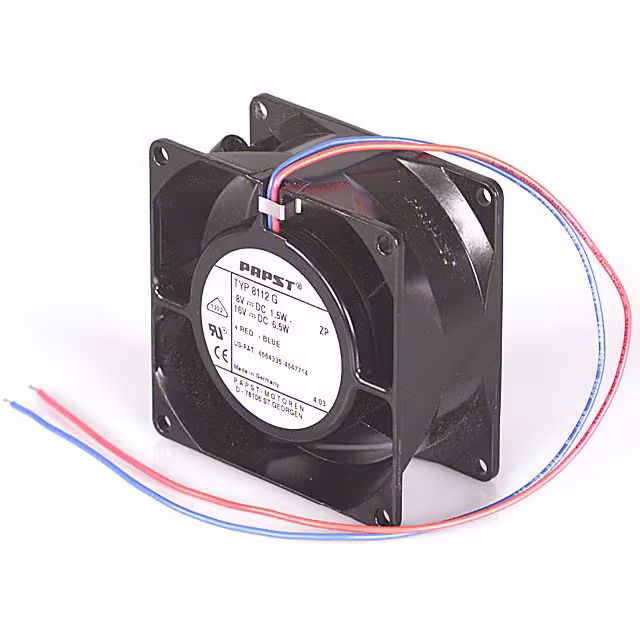

8112GFAN AXIAL 80X38MM 12VDC WIRE |
0 |
|
데이터시트 |
8100 | - | Obsolete | 12VDC | Square - 80mm L x 80mm H | 38.00mm | 35.0 CFM (0.980m³/min) | - | Sintec | Tubeaxial | - | 38.0dB(A) | 3 W | 3450 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | 0.937 lb (425.02 g) |
|
|
4414F/2D-487FAN AXIAL 119X25.4MM BALL 24VDC |
0 |
|
데이터시트 |
4400F | Bulk | Obsolete | 24VDC | Square - 119mm L x 119mm H | 25.40mm | 100.0 CFM (2.80m³/min) | - | Ball | Tubeaxial | Speed Sensor (Tach) | 26.0dB(A) | 5 W | 2900 RPM | - | - | - | - | 0.386 lb (175.09 g) |
|
|
PFB0924DHE-EPFAN AXIAL 92X38MM 24VDC WIRE |
0 |
|
데이터시트 |
PFB | Box | Obsolete | 24VDC | Square - 92mm L x 92mm H | 38.00mm | 175.0 CFM (4.90m³/min) | 1.819 in H2O (453.1 Pa) | Ball | Tubeaxial | GR-487 (Salt Fog Protection), PWM Control, Speed Sensor (Tach) | 66.5dB(A) | 34.8 W | 8000 RPM | 4 Wire Leads | IP56 - Dust Protected, Water Resistant | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.553 lb (250.84 g) |
|
|
9WPA0424P6H001FAN AXIAL 40X28MM 24VDC WIRE |
0 |
|
데이터시트 |
San Ace 40 | Box | Active | 24VDC | Square - 40mm L x 40mm H | 28.00mm | - | - | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | - | - | - | 4 Wire Leads | IP68 - Dust Tight, Waterproof | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | - |
|
|
9WPA0412P6H001FAN AXIAL 40X28MM 12VDC WIRE |
0 |
|
데이터시트 |
San Ace 40 | Box | Active | 12VDC | Square - 40mm L x 40mm H | 28.00mm | - | - | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | - | - | - | 4 Wire Leads | IP68 - Dust Tight, Waterproof | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | - |
|
|
8312/12HL-118FAN AXIAL 80X32MM BALL 12VDC |
0 |
|
데이터시트 |
8300 | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 32.00mm | 39.4 CFM (1.10m³/min) | - | Ball | Tubeaxial | Speed Sensor (Tach) | 43.0dB(A) | 4 W | 4200 RPM | - | - | -4 ~ 167°F (-20 ~ 75°C) | - | - |
|

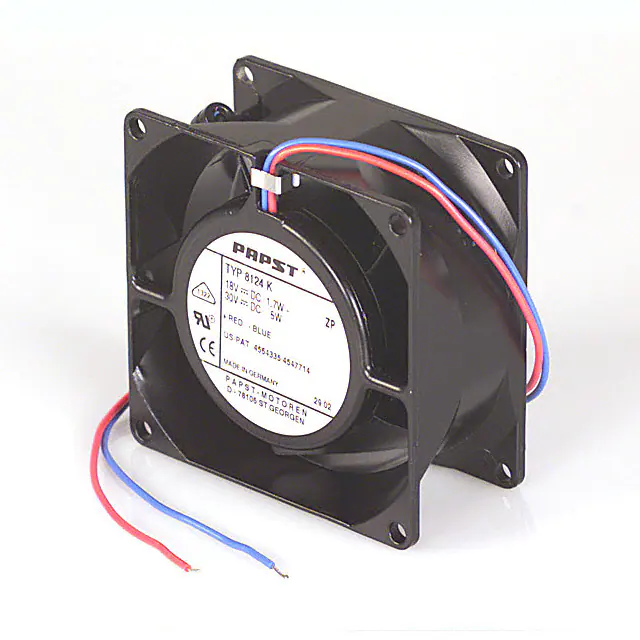

8124KFAN AXIAL 80X38MM 24VDC WIRE |
0 |
|
데이터시트 |
8100 | - | Obsolete | 24VDC | Square - 80mm L x 80mm H | 38.00mm | 35.0 CFM (0.980m³/min) | - | Ball | Tubeaxial | - | 39.0dB(A) | 3 W | 3450 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | - | 0.937 lb (425.02 g) |
|

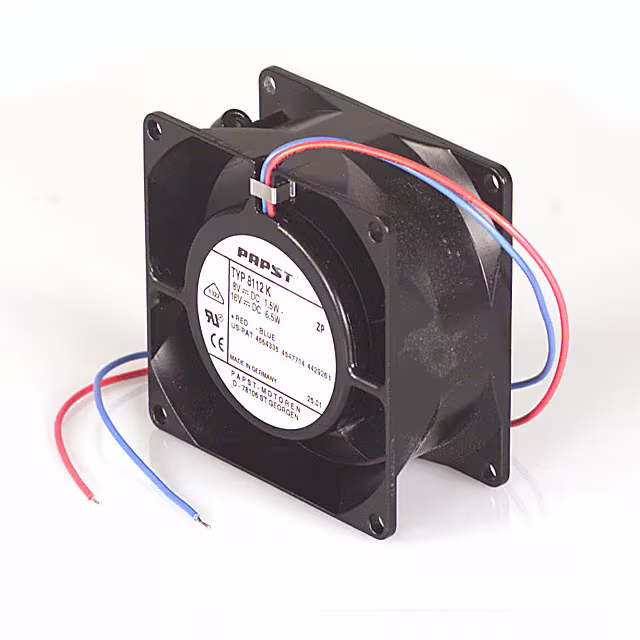

8112KFAN AXIAL 80X38MM 12VDC WIRE |
0 |
|
데이터시트 |
8100 | - | Obsolete | 12VDC | Square - 80mm L x 80mm H | 38.00mm | 35.0 CFM (0.980m³/min) | - | Ball | Tubeaxial | - | 39.0dB(A) | 3 W | 3450 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | - | 0.937 lb (425.02 g) |
|
W2G115-AD17-13FAN AXIAL 127X38MM 24VDC WIRE |
0 |
|
데이터시트 |
W2G115 | - | Obsolete | 24VDC | Square - 127mm L x 127mm H | 38.00mm | 118.0 CFM (3.30m³/min) | - | Ball | Tubeaxial | - | 44.0dB(A) | 4.7 W | - | 2 Wire Leads | - | - | - | 1.3 lbs (589.7 g) |
|
|
3412N/2GHHP-479DC TUBEAXIAL FAN |
0 |
|
데이터시트 |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
GE92254B1-000U-AE9FAN AXIAL 92X25MM 48VDC WIRE |
0 |
|
데이터시트 |
GE | Bulk | Obsolete | 48VDC | Square - 92mm L x 92mm H | 25.00mm | 75.0 CFM (2.10m³/min) | 0.350 in H2O (87.2 Pa) | Ball | Tubeaxial | - | 47.0dB(A) | 6 W | 4500 RPM | 2 Wire Leads | IP68 - Dust Tight, Waterproof | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.249 lb (112.94 g) |
