DC 무브러시 팬(BLDC)
| 사진 | 제조업체 부품 번호 | 재고 상태 | 수량 | 데이터시트 | 시리즈 | 패키징 | 제품 상태 | 전압 - 정격 | 크기/치수 | 너비 | 공기 흐름 | 정압 | 베어링 유형 | 팬 유형 | 기능 | 소음 | 전력(와트) | RPM | 종단 | 침투 방지 | 작동 온도 | 승인 기관 | 무게 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
9CR0412H501FAN AXIAL DUAL 40X56MM 12VDC |
0 |
|
데이터시트 |
San Ace 40 | Box | Active | 12VDC | Square - 40mm L x 40mm H | 56.00mm | - | - | Ball | Tubeaxial (Dual) | Counter-Rotating, Speed Sensor (Tach) | 54.0dB(A) | 8.64 W | 13300 Front, 9300 Rear | 3 Wire Leads per Fan | - | 14 ~ 140°F (-10 ~ 60°C) | - | 0.199 lb (90.26 g) |
|
|
9CR0412H5D01FAN AXIAL DUAL 40X56MM 12VDC |
0 |
|
데이터시트 |
San Ace 40 | Box | Active | 12VDC | Square - 40mm L x 40mm H | 56.00mm | - | - | Ball | Tubeaxial (Dual) | Counter-Rotating, Locked Rotor Sensor | 54.0dB(A) | 8.64 W | 13300 Front, 9300 Rear | 3 Wire Leads per Fan | - | 14 ~ 140°F (-10 ~ 60°C) | - | 0.199 lb (90.26 g) |
|
9CR0412S5D0140X56MM 12V,COUNTER ROTATING DC |
0 |
|
데이터시트 |
San Ace 40 | Box | Active | 12VDC | Square - 40mm L x 40mm H | 56.00mm | - | - | Ball | Tubeaxial (Dual) | Locked Rotor Sensor | 57.5dB(A) | - | 15800 RPM | 3 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | - | - |
|
|
PFB0924EHEFAN AXIAL 92X38MM 24VDC WIRE |
0 |
|
데이터시트 |
PFB | Bulk | Active | 24VDC | Square - 92mm L x 92mm H | 38.00mm | 103.7 CFM (2.90m³/min) | 0.691 in H2O (172.1 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 54.0dB(A) | 7.92 W | 4800 RPM | 2 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.553 lb (250.84 g) |
|
|
PFB0924UHEFAN AXIAL 92X38MM 24VDC WIRE |
0 |
|
데이터시트 |
PFB | Bulk | Active | 24VDC | Square - 92mm L x 92mm H | 38.00mm | 153.5 CFM (4.30m³/min) | 1.449 in H2O (360.9 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 64.0dB(A) | 21.84 W | 7000 RPM | 2 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.553 lb (250.84 g) |
|

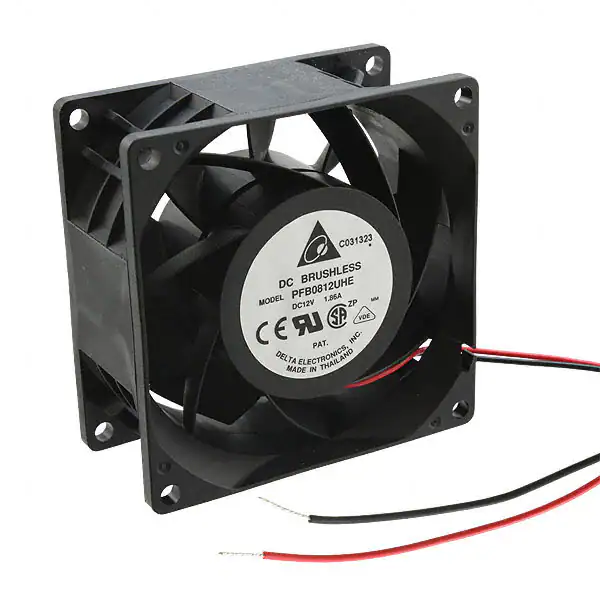

PFB0812UHEFAN AXIAL 80X38MM 12VDC WIRE |
0 |
|
데이터시트 |
PFB | Bulk | Obsolete | 12VDC | Square - 80mm L x 80mm H | 38.00mm | 107.3 CFM (3.00m³/min) | 1.368 in H2O (340.8 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 61.0dB(A) | 18.6 W | 7500 RPM | 2 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.441 lb (200.03 g) |
|
|
PF97331BX-B00U-S99FAN BLOWER 97X33MM 12VDC WIRE |
0 |
|
데이터시트 |
PF | Box | Active | 12VDC | Rectangular/Rounded - 97mm L x 95mm H | 33.00mm | 54.7 CFM (1.53m³/min) | 5.220 in H2O (1300.3 Pa) | Ball | Blower | Auto Restart, PWM Control, Speed Sensor (Tach) | 63.2dB(A) | 42 W | 6800 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.406 lb (184.16 g) |
|
|
PF97331B1-B00U-S9912VDC FAN 97X33MM TACH/PWM |
0 |
|
데이터시트 |
PF | Box | Active | 12VDC | Square/Rounded - 97mm L x 97mm H | 33.00mm | 44.2 CFM (1.24m³/min) | 3.390 in H2O (844.4 Pa) | Ball | Blower | Auto Restart, PWM Control, Speed Sensor (Tach) | 58.0dB(A) | 19.2 W | 5400 RPM | 4 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
3314GFAN AXIAL 92X32MM 24VDC WIRE |
0 |
|
데이터시트 |
3300 | Bulk | Obsolete | 24VDC | Square - 92mm L x 92mm H | 32.00mm | 47.0 CFM (1.32m³/min) | - | Sintec | Tubeaxial | - | 37.0dB(A) | 2.4 W | 3000 RPM | 2 Wire Leads | - | -4 ~ 167°F (-20 ~ 75°C) | CSA, UL, VDE | 0.419 lb (190.06 g) |
|
FFB1212VHE-F00FAN AXIAL 120X38MM 12VDC WIRE |
0 |
|
데이터시트 |
FFB | Bulk | Obsolete | 12VDC | Square - 120mm L x 120mm H | 38.00mm | 151.9 CFM (4.25m³/min) | 0.445 in H2O (110.8 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 53.0dB(A) | 12 W | 3200 RPM | 3 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.816 lb (370.13 g) |
|
|
OD8038-24HBXE10AThermal Products |
0 |
|
데이터시트 |
OD8038 | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 38.00mm | 132.0 CFM (3.70m³/min) | 3.400 in H2O (846.9 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 73.0dB(A) | 60 W | 13250 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV, UR | - |
|
|
DC1203824L2B-3T1FAN 120X38MM 24VDC TACH COMPUTER |
0 |
|
데이터시트 |
- | Bulk | Active | 24VDC | Square - 120mm L x 120mm H | 38.00mm | 212.6 CFM (5.95m³/min) | 0.840 in H2O (209.2 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 59.0dB(A) | 51.84 W | 4600 RPM | 3 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|
|
GF92382BX-1000U-SEP24VDC FAN 92X38MM TACH/PWM IP68 |
0 |
|
데이터시트 |
GF | Box | Active | 24VDC | Square - 92mm L x 92mm H | 38.00mm | 173.0 CFM (4.84m³/min) | 1.730 in H2O (430.9 Pa) | Ball | Tubeaxial | PWM Control | 66.8dB(A) | 40.8 W | 9000 RPM | 3 Wire Leads | IP68 - Dust Tight, Waterproof | - | CCC, CE, cURus, TUV, UKCA | - |
|

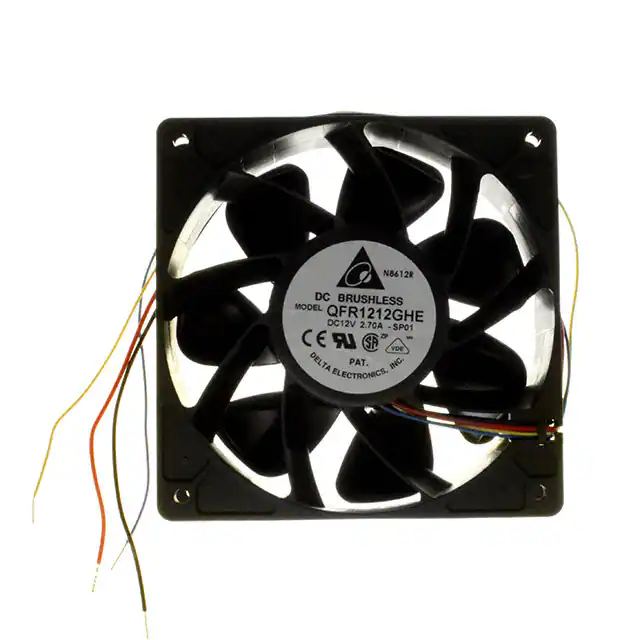

QFR1212GHE-SP01FAN AXIAL 120X38MM 12VDC WIRE |
0 |
|
데이터시트 |
QFR | Box | Obsolete | 12VDC | Square - 120mm L x 120mm H | 38.00mm | 210.4 CFM (5.89m³/min) | 1.170 in H2O (291.4 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 64.0dB(A) | 21.6 W | 6000 RPM | 4 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.728 lb (330.22 g) |
|
OD1238AP-24HTBFAN AXL 119.5X38.5MM 24VDC TERM |
0 |
|
데이터시트 |
OD1238AP | Box | Active | 24VDC | Square - 119.5mm L x 119.5mm H | 38.50mm | 140.0 CFM (3.92m³/min) | 0.480 in H2O (119.6 Pa) | Ball | Tubeaxial | Auto Restart | 48.0dB(A) | 10.3 W | 3600 RPM | 2 Terminals | - | 5 ~ 149°F (-15 ~ 65°C) | cURus, TUV | - |
|
|
9RA0848S400280X25MM 48V, LOW NOISE DC 0 |
0 |
|
데이터시트 |
San Ace 80 | Box | Active | 48VDC | Square - 80mm L x 80mm H | 25.00mm | - | - | Ball | Tubeaxial | Locked Rotor Protection | - | - | - | 2 Wire Leads | - | - | cURus, TUV | - |
|
|
9RA0848G4002180X25MM 48V, LOW NOISE, RBLS DC |
0 |
|
데이터시트 |
San Ace 80 | Box | Active | 48VDC | Square - 80mm L x 80mm H | 25.00mm | - | - | Ball | Tubeaxial | Locked Rotor Protection | - | - | - | 2 Wire Leads | - | - | cURus, TUV | - |
|
|
9RA0848G400280X25MM 48V, LOW NOISE DC 0 |
0 |
|
데이터시트 |
San Ace 80 | Box | Active | 48VDC | Square - 80mm L x 80mm H | 25.00mm | - | - | Ball | Tubeaxial | Locked Rotor Protection | - | - | - | 2 Wire Leads | - | - | cURus, TUV | - |
|
|
9RA0848S4002180X25MM 48V, LOW NOISE, RBLS DC |
0 |
|
데이터시트 |
San Ace 80 | Box | Active | 48VDC | Square - 80mm L x 80mm H | 25.00mm | - | - | Ball | Tubeaxial | Locked Rotor Protection | - | - | - | 2 Wire Leads | - | - | cURus, TUV | - |
|
|
9BMB24K2D0197X33MM 24V,HIGH PERFORMANCE BLO |
0 |
|
데이터시트 |
San Ace B97 | Box | Active | 24VDC | Square/Rounded - 97mm L x 97mm H | 33.00mm | - | - | Ball | Blower | Locked Rotor Sensor | - | - | - | 3 Wire Leads | - | - | cURus, TUV | - |
