DC 무브러시 팬(BLDC)
| 사진 | 제조업체 부품 번호 | 재고 상태 | 수량 | 데이터시트 | 시리즈 | 패키징 | 제품 상태 | 전압 - 정격 | 크기/치수 | 너비 | 공기 흐름 | 정압 | 베어링 유형 | 팬 유형 | 기능 | 소음 | 전력(와트) | RPM | 종단 | 침투 방지 | 작동 온도 | 승인 기관 | 무게 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
_Series.jpg)
|
3412NFAN AXIAL 92X25.4MM 12VDC WIRE |
427 |
|
데이터시트 |
3400N | Box | Active | 12VDC | Square - 92mm L x 92mm H | 25.40mm | 49.4 CFM (1.38m³/min) | - | Ball | Tubeaxial | - | 32.0dB(A) | 2.2 W | 2700 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, UL, VDE | 0.22 lb (99.79 g) |
|
624MFAN AXIAL 60X25.4MM 24VDC WIRE |
299 |
|
데이터시트 |
620 | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 25.40mm | 17.7 CFM (0.496m³/min) | - | Ball | Tubeaxial | - | 29.0dB(A) | 1.5 W | 4550 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CE, CSA, UL, VDE | 0.187 lb (84.82 g) |
|
9GA0924P1H011FAN AXIAL 92X38MM 24VDC WIRE |
103 |
|
데이터시트 |
San Ace 92 | Box | Active | 24VDC | Square - 92mm L x 92mm H | 38.00mm | 141.0 CFM (3.95m³/min) | 2.010 in H2O (500.7 Pa) | Ball | Tubeaxial | PWM Control, Speed Sensor (Tach) | 63.0dB(A) | 26.4 W | 9700 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CSA, TUV, UL | 0.529 lb (240.00 g) |
|
9GA0824P1H61FAN AXIAL 80X38MM 24VDC WIRE |
156 |
|
데이터시트 |
San Ace 80 | Box | Active | 24VDC | Square - 80mm L x 80mm H | 38.00mm | 79.5 CFM (2.23m³/min) | 1.528 in H2O (380.6 Pa) | Ball | Tubeaxial | PWM Control, Speed Sensor (Tach) | 55.0dB(A) | 7.2 W | 8250 RPM | 4 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.353 lb (160.12 g) |
|
612NHHFAN AXIAL 60X25.4MM 12VDC WIRE |
1,780 |
|
데이터시트 |
600N | Box | Active | 12VDC | Square - 60mm L x 60mm H | 25.40mm | 33.0 CFM (0.924m³/min) | - | Ball | Tubeaxial | - | 43.0dB(A) | 3 W | - | 2 Wire Leads | - | - | CE, CSA, UL, VDE | 0.19 lb (86.18 g) |
|
CFM-A225BF-163-615FAN AXIAL 120X25.4MM 12VDC WIRE |
158 |
|
데이터시트 |
CFM-120 BF | Box | Active | 12VDC | Square - 120mm L x 120mm H | 25.40mm | 201.0 CFM (5.63m³/min) | 1.160 in H2O (288.9 Pa) | Ball | Tubeaxial | Auto Restart | 61.5dB(A) | 37.92 W | 6300 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
9WP1224H1011FAN AXIAL 120X38MM 24VDC WIRE |
191 |
|
데이터시트 |
San Ace 120W | Box | Active | 24VDC | Square - 120mm L x 120mm H | 38.00mm | 99.0 CFM (2.77m³/min) | 0.283 in H2O (70.5 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 39.0dB(A) | 5.28 W | 2600 RPM | 3 Wire Leads | IP68 - Dust Tight, Waterproof | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.794 lb (360.15 g) |
|

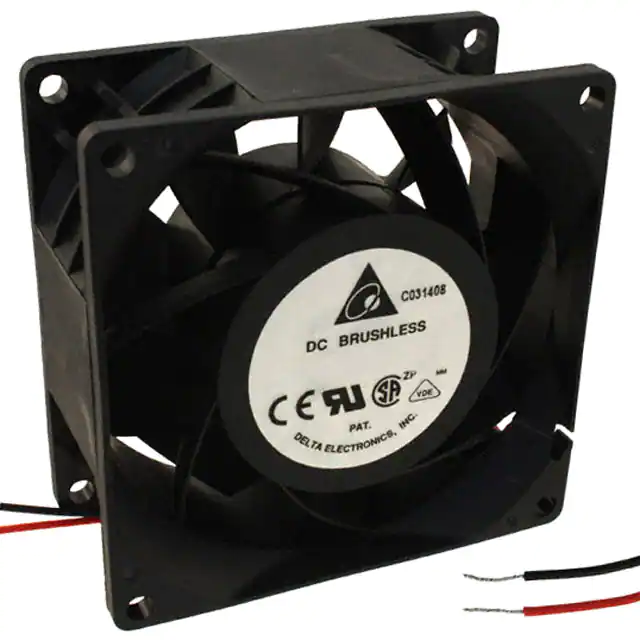

PFB0812DHE-T500FAN AXIAL 80X38MM 12VDC WIRE |
445 |
|
데이터시트 |
PFB | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 38.00mm | 132.6 CFM (3.71m³/min) | 2.030 in H2O (505.7 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 65.0dB(A) | 33 W | 9000 RPM | 2 Wire Leads | IP55 - Dust Protected, Water Resistant | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.452 lb (205.02 g) |
.GN, PMB1212PLB3-A(2).GN.jpg)
|
PMB1212PLB2-A.(2).GNFAN BLOWER 120X32MM 12VDC WIRE |
798 |
|
데이터시트 |
PMB | Bulk | Active | 12VDC | Square/Rounded - 120mm L x 120mm H | 32.00mm | 35.9 CFM (1.01m³/min) | 0.890 in H2O (221.7 Pa) | Ball | Blower | - | 53.8dB(A) | 9.8 W | 2500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.551 lb (249.93 g) |
|
714FFAN AXIAL 70X15MM 24VDC WIRE |
273 |
|
데이터시트 |
700F | Bulk | Active | 24VDC | Square - 70mm L x 70mm H | 15.00mm | 25.9 CFM (0.725m³/min) | - | Sintec | Tubeaxial | - | 38.0dB(A) | 1.5 W | 5300 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CE, CSA, UL, VDE | 0.117 lb (53.07 g) |
|
8412NHFAN AXIAL 80X25.4MM 12VDC WIRE |
727 |
|
데이터시트 |
8400N | Box | Active | 12VDC | Square - 80mm L x 80mm H | 25.40mm | 46.5 CFM (1.30m³/min) | - | Ball | Tubeaxial | - | 37.0dB(A) | 1.7 W | 3600 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CE, CSA, UL, VDE | 0.209 lb (94.8 g) |
|
|
614NMLFAN AXIAL 60X25.4MM 24VDC WIRE |
472 |
|
데이터시트 |
600N | Box | Active | 24VDC | Square - 60mm L x 60mm H | 25.40mm | 14.7 CFM (0.412m³/min) | - | Ball | Tubeaxial | - | 19.0dB(A) | 1 W | 3000 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CE, CSA, UL, VDE | 0.145 lb (65.77 g) |
|
OD1238-24HBIP68FAN AXIAL 120X38MM 24VDC WIRE |
353 |
|
데이터시트 |
OD1238 | Box | Active | 24VDC | Square - 120mm L x 120mm H | 38.00mm | 123.9 CFM (3.47m³/min) | 0.469 in H2O (116.8 Pa) | Ball | Tubeaxial | Auto Restart | 44.1dB(A) | 12 W | 2895 RPM | 2 Wire Leads | IP68 - Dust Tight, Waterproof | -4 ~ 149°F (-20 ~ 65°C) | CE, cURus, TUV, UR | 0.572 lb (259.45 g) |
|
|
3414NHFAN AXIAL 92X25.4MM 24VDC WIRE |
305 |
|
데이터시트 |
3400N | Box | Active | 24VDC | Square - 92mm L x 92mm H | 25.40mm | 55.3 CFM (1.55m³/min) | - | Ball | Tubeaxial | - | 36.0dB(A) | 3 W | 3000 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, UL, VDE | 0.22 lb (99.79 g) |
|
BFB1224GH-AFAN BLOWER 120X32MM 24VDC WIRE |
2,052 |
|
데이터시트 |
BFB | Box | Active | 24VDC | Square/Rounded - 120mm L x 120mm H | 32.00mm | 60.4 CFM (1.69m³/min) | 4.094 in H2O (1019.8 Pa) | Ball | Blower | Locked Rotor Protection | 65.0dB(A) | 38.4 W | 4400 RPM | 2 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.661 lb (299.82 g) |
|
19031618AFAN AXIAL 120X32MM 24VDC MC24K3 |
737 |
|
데이터시트 |
Muffin | Bulk | Active | 24VDC | Square - 120mm L x 120mm H | 32.00mm | 118.0 CFM (3.30m³/min) | 0.505 in H2O (125.8 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Protection | 56.3dB(A) | 10.6 W | 4200 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | UL | 0.529 lb (239.95 g) |
|
9GA0712P1G001FAN AXIAL 70X38MM 12VDC WIRE |
496 |
|
데이터시트 |
San Ace 70 | Box | Active | 12VDC | Square - 70mm L x 70mm H | 38.00mm | 93.6 CFM (2.62m³/min) | 3.453 in H2O (860.1 Pa) | Ball | Tubeaxial | PWM Control, Speed Sensor (Tach) | 65.0dB(A) | 31.2 W | 16500 RPM | 4 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.375 lb (170.1 g) |
|
DS0605612U2B-BT0FAN AXIAL DUAL 60X56MM 12VDC |
229 |
|
데이터시트 |
DS | Box | Active | 12VDC | Square - 60mm L x 60mm H | 56.00mm | 87.9 CFM (2.46m³/min) | 11.308 in H2O (2816.7 Pa) | Ball | Tubeaxial (Dual) | PWM Control, Speed Sensor (Tach) | 78.6dB(A) | 72.44 W | 20500 Front, 23000 Rear | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE | - |
|
|
08025VE-24P-CUD-280X80X25MM, 24VDC, 7,000 RPM, 73 |
236 |
|
데이터시트 |
08025VE | Box | Active | 24VDC | Square - 80mm L x 80mm H | 25.40mm | 73.1 CFM (2.05m³/min) | 0.760 in H2O (189.3 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 53.0dB | 6.72 W | 7000 RPM | 4 Wire Leads | IP68 - Dust Tight, Waterproof | 14 ~ 140°F (-10 ~ 60°C) | CE, cURus, VDE | - |
.GN.jpg)
|
PMD1212PMB1-A.(2).GNFAN AXIAL 120X38MM 12VDC WIRE |
1,399 |
|
데이터시트 |
PMD | Bulk | Active | 12VDC | Square - 120mm L x 120mm H | 38.00mm | 190.0 CFM (5.32m³/min) | 0.650 in H2O (161.9 Pa) | Ball | Tubeaxial | - | 54.0dB(A) | 19.2 W | 4200 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.727 lb (329.76 g) |
