DC 무브러시 팬(BLDC)
| 사진 | 제조업체 부품 번호 | 재고 상태 | 수량 | 데이터시트 | 시리즈 | 패키징 | 제품 상태 | 전압 - 정격 | 크기/치수 | 너비 | 공기 흐름 | 정압 | 베어링 유형 | 팬 유형 | 기능 | 소음 | 전력(와트) | RPM | 종단 | 침투 방지 | 작동 온도 | 승인 기관 | 무게 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
OD1225-12LS10AFAN AXIAL 120X25MM 12VDC WIRE |
0 |
|
데이터시트 |
OD1225 | Bulk | Active | 12VDC | Square - 120mm L x 120mm H | 25.00mm | 70.0 CFM (1.96m³/min) | 0.150 in H2O (37.3 Pa) | Sleeve | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 25.0dB(A) | 2.5 W | 1900 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | cURus, TUV | 0.341 lb (154.67 g) |
|
|
OD1225-12LS5FAN AXIAL 120X25MM 12VDC WIRE |
0 |
|
데이터시트 |
OD1225 | Bulk | Active | 12VDC | Square - 120mm L x 120mm H | 25.00mm | 70.0 CFM (1.96m³/min) | 0.150 in H2O (37.3 Pa) | Sleeve | Tubeaxial | Auto Restart, PWM Control | 25.0dB(A) | 2.5 W | 1900 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | cURus, TUV | 0.341 lb (154.67 g) |
|
|
OD1225-12LS02AFAN AXIAL 120X25MM 12VDC WIRE |
0 |
|
데이터시트 |
OD1225 | Bulk | Active | 12VDC | Square - 120mm L x 120mm H | 25.00mm | 70.0 CFM (1.96m³/min) | 0.150 in H2O (37.3 Pa) | Sleeve | Tubeaxial | Auto Restart, Locked Rotor Sensor | 25.0dB(A) | 2.5 W | 1900 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | cURus, TUV | 0.341 lb (154.67 g) |
|
|
OD1225-12MS01AFAN AXIAL 120X25MM 12VDC WIRE |
0 |
|
데이터시트 |
OD1225 | Bulk | Active | 12VDC | Square - 120mm L x 120mm H | 25.00mm | 90.0 CFM (2.52m³/min) | 0.190 in H2O (47.3 Pa) | Sleeve | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 35.0dB(A) | 4 W | 2500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | cURus, TUV | 0.341 lb (154.67 g) |
|
|
OD1225-12MS10AFAN AXIAL 120X25MM 12VDC WIRE |
0 |
|
데이터시트 |
OD1225 | Bulk | Active | 12VDC | Square - 120mm L x 120mm H | 25.00mm | 90.0 CFM (2.52m³/min) | 0.190 in H2O (47.3 Pa) | Sleeve | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 35.0dB(A) | 4 W | 2500 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | cURus, TUV | 0.341 lb (154.67 g) |
|
|
OD1225-12MS5FAN AXIAL 120X25MM 12VDC WIRE |
0 |
|
데이터시트 |
OD1225 | Bulk | Active | 12VDC | Square - 120mm L x 120mm H | 25.00mm | 90.0 CFM (2.52m³/min) | 0.190 in H2O (47.3 Pa) | Sleeve | Tubeaxial | Auto Restart, PWM Control | 35.0dB(A) | 4 W | 2500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | cURus, TUV | 0.341 lb (154.67 g) |
|
|
OD1225-12MS02AFAN AXIAL 120X25MM 12VDC WIRE |
0 |
|
데이터시트 |
OD1225 | Bulk | Active | 12VDC | Square - 120mm L x 120mm H | 25.00mm | 90.0 CFM (2.52m³/min) | 0.190 in H2O (47.3 Pa) | Sleeve | Tubeaxial | Auto Restart, Locked Rotor Sensor | 35.0dB(A) | 4 W | 2500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | cURus, TUV | 0.341 lb (154.67 g) |
|
|
OD1225-24HS01AFAN AXIAL 120X25MM 24VDC WIRE |
0 |
|
데이터시트 |
OD1225 | Bulk | Active | 24VDC | Square - 120mm L x 120mm H | 25.00mm | 120.0 CFM (3.36m³/min) | 0.240 in H2O (59.8 Pa) | Sleeve | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 42.0dB(A) | 7.7 W | 3100 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | cURus, TUV | 0.341 lb (154.67 g) |
|
|
OD1225-24HS02AFAN AXIAL 120X25MM 24VDC WIRE |
0 |
|
데이터시트 |
OD1225 | Bulk | Active | 24VDC | Square - 120mm L x 120mm H | 25.00mm | 120.0 CFM (3.36m³/min) | 0.240 in H2O (59.8 Pa) | Sleeve | Tubeaxial | Auto Restart, Locked Rotor Sensor | 42.0dB(A) | 7.7 W | 3100 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | cURus, TUV | 0.341 lb (154.67 g) |
|
|
OD1225-24LS01AFAN AXIAL 120X25MM 24VDC WIRE |
0 |
|
데이터시트 |
OD1225 | Bulk | Active | 24VDC | Square - 120mm L x 120mm H | 25.00mm | 70.0 CFM (1.96m³/min) | 0.150 in H2O (37.3 Pa) | Sleeve | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 25.0dB(A) | 2.4 W | 1900 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | cURus, TUV | 0.341 lb (154.67 g) |
|
|
OD1225-24LS02AFAN AXIAL 120X25MM 24VDC WIRE |
0 |
|
데이터시트 |
OD1225 | Bulk | Active | 24VDC | Square - 120mm L x 120mm H | 25.00mm | 70.0 CFM (1.96m³/min) | 0.150 in H2O (37.3 Pa) | Sleeve | Tubeaxial | Auto Restart, Locked Rotor Sensor | 25.0dB(A) | 2.4 W | 1900 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | cURus, TUV | 0.341 lb (154.67 g) |
|
|
OD1225-24MS01AFAN AXIAL 120X25MM 24VDC WIRE |
0 |
|
데이터시트 |
* | Bulk | Active | 24VDC | Square - 120mm L x 120mm H | 25.00mm | 90.0 CFM (2.52m³/min) | 0.190 in H2O (47.3 Pa) | Sleeve | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 35.0dB(A) | 4.1 W | 2500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | cURus, TUV | 0.341 lb (154.67 g) |
|
|
OD1225-24MS02AFAN AXIAL 120X25MM 24VDC WIRE |
0 |
|
데이터시트 |
OD1225 | Bulk | Active | 24VDC | Square - 120mm L x 120mm H | 25.00mm | 90.0 CFM (2.52m³/min) | 0.190 in H2O (47.3 Pa) | Sleeve | Tubeaxial | Auto Restart, Locked Rotor Sensor | 35.0dB(A) | 4.1 W | 2500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | cURus, TUV | 0.341 lb (154.67 g) |
|
OD2510-05HB01AFAN AXIAL 25X10MM BALL 5VDC WIRE |
0 |
|
데이터시트 |
OD2510 | Bulk | Active | 5VDC | Square - 25mm L x 25mm H | 10.00mm | 2.7 CFM (0.076m³/min) | 0.230 in H2O (57.3 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 31.0dB | 700 mW | 12000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | 0.022 lb (9.98 g) |
|
|
OD2510-05LB01AFAN AXIAL 25X10MM BALL 5VDC WIRE |
0 |
|
데이터시트 |
OD2510 | Bulk | Active | 5VDC | Square - 25mm L x 25mm H | 10.00mm | 1.8 CFM (0.050m³/min) | 0.120 in H2O (29.9 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | - | 500 mW | 8000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | cURus, TUV | 0.022 lb (9.98 g) |
|
|
OD2510-05MB01AFAN AXIAL 25X10MM BALL 5VDC WIRE |
0 |
|
데이터시트 |
OD2510 | Bulk | Active | 5VDC | Square - 25mm L x 25mm H | 10.00mm | 2.2 CFM (0.061m³/min) | 0.170 in H2O (42.3 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 24.0dB | 600 mW | 10000 RPM | 3 Wire Leads | - | 14 ~ 122°F (-10 ~ 50°C) | cURus, TUV | 0.022 lb (9.98 g) |
|

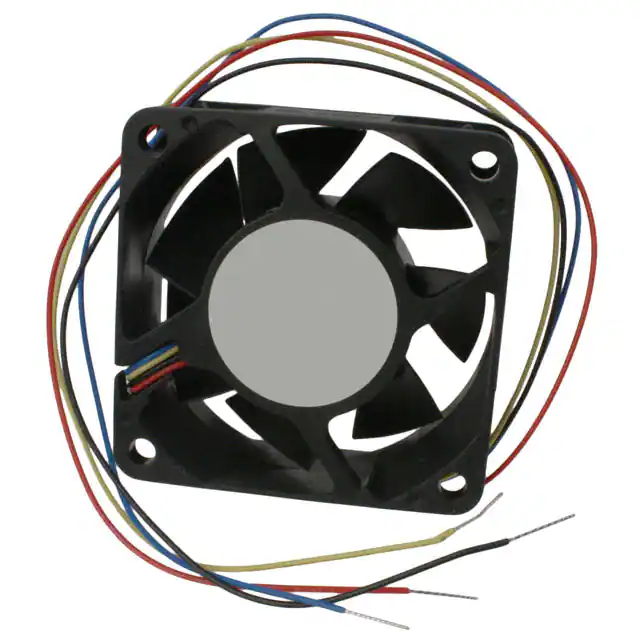

AFB0612DH-TP11FAN AXIAL 60X25.4MM 12VDC WIRE |
0 |
|
데이터시트 |
AFB | Box | Active | 12VDC | Square - 60mm L x 60mm H | 25.40mm | 50.4 CFM (1.41m³/min) | 0.926 in H2O (230.7 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 55.0dB(A) | 10.08 W | 9000 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.176 lb (80.00 g) |
|
G9232H12B1-FSRFAN AXIAL 92X32MM 12VDC WIRE |
0 |
|
데이터시트 |
G9232 | Bulk | Active | 12VDC | Square - 92mm L x 92mm H | 32.00mm | 55.0 CFM (1.54m³/min) | 0.240 in H2O (59.8 Pa) | Ball | Tubeaxial | Speed Sensor (Tach), Thermal Overload Protector (TOP) | 35.0dB(A) | - | 3200 RPM | 3 Wire Leads | - | - | CE, cUL, TUV, UL | 0.335 lb (151.95 g) |
|
|
G9232H12B2-FSRFAN AXIAL 92X32MM 12VDC WIRE |
0 |
|
데이터시트 |
G9232 | Bulk | Active | 12VDC | Square - 92mm L x 92mm H | 32.00mm | 55.0 CFM (1.54m³/min) | 0.240 in H2O (59.8 Pa) | Ball | Tubeaxial | Locked Rotor Sensor, Thermal Overload Protector (TOP) | 35.0dB(A) | - | 3200 RPM | 3 Wire Leads | - | - | CE, cUL, TUV, UL | 0.335 lb (151.95 g) |
|
|
G9232M24B1-FSRFAN AXIAL 92X32MM 24VDC WIRE |
0 |
|
데이터시트 |
G9232 | Bulk | Active | 24VDC | Square - 92mm L x 92mm H | 32.00mm | 48.0 CFM (1.34m³/min) | 0.180 in H2O (44.8 Pa) | Ball | Tubeaxial | Speed Sensor (Tach), Thermal Overload Protector (TOP) | 32.0dB(A) | - | 2800 RPM | 3 Wire Leads | - | - | CE, cUL, TUV, UL | 0.335 lb (151.95 g) |
