DC 무브러시 팬(BLDC)
| 사진 | 제조업체 부품 번호 | 재고 상태 | 수량 | 데이터시트 | 시리즈 | 패키징 | 제품 상태 | 전압 - 정격 | 크기/치수 | 너비 | 공기 흐름 | 정압 | 베어링 유형 | 팬 유형 | 기능 | 소음 | 전력(와트) | RPM | 종단 | 침투 방지 | 작동 온도 | 승인 기관 | 무게 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
08020SA-24J-AL-00FAN AXIAL 80X20MM 24VDC WIRE |
0 |
|
데이터시트 |
08020SA | Box | Active | 24VDC | Square - 80mm L x 80mm H | 20.00mm | 27.5 CFM (0.770m³/min) | 0.090 in H2O (22.4 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Sensor | 27.0dB(A) | 1.2 W | 2600 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
|
08020SA-12M-ET-00FAN AXIAL 80X20MM 12VDC WIRE |
0 |
|
데이터시트 |
08020SA | Box | Active | 12VDC | Square - 80mm L x 80mm H | 20.00mm | 39.9 CFM (1.12m³/min) | 0.210 in H2O (52.3 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 37.5dB(A) | 1.56 W | 3700 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
|
08020SA-24L-AL-00FAN AXIAL 80X20MM 24VDC WIRE |
0 |
|
데이터시트 |
08020SA | Box | Active | 24VDC | Square - 80mm L x 80mm H | 20.00mm | 36.0 CFM (1.01m³/min) | 0.140 in H2O (34.9 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Sensor | 34.0dB(A) | 1.68 W | 3300 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
|
OD4020-05MSS10AThermal Products |
0 |
|
데이터시트 |
OD4020 | Bulk | Active | 5VDC | Square - 40mm L x 40mm H | 20.00mm | 7.5 CFM (0.210m³/min) | 0.170 in H2O (42.3 Pa) | Sleeve | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 30.3dB(A) | 1.2 W | 6475 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV, UR | - |
|
|
OD4020-12LSS10AThermal Products |
0 |
|
데이터시트 |
OD4020 | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | 20.00mm | 6.5 CFM (0.182m³/min) | 0.140 in H2O (34.9 Pa) | Sleeve | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 24.1dB(A) | 980 mW | 5150 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV, UR | - |
|
|
OD4020-05HSS10AThermal Products |
0 |
|
데이터시트 |
OD4020 | Bulk | Active | 5VDC | Square - 40mm L x 40mm H | 20.00mm | 8.7 CFM (0.244m³/min) | 0.320 in H2O (79.7 Pa) | Sleeve | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 32.1dB(A) | 1.6 W | 7780 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV, UR | - |
|
|
OD4020-24HSS10AThermal Products |
0 |
|
데이터시트 |
OD4020 | Bulk | Active | 24VDC | Square - 40mm L x 40mm H | 20.00mm | 8.7 CFM (0.244m³/min) | 0.320 in H2O (79.7 Pa) | Sleeve | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 32.1dB(A) | 1.72 W | 8190 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV, UR | - |
|
|
OD4020-05LSS10AThermal Products |
0 |
|
데이터시트 |
OD4020 | Bulk | Active | 5VDC | Square - 40mm L x 40mm H | 20.00mm | 6.5 CFM (0.182m³/min) | 0.140 in H2O (34.9 Pa) | Sleeve | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 24.1dB(A) | 900 mW | 5150 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV, UR | - |
|
|
OD4020-24MSS10AThermal Products |
0 |
|
데이터시트 |
OD4020 | Bulk | Active | 24VDC | Square - 40mm L x 40mm H | 20.00mm | 7.5 CFM (0.210m³/min) | 0.170 in H2O (42.3 Pa) | Sleeve | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 30.3dB(A) | 1.7 W | 6475 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV, UR | - |
|
|
OD4020-12HSS10AThermal Products |
0 |
|
데이터시트 |
OD4020 | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | 20.00mm | 8.7 CFM (0.244m³/min) | 0.320 in H2O (79.7 Pa) | Sleeve | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 32.1dB(A) | 1.3 W | 8190 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV, UR | - |
|
|
OD4020-24LSS10AThermal Products |
0 |
|
데이터시트 |
OD4020 | Bulk | Active | 24VDC | Square - 40mm L x 40mm H | 20.00mm | 6.5 CFM (0.182m³/min) | 0.140 in H2O (34.9 Pa) | Sleeve | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 24.1dB(A) | 1.2 W | 5150 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV, UR | - |
|
|
OD4020-12MSS10AThermal Products |
0 |
|
데이터시트 |
OD4020 | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | 20.00mm | 7.5 CFM (0.210m³/min) | 0.170 in H2O (42.3 Pa) | Sleeve | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 30.3dB(A) | 1.2 W | 6475 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV, UR | - |
|
|
KD1205PHB2.(2).GNFAN AXIAL 50X15MM 12VDC WIRE |
0 |
|
데이터시트 |
KD | Bulk | Active | 12VDC | Square - 50mm L x 50mm H | 15.00mm | 13.0 CFM (0.364m³/min) | 0.170 in H2O (42.3 Pa) | Ball | Tubeaxial | - | 30.0dB(A) | 900 mW | 4700 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | - |
|

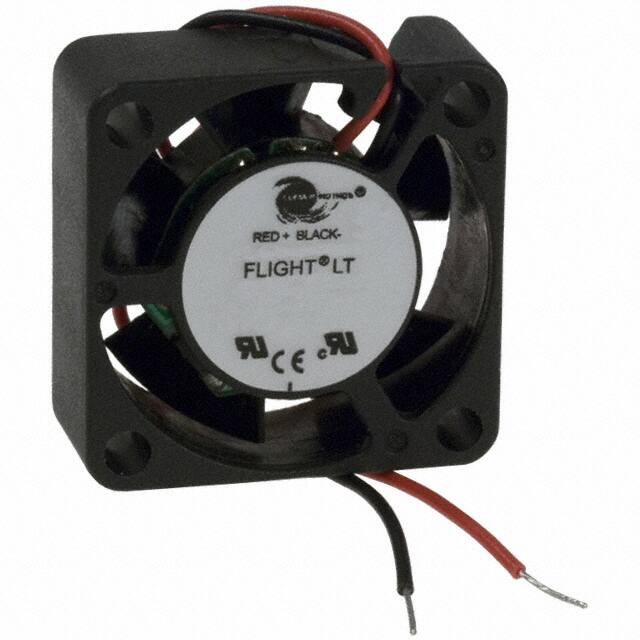

19032602AFAN AXIAL 25X10MM CR0212LB-G50 |
0 |
|
데이터시트 |
Flight LT | - | Obsolete | 12VDC | Square - 25mm L x 25mm H | 10.00mm | 1.6 CFM (0.045m³/min) | 0.105 in H2O (26.1 Pa) | Ball | Tubeaxial | - | 15.6dB(A) | 800 mW | 8000 RPM | 2 Wire Leads | - | - | - | 0.016 lb (7.26 g) |
|
OD4028-12LBFAN AXIAL 40X28MM 12VDC WIRE |
0 |
|
데이터시트 |
OD4028 | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | 28.00mm | 7.0 CFM (0.196m³/min) | 0.100 in H2O (24.9 Pa) | Ball | Tubeaxial | - | 25.0dB | - | 5000 RPM | 2 Wire Leads | - | -4 ~ 176°F (-20 ~ 80°C) | cURus, TUV | - |
|
DC0251012M2B-3T0FAN AXIAL 25X10MM 12VDC WIRE |
0 |
|
데이터시트 |
- | Box | Active | 12VDC | Square - 25mm L x 25mm H | 10.00mm | 1.9 CFM (0.053m³/min) | 0.170 in H2O (42.3 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 24.0dB(A) | 720 mW | 10000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.018 lb (8.16 g) |
|
|
DC0251012L2B-3T0FAN AXIAL 25X10MM 12VDC WIRE |
0 |
|
데이터시트 |
- | Box | Active | 12VDC | Square - 25mm L x 25mm H | 10.00mm | 1.3 CFM (0.036m³/min) | 0.070 in H2O (17.4 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 20.0dB(A) | 600 mW | 7000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.018 lb (8.16 g) |
|
|
DC0251005L2B-2T0FAN 25X10MM 5VDC |
0 |
|
데이터시트 |
- | Bulk | Active | 5VDC | Square - 25mm L x 25mm H | 10.00mm | 1.3 CFM (0.036m³/min) | 0.070 in H2O (17.4 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 20.0dB(A) | 250 mW | 7000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|
|
DC0801512H2B-BT4FAN 80X15MM 12VDC PWM/TACH MOLEX |
0 |
|
데이터시트 |
- | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 15.00mm | 37.6 CFM (1.05m³/min) | 0.150 in H2O (37.3 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 36.0dB(A) | 1.92 W | 3600 RPM | 4 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
DC0801512U2B-BT4FAN 80X15MM 12VDC PWM/TACH MOLEX |
0 |
|
데이터시트 |
- | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 15.00mm | 45.2 CFM (1.27m³/min) | 0.210 in H2O (52.3 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 43.0dB(A) | 3.6 W | 4500 RPM | 4 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
