DC 무브러시 팬(BLDC)
| 사진 | 제조업체 부품 번호 | 재고 상태 | 수량 | 데이터시트 | 시리즈 | 패키징 | 제품 상태 | 전압 - 정격 | 크기/치수 | 너비 | 공기 흐름 | 정압 | 베어링 유형 | 팬 유형 | 기능 | 소음 | 전력(와트) | RPM | 종단 | 침투 방지 | 작동 온도 | 승인 기관 | 무게 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DC0501005L2B-BT0FAN 50X10MM 5VDC PWM/TACH |
0 |
|
데이터시트 |
- | Bulk | Active | 5VDC | Square - 50mm L x 50mm H | 10.00mm | 8.2 CFM (0.230m³/min) | 0.090 in H2O (22.4 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 25.0dB(A) | 350 mW | 4500 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|
|
DC0501005J2B-BT0FAN 50X10MM 5VDC PWM/TACH |
0 |
|
데이터시트 |
- | Bulk | Active | 5VDC | Square - 50mm L x 50mm H | 10.00mm | 6.7 CFM (0.188m³/min) | 0.050 in H2O (12.4 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 18.0dB(A) | 250 mW | 3500 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|
|
DC0501024J2B-BT0FAN 50X10MM 24VDC PWM/TACH |
0 |
|
데이터시트 |
- | Bulk | Active | 24VDC | Square - 50mm L x 50mm H | 10.00mm | 6.7 CFM (0.188m³/min) | 0.050 in H2O (12.4 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 18.0dB(A) | 1.2 W | 3500 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|
OD5210-05MBFAN AXIAL 52X10MM BALL 5VDC WIRE |
0 |
|
데이터시트 |
OD5210 | Bulk | Active | 5VDC | Square - 52mm L x 52mm H | 10.00mm | 10.0 CFM (0.280m³/min) | 0.110 in H2O (27.4 Pa) | Ball | Tubeaxial | - | 32.0dB | - | 5000 RPM | 2 Wire Leads | - | -4 ~ 176°F (-20 ~ 80°C) | cURus, TUV | - |
|
4710KL-04W-B49-B00FAN AXIAL 119X25.5MM 12VDC WIRE |
0 |
|
데이터시트 |
4710KL | Box | Obsolete | 12VDC | Square - 119mm L x 119mm H | 25.50mm | 100.6 CFM (2.82m³/min) | 0.164 in H2O (40.9 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 38.5dB | 4.8 W | 2500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.397 lb (180.08 g) |
|

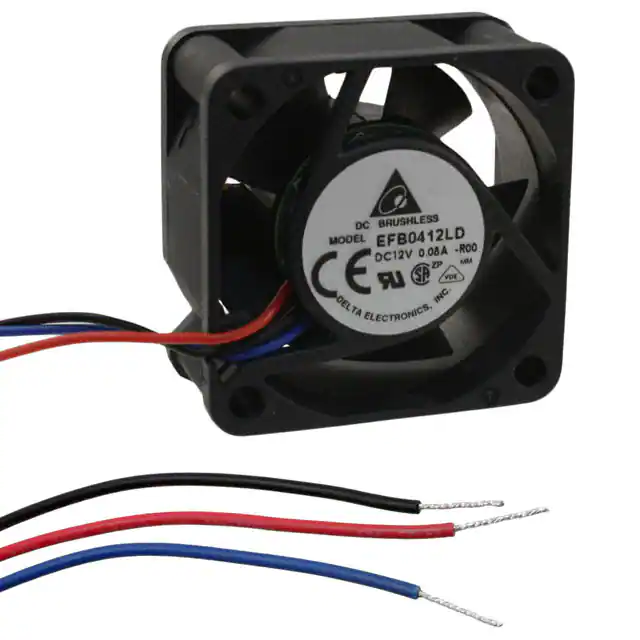

EFB0412LD-R00FAN AXIAL 40X20MM 12VDC WIRE |
0 |
|
데이터시트 |
EFB | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | 20.00mm | 5.5 CFM (0.154m³/min) | 0.136 in H2O (33.9 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 22.0dB(A) | 600 mW | 5000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.073 lb (33.11 g) |
|
OD3510-05HBFAN AXIAL 35X10MM BALL 5VDC WIRE |
0 |
|
데이터시트 |
OD3510 | Bulk | Active | 5VDC | Square - 35mm L x 35mm H | 10.00mm | - | - | Ball | Tubeaxial | - | - | - | - | 2 Wire Leads | - | - | - | - |
|
|
G4020E05B2-RSRFAN AXIAL 40X20MM BALL 5VDC WIRE |
0 |
|
데이터시트 |
G4020 | Bulk | Active | 5VDC | Square - 40mm L x 40mm H | 20.00mm | 11.7 CFM (0.328m³/min) | 0.230 in H2O (57.3 Pa) | Ball | Tubeaxial | Locked Rotor Sensor, Thermal Overload Protector (TOP) | 32.0dB(A) | - | 8000 RPM | 3 Wire Leads | - | - | CE, cUL, TUV, UL | 0.062 lb (28.12 g) |
|
|
G4020E05B2-RSR-WSFAN AXIAL 40X20MM BALL 5VDC WIRE |
0 |
|
데이터시트 |
G4020 | Bulk | Active | 5VDC | Square - 40mm L x 40mm H | 20.00mm | 11.7 CFM (0.328m³/min) | 0.230 in H2O (57.3 Pa) | Ball | Tubeaxial | Alarm Sensor, Locked Rotor Sensor, Thermal Overload Protector (TOP) | 32.0dB(A) | - | 8000 RPM | 4 Wire Leads | - | - | CE, cUL, TUV, UL | 0.062 lb (28.12 g) |
|
G4020E12B1-RSR-WSFAN AXIAL 40X20MM 12VDC WIRE |
0 |
|
데이터시트 |
G4020 | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | 20.00mm | 11.7 CFM (0.328m³/min) | 0.230 in H2O (57.3 Pa) | Ball | Tubeaxial | Alarm Sensor, Locked Rotor Sensor, Thermal Overload Protector (TOP) | 32.0dB(A) | - | 8000 RPM | 4 Wire Leads | - | - | CE, cUL, TUV, UL | 0.062 lb (28.12 g) |
|
|
G4020E12B2-RSRFAN AXIAL 40X20MM 12VDC WIRE |
0 |
|
데이터시트 |
G4020 | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | 20.00mm | 11.7 CFM (0.328m³/min) | 0.230 in H2O (57.3 Pa) | Ball | Tubeaxial | Locked Rotor Sensor, Thermal Overload Protector (TOP) | 32.0dB(A) | - | 8000 RPM | 3 Wire Leads | - | - | CE, cUL, TUV, UL | 0.062 lb (28.12 g) |
|
|
G4020E24B1-RSR-TTLFAN AXIAL 40X20MM 24VDC WIRE |
0 |
|
데이터시트 |
G4020 | Bulk | Active | 24VDC | Square - 40mm L x 40mm H | 20.00mm | 11.7 CFM (0.328m³/min) | 0.230 in H2O (57.3 Pa) | Ball | Tubeaxial | Speed Sensor (Tach), Thermal Overload Protector (TOP) | 32.0dB(A) | - | 8000 RPM | 3 Wire Leads | - | - | CE, cUL, TUV, UL | 0.062 lb (28.12 g) |
|
|
G4020E24B2-RSRFAN AXIAL 40X20MM 24VDC WIRE |
0 |
|
데이터시트 |
G4020 | Bulk | Active | 24VDC | Square - 40mm L x 40mm H | 20.00mm | 11.7 CFM (0.328m³/min) | 0.230 in H2O (57.3 Pa) | Ball | Tubeaxial | Locked Rotor Sensor, Thermal Overload Protector (TOP) | 32.0dB(A) | - | 8000 RPM | 3 Wire Leads | - | - | CE, cUL, TUV, UL | 0.062 lb (28.12 g) |
|
|
G4020H05B1-RSRFAN AXIAL 40X20MM BALL 5VDC WIRE |
0 |
|
데이터시트 |
G4020 | Bulk | Active | 5VDC | Square - 40mm L x 40mm H | 20.00mm | 11.0 CFM (0.308m³/min) | 0.200 in H2O (49.8 Pa) | Ball | Tubeaxial | Speed Sensor (Tach), Thermal Overload Protector (TOP) | 29.0dB(A) | - | 7000 RPM | 3 Wire Leads | - | - | CE, cUL, TUV, UL | 0.062 lb (28.12 g) |
|
|
G4020H05B1-RSR-WSFAN AXIAL 40X20MM BALL 5VDC WIRE |
0 |
|
데이터시트 |
G4020 | Bulk | Active | 5VDC | Square - 40mm L x 40mm H | 20.00mm | 11.0 CFM (0.308m³/min) | 0.200 in H2O (49.8 Pa) | Ball | Tubeaxial | Alarm Sensor, Locked Rotor Sensor, Thermal Overload Protector (TOP) | 29.0dB(A) | - | 7000 RPM | 4 Wire Leads | - | - | CE, cUL, TUV, UL | 0.062 lb (28.12 g) |
|
|
G4020H05B2-RSRFAN AXIAL 40X20MM BALL 5VDC WIRE |
0 |
|
데이터시트 |
G4020 | Bulk | Active | 5VDC | Square - 40mm L x 40mm H | 20.00mm | 11.0 CFM (0.308m³/min) | 0.200 in H2O (49.8 Pa) | Ball | Tubeaxial | Locked Rotor Sensor, Thermal Overload Protector (TOP) | 29.0dB(A) | - | 7000 RPM | 3 Wire Leads | - | - | CE, cUL, TUV, UL | 0.062 lb (28.12 g) |
|
|
G4020H12B1-RSRFAN AXIAL 40X20MM 12VDC WIRE |
0 |
|
데이터시트 |
G4020 | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | 20.00mm | 11.0 CFM (0.308m³/min) | 0.200 in H2O (49.8 Pa) | Ball | Tubeaxial | Speed Sensor (Tach), Thermal Overload Protector (TOP) | 29.0dB(A) | - | 7000 RPM | 3 Wire Leads | - | - | CE, cUL, TUV, UL | 0.062 lb (28.12 g) |
|
|
G4020H12B2-RSRFAN AXIAL 40X20MM 12VDC WIRE |
0 |
|
데이터시트 |
G4020 | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | 20.00mm | 11.0 CFM (0.308m³/min) | 0.200 in H2O (49.8 Pa) | Ball | Tubeaxial | Locked Rotor Sensor, Thermal Overload Protector (TOP) | 29.0dB(A) | - | 7000 RPM | 3 Wire Leads | - | - | CE, cUL, TUV, UL | 0.062 lb (28.12 g) |
|
|
G4020L05B1-RSR-WSFAN AXIAL 40X20MM BALL 5VDC WIRE |
0 |
|
데이터시트 |
G4020 | Bulk | Active | 5VDC | Square - 40mm L x 40mm H | 20.00mm | 8.0 CFM (0.224m³/min) | 0.110 in H2O (27.4 Pa) | Ball | Tubeaxial | Alarm Sensor, Speed Sensor (Tach), Thermal Overload Protector (TOP) | 23.0dB(A) | - | 5000 RPM | 4 Wire Leads | - | - | CE, cUL, TUV, UL | 0.062 lb (28.12 g) |
|
|
G4020L05B2-RSRFAN AXIAL 40X20MM BALL 5VDC WIRE |
0 |
|
데이터시트 |
G4020 | Bulk | Active | 5VDC | Square - 40mm L x 40mm H | 20.00mm | 8.0 CFM (0.224m³/min) | 0.110 in H2O (27.4 Pa) | Ball | Tubeaxial | Locked Rotor Sensor, Thermal Overload Protector (TOP) | 23.0dB(A) | - | 5000 RPM | 3 Wire Leads | - | - | CE, cUL, TUV, UL | 0.062 lb (28.12 g) |
