DC 무브러시 팬(BLDC)
| 사진 | 제조업체 부품 번호 | 재고 상태 | 수량 | 데이터시트 | 시리즈 | 패키징 | 제품 상태 | 전압 - 정격 | 크기/치수 | 너비 | 공기 흐름 | 정압 | 베어링 유형 | 팬 유형 | 기능 | 소음 | 전력(와트) | RPM | 종단 | 침투 방지 | 작동 온도 | 승인 기관 | 무게 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
KDE1203PFB3-8(V)FAN AXIAL 30X10MM 12VDC WIRE |
0 |
|
데이터시트 |
KDE | - | Obsolete | 12VDC | Square - 30mm L x 30mm H | 10.00mm | 3.2 CFM (0.090m³/min) | 0.060 in H2O (14.9 Pa) | Ball | Tubeaxial | - | 18.5dB(A) | 600 mW | 5000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.017 lb (7.71 g) |
|
KDE0502PFB2-8VFAN AXIAL 25X10MM BALL 5VDC WIRE |
0 |
|
데이터시트 |
KDE | - | Obsolete | 5VDC | Square - 25mm L x 25mm H | 10.00mm | 2.5 CFM (0.070m³/min) | 0.160 in H2O (39.8 Pa) | Ball | Tubeaxial | - | 24.0dB(A) | 600 mW | 9500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.015 lb (6.8 g) |
|

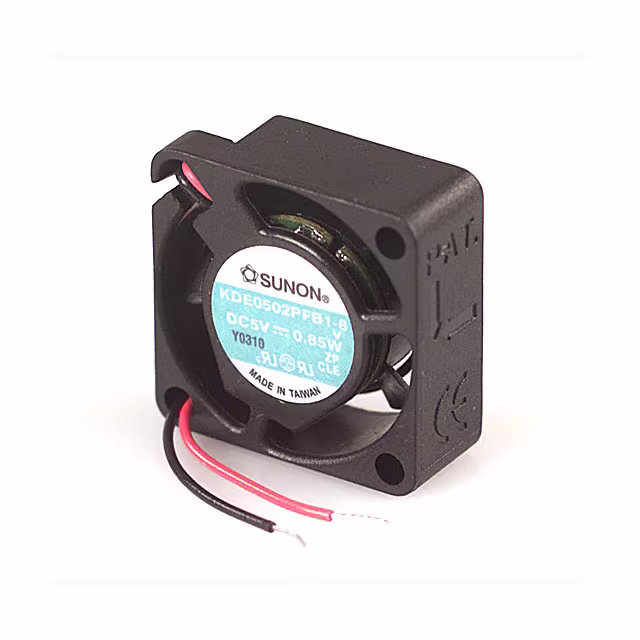

KDE0502PFB1-8 ( V )FAN AXIAL 25X10MM BALL 5VDC WIRE |
0 |
|
데이터시트 |
KDE | - | Obsolete | 5VDC | Square - 25mm L x 25mm H | 10.00mm | 3.1 CFM (0.087m³/min) | 0.200 in H2O (49.8 Pa) | Ball | Tubeaxial | - | 25.4dB(A) | 850 mW | 11500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.015 lb (6.8 g) |
|

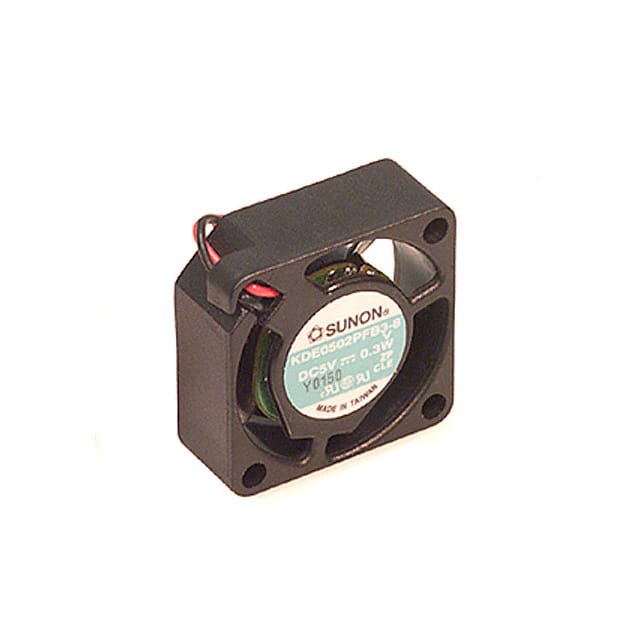

KDE0502PFB3-8 VFAN AXIAL 25X10MM BALL 5VDC WIRE |
0 |
|
데이터시트 |
KDE | - | Obsolete | 5VDC | Square - 25mm L x 25mm H | 10.00mm | 1.8 CFM (0.050m³/min) | 0.090 in H2O (22.4 Pa) | Ball | Tubeaxial | - | 23.0dB(A) | 300 mW | 6500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.015 lb (6.8 g) |
|
KDE1202PFB1-8(V)FAN AXIAL 25X10MM 12VDC WIRE |
0 |
|
데이터시트 |
KDE | - | Obsolete | 12VDC | Square - 25mm L x 25mm H | 10.00mm | 3.1 CFM (0.087m³/min) | 0.190 in H2O (47.3 Pa) | Ball | Tubeaxial | - | 25.0dB(A) | 1 W | 11000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.015 lb (6.8 g) |
|
KDE1202PFB3-8(V)FAN AXIAL 25X10MM 12VDC WIRE |
0 |
|
데이터시트 |
KDE | - | Obsolete | 12VDC | Square - 25mm L x 25mm H | 10.00mm | 2.0 CFM (0.056m³/min) | 0.100 in H2O (24.9 Pa) | Ball | Tubeaxial | - | 22.0dB(A) | 500 mW | 7000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.015 lb (6.8 g) |
|
KDE0503PFB1-8(V)FAN AXIAL 30X10MM BALL 5VDC WIRE |
0 |
|
데이터시트 |
KDE | - | Obsolete | 5VDC | Square - 30mm L x 30mm H | 10.00mm | 5.1 CFM (0.143m³/min) | 0.140 in H2O (34.9 Pa) | Ball | Tubeaxial | - | 22.5dB(A) | 900 mW | 8000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.017 lb (7.71 g) |
|
KDE1203PFB1-8(V)FAN AXIAL 30X10MM 12VDC WIRE |
0 |
|
데이터시트 |
KDE | - | Obsolete | 12VDC | Square - 30mm L x 30mm H | 10.00mm | 5.1 CFM (0.143m³/min) | 0.140 in H2O (34.9 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 27.0dB(A) | 900 mW | 8000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.017 lb (7.71 g) |
|
KDE1202PFB2-8(V)FAN AXIAL 25X10MM 12VDC WIRE |
0 |
|
데이터시트 |
KDE | - | Obsolete | 12VDC | Square - 25mm L x 25mm H | 10.00mm | 2.5 CFM (0.070m³/min) | 0.160 in H2O (39.8 Pa) | Ball | Tubeaxial | - | 24.0dB(A) | 700 mW | 9500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.015 lb (6.8 g) |
|
KDE0503PFB2-8(V)FAN AXIAL 30X10MM BALL 5VDC WIRE |
0 |
|
데이터시트 |
KDE | - | Obsolete | 5VDC | Square - 30mm L x 30mm H | 10.00mm | 4.2 CFM (0.118m³/min) | 0.105 in H2O (26.1 Pa) | Ball | Tubeaxial | - | 20.5dB(A) | 600 mW | 7000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.017 lb (7.71 g) |
|
KDE1203PFB2-8(V)FAN AXIAL 30X10MM 12VDC WIRE |
0 |
|
데이터시트 |
KDE | - | Obsolete | 12VDC | Square - 30mm L x 30mm H | 10.00mm | 4.2 CFM (0.118m³/min) | 0.110 in H2O (27.4 Pa) | Ball | Tubeaxial | - | 20.5dB(A) | 700 mW | 7000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.017 lb (7.71 g) |
|
KDE1202PFB1-8FAN AXIAL 25X10MM 12VDC WIRE |
0 |
|
데이터시트 |
KDE | - | Obsolete | 12VDC | Square - 25mm L x 25mm H | 10.00mm | 2.4 CFM (0.067m³/min) | 0.200 in H2O (49.8 Pa) | Ball | Tubeaxial | - | 33.0dB(A) | 1 W | 13000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.015 lb (6.8 g) |
|
|
KDE1202PFB3-8FAN AXIAL 25X10MM 12VDC WIRE |
0 |
|
데이터시트 |
KDE | - | Obsolete | 12VDC | Square - 25mm L x 25mm H | 10.00mm | 1.3 CFM (0.036m³/min) | 0.090 in H2O (22.4 Pa) | Ball | Tubeaxial | - | 26.0dB(A) | 500 mW | 7000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.015 lb (6.8 g) |
|
|
KDE1203PFB3-8FAN AXIAL 30X10MM 12VDC WIRE |
0 |
|
데이터시트 |
KDE | - | Obsolete | 12VDC | Square - 30mm L x 30mm H | 10.00mm | 2.3 CFM (0.064m³/min) | 0.070 in H2O (17.4 Pa) | Ball | Tubeaxial | - | 18.5dB(A) | 600 mW | 5500 RPM | 2 Wire Leads | - | - | CE, CUR, TUV, UL | - |
|
|
KDE0502PFB2-8FAN AXIAL 25X10MM BALL 5VDC WIRE |
0 |
|
데이터시트 |
KDE | - | Obsolete | 5VDC | Square - 25mm L x 25mm H | 10.00mm | 2.0 CFM (0.056m³/min) | 0.160 in H2O (39.8 Pa) | Ball | Tubeaxial | - | 24.0dB(A) | 600 mW | 10000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.015 lb (6.8 g) |
|
|
KDE1202PFB2-8FAN AXIAL 25X10MM 12VDC WIRE |
0 |
|
데이터시트 |
KDE | - | Obsolete | 12VDC | Square - 25mm L x 25mm H | 10.00mm | 2.0 CFM (0.056m³/min) | 0.160 in H2O (39.8 Pa) | Ball | Tubeaxial | - | 30.0dB(A) | 700 mW | 10000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CUR, TUV, UL | 0.015 lb (6.8 g) |
|
KDE0503PFB2-8FAN AXIAL 30X10MM BALL 5VDC WIRE |
0 |
|
데이터시트 |
KDE | - | Obsolete | 5VDC | Square - 30mm L x 30mm H | 10.00mm | 3.0 CFM (0.084m³/min) | 0.110 in H2O (27.4 Pa) | Ball | Tubeaxial | - | 25.0dB(A) | 600 mW | 8000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CUR, TUV, UL | 0.017 lb (7.71 g) |
|
|
KDE1203PFB2-8FAN AXIAL 30X10MM 12VDC WIRE |
0 |
|
데이터시트 |
KDE | - | Obsolete | 12VDC | Square - 30mm L x 30mm H | 10.00mm | 3.0 CFM (0.084m³/min) | 0.110 in H2O (27.4 Pa) | Ball | Tubeaxial | - | 25.0dB(A) | 800 mW | 8000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CUR, TUV, UL | 0.017 lb (7.71 g) |
|
|
MF35100V3-1000U-A99Thermal Products |
0 |
|
데이터시트 |
MF | Bulk | Active | 5VDC | Square - 35mm L x 35mm H | 10.00mm | 3.7 CFM (0.104m³/min) | 0.070 in H2O (17.4 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart | 13.1dB(A) | 230 mW | 5300 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | - |
|
|
MF25100V3-1000U-A99Thermal Products |
0 |
|
데이터시트 |
MF | Bulk | Active | 5VDC | Square - 25mm L x 25mm H | 10.00mm | 1.3 CFM (0.036m³/min) | 0.070 in H2O (17.4 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart | 8.8dB(A) | 200 mW | 6800 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | - |
