DC 무브러시 팬(BLDC)
| 사진 | 제조업체 부품 번호 | 재고 상태 | 수량 | 데이터시트 | 시리즈 | 패키징 | 제품 상태 | 전압 - 정격 | 크기/치수 | 너비 | 공기 흐름 | 정압 | 베어링 유형 | 팬 유형 | 기능 | 소음 | 전력(와트) | RPM | 종단 | 침투 방지 | 작동 온도 | 승인 기관 | 무게 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CFM-5020S-160-385-22FAN AXIAL 50X20MM 12VDC WIRE |
0 |
|
데이터시트 |
CFM-50S | Box | Active | 12VDC | Square - 50mm L x 50mm H | 20.00mm | 16.2 CFM (0.454m³/min) | 0.240 in H2O (59.8 Pa) | Sleeve | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 38.5dB(A) | 2.76 W | 6000 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
CBM-5015CF-165-428-22DC BLOWER, 51.7 X 51.25 X 14.9 M |
0 |
|
데이터시트 |
CBM-50CF | Box | Active | 12VDC | Rectangular/Rounded - 51.6mm L x 51.2mm H | 15.00mm | 4.1 CFM (0.115m³/min) | 0.930 in H2O (231.7 Pa) | omniCOOL™ Magnetic Sleeve | Blower | PWM Control, Speed Sensor (Tach) | 42.8dB(A) | 2.16 W | 6500 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
CBM-4007C-035-218-22DC BLOWER, 40 MM SQUARE, 7 MM, 5 |
0 |
|
데이터시트 |
CBM-40C | Box | Active | 5VDC | Square/Rounded - 40mm L x 40mm H | 7.00mm | 1.0 CFM (0.028m³/min) | 0.180 in H2O (44.8 Pa) | omniCOOL™ Magnetic Sleeve | Blower | - | 21.8dB(A) | 300 mW | 3500 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
2410SB-05W-B40-E00FAN AXIAL 60X25MM 24VDC WIRE |
0 |
|
데이터시트 |
06025SA | Box | Obsolete | 24VDC | Square - 60mm L x 60mm H | 25.00mm | 19.8 CFM (0.554m³/min) | 0.184 in H2O (46.0 Pa) | Ball | Tubeaxial | - | 26.5dB(A) | 1.44 W | 4000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, UL, VDE | 0.123 lb (55.79 g) |
|
CFM-6020V-245-335FAN AXIAL 60X20MM 24VDC WIRE |
0 |
|
데이터시트 |
CFM-60V | Tray | Active | 24VDC | Square - 60mm L x 60mm H | 20.00mm | 25.5 CFM (0.714m³/min) | 0.270 in H2O (67.3 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart | 39.0dB(A) | 2.09 W | 5700 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.112 lb (50.8 g) |
|
|
CFM-6025V-231-167-11FAN AXIAL 60X25MM 24VDC WIRE |
0 |
|
데이터시트 |
CFM-60V | Tray | Obsolete | 24VDC | Square - 60mm L x 60mm H | 25.00mm | 16.0 CFM (0.448m³/min) | 0.100 in H2O (24.9 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart | 16.7dB(A) | 680 mW | 3100 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.099 lb (44.91 g) |
|
|
CFM-6025V-238-220-11FAN AXIAL 60X25MM 24VDC WIRE |
0 |
|
데이터시트 |
CFM-60V | Tray | Obsolete | 24VDC | Square - 60mm L x 60mm H | 25.00mm | 19.3 CFM (0.540m³/min) | 0.150 in H2O (37.4 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart | 22.0dB(A) | 920 mW | 3800 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.099 lb (44.91 g) |
|
|
CFM-6025V-245-270-11FAN AXIAL 60X25MM 24VDC WIRE |
0 |
|
데이터시트 |
CFM-60V | Tray | Obsolete | 24VDC | Square - 60mm L x 60mm H | 25.00mm | 23.5 CFM (0.658m³/min) | 0.210 in H2O (52.3 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart | 27.0dB(A) | 1.4 W | 4500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.099 lb (44.91 g) |
|
|
CFM-6025V-252-312-11FAN AXIAL 60X25MM 24VDC WIRE |
0 |
|
데이터시트 |
CFM-60V | Tray | Obsolete | 24VDC | Square - 60mm L x 60mm H | 25.00mm | 27.0 CFM (0.756m³/min) | 0.310 in H2O (77.2 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart | 31.2dB(A) | 2.21 W | 5200 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.099 lb (44.91 g) |
|
|
KDE1206PHV1.MS.A.GNFAN AXIAL 60X15MM 12VDC |
0 |
|
데이터시트 |
* | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
KDE1206PHV2.MS.A.GNFAN AXIAL 60X15MM 12VDC |
0 |
|
데이터시트 |
* | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
KDE1206PHV3.MS.A.GNFAN AXIAL 60X15MM 12VDC |
0 |
|
데이터시트 |
* | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
MB60101V1-000U-F99FAN AXIAL 60X10MM 12VDC WIRE |
0 |
|
데이터시트 |
MagLev® MB | Bulk | Obsolete | 12VDC | Square - 60mm L x 60mm H | 10.00mm | 16.0 CFM (0.448m³/min) | 0.120 in H2O (29.9 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart, Locked Rotor Sensor | 28.5dB(A) | 1.44 W | 4000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.064 lb (29.03 g) |
|
|
KDE1208PTB1-6AFFAN AXIAL 80X25MM 12VDC WIRE |
0 |
|
데이터시트 |
KDE | - | Obsolete | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 42.5 CFM (1.19m³/min) | - | Ball | Tubeaxial | Speed Sensor (Tach) | - | 2.6 W | - | 3 Wire Leads | - | - | CE, CUR, TUV, UL | - |
|
|
KDE1208PTB1-6ARFAN AXIAL 80X25MM 12VDC WIRE |
0 |
|
데이터시트 |
KDE | - | Obsolete | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 42.5 CFM (1.19m³/min) | - | Ball | Tubeaxial | Locked Rotor Sensor | - | 2.6 W | - | 3 Wire Leads | - | - | CE, CUR, TUV, UL | - |
|
|
KDE1208PTB3-6AFFAN AXIAL 80X25MM 12VDC WIRE |
0 |
|
데이터시트 |
KDE | - | Obsolete | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 31.0 CFM (0.868m³/min) | - | Ball | Tubeaxial | Speed Sensor (Tach) | - | 1.4 W | - | 3 Wire Leads | - | - | CE, CUR, TUV, UL | - |
|
|
KDE1208PTB3-6ARFAN AXIAL 80X25MM 12VDC WIRE |
0 |
|
데이터시트 |
KDE | - | Obsolete | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 31.0 CFM (0.868m³/min) | - | Ball | Tubeaxial | Locked Rotor Sensor | - | 1.4 W | - | 3 Wire Leads | - | - | CE, CUR, TUV, UL | - |
|

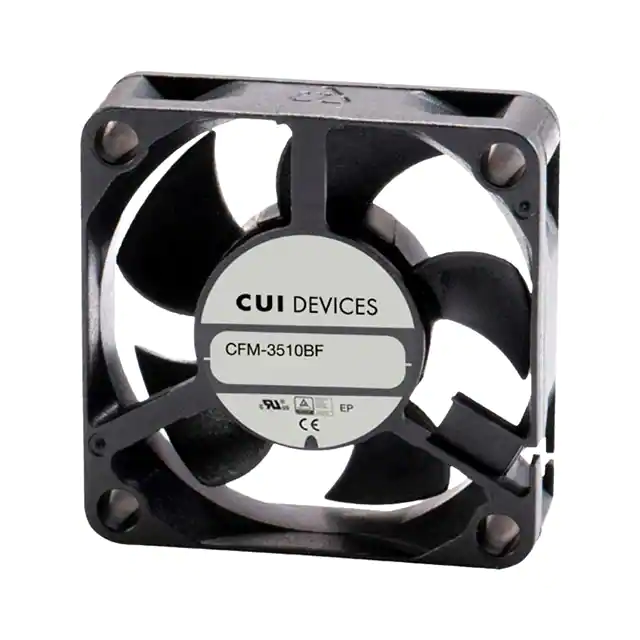

CFM-3510BF-160-188-22FAN AXIAL 35X10.3MM 12VDC WIRE |
0 |
|
데이터시트 |
CFM-35BF | Box | Active | 12VDC | Square - 35mm L x 35mm H | 10.30mm | 3.9 CFM (0.109m³/min) | 0.080 in H2O (19.9 Pa) | Ball | Tubeaxial | PWM Control, Speed Sensor (Tach) | 18.8dB(A) | 720 mW | 6000 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
CFM-3510BF-170-222-22FAN AXIAL 35X10.3MM 12VDC WIRE |
0 |
|
데이터시트 |
CFM-35BF | Box | Active | 12VDC | Square - 35mm L x 35mm H | 10.30mm | 4.6 CFM (0.129m³/min) | 0.100 in H2O (24.9 Pa) | Ball | Tubeaxial | PWM Control, Speed Sensor (Tach) | 22.3dB(A) | 1.08 W | 7000 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
CFM-3010B-1100-316-20FAN AXIAL 30X10.5MM 12VDC WIRE |
0 |
|
데이터시트 |
CFM-30B | Box | Active | 12VDC | Square - 30mm L x 30mm H | 10.50mm | 3.2 CFM (0.090m³/min) | 0.130 in H2O (32.4 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 31.6dB(A) | 1.32 W | 10000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
