DC 무브러시 팬(BLDC)
| 사진 | 제조업체 부품 번호 | 재고 상태 | 수량 | 데이터시트 | 시리즈 | 패키징 | 제품 상태 | 전압 - 정격 | 크기/치수 | 너비 | 공기 흐름 | 정압 | 베어링 유형 | 팬 유형 | 기능 | 소음 | 전력(와트) | RPM | 종단 | 침투 방지 | 작동 온도 | 승인 기관 | 무게 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MF50152V2-1000U-F9924VDC FAN 50X15MM TACH |
0 |
|
데이터시트 |
MF | Box | Active | 24VDC | Square - 50mm L x 50mm H | 15.00mm | 13.0 CFM (0.364m³/min) | 0.170 in H2O (42.3 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart, Locked Rotor Sensor | 29.0dB(A) | 0.65 W | 5000 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
3610SB-04W-B20-B00FAN AXIAL 92X25MM 12VDC WIRE |
0 |
|
데이터시트 |
09225SA | Bulk | Obsolete | 12VDC | Square - 92mm L x 92mm H | 25.00mm | 35.7 CFM (1.00m³/min) | 0.086 in H2O (21.5 Pa) | Ball | Tubeaxial | - | 25.0dB | 840 mW | 2050 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, UL, VDE | 0.209 lb (94.8 g) |
|
2410ML-04W-B19-B50FAN AXIAL 60X25MM 12VDC WIRE |
0 |
|
데이터시트 |
2410ML | Box | Obsolete | 12VDC | Square - 60mm L x 60mm H | 25.00mm | 13.7 CFM (0.384m³/min) | 0.083 in H2O (20.6 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 23.0dB | 900 mW | 2950 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.144 lb (65.32 g) |
|

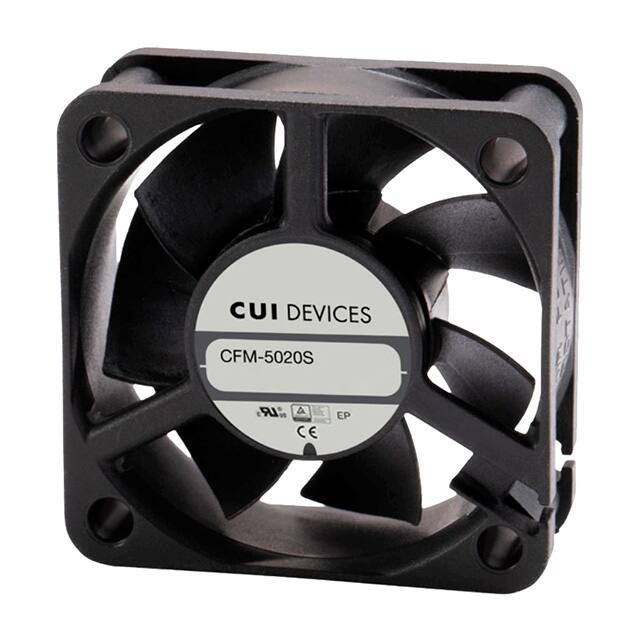

CFM-5020S-145-323-22FAN AXIAL 50X20MM 12VDC WIRE |
0 |
|
데이터시트 |
CFM-50S | Box | Active | 12VDC | Square - 50mm L x 50mm H | 20.00mm | 12.1 CFM (0.338m³/min) | 0.130 in H2O (32.4 Pa) | Sleeve | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 32.3dB(A) | 1.68 W | 4500 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
CFM-5020S-130-235-22FAN AXIAL 50X20MM 12VDC WIRE |
0 |
|
데이터시트 |
CFM-50S | Box | Active | 12VDC | Square - 50mm L x 50mm H | 20.00mm | 8.1 CFM (0.227m³/min) | 0.060 in H2O (14.9 Pa) | Sleeve | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 23.5dB(A) | 960 mW | 3000 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
EF80151S1-1000U-C9912VDC FAN 80X15MM TACH |
0 |
|
데이터시트 |
EF | Box | Active | 12VDC | Square - 80mm L x 80mm H | 15.00mm | 37.0 CFM (1.04m³/min) | 0.170 in H2O (42.3 Pa) | Sleeve | Tubeaxial | Speed Sensor (Tach) | 32.9dB(A) | 1.78 W | 3500 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
EF80151S2-1000U-C9912VDC FAN 80X15MM TACH |
0 |
|
데이터시트 |
EF | Box | Active | 12VDC | Square - 80mm L x 80mm H | 15.00mm | 33.6 CFM (0.941m³/min) | 0.130 in H2O (32.4 Pa) | Sleeve | Tubeaxial | Speed Sensor (Tach) | 29.9dB(A) | 1.26 W | 3100 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
EF80151S3-1000U-C9912VDC FAN 80X15MM TACH |
0 |
|
데이터시트 |
EF | Box | Active | 12VDC | Square - 80mm L x 80mm H | 15.00mm | 30.0 CFM (0.840m³/min) | 0.110 in H2O (27.4 Pa) | Sleeve | Tubeaxial | Speed Sensor (Tach) | 26.5dB(A) | 1.05 W | 2800 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
KD2405PHS1.GN.C1500FAN AXIAL 50X15.4MM 24VDC WIRE |
0 |
|
데이터시트 |
KD | Bulk | Obsolete | 24VDC | Square - 50mm L x 50mm H | 15.40mm | 17.0 CFM (0.476m³/min) | 0.230 in H2O (57.3 Pa) | Sleeve | Tubeaxial | Auto Restart | 33.0dB(A) | 1.9 W | 5800 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CUR, TUV, UL | - |
|
|
KD2405PHS2.GN.C1500FAN AXIAL 50X15.4MM 24VDC WIRE |
0 |
|
데이터시트 |
KD | Bulk | Obsolete | 24VDC | Square - 50mm L x 50mm H | 15.40mm | 13.0 CFM (0.364m³/min) | 0.170 in H2O (42.3 Pa) | Sleeve | Tubeaxial | Auto Restart | 29.0dB(A) | 1.3 W | 4700 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CUR, TUV, UL | - |
|
|
CFM-2006CF-0150-277DC AXIAL FAN, 20 MM SQUARE, 6 MM |
0 |
|
데이터시트 |
CFM-20CF | Box | Active | 5VDC | Square - 19.9mm L x 19.9mm H | 6.50mm | 0.820 CFM (0.023m³/min) | 0.140 in H2O (34.9 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart | 27.8dB(A) | 1 W | 15000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
CFM-4020V-260-210-11FAN AXIAL 40X20MM 24VDC WIRE |
0 |
|
데이터시트 |
CFM-40V | Tray | Active | 24VDC | Square - 40mm L x 40mm H | 20.00mm | 7.7 CFM (0.216m³/min) | 0.170 in H2O (42.3 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart, Locked Rotor Sensor | 21.0dB(A) | 720 mW | 6000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.064 lb (29.03 g) |
|
|
MA4010H24C-RSRFAN AXIAL 40X10MM 24VDC WIRE |
0 |
|
데이터시트 |
MA4010 | Bulk | Obsolete | 24VDC | Square - 40mm L x 40mm H | 10.00mm | 4.9 CFM (0.137m³/min) | 0.110 in H2O (27.4 Pa) | 1 Ball/1 Sleeve | Tubeaxial | - | 26.0dB(A) | - | 6000 RPM | 2 Wire Leads | - | - | cUL, UL | 0.046 lb (20.87 g) |
|
|
KD2406PTS1.13.A.GNFAN AXIAL 60X25MM 24VDC WIRE |
0 |
|
데이터시트 |
KD | Bulk | Obsolete | 24VDC | Square - 60mm L x 60mm H | 25.00mm | - | - | Sleeve | Tubeaxial | Auto Restart | - | - | - | 2 Wire Leads | - | - | - | - |
|
|
KD2406PTS3.13.A.GNFAN AXIAL 60X25MM 24VDC WIRE |
0 |
|
데이터시트 |
KD | Bulk | Obsolete | 24VDC | Square - 60mm L x 60mm H | 25.00mm | - | - | Sleeve | Tubeaxial | Auto Restart | - | - | - | 2 Wire Leads | - | - | - | - |
|
|
KD2408PTS1.13.GNFAN AXIAL 80X25MM 24VDC WIRE |
0 |
|
데이터시트 |
KD | Bulk | Obsolete | 24VDC | Square - 80mm L x 80mm H | 25.00mm | - | - | Sleeve | Tubeaxial | - | - | - | - | 2 Wire Leads | - | - | - | - |
|
MF60251V3-1000U-A99FAN AXIAL 60X25MM 12VDC WIRE |
0 |
|
데이터시트 |
MagLev® MF | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 25.00mm | 16.0 CFM (0.448m³/min) | 0.100 in H2O (24.9 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart | 16.7dB(A) | 530 mW | 3100 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | cURus, TUV | 0.101 lb (45.81 g) |
|
|
MF60201VX-1000U-A99FAN AXIAL 60X20MM 12VDC WIRE |
0 |
|
데이터시트 |
MagLev® MF | Box | Active | 12VDC | Square - 60mm L x 60mm H | 20.00mm | 25.5 CFM (0.714m³/min) | 0.270 in H2O (67.3 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart | 39.0dB(A) | 1.71 W | 5700 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | cURus, TUV | 0.111 lb (50.35 g) |
|
|
08020SS-12L-AA-00DC AXIAL FAN |
0 |
|
데이터시트 |
08020SS | Box | Active | 12VDC | Square - 80mm L x 80mm H | 20.00mm | 36.3 CFM (1.02m³/min) | 0.175 in H2O (43.7 Pa) | Sleeve | Tubeaxial | Auto Restart | 34.0dB | 1.32 W | 3300 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
|
08020SS-24M-EA-00DC AXIAL FAN |
0 |
|
데이터시트 |
08020SS | Box | Active | 24VDC | Square - 80mm L x 80mm H | 20.00mm | 40.2 CFM (1.13m³/min) | 0.177 in H2O (44.1 Pa) | Sleeve | Tubeaxial | Auto Restart | 37.5dB | 2.16 W | 3700 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
