DC 무브러시 팬(BLDC)
| 사진 | 제조업체 부품 번호 | 재고 상태 | 수량 | 데이터시트 | 시리즈 | 패키징 | 제품 상태 | 전압 - 정격 | 크기/치수 | 너비 | 공기 흐름 | 정압 | 베어링 유형 | 팬 유형 | 기능 | 소음 | 전력(와트) | RPM | 종단 | 침투 방지 | 작동 온도 | 승인 기관 | 무게 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
KD1206PHS2.GNFAN AXIAL 60X15MM 12VDC WIRE |
0 |
|
데이터시트 |
KD | Bulk | Obsolete | 12VDC | Square - 60mm L x 60mm H | 15.00mm | 18.0 CFM (0.504m³/min) | 0.140 in H2O (34.9 Pa) | Sleeve | Tubeaxial | - | 31.0dB(A) | 1.1 W | 3800 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | - |
|
|
CFM-2010CF-1120-217DC AXIAL FAN, 20 MM SQUARE, 10 M |
0 |
|
데이터시트 |
CFM-20CF | Box | Active | 12VDC | Square - 20mm L x 20mm H | 10.30mm | 1.1 CFM (0.031m³/min) | 0.120 in H2O (29.9 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart | 21.7dB(A) | 960 mW | 12000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
CFM-4010C-250-195FAN AXIAL 40X10.5MM 24VDC WIRE |
0 |
|
데이터시트 |
CFM-40C | Box | Active | 24VDC | Square - 40mm L x 40mm H | 10.50mm | 4.2 CFM (0.118m³/min) | 0.070 in H2O (17.4 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart | 19.5dB(A) | 1.2 W | 5000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
03510SS-05L-AT-00FAN AXIAL 30X10MM 5VDC WIRE |
0 |
|
데이터시트 |
03510SS | Bulk | Active | 5VDC | Square - 30mm L x 30mm H | 10.00mm | 3.9 CFM (0.109m³/min) | 0.124 in H2O (30.9 Pa) | Sleeve | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 19.0dB | 400 mW | 7000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
GDA4020-12BBFAN AXIAL 40X20MM 12VDC WIRE |
0 |
|
데이터시트 |
Gryphon | - | Obsolete | 12VDC | Square - 40mm L x 40mm H | 20.00mm | 8.3 CFM (0.232m³/min) | 0.250 in H2O (62.3 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 30.9dB(A) | 1.4 W | 8000 RPM | 3 Wire Leads | - | - | - | 0.064 lb (29.03 g) |
|
|
GDA4020-24BBFAN AXIAL 40X20MM 24VDC WIRE |
0 |
|
데이터시트 |
Gryphon | - | Obsolete | 24VDC | Square - 40mm L x 40mm H | 20.00mm | 8.3 CFM (0.232m³/min) | 0.250 in H2O (62.3 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 30.9dB(A) | 1.7 W | 8000 RPM | 3 Wire Leads | - | - | - | 0.064 lb (29.03 g) |
|

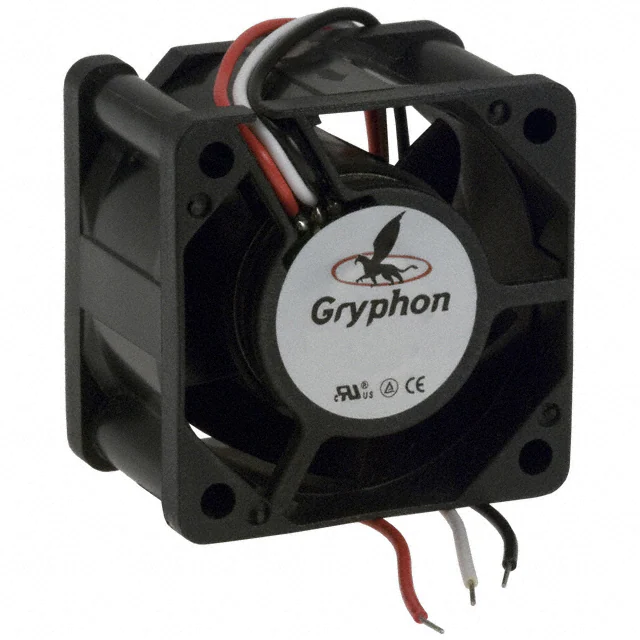

GDA4028-12BBFAN AXIAL 40X28MM 12VDC WIRE |
0 |
|
데이터시트 |
Gryphon | - | Obsolete | 12VDC | Square - 40mm L x 40mm H | 28.00mm | 11.0 CFM (0.308m³/min) | 0.340 in H2O (84.7 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 31.4dB(A) | 2.4 W | 8800 RPM | 3 Wire Leads | - | - | - | 0.079 lb (35.83 g) |
|
CFM-6025CF-050-351-20FAN AXIAL 60X25.4MM 5VDC WIRE |
0 |
|
데이터시트 |
CFM-60CF | Box | Active | 5VDC | Square - 60mm L x 60mm H | 25.40mm | 24.0 CFM (0.672m³/min) | 0.220 in H2O (54.8 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 35.2dB(A) | 2.55 W | 5000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
HA92251V4-1000U-G9912VDC FAN 92X25MM ALARM |
0 |
|
데이터시트 |
HA | Box | Active | 12VDC | Square - 92mm L x 92mm H | 25.00mm | 28.4 CFM (0.795m³/min) | 0.050 in H2O (12.4 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 17.7dB(A) | 0.54 W | 1700 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
CFM-4020V-050-165-11FAN AXIAL 40X20MM 5VDC WIRE |
0 |
|
데이터시트 |
CFM-40V | Tray | Active | 5VDC | Square - 40mm L x 40mm H | 20.00mm | 6.3 CFM (0.176m³/min) | 0.110 in H2O (27.4 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart, Locked Rotor Sensor | 16.5dB(A) | 440 mW | 5000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.064 lb (29.03 g) |
|
|
CFM-4020V-060-210-11FAN AXIAL 40X20MM 5VDC WIRE |
0 |
|
데이터시트 |
CFM-40V | Tray | Active | 5VDC | Square - 40mm L x 40mm H | 20.00mm | 7.7 CFM (0.216m³/min) | 0.170 in H2O (42.3 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart, Locked Rotor Sensor | 21.0dB(A) | 620 mW | 6000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.064 lb (29.03 g) |
|
|
CFM-4020V-070-255-11FAN AXIAL 40X20MM 5VDC WIRE |
0 |
|
데이터시트 |
CFM-40V | Tray | Active | 5VDC | Square - 40mm L x 40mm H | 20.00mm | 8.9 CFM (0.249m³/min) | 0.220 in H2O (54.8 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart, Locked Rotor Sensor | 25.5dB(A) | 870 mW | 7000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.064 lb (29.03 g) |
|
|
CFM-4020V-150-165-11FAN AXIAL 40X20MM 12VDC WIRE |
0 |
|
데이터시트 |
CFM-40V | Tray | Active | 12VDC | Square - 40mm L x 40mm H | 20.00mm | 6.3 CFM (0.176m³/min) | 0.110 in H2O (27.4 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart, Locked Rotor Sensor | 16.5dB(A) | 560 mW | 5000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.064 lb (29.03 g) |
|
|
CFM-4020V-160-210-11FAN AXIAL 40X20MM 12VDC WIRE |
0 |
|
데이터시트 |
CFM-40V | Tray | Active | 12VDC | Square - 40mm L x 40mm H | 20.00mm | 7.7 CFM (0.216m³/min) | 0.170 in H2O (42.3 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart, Locked Rotor Sensor | 21.0dB(A) | 650 mW | 6000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.064 lb (29.03 g) |
|
|
CFM-4020V-170-255-11FAN AXIAL 40X20MM 12VDC WIRE |
0 |
|
데이터시트 |
CFM-40V | Tray | Active | 12VDC | Square - 40mm L x 40mm H | 20.00mm | 8.9 CFM (0.249m³/min) | 0.220 in H2O (54.8 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart, Locked Rotor Sensor | 25.5dB(A) | 810 mW | 7000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.064 lb (29.03 g) |
|
|
CFM-4020V-180-275-11FAN AXIAL 40X20MM 12VDC WIRE |
0 |
|
데이터시트 |
CFM-40V | Tray | Active | 12VDC | Square - 40mm L x 40mm H | 20.00mm | 10.8 CFM (0.302m³/min) | 0.290 in H2O (72.2 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart, Locked Rotor Sensor | 27.5dB(A) | 1.11 W | 8000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.064 lb (29.03 g) |
|
|
CFM-4020V-170-255-20FAN AXIAL 40X20MM 12VDC WIRE |
0 |
|
데이터시트 |
CFM-40V | Tray | Active | 12VDC | Square - 40mm L x 40mm H | 20.00mm | 8.9 CFM (0.249m³/min) | 0.220 in H2O (54.8 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 25.5dB(A) | 810 mW | 7000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.064 lb (29.03 g) |
|
CFM-7020V-132-330-20FAN AXIAL 70X20MM 12VDC WIRE |
0 |
|
데이터시트 |
CFM-70V | Tray | Obsolete | 12VDC | Square - 70mm L x 70mm H | 20.00mm | 29.0 CFM (0.812m³/min) | 0.140 in H2O (34.9 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 33.0dB(A) | 1.8 W | 3200 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.132 lb (59.87 g) |
|
|
06015SS-24L-AA-00DC AXIAL FAN |
0 |
|
데이터시트 |
06015SS | Box | Active | 24VDC | Square - 60mm L x 60mm H | 15.00mm | 17.1 CFM (0.479m³/min) | 0.090 in H2O (22.4 Pa) | Sleeve | Tubeaxial | Auto Restart | 26.0dB | 1.2 W | 3200 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
|
06015SS-24N-AA-00DC AXIAL FAN |
0 |
|
데이터시트 |
06015SS | Box | Active | 24VDC | Square - 60mm L x 60mm H | 15.00mm | 22.6 CFM (0.640m³/min) | 0.156 in H2O (38.8 Pa) | Sleeve | Tubeaxial | Auto Restart | 34.0dB | 2.4 W | 4200 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
