DC 무브러시 팬(BLDC)
| 사진 | 제조업체 부품 번호 | 재고 상태 | 수량 | 데이터시트 | 시리즈 | 패키징 | 제품 상태 | 전압 - 정격 | 크기/치수 | 너비 | 공기 흐름 | 정압 | 베어링 유형 | 팬 유형 | 기능 | 소음 | 전력(와트) | RPM | 종단 | 침투 방지 | 작동 온도 | 승인 기관 | 무게 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AFB0412VA-00AXIAL 40X10 12VDC PWM |
0 |
|
데이터시트 |
AFB | Box | Active | 12VDC | Square - 40mm L x 40mm H | 10.00mm | 8.2 CFM (0.231m³/min) | 0.190 in H2O (47.3 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 31.5dB(A) | 0.6 W | 7000 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | cURus, TUV | - |
|
AFB0612VH-AF00FAN AXIAL 60X25.4MM 12VDC WIRE |
0 |
|
데이터시트 |
AFB | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 25.40mm | 30.5 CFM (0.854m³/min) | 0.345 in H2O (85.9 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 42.5dB(A) | 2.76 W | 5500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.176 lb (80.00 g) |
|
|
9S0924F401FAN AXIAL 92X25MM 24VDC WIRE |
0 |
|
데이터시트 |
San Ace 92 | Box | Active | 24VDC | Square - 92mm L x 92mm H | 25.00mm | 44.5 CFM (1.25m³/min) | 0.120 in H2O (29.9 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 27.0dB(A) | 2.16 W | 2650 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CSA, TUV, UL | 0.222 lb (100.7 g) |
|
AFB0824HBFAN AXIAL 80X15MM 24VDC WIRE |
3 |
|
데이터시트 |
AFB | Box | Active | 24VDC | Square - 80mm L x 80mm H | 15.00mm | 33.6 CFM (0.941m³/min) | 0.138 in H2O (34.3 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 34.0dB(A) | 1.92 W | 3100 RPM | 2 Wire Leads | - | - | CE, CSA, UL, VDE | 0.128 lb (58.06 g) |
|
|
PFB0624GHEFAN AXIAL 60X38MM 24VDC WIRE |
0 |
|
데이터시트 |
PFB | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 38.00mm | 55.6 CFM (1.56m³/min) | 1.444 in H2O (359.7 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 57.5dB(A) | 11.52 W | 10000 RPM | 2 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.287 lb (130.18 g) |
|
|
GF40282B1-1000U-ADPFAN AXIAL 24V 40X28MM GR487 |
0 |
|
데이터시트 |
GF | Box | Active | 12VDC | Square - 40mm L x 40mm H | 28.00mm | 19.6 CFM (0.549m³/min) | 1.380 in H2O (343.7 Pa) | Ball | Tubeaxial | Auto Restart | 52.8dB(A) | 5.52 W | 14600 RPM | 2 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
AUB0812EJ-00AXIAL 80X25 12VDC PWM |
0 |
|
데이터시트 |
AUB | Box | Active | 12VDC | Square - 80mm L x 80mm H | 25.40mm | 70.5 CFM (1.97m³/min) | 0.297 in H2O (74.0 Pa) | Superflo | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 46.5dB(A) | 6.6 W | 4500 RPM | 4 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, cURus, TUV | - |
|
|
DC0382024M2B-2T0FAN 38X20MM 24VDC |
0 |
|
데이터시트 |
- | Bulk | Active | 24VDC | Square - 38mm L x 38mm H | 20.00mm | 7.4 CFM (0.207m³/min) | 0.340 in H2O (84.7 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 40.0dB(A) | 2.88 W | 8000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|
109R0605M4021FAN AXIAL 60X25MM BALL 5VDC WIRE |
0 |
|
데이터시트 |
San Ace 60 | Box | Active | 5VDC | Square - 60mm L x 60mm H | 25.00mm | 12.7 CFM (0.356m³/min) | 0.079 in H2O (19.6 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 20.0dB(A) | 650 mW | 2600 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.199 lb (90.26 g) |
|
|
AFB1212HH-R00FAN AXIAL 120X25.4MM 12VDC WIRE |
0 |
|
데이터시트 |
AFB | Bulk | Active | 12VDC | Square - 120mm L x 120mm H | 25.40mm | 95.1 CFM (2.66m³/min) | 0.304 in H2O (75.7 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 41.5dB(A) | 3.96 W | 2800 RPM | 3 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.437 lb (198.00 g) |
|
FFB03812LNFAN AXIAL 38X28MM 12VDC WIRE |
0 |
|
데이터시트 |
FFB | Box | Active | 12VDC | Square - 38mm L x 38mm H | 28.00mm | 9.4 CFM (0.263m³/min) | 0.396 in H2O (98.6 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 39.0dB(A) | 2.4 W | 8000 RPM | 2 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.102 lb (46.27 g) |
|
|
GF40282BX-1000U-FEP24VDC FAN 40X28MM TACH IP68 |
0 |
|
데이터시트 |
GF | Box | Active | 12VDC | Square - 40mm L x 40mm H | 28.00mm | 23.9 CFM (0.669m³/min) | 2.010 in H2O (500.7 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 58.5dB(A) | 9.6 W | 17600 RPM | 3 Wire Leads | IP68 - Dust Tight, Waterproof | - | CCC, CE, cURus, TUV, UKCA | - |
|

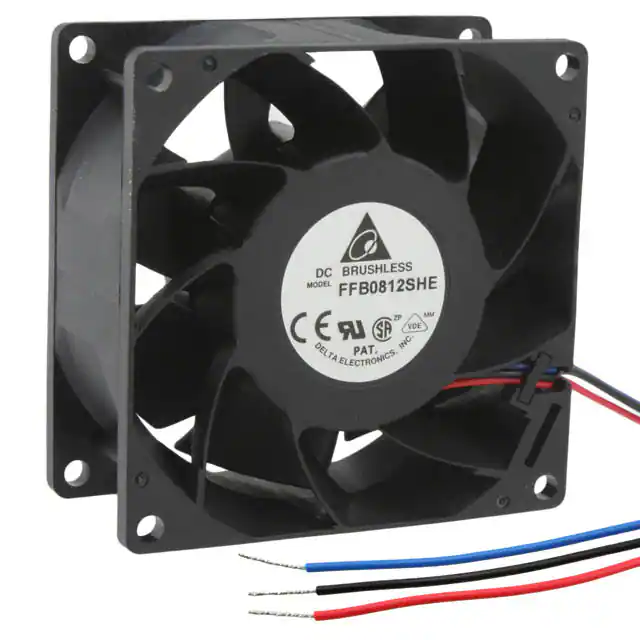

FFB0812SHE-F00FAN AXIAL 80X38MM 12VDC WIRE |
0 |
|
데이터시트 |
FFB | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 38.00mm | 68.5 CFM (1.92m³/min) | 0.591 in H2O (147.2 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 48.5dB(A) | 6.96 W | 4900 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.375 lb (170.1 g) |
|
FFB0824HHEFAN AXIAL 80X38MM 24VDC WIRE |
0 |
|
데이터시트 |
FFB | Box | Active | 24VDC | Square - 80mm L x 80mm H | 38.00mm | 45.2 CFM (1.27m³/min) | 0.281 in H2O (70.0 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 39.0dB(A) | 3.6 W | 3400 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.375 lb (170.1 g) |
|
|
GF40282B2-1000U-SDP24VDC FAN 40X28MM TACH/PWM GR487 |
0 |
|
데이터시트 |
GF | Box | Active | 12VDC | Square - 40mm L x 40mm H | 28.00mm | 17.7 CFM (0.496m³/min) | 1.110 in H2O (276.5 Pa) | Ball | Tubeaxial | PWM Control | 50.0dB(A) | 4.32 W | 13100 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
GF40282B2-1000U-SEP24VDC FAN 40X28MM TACH/PWM IP68 |
0 |
|
데이터시트 |
GF | Box | Active | 12VDC | Square - 40mm L x 40mm H | 28.00mm | 17.7 CFM (0.496m³/min) | 1.110 in H2O (276.5 Pa) | Ball | Tubeaxial | PWM Control | 50.0dB(A) | 4.32 W | 13100 RPM | 3 Wire Leads | IP68 - Dust Tight, Waterproof | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
GF40282BX-1000U-SEP24VDC FAN 40X28MM TACH/PWM IP68 |
0 |
|
데이터시트 |
GF | Box | Active | 12VDC | Square - 40mm L x 40mm H | 28.00mm | 23.9 CFM (0.669m³/min) | 2.010 in H2O (500.7 Pa) | Ball | Tubeaxial | PWM Control | 58.5dB(A) | 9.6 W | 17600 RPM | 3 Wire Leads | IP68 - Dust Tight, Waterproof | - | CCC, CE, cURus, TUV, UKCA | - |
|
BFB0612HB-NFAN BLOWER 60X15.4MM 12VDC WIRE |
0 |
|
데이터시트 |
BFB | Bulk | Active | 12VDC | Square/Rounded - 60mm L x 60mm H | 15.40mm | 4.7 CFM (0.132m³/min) | 0.651 in H2O (162.2 Pa) | Ball | Blower | Locked Rotor Protection | 37.0dB(A) | 2.16 W | 4800 RPM | 2 Wire Leads | - | 14 ~ 194°F (-10 ~ 90°C) | CE, CSA, UL, VDE | 0.101 lb (45.81 g) |
|

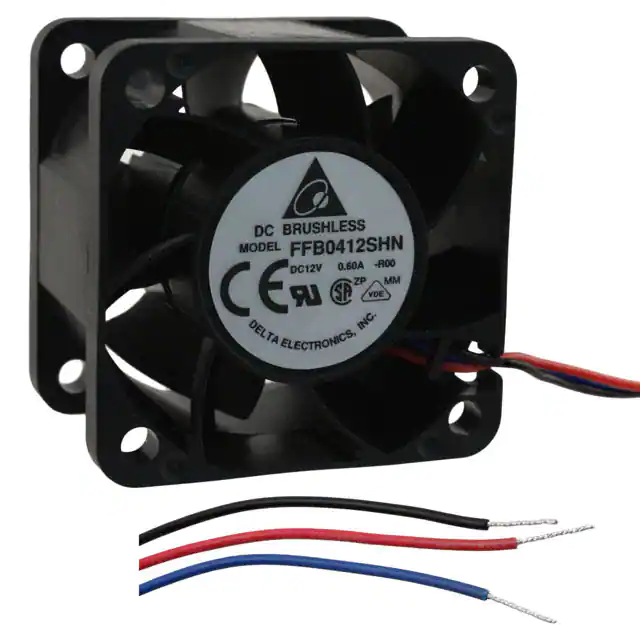

FFB0412SHN-R00FAN AXIAL 40X28MM 12VDC WIRE |
0 |
|
데이터시트 |
FFB | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | 28.00mm | 24.0 CFM (0.672m³/min) | 1.075 in H2O (267.8 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 54.5dB(A) | 6 W | 13000 RPM | 3 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.071 lb (32.21 g) |
|

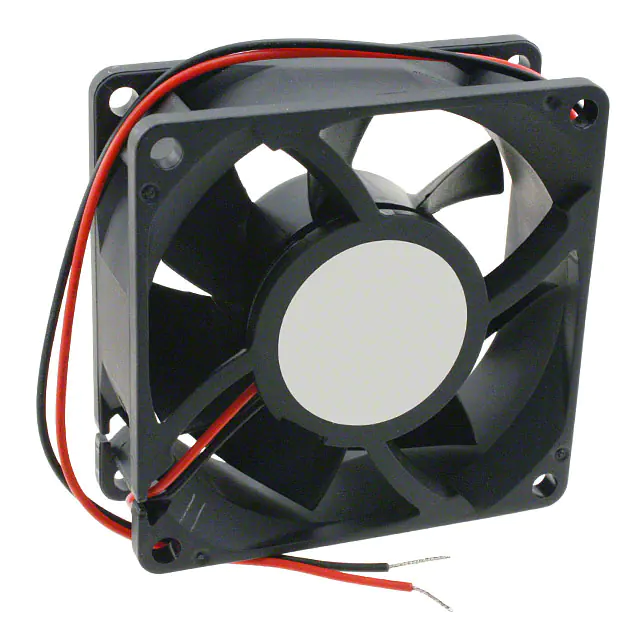

AFB0724H-AFAN AXIAL 70X25.4MM 24VDC WIRE |
5 |
|
데이터시트 |
AFB | Bulk | Active | 24VDC | Square - 70mm L x 70mm H | 25.40mm | 36.3 CFM (1.02m³/min) | 0.217 in H2O (54.1 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 37.5dB(A) | 3.12 W | 3900 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.199 lb (90.26 g) |
