DC 무브러시 팬(BLDC)
| 사진 | 제조업체 부품 번호 | 재고 상태 | 수량 | 데이터시트 | 시리즈 | 패키징 | 제품 상태 | 전압 - 정격 | 크기/치수 | 너비 | 공기 흐름 | 정압 | 베어링 유형 | 팬 유형 | 기능 | 소음 | 전력(와트) | RPM | 종단 | 침투 방지 | 작동 온도 | 승인 기관 | 무게 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
8412N/2HFAN AXIAL 80X25.4MM 12VDC WIRE |
0 |
|
데이터시트 |
8400N | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 25.40mm | 46.5 CFM (1.30m³/min) | - | Ball | Tubeaxial | Speed Sensor (Tach) | 37.0dB(A) | 1.7 W | 3600 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | - | - |
|
9G1224E1021FAN AXIAL 119X38MM 24VDC WIRE |
0 |
|
데이터시트 |
San Ace 120 | Box | Active | 24VDC | Square - 119mm L x 119mm H | 38.00mm | 118.0 CFM (3.30m³/min) | 0.401 in H2O (100.0 Pa) | Ball | Tubeaxial | - | 46.0dB(A) | 8.16 W | 3100 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.728 lb (330.22 g) |
|
612N/2GNFAN AXIAL 60X25.4MM 12VDC WIRE |
2 |
|
데이터시트 |
600NG | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 25.40mm | 24.7 CFM (0.692m³/min) | - | Sintec | Tubeaxial | Speed Sensor (Tach) | 28.0dB(A) | 2.1 W | - | 3 Wire Leads | - | 158°F (70°C) | - | - |
|

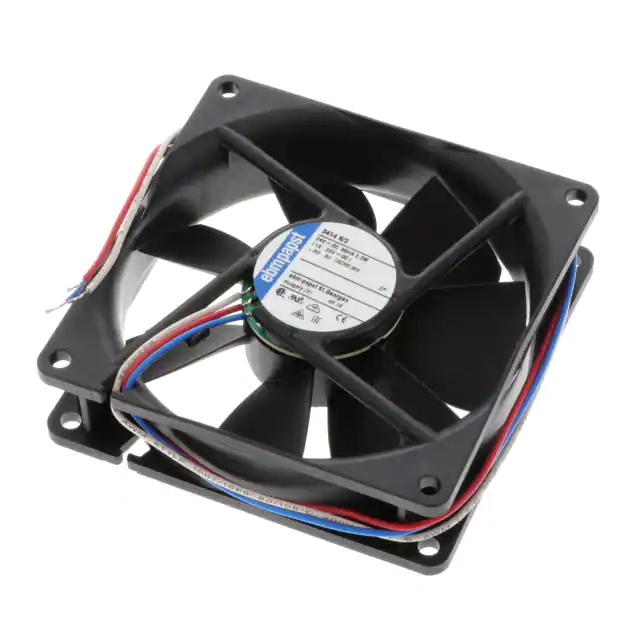

3414N/2FAN AXIAL 92X25.4MM 24VDC WIRE |
0 |
|
데이터시트 |
3400N | Bulk | Active | 24VDC | Square - 92mm L x 92mm H | 25.40mm | 49.5 CFM (1.39m³/min) | - | Ball | Tubeaxial | Speed Sensor (Tach) | 36.0dB(A) | 2.1 W | 2700 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | - | - |
|

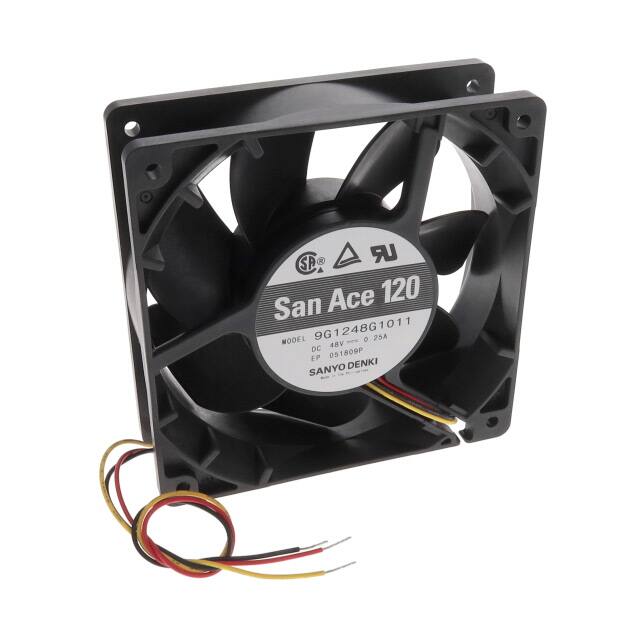

9G1248G1011FAN AXIAL 119X38MM 48VDC WIRE |
0 |
|
데이터시트 |
San Ace 120 | Box | Active | 48VDC | Square - 119mm L x 119mm H | 38.00mm | 137.0 CFM (3.84m³/min) | 0.542 in H2O (135.0 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 49.0dB(A) | 12 W | 3600 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.728 lb (330.22 g) |
|
GF80321B1-000U-SE9FAN AXIAL 80X32MM 12VDC WIRE |
2 |
|
데이터시트 |
GF | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 32.00mm | 59.4 CFM (1.66m³/min) | 0.360 in H2O (89.6 Pa) | Ball | Tubeaxial | PWM Control, Speed Sensor (Tach) | 45.2dB(A) | 3.72 W | 4800 RPM | 4 Wire Leads | IP68 - Dust Tight, Waterproof | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.24 lb (108.86 g) |
|
8414N/2GLFAN AXIAL 80X25.4MM 24VDC WIRE |
2 |
|
데이터시트 |
8400N | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 25.40mm | 19.4 CFM (0.543m³/min) | - | Sintec | Tubeaxial | Speed Sensor (Tach) | 26.0dB(A) | 700 mW | 1500 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | - | - |
|
8412NGLVFAN AXIAL 80X25.4MM 12VDC WIRE |
0 |
|
데이터시트 |
8400NV | Box | Active | 12VDC | Square - 80mm L x 80mm H | 25.40mm | 19.4 CFM (0.543m³/min) | - | Sintec | Tubeaxial | Thermistor | 12.0dB(A) | 1.1 W | 1500 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CE, CSA, UL, VDE | 0.209 lb (94.8 g) |
|
FFB1212SHE-F00FAN AXIAL 120X38MM 12VDC WIRE |
3 |
|
데이터시트 |
FFB | Box | Active | 12VDC | Square - 120mm L x 120mm H | 38.00mm | 170.9 CFM (4.79m³/min) | 0.563 in H2O (140.2 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 56.5dB(A) | 18 W | 3600 RPM | 3 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.816 lb (370.13 g) |
|
4318NHFAN AXIAL 119X32MM 48VDC WIRE |
0 |
|
데이터시트 |
4300N | Bulk | Active | 48VDC | Square - 119mm L x 119mm H | 32.00mm | 129.3 CFM (3.62m³/min) | - | Ball | Tubeaxial | - | 47.0dB(A) | 6.7 W | 3150 RPM | 2 Wire Leads | - | -4 ~ 167°F (-20 ~ 75°C) | - | 0.553 lb (250.84 g) |
|
MA1751E48B2-FSR-TTLFAN AXIAL 172X50.8MM 48VDC WIRE |
4 |
|
데이터시트 |
MA1751 | Bulk | Active | 48VDC | Rectangular/Rounded - 172mm L x 150mm H | 50.80mm | 269.2 CFM (7.54m³/min) | 0.670 in H2O (166.9 Pa) | Ball | Tubeaxial | Locked Rotor Sensor, Thermal Overload Protector (TOP) | 61.0dB(A) | - | 3150 RPM | 3 Wire Leads | - | - | cUL, TUV, UL | 1.7 lbs (771.1 g) |
|
3318NNFAN AXIAL 92X32MM 48VDC WIRE |
0 |
|
데이터시트 |
3300N | Bulk | Active | 48VDC | Square - 92mm L x 92mm H | 32.00mm | 47.0 CFM (1.32m³/min) | - | Ball | Tubeaxial | - | 35.0dB(A) | 1.8 W | 2650 RPM | 2 Wire Leads | - | -4 ~ 167°F (-20 ~ 75°C) | CE, CSA, UL, VDE | 0.419 lb (190.06 g) |
|
9WP1212M1021FAN AXIAL 120X38MM 12VDC WIRE |
4 |
|
데이터시트 |
San Ace 120W | Box | Active | 12VDC | Square - 120mm L x 120mm H | 38.00mm | - | - | Ball | Tubeaxial | Locked Rotor Protection | - | 2.52 W | - | 2 Wire Leads | IP68 - Dust Tight, Waterproof | - | - | - |
|
|
9WP1212M102FAN AXIAL 120X38MM 12VDC WIRE |
0 |
|
데이터시트 |
San Ace 120W | Box | Active | 12VDC | Square - 120mm L x 120mm H | 38.00mm | - | - | Ball | Tubeaxial | Locked Rotor Protection | - | 2.52 W | - | 2 Wire Leads | IP68 - Dust Tight, Waterproof | - | - | - |
|
622/2NFAN AXIAL 60X25.4MM 12VDC WIRE |
5 |
|
데이터시트 |
620 | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 25.40mm | 23.5 CFM (0.658m³/min) | - | Ball | Tubeaxial | Speed Sensor (Tach) | 35.0dB(A) | 1.9 W | 6100 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | - | 0.187 lb (84.82 g) |
|
109L0612G401FAN AXIAL 60X25MM 12VDC WIRE |
0 |
|
데이터시트 |
San Ace 60L | Box | Active | 12VDC | Square - 60mm L x 60mm H | 25.00mm | 27.5 CFM (0.770m³/min) | 0.350 in H2O (87.2 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 39.0dB(A) | 2.88 W | 5600 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UR | 0.222 lb (100.7 g) |
|
109BD12HA2FAN BLOWER 76X30MM 12VDC WIRE |
0 |
|
데이터시트 |
San Ace B76 | Box | Active | 12VDC | Square/Rounded - 76mm L x 75.5mm H | 30.00mm | 12.7 CFM (0.356m³/min) | 0.610 in H2O (151.9 Pa) | Ball | Blower | Locked Rotor Protection | 41.5dB(A) | 4.44 W | 3000 RPM | 2 Wire Leads | - | -4 ~ 140°F (-20 ~ 60°C) | CSA, TUV, UL | 0.222 lb (100.7 g) |
|
4314-147FAN AXIAL 119X32MM 24VDC WIRE |
0 |
|
데이터시트 |
4300 | Bulk | Active | 24VDC | Square - 119mm L x 119mm H | 32.00mm | 106.0 CFM (2.97m³/min) | - | Ball | Tubeaxial | Locked Rotor Protection | 45.0dB(A) | 4.7 W | 3000 RPM | 2 Wire Leads | - | -4 ~ 167°F (-20 ~ 75°C) | CE, CSA, UL, VDE | 0.485 lb (220.00 g) |
|
|
4312-179FAN AXIAL 119X32MM 12VDC WIRE |
0 |
|
데이터시트 |
4300 | Bulk | Active | 12VDC | Square - 119mm L x 119mm H | 32.00mm | 120.2 CFM (3.37m³/min) | - | Ball | Tubeaxial | Locked Rotor Protection | 45.0dB(A) | 9.4 W | 3400 RPM | 2 Wire Leads | - | -4 ~ 149°F (-20 ~ 65°C) | CE, CSA, VDE | 0.485 lb (220.00 g) |
|
RER100-25/14FAN IMP MTRZD 100X32MM 24VDC |
0 |
|
데이터시트 |
RER100DC | Box | Active | 24VDC | Round - 100mm Dia | 32.00mm | 33.6 CFM (0.941m³/min) | - | Ball | Motorized Impellers | - | 47.0dB(A) | 3.6 W | 1800 RPM | 2 Wire Leads | - | - | - | 0.4 lb (181.44 g) |
