DC 무브러시 팬(BLDC)
| 사진 | 제조업체 부품 번호 | 재고 상태 | 수량 | 데이터시트 | 시리즈 | 패키징 | 제품 상태 | 전압 - 정격 | 크기/치수 | 너비 | 공기 흐름 | 정압 | 베어링 유형 | 팬 유형 | 기능 | 소음 | 전력(와트) | RPM | 종단 | 침투 방지 | 작동 온도 | 승인 기관 | 무게 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

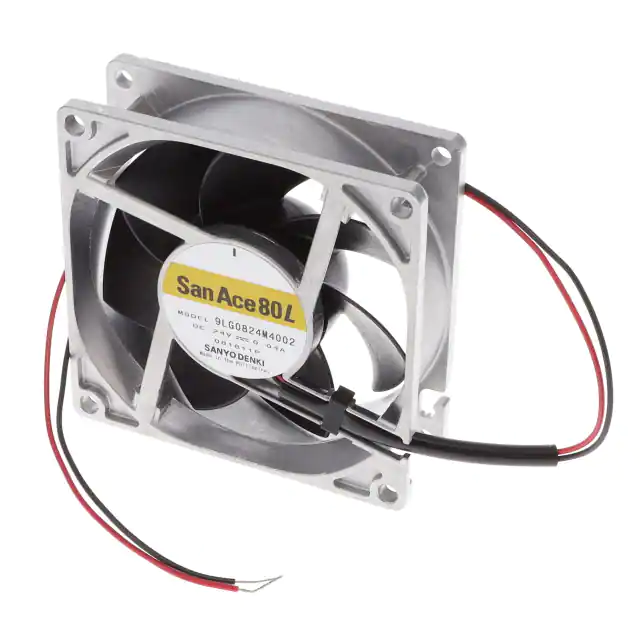

9LG0824M4002FAN AXIAL 80X25MM 24VDC WIRE |
14 |
|
데이터시트 |
San Ace 80L | Box | Active | 24VDC | Square - 80mm L x 80mm H | 25.00mm | - | - | Ball | Tubeaxial | Locked Rotor Protection | - | 960 mW | - | 2 Wire Leads | - | - | - | - |
|
17001160AFAN AXIAL 24VDC MSD24K3E2X-E3 |
21 |
|
데이터시트 |
- | Bulk | Active | 24VDC | Square - 120mm L x 120mm H | 38.10mm | 120.0 CFM (3.36m³/min) | - | Ball | Tubeaxial | Auto Restart, Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 51.8dB(A) | 10.8 W | 3400 RPM | 4 Wire Leads | IP68 - Dust Tight, Waterproof | 14 ~ 158°F (-10 ~ 70°C) | CE, cUL, UL | - |
|

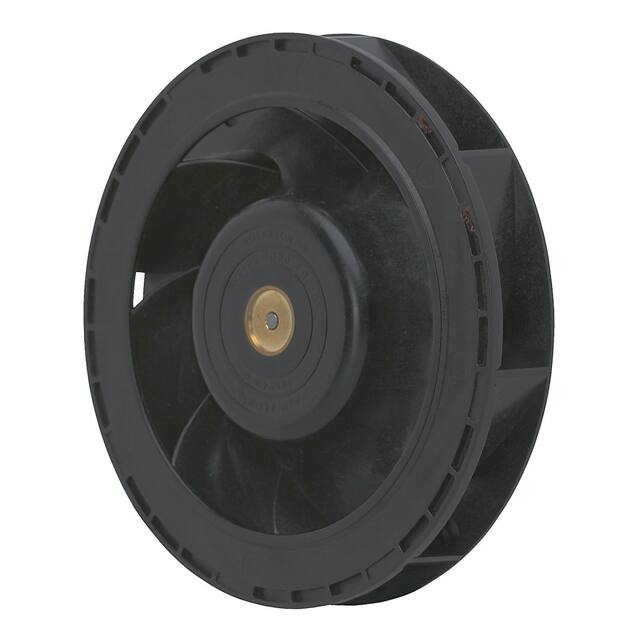

9TM48P4H01FAN IMP MTRZD 100X25MM 48VDC |
17 |
|
데이터시트 |
San Ace C100 | Box | Active | 48VDC | Round - 100mm Dia | 25.00mm | 62.5 CFM (1.75m³/min) | 2.250 in H2O (560.0 Pa) | Ball | Motorized Impellers | PWM Control, Speed Sensor (Tach) | 60.0dB(A) | 10.56 W | 6400 RPM | 4 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.331 lb (150.14 g) |
|
8414NLUFAN AXIAL 80X25.4MM 24VDC WIRE |
9 |
|
데이터시트 |
8400NU | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 25.40mm | 19.4 CFM (0.543m³/min) | - | Ball | Tubeaxial | - | 17.0dB(A) | 800 mW | 1500 RPM | 2 Wire Leads | IP68 - Dust Tight, Waterproof | -4 ~ 158°F (-20 ~ 70°C) | UL | 0.209 lb (94.8 g) |
|
|
GFC0648SS-00E49FAN AXIAL DUAL 60X56MM 48VDC |
3 |
|
데이터시트 |
GFC | Box | Not For New Designs | 48VDC | Square - 60mm L x 60mm H | 56.00mm | 77.0 CFM (2.16m³/min) | 7.730 in H2O (1925.5 Pa) | Ball | Tubeaxial (Dual) | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 82.0dB(A) | 52.8 W | 22300 Front, 24300 Rear | 4 Wire Leads per Fan | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
17250VA-24R-EA-00FAN AXIAL 172.7X50.8MM 24VDC |
23 |
|
데이터시트 |
17250VA | Bulk | Active | 24VDC | Round - 172.7mm Dia | 50.80mm | 346.1 CFM (9.69m³/min) | 1.250 in H2O (312.0 Pa) | Ball | Tubeaxial | Auto Restart | 62.0dB | 43.2 W | 4600 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
9LG1412M5001FAN AXIAL 140X51MM 12VDC WIRE |
5 |
|
데이터시트 |
San Ace 140L | Box | Active | 12VDC | Square - 140mm L x 140mm H | 51.00mm | 109.5 CFM (3.07m³/min) | 0.400 in H2O (99.6 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | - | 5.16 W | 2600 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | 1.8 lb (800.0 g) |
|
|
9LG1412A5001FAN AXIAL 140X51MM 12VDC WIRE |
2 |
|
데이터시트 |
San Ace 140L | Box | Active | 12VDC | Square - 140mm L x 140mm H | 51.00mm | 243.7 CFM (6.82m³/min) | 2.000 in H2O (498.2 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | - | 31.4 W | 5700 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 1.8 lb (800.0 g) |
|
|
06076EA-12S-E6-0C60X60X76MM, 12VDC, 18,200/16,700 |
20 |
|
데이터시트 |
06076EA | Box | Active | 12VDC | Square - 60mm L x 60mm H | 76.00mm | 85.7 CFM (2.400m³/min) | 6.620 in H2O (1648.9 Pa) | Ball | Tubeaxial (Dual) | Auto Restart, Dual Speed, PWM Control, Speed Sensor (Tach) | 78.0dB | 67.2 W | 18200 RPM Front, 16700 RPM Rear | 4 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, cULus, VDE | - |
|
9LG1248M1D001FAN AXIAL 120X38MM 48VDC WIRE |
19 |
|
데이터시트 |
San Ace 120L | Box | Active | 48VDC | Square - 120mm L x 120mm H | 38.00mm | - | - | Ball | Tubeaxial | Locked Rotor Sensor | - | 3.36 W | - | 3 Wire Leads | - | - | - | - |
|

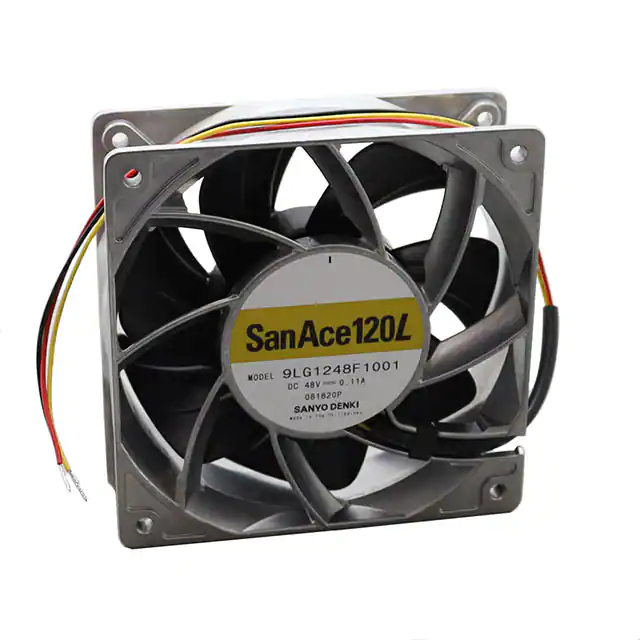

9LG1248F1001FAN AXIAL 120X38MM 48VDC WIRE |
11 |
|
데이터시트 |
San Ace 120L | Box | Active | 48VDC | Square - 120mm L x 120mm H | 38.00mm | - | - | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | - | 5.28 W | - | 3 Wire Leads | - | - | - | - |
|
3418N/2HHFAN AXIAL 92X25.4MM 48VDC WIRE |
5 |
|
데이터시트 |
3400N | Bulk | Active | 48VDC | Square - 92mm L x 92mm H | 25.40mm | - | - | Ball | Tubeaxial | Speed Sensor (Tach) | - | - | - | 3 Wire Leads | - | - | - | - |
|
9WPA0912P4G00392X25MM, DC, 12V, SPLASH & DUST |
23 |
|
데이터시트 |
San Ace 92W | Bulk | Active | 12VDC | Square - 92mm L x 92mm H | 25.20mm | 86.5 CFM (2.42m³/min) | 0.510 in H2O (127.0 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 47.7dB(A) | - | 5700 RPM | 4 Position Rectangular Connector | IP68 - Dust Tight, Waterproof | -4 ~ 158°F (-20 ~ 70°C) | - | - |
|
9WPA0924P4G00392X25MM, DC, 24V, SPLASH & DUST |
5 |
|
데이터시트 |
San Ace 92W | Bulk | Active | 24VDC | Square - 92mm L x 92mm H | 25.20mm | 86.5 CFM (2.42m³/min) | 0.510 in H2O (127.0 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 47.7dB(A) | 6 W | 5700 RPM | 4 Position Rectangular Connector | IP68 - Dust Tight, Waterproof | -4 ~ 158°F (-20 ~ 70°C) | - | - |
|
3414NHUFAN AXIAL 92X25.4MM 24VDC WIRE |
22 |
|
데이터시트 |
3400NU | Bulk | Active | 24VDC | Square - 92mm L x 92mm H | 25.40mm | 55.3 CFM (1.55m³/min) | - | Ball | Tubeaxial | - | 36.0dB(A) | 2.3 W | 3000 RPM | 2 Wire Leads | IP68 - Dust Tight, Waterproof | -4 ~ 158°F (-20 ~ 70°C) | UL | 0.234 lb (106.14 g) |
|
FDD1-17251CBLW32FAN AXIAL 172X51MM 12VDC WIRE |
20 |
|
데이터시트 |
HPLC, FDD1-17251 | Bulk | Active | 12VDC | Rectangular/Rounded - 172mm L x 151mm H | 51.00mm | 255.0 CFM (7.14m³/min) | 0.736 in H2O (183.3 Pa) | Ball | Tubeaxial | - | 56.0dB(A) | 22.6 W | 3200 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CE, cURus, TUV | 2.3 lbs (1 kg) |
|
5118NFAN AXIAL 135X38MM 48VDC WIRE |
13 |
|
데이터시트 |
5100N | Bulk | Active | 48VDC | Square - 135mm L x 135mm H | 38.00mm | 147.0 CFM (4.12m³/min) | - | Ball | Tubeaxial | - | 48.0dB(A) | 9.5 W | 2900 RPM | 2 Wire Leads | - | -13 ~ 162°F (-25 ~ 72°C) | CE | 1.4 lbs (635.0 g) |
|
|
9LG1224A1001FAN AXIAL 120X38MM 24VDC WIRE |
19 |
|
데이터시트 |
San Ace 120L | Box | Active | 24VDC | Square - 120mm L x 120mm H | 38.00mm | - | - | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | - | 8.88 W | - | 3 Wire Leads | - | - | - | - |
|
|
15050VA-48R-EA-00FAN AXIAL 172.7X50.8MM 48VDC |
10 |
|
데이터시트 |
15050VA | Bulk | Active | 48VDC | Rectangular/Rounded - 172.7mm L x 150mm H | 50.80mm | 346.1 CFM (9.69m³/min) | 1.250 in H2O (312.0 Pa) | Ball | Tubeaxial | Auto Restart | 68.0dB | 43.2 W | 4600 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
17250VE-24R-GT-00FAN AXIAL 172.7X50.8MM 24VDC |
17 |
|
데이터시트 |
17250VE | Bulk | Active | 24VDC | Round - 172.7mm Dia | 50.80mm | 346.1 CFM (9.69m³/min) | 1.250 in H2O (312.0 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 62.0dB(A) | 43.2 W | 4600 RPM | 3 Wire Leads | IP68/IP69K - Dust Tight, Water Resistant, Waterproof | 14 ~ 158°F (-10 ~ 70°C) | CE, cULus, VDE | - |
