DC 무브러시 팬(BLDC)
| 사진 | 제조업체 부품 번호 | 재고 상태 | 수량 | 데이터시트 | 시리즈 | 패키징 | 제품 상태 | 전압 - 정격 | 크기/치수 | 너비 | 공기 흐름 | 정압 | 베어링 유형 | 팬 유형 | 기능 | 소음 | 전력(와트) | RPM | 종단 | 침투 방지 | 작동 온도 | 승인 기관 | 무게 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
9RA1212H40011FAN AXIAL 120X25MM 12VDC WIRE |
45 |
|
데이터시트 |
San Ace 120 | Box | Active | 12VDC | Square - 120mm L x 120mm H | 25.00mm | 92.0 CFM (2.58m³/min) | 0.245 in H2O (61.0 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 39.0dB(A) | 3.12 W | 3200 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | - |
|

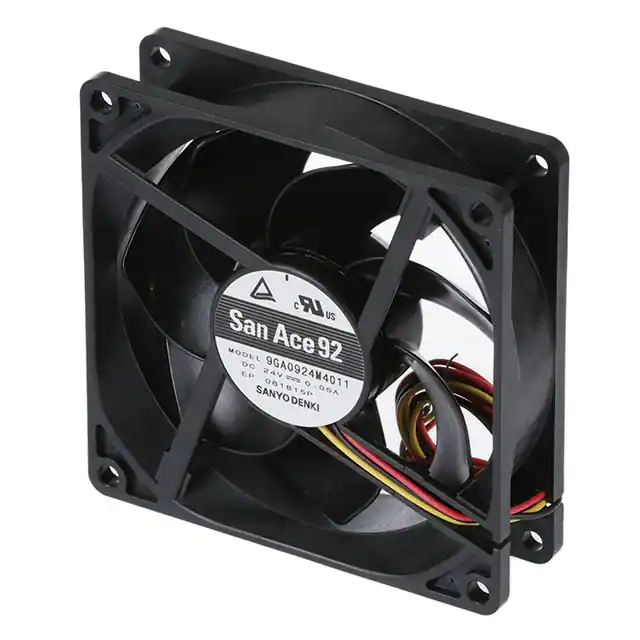

9GA0924M4011FAN AXIAL 92X25MM 24VDC WIRE |
76 |
|
데이터시트 |
San Ace 92 | Box | Active | 24VDC | Square - 92mm L x 92mm H | 25.00mm | - | - | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | - | 1.2 W | - | 3 Wire Leads | - | - | - | - |
|
9GA0912H4011FAN AXIAL 92X25MM 12VDC WIRE |
12 |
|
데이터시트 |
San Ace 92 | Box | Active | 12VDC | Square - 92mm L x 92mm H | 25.00mm | - | - | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | - | 2.28 W | - | 3 Wire Leads | - | - | - | - |
|
|
9RA1212A40011FAN AXIAL 120X25MM 12VDC WIRE |
52 |
|
데이터시트 |
San Ace 120 | Box | Active | 12VDC | Square - 120mm L x 120mm H | 25.00mm | 101.2 CFM (2.83m³/min) | 0.293 in H2O (73.0 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 42.0dB(A) | 3.6 W | 3500 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | - |
_Series.jpg)
|
3414NGLFAN AXIAL 92X25.4MM 24VDC WIRE |
44 |
|
데이터시트 |
3400N | Bulk | Active | 24VDC | Square - 92mm L x 92mm H | 25.40mm | 35.9 CFM (1.01m³/min) | - | Sintec | Tubeaxial | - | 23.0dB(A) | 1.4 W | 1950 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, UL, VDE | 0.22 lb (99.79 g) |
|
9GA0924W402FAN AXIAL 92X25MM 24VDC WIRE |
60 |
|
데이터시트 |
San Ace 92 | Box | Active | 24VDC | Square - 92mm L x 92mm H | 25.00mm | - | - | Ball | Tubeaxial | Locked Rotor Protection | - | 2.16 W | - | 2 Wire Leads | - | - | - | - |
|
FFB1248EH-F00FAN AXIAL 120X25.4MM 48VDC WIRE |
9 |
|
데이터시트 |
FFB | Bulk | Active | 48VDC | Square - 120mm L x 120mm H | 25.40mm | 150.3 CFM (4.21m³/min) | 0.489 in H2O (121.9 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 56.4dB(A) | 15.36 W | 4000 RPM | 3 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.452 lb (205.02 g) |
|
|
3414NGMFAN AXIAL 92X25.4MM 24VDC WIRE |
48 |
|
데이터시트 |
3400N | Bulk | Active | 24VDC | Square - 92mm L x 92mm H | 25.40mm | 42.4 CFM (1.19m³/min) | - | Sintec | Tubeaxial | - | 28.0dB(A) | 1.8 W | 2300 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, UL, VDE | 0.22 lb (99.79 g) |
|
4312GLFAN AXIAL 119X32MM 12VDC WIRE |
40 |
|
데이터시트 |
4300 | Bulk | Active | 12VDC | Square - 119mm L x 119mm H | 32.00mm | 56.0 CFM (1.57m³/min) | - | Sintec | Tubeaxial | - | 30.0dB(A) | 1.2 W | 1550 RPM | 2 Wire Leads | - | -4 ~ 167°F (-20 ~ 75°C) | CE, CSA, UL, VDE | 0.485 lb (219.99 g) |
|
8314LFAN AXIAL 80X32MM 24VDC WIRE |
39 |
|
데이터시트 |
8300 | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 32.00mm | 19.0 CFM (0.532m³/min) | - | Ball | Tubeaxial | - | 24.0dB(A) | 1 W | 2000 RPM | 2 Wire Leads | - | -4 ~ 167°F (-20 ~ 75°C) | CE, CSA, UL, VDE | 0.375 lb (170.1 g) |
|

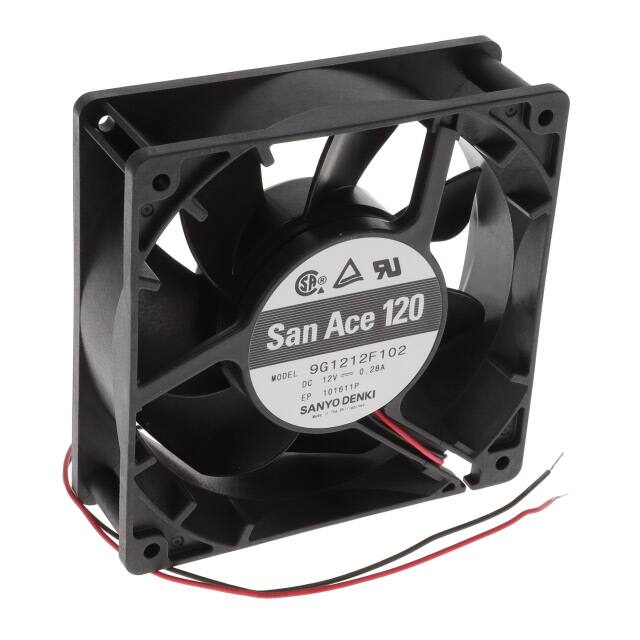

9G1212F102FAN AXIAL 119X38MM 12VDC WIRE |
31 |
|
데이터시트 |
San Ace 120 | Box | Active | 12VDC | Square - 119mm L x 119mm H | 38.00mm | 87.0 CFM (2.44m³/min) | 0.218 in H2O (54.3 Pa) | Ball | Tubeaxial | - | 36.0dB(A) | 3.36 W | 2280 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.728 lb (330.22 g) |
|
9RA0812H1001FAN AXIAL 80X38MM 12VDC WIRE |
50 |
|
데이터시트 |
San Ace 80 | Box | Active | 12VDC | Square - 80mm L x 80mm H | 38.00mm | 77.3 CFM (2.19m³/min) | 0.670 in H2O (166.9 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 46.0dB(A) | 7.92 W | 6100 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | - |
|
|
9RA1224M40011FAN AXIAL 120X25MM 24VDC WIRE |
57 |
|
데이터시트 |
San Ace 120 | Box | Active | 24VDC | Square - 120mm L x 120mm H | 25.00mm | 63.5 CFM (1.78m³/min) | 0.116 in H2O (29.0 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 28.0dB(A) | 1.68 W | 2200 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | - |
|
|
9RA1224H40011FAN AXIAL 120X25MM 24VDC WIRE |
52 |
|
데이터시트 |
San Ace 120 | Box | Active | 24VDC | Square - 120mm L x 120mm H | 25.00mm | 92.0 CFM (2.58m³/min) | 0.245 in H2O (61.0 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 39.0dB(A) | 3.12 W | 3200 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | - |
|
9G1224M101FAN AXIAL 119X38MM 24VDC WIRE |
58 |
|
데이터시트 |
San Ace 120 | Box | Active | 24VDC | Square - 119mm L x 119mm H | 38.00mm | 74.0 CFM (2.07m³/min) | 0.159 in H2O (39.6 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 32.0dB(A) | 2.64 W | 1950 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.728 lb (330.22 g) |
|
|
9G1224M1011FAN AXIAL 119X38MM 24VDC WIRE |
14 |
|
데이터시트 |
San Ace 120 | Box | Active | 24VDC | Square - 119mm L x 119mm H | 38.00mm | 74.0 CFM (2.07m³/min) | 0.159 in H2O (39.6 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 32.0dB(A) | 2.64 W | 1950 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.728 lb (330.22 g) |
|
|
9RA1224H4001FAN AXIAL 120X25MM 24VDC WIRE |
55 |
|
데이터시트 |
San Ace 120 | Box | Active | 24VDC | Square - 120mm L x 120mm H | 25.00mm | 92.0 CFM (2.58m³/min) | 0.245 in H2O (61.0 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 39.0dB(A) | 3.12 W | 3200 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | - |
|
|
9RA1224G40011FAN AXIAL 120X25MM 24VDC WIRE |
48 |
|
데이터시트 |
San Ace 120 | Box | Active | 24VDC | Square - 120mm L x 120mm H | 25.00mm | 130.0 CFM (3.64m³/min) | 0.480 in H2O (119.6 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 47.0dB(A) | 6.72 W | 4500 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | - |
|
|
9RA0824P1G0011FAN AXIAL 80X38MM 24VDC WIRE |
45 |
|
데이터시트 |
San Ace 80 | Box | Active | 24VDC | Square - 80mm L x 80mm H | 38.00mm | 85.5 CFM (2.39m³/min) | 0.830 in H2O (206.7 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 48.0dB(A) | 9.84 W | 6750 RPM | 4 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | - |
|
|
9RA0812P1H0011FAN AXIAL 80X38MM 12VDC WIRE |
43 |
|
데이터시트 |
San Ace 80 | Box | Active | 12VDC | Square - 80mm L x 80mm H | 38.00mm | 77.3 CFM (2.19m³/min) | 0.670 in H2O (166.9 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 46.0dB(A) | 7.92 W | 6100 RPM | 4 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | - |
