DC 무브러시 팬(BLDC)
| 사진 | 제조업체 부품 번호 | 재고 상태 | 수량 | 데이터시트 | 시리즈 | 패키징 | 제품 상태 | 전압 - 정격 | 크기/치수 | 너비 | 공기 흐름 | 정압 | 베어링 유형 | 팬 유형 | 기능 | 소음 | 전력(와트) | RPM | 종단 | 침투 방지 | 작동 온도 | 승인 기관 | 무게 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

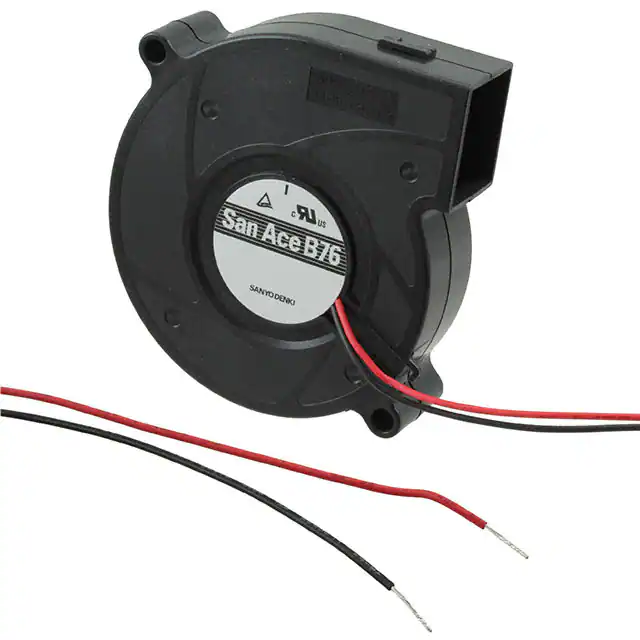

109BD24HA2FAN BLOWER 76X30MM 24VDC WIRE |
300 |
|
데이터시트 |
San Ace B76 | Box | Active | 24VDC | Square/Rounded - 76mm L x 75.5mm H | 30.00mm | 12.7 CFM (0.356m³/min) | 0.610 in H2O (151.9 Pa) | Ball | Blower | Locked Rotor Protection | 41.5dB(A) | 4.08 W | 3000 RPM | 2 Wire Leads | - | -4 ~ 140°F (-20 ~ 60°C) | CSA, TUV, UL | 0.222 lb (100.7 g) |
|
PFB0948UHE-TP16FAN AXIAL 92X38MM 48VDC WIRE |
2,127 |
|
데이터시트 |
PFB | Box | Active | 48VDC | Square - 92mm L x 92mm H | 38.00mm | 153.5 CFM (4.30m³/min) | 1.449 in H2O (360.9 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 64.0dB(A) | 24.96 W | 7000 RPM | 4 Wire Leads | - | -40 ~ 158°F (-40 ~ 70°C) | CE, CSA, UL, VDE | 0.553 lb (250.84 g) |
|
GFB0812ES-EFAN AXIAL DUAL 80X56MM 12VDC |
119 |
|
데이터시트 |
GFB | Box | Active | 12VDC | Square - 80mm L x 80mm H | 56.00mm | 136.0 CFM (3.81m³/min) | 5.899 in H2O (1469.3 Pa) | Ball | Tubeaxial (Dual) | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 79.0dB(A) | 54 W | 16300 Front, 15500 Rear | 4 Wire Leads per Fan | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
109L0624S402FAN AXIAL 60X25MM 24VDC WIRE |
260 |
|
데이터시트 |
San Ace 60L | Box | Active | 24VDC | Square - 60mm L x 60mm H | 25.00mm | 23.0 CFM (0.644m³/min) | 0.230 in H2O (57.3 Pa) | Ball | Tubeaxial | - | 33.0dB(A) | 1.92 W | 4600 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.222 lb (100.7 g) |
|
PFB1248UHEFAN AXIAL 120X38MM 48VDC WIRE |
110 |
|
데이터시트 |
PFB | Box | Active | 48VDC | Square - 120mm L x 120mm H | 38.00mm | 252.9 CFM (7.08m³/min) | 1.311 in H2O (326.6 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 66.5dB(A) | 48 W | 5500 RPM | 2 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.838 lb (380.11 g) |
|
4484FMFAN AXIAL 119X25.4MM 24VDC TERM |
117 |
|
데이터시트 |
4400F | Bulk | Active | 24VDC | Square - 119mm L x 119mm H | 25.40mm | 82.0 CFM (2.30m³/min) | - | Ball | Tubeaxial | - | 38.0dB(A) | 3.2 W | - | 2 Terminals | - | - | CE, CSA, UL, VDE | 0.38 lb (172.37 g) |
|
9WPA0612P4G003FAN AXL 60X25MM 12VDC RECT CONN |
387 |
|
데이터시트 |
San Ace 60W | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 25.00mm | 15.3 CFM (0.428m³/min) | 0.120 in H2O (29.9 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 22.0dB(A) | - | 3500 RPM | 4 Position Rectangular Connector | IP68 - Dust Tight, Waterproof | -4 ~ 158°F (-20 ~ 70°C) | - | 0.243 lb (110.22 g) |
_Series.jpg)
|
3412NGVFAN AXIAL 92X25.4MM 12VDC WIRE |
449 |
|
데이터시트 |
3400N | Bulk | Active | 12VDC | Square - 92mm L x 92mm H | 25.40mm | 49.4 CFM (1.38m³/min) | - | Sintec | Tubeaxial | - | 32.0dB(A) | 2.5 W | 2700 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, UL, VDE | 0.22 lb (99.79 g) |
|
4412HFAN AXIAL 119X38MM 12VDC WIRE |
202 |
|
데이터시트 |
4400 | Box | Active | 12VDC | Square - 119mm L x 119mm H | 38.00mm | 141.3 CFM (3.96m³/min) | - | Ball | Tubeaxial | Locked Rotor Protection | 50.0dB(A) | 8.6 W | 4300 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | - | 0.553 lb (250.84 g) |
|
|
4414FDFAN AXIAL 119X25.4MM 24VDC WIRE |
460 |
|
데이터시트 |
4400F | Box | Active | 24VDC | Square - 119mm L x 119mm H | 25.40mm | 100.0 CFM (2.80m³/min) | - | Ball | Tubeaxial | - | 43.0dB(A) | 5 W | - | 2 Wire Leads | - | - | CE, CSA, UL, VDE | 0.38 lb (172.37 g) |
|

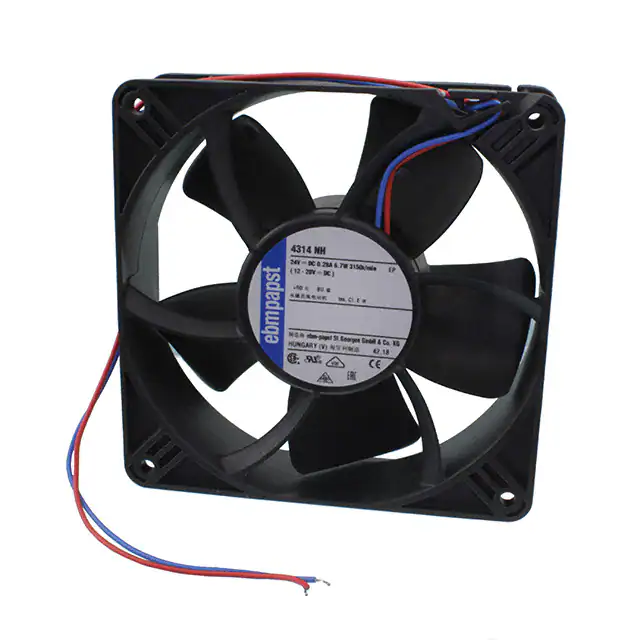

4314NHFAN AXIAL 119X32MM 24VDC WIRE |
105 |
|
데이터시트 |
4300N | Bulk | Active | 24VDC | Square - 119mm L x 119mm H | 32.00mm | 129.3 CFM (3.62m³/min) | - | Ball | Tubeaxial | - | 47.0dB(A) | 6.7 W | 3150 RPM | 2 Wire Leads | - | -4 ~ 167°F (-20 ~ 75°C) | CE, CSA, UL, VDE | 0.553 lb (250.84 g) |
|

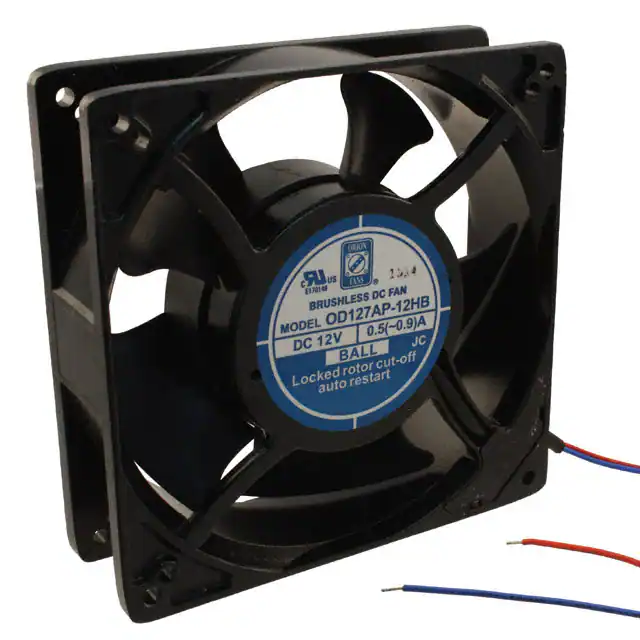

OD127AP-12HBFAN AXIAL 127X38.5MM 12VDC WIRE |
220 |
|
데이터시트 |
OD127AP | Box | Active | 12VDC | Square - 127mm L x 127mm H | 38.50mm | 140.0 CFM (3.92m³/min) | 0.410 in H2O (102.1 Pa) | Ball | Tubeaxial | - | 46.0dB | - | 3200 RPM | 2 Wire Leads | - | -4 ~ 167°F (-20 ~ 75°C) | cURus, TUV | - |
|
PFR0648SE-00EP3FAN AXIAL 60X38MM 48VDC WIRE |
118 |
|
데이터시트 |
PFR | Box | Not For New Designs | 48VDC | Square - 60mm L x 60mm H | 38.00mm | 77.0 CFM (2.16m³/min) | 4.830 in H2O (1203.1 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 69.0dB(A) | 28.8 W | 19500 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|

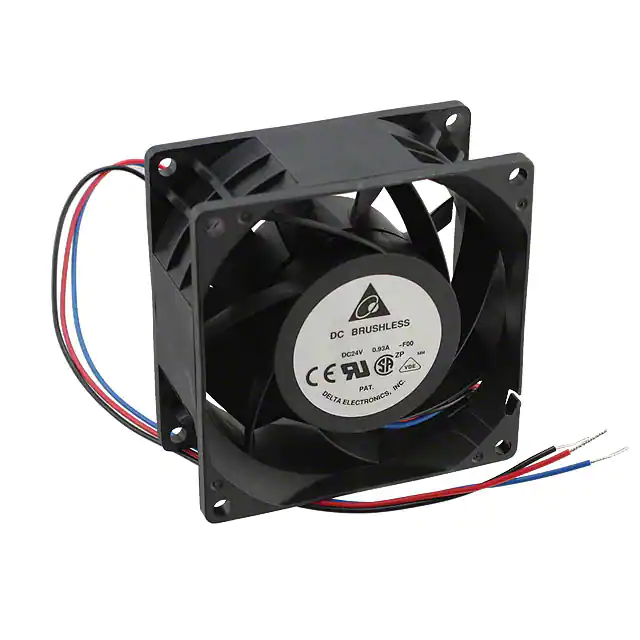

PFB0824DHE-T50FFAN AXIAL 80X38MM 24VDC WIRE |
851 |
|
데이터시트 |
PFB | Box | Active | 24VDC | Square - 80mm L x 80mm H | 38.00mm | 132.6 CFM (3.71m³/min) | 2.030 in H2O (505.7 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 65.0dB(A) | 32.4 W | 9000 RPM | 3 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.452 lb (205.02 g) |
|
|
9WPA0824P4G00380X25MM, DC, 24V, SPLASH & DUST |
197 |
|
데이터시트 |
San Ace 80W | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 25.20mm | 82.7 CFM (2.32m³/min) | 0.843 in H2O (210.0 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 54.0dB(A) | - | 8250 RPM | 4 Position Rectangular Connector | IP68 - Dust Tight, Waterproof | -4 ~ 158°F (-20 ~ 70°C) | - | - |
|
19031706AFAN AXIAL 79.8X41.8MM 24V SD24K5 |
266 |
|
데이터시트 |
Sprite | Box | Active | 24VDC | Square - 79.8mm L x 79.8mm H | 41.80mm | 50.0 CFM (1.40m³/min) | 0.256 in H2O (63.8 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Protection, Speed Sensor (Tach) | 55.4dB(A) | 7.7 W | 4900 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, UL | 1.1 lbs (500.0 g) |
|
9LG0924P4S001FAN AXIAL 92X25MM 24VDC WIRE |
329 |
|
데이터시트 |
San Ace 92L | Box | Active | 24VDC | Square - 92mm L x 92mm H | 25.00mm | 59.7 CFM (1.67m³/min) | 0.250 in H2O (62.3 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 37.0dB(A) | 2.64 W | 3850 RPM | 4 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.331 lb (150.14 g) |
|
624/2H3PFAN AXIAL 60X25.4MM 24VDC WIRE |
146 |
|
데이터시트 |
620 | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 25.40mm | 39.4 CFM (1.10m³/min) | - | Ball | Tubeaxial | - | 48.0dB(A) | 5.6 W | 9700 RPM | 2 Wire Leads | - | -4 ~ 140°F (-20 ~ 60°C) | - | 0.187 lb (84.82 g) |
|
CFM-A751BF-235-533FAN AXIAL 172X51.5MM 24VDC WIRE |
127 |
|
데이터시트 |
CFM-A7BF | Box | Active | 24VDC | Rectangular/Rounded - 172mm L x 151.5mm H | 51.50mm | 252.9 CFM (7.08m³/min) | 0.650 in H2O (161.9 Pa) | Ball | Tubeaxial | Auto Restart | 53.3dB(A) | 24.24 W | 3500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
3218JNFAN AXIAL 92X38MM 48VDC WIRE |
663 |
|
데이터시트 |
3200J | Bulk | Active | 48VDC | Square - 92mm L x 92mm H | 38.00mm | 76.5 CFM (2.14m³/min) | - | Ball | Tubeaxial | Locked Rotor Protection | 51.0dB(A) | 7 W | 6000 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, UL, VDE | - |
