DC 무브러시 팬(BLDC)
| 사진 | 제조업체 부품 번호 | 재고 상태 | 수량 | 데이터시트 | 시리즈 | 패키징 | 제품 상태 | 전압 - 정격 | 크기/치수 | 너비 | 공기 흐름 | 정압 | 베어링 유형 | 팬 유형 | 기능 | 소음 | 전력(와트) | RPM | 종단 | 침투 방지 | 작동 온도 | 승인 기관 | 무게 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

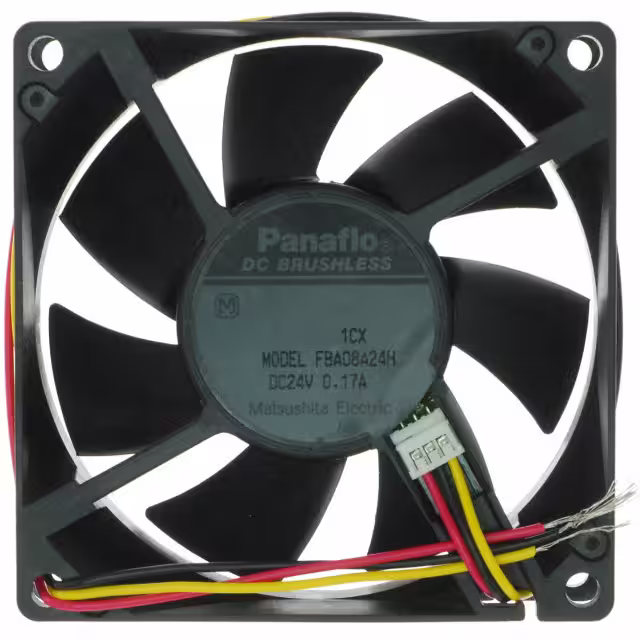

FBA08A24H1CXFAN AXIAL 80X25.5MM 24VDC WIRE |
0 |
|
데이터시트 |
FBA | - | Obsolete | 24VDC | Square - 80mm L x 80mm H | 25.50mm | 39.6 CFM (1.11m³/min) | 0.149 in H2O (37.1 Pa) | Hydro-wave (HWB) | Tubeaxial | Speed Sensor (Tach) | 32.0dB | 2.52 W | 2950 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CSA, UL | 0.22 lb (99.79 g) |
|
FAL6F12LHSFAN BLOWER 109X28.1MM 12VDC WIRE |
0 |
|
데이터시트 |
FAL-6F | - | Obsolete | 12VDC | Rectangular/Rounded - 109mm L x 111.4mm H | 28.10mm | 23.0 CFM (0.644m³/min) | 0.453 in H2O (112.8 Pa) | Hydro-wave (HWB) | Blower | Locked Rotor Sensor | 45.0dB | 6 W | 2550 RPM | 3 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CSA, UL | 0.551 lb (249.93 g) |
|
FBA06A12L1BXFAN AXIAL 60X25.5MM 12VDC WIRE |
0 |
|
데이터시트 |
FBA | - | Obsolete | 12VDC | Square - 60mm L x 60mm H | 25.50mm | 14.1 CFM (0.395m³/min) | 0.122 in H2O (30.4 Pa) | Hydro-wave (HWB) | Tubeaxial | Speed Sensor (Tach) | 24.0dB | 1.2 W | 3200 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CSA, UL | 0.198 lb (89.81 g) |
|

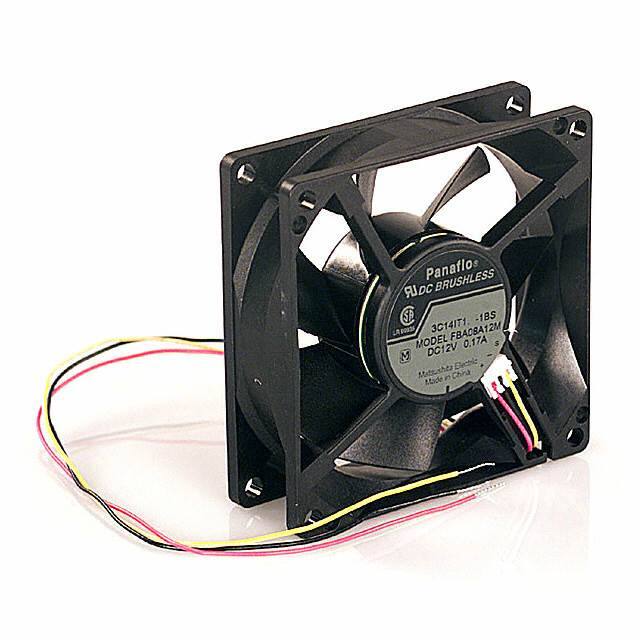

FBA08A12M1BSFAN AXIAL 80X25.5MM 12VDC WIRE |
0 |
|
데이터시트 |
FBA | - | Obsolete | 12VDC | Square - 80mm L x 80mm H | 25.50mm | 32.1 CFM (0.899m³/min) | 0.099 in H2O (24.6 Pa) | Hydro-wave (HWB) | Tubeaxial | Locked Rotor Sensor | 28.0dB | 1.49 W | 2450 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CSA, UL | 0.22 lb (99.79 g) |
|

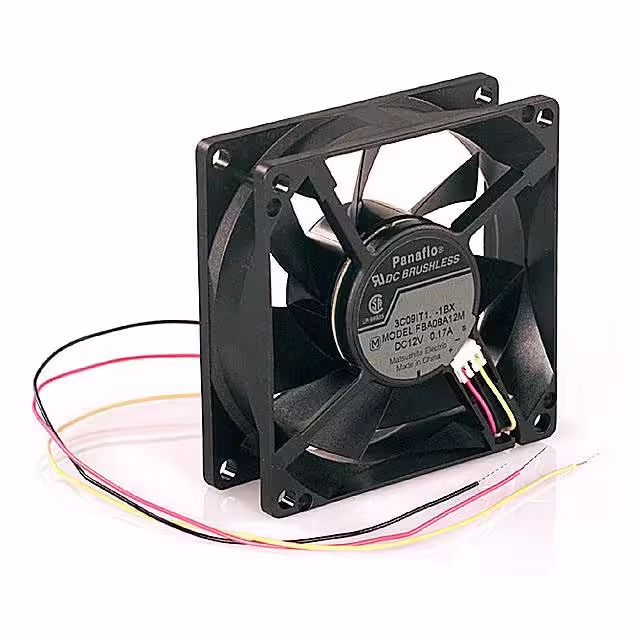

FBA08A12M1BXFAN AXIAL 80X25.5MM 12VDC WIRE |
0 |
|
데이터시트 |
FBA | - | Obsolete | 12VDC | Square - 80mm L x 80mm H | 25.50mm | 32.1 CFM (0.899m³/min) | 0.099 in H2O (24.6 Pa) | Hydro-wave (HWB) | Tubeaxial | Speed Sensor (Tach) | 28.0dB | 1.49 W | 2450 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CSA, UL | 0.22 lb (99.79 g) |
|
FBA09A12H1BOFAN AXIAL 92X25.5MM 12VDC WIRE |
0 |
|
데이터시트 |
FBA | - | Obsolete | 12VDC | Square - 92mm L x 92mm H | 25.50mm | 56.8 CFM (1.59m³/min) | 0.169 in H2O (42.1 Pa) | Hydro-wave (HWB) | Tubeaxial | Locked Rotor Sensor | 35.0dB | 2.7 W | 2950 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CSA, UL | 0.243 lb (110.22 g) |
|
FBA09A12L1BXFAN AXIAL 92X25.5MM 12VDC WIRE |
0 |
|
데이터시트 |
FBA | - | Obsolete | 12VDC | Square - 92mm L x 92mm H | 25.50mm | 42.7 CFM (1.20m³/min) | 0.102 in H2O (25.5 Pa) | Hydro-wave (HWB) | Tubeaxial | Speed Sensor (Tach) | 27.0dB | 1.32 W | 2200 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CSA, UL | 0.243 lb (110.22 g) |
|
|
FBA09A12U1BOFAN AXIAL 92X25.5MM 12VDC WIRE |
0 |
|
데이터시트 |
FBA | - | Obsolete | 12VDC | Square - 92mm L x 92mm H | 25.50mm | 68.8 CFM (1.93m³/min) | 0.197 in H2O (49.0 Pa) | Hydro-wave (HWB) | Tubeaxial | Locked Rotor Sensor | 43.0dB | 5.16 W | 3450 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CSA, UL | 0.243 lb (110.22 g) |
|
FBA12G12H1BSFAN AXIAL 120X38MM 12VDC WIRE |
0 |
|
데이터시트 |
FBA | - | Obsolete | 12VDC | Square - 120mm L x 120mm H | 38.00mm | 103.8 CFM (2.91m³/min) | 0.268 in H2O (66.7 Pa) | Hydro-wave (HWB) | Tubeaxial | Locked Rotor Sensor | 41.5dB | 4.44 W | 2500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CSA, UL | 0.595 lb (269.89 g) |
|
|
FBA12G24H1BXFAN AXIAL 120X38MM 24VDC WIRE |
0 |
|
데이터시트 |
FBA | - | Obsolete | 24VDC | Square - 120mm L x 120mm H | 38.00mm | 103.8 CFM (2.91m³/min) | 0.268 in H2O (66.7 Pa) | Hydro-wave (HWB) | Tubeaxial | Speed Sensor (Tach) | 41.5dB | 4.8 W | 2500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CSA, UL | 0.595 lb (269.89 g) |
|

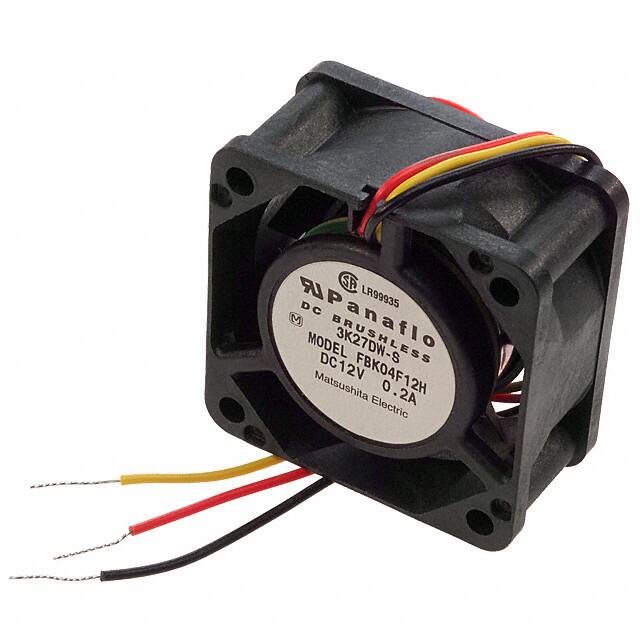

FBK04F12HSFAN AXIAL 40X20MM 12VDC WIRE |
0 |
|
데이터시트 |
FBK | - | Obsolete | 12VDC | Square - 40mm L x 40mm H | 20.00mm | 6.7 CFM (0.188m³/min) | 0.260 in H2O (64.8 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 33.0dB(A) | 1.8 W | 7500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | UL | 0.088 lb (39.92 g) |
|

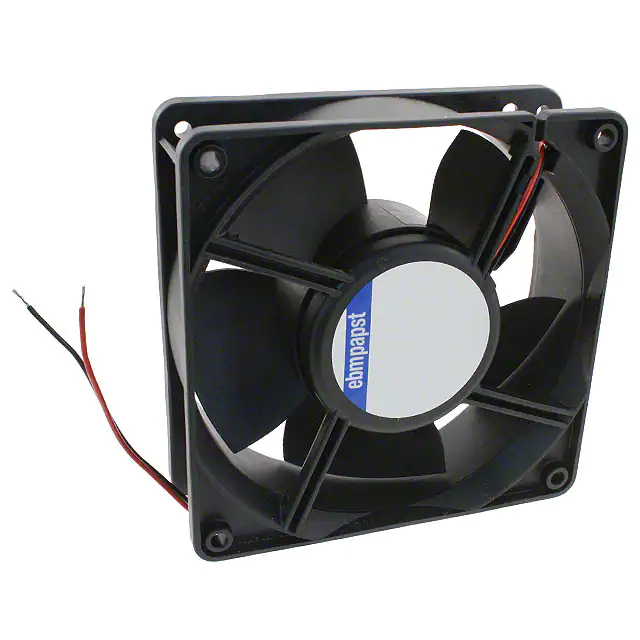

4214LFAN AXIAL 119X38MM 24VDC WIRE |
0 |
|
데이터시트 |
4200 | - | Obsolete | 24VDC | Square - 119mm L x 119mm H | 38.00mm | 51.0 CFM (1.43m³/min) | - | Ball | Tubeaxial | - | 29.0dB(A) | 1.2 W | 1600 RPM | 2 Wire Leads | - | -4 ~ 167°F (-20 ~ 75°C) | CE, CSA, UL, VDE | 0.639 lb (289.85 g) |
|

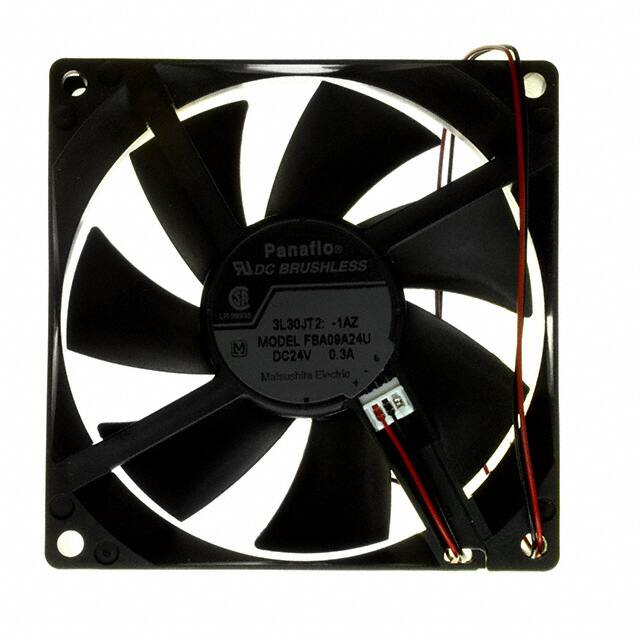

FBA09A24U1AZFAN AXIAL 92X25.5MM 24VDC WIRE |
0 |
|
데이터시트 |
FBA | - | Obsolete | 24VDC | Square - 92mm L x 92mm H | 25.50mm | 48.0 CFM (1.34m³/min) | 0.197 in H2O (49.0 Pa) | Hydro-wave (HWB) | Tubeaxial | - | 43.0dB | 2.64 W | 3450 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CSA, UL | 0.243 lb (110.22 g) |
|
3312SFAN AXIAL 92X32MM 12VDC WIRE |
0 |
|
데이터시트 |
3300 | - | Obsolete | 12VDC | Square - 92mm L x 92mm H | 32.00mm | 47.0 CFM (1.32m³/min) | - | Ball | Tubeaxial | - | 37.0dB(A) | 1.4 W | - | 2 Wire Leads | - | - | CSA, UL, VDE | 0.44 lb (199.58 g) |
|
|
3394FAN AXIAL 92X32MM 24VDC TERM |
0 |
|
데이터시트 |
3300 | - | Obsolete | 24VDC | Square - 92mm L x 92mm H | 32.00mm | 47.0 CFM (1.32m³/min) | - | Ball | Tubeaxial | - | 37.0dB(A) | 2.4 W | - | 2 Terminals | - | - | CSA, UL, VDE | 0.44 lb (199.58 g) |
|
|
4212/12FAN AXIAL 119X38MM 12VDC WIRE |
0 |
|
데이터시트 |
4200 | Bulk | Active | 12VDC | Square - 119mm L x 119mm H | 38.00mm | 97.0 CFM (2.72m³/min) | - | Ball | Tubeaxial | - | 45.0dB(A) | 4.3 W | - | 2 Wire Leads | - | - | CE, CSA, UL, VDE | 0.63 lb (285.76 g) |
|
|
4212/2FAN AXIAL 119X38MM 12VDC WIRE |
0 |
|
데이터시트 |
4200 | - | Obsolete | 12VDC | Square - 119mm L x 119mm H | 38.00mm | 97.0 CFM (2.72m³/min) | - | Ball | Tubeaxial | Speed Sensor (Tach) | 45.0dB(A) | 4.3 W | - | 3 Wire Leads | - | - | CE, CSA, UL, VDE | 0.63 lb (285.76 g) |
|
|
4214GFAN AXIAL 119X38MM 24VDC WIRE |
0 |
|
데이터시트 |
4200 | Bulk | Active | 24VDC | Square - 119mm L x 119mm H | 38.00mm | 97.0 CFM (2.72m³/min) | - | Sintec | Tubeaxial | - | 45.0dB(A) | 4.3 W | 3050 RPM | 2 Wire Leads | - | -4 ~ 167°F (-20 ~ 75°C) | CE, CSA, UL, VDE | 0.639 lb (289.85 g) |
|

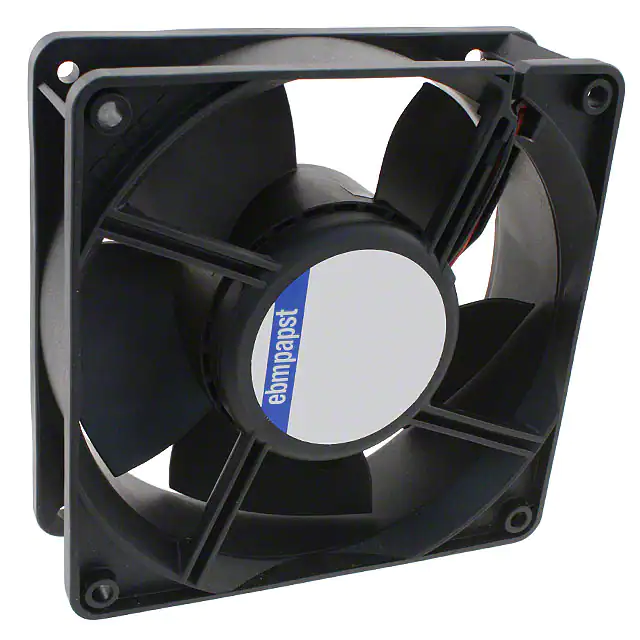

4298FAN AXIAL 119X38MM 48VDC TERM |
0 |
|
데이터시트 |
4200 | Bulk | Active | 48VDC | Square - 119mm L x 119mm H | 38.00mm | 97.0 CFM (2.72m³/min) | - | Ball | Tubeaxial | - | 45.0dB(A) | 4.3 W | - | 2 Terminals | - | - | CE, CSA, UL, VDE | 0.63 lb (285.76 g) |
|
|
4312MVFAN AXIAL 119X32MM 12VDC WIRE |
0 |
|
데이터시트 |
4300V | Bulk | Active | 12VDC | Square - 119mm L x 119mm H | 32.00mm | 82.4 CFM (2.31m³/min) | - | Ball | Tubeaxial | - | 39.0dB(A) | 3 W | 2300 RPM | 2 Wire Leads | - | -4 ~ 149°F (-20 ~ 65°C) | CSA, UL, VDE | 0.485 lb (219.99 g) |
