AC 팬
| 사진 | 제조업체 부품 번호 | 재고 상태 | 수량 | 데이터시트 | 시리즈 | 패키징 | 제품 상태 | 전압 - 정격 | 크기/치수 | 너비 | 공기 흐름 | 정압 | 베어링 유형 | 팬 유형 | 기능 | 소음 | 전력(와트) | RPM | 종단 | 침투 방지 | 작동 온도 | 승인 기관 | 무게 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

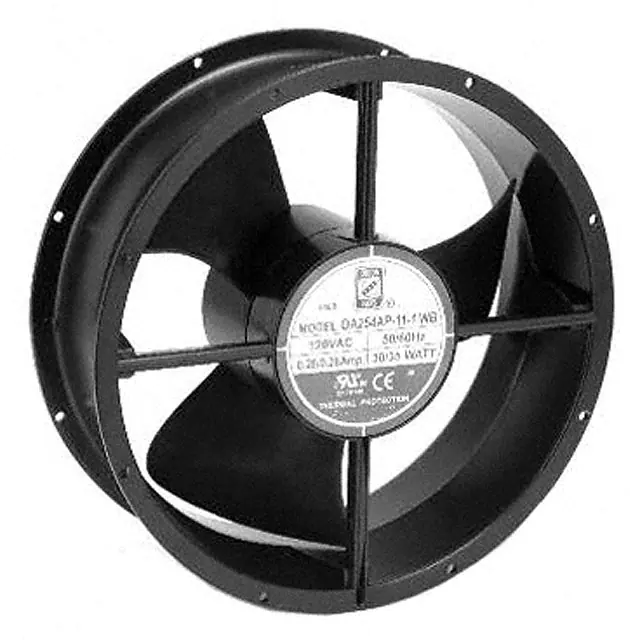

OA254AP-22-1TBFAN AXIAL 254X89MM 230VAC TERM |
1,214 |
|
데이터시트 |
OA254 | Box | Active | 230VAC | Round - 254mm Dia | 89.00mm | 547.0 CFM (15.32m³/min) | 0.390 in H2O (97.1 Pa) | Ball | Tubeaxial | Capacitor, Thermal Overload Protector (TOP) | 55.0dB | 35.00W | 1650 RPM | 2 Terminals | - | -4 ~ 176°F (-20 ~ 80°C) | cURus, TUV | 4.2 lbs (1.9 kg) |
|
|
OA254AN-11-1TBFAN AXIAL 254X89MM 115VAC TERM |
2,886 |
|
데이터시트 |
OA254AN | Box | Active | 115VAC | Round - 254mm Dia | 89.00mm | 700.0 CFM (19.60m³/min) | 0.531 in H2O (132.3 Pa) | Ball | Tubeaxial | Capacitor, Thermal Overload Protector (TOP) | 65.0dB | 70.0W | 2200 RPM | 2 Terminals | - | -4 ~ 176°F (-20 ~ 80°C) | CE, cURus, TUV, UR | 5.4 lbs (2.4 kg) |
|

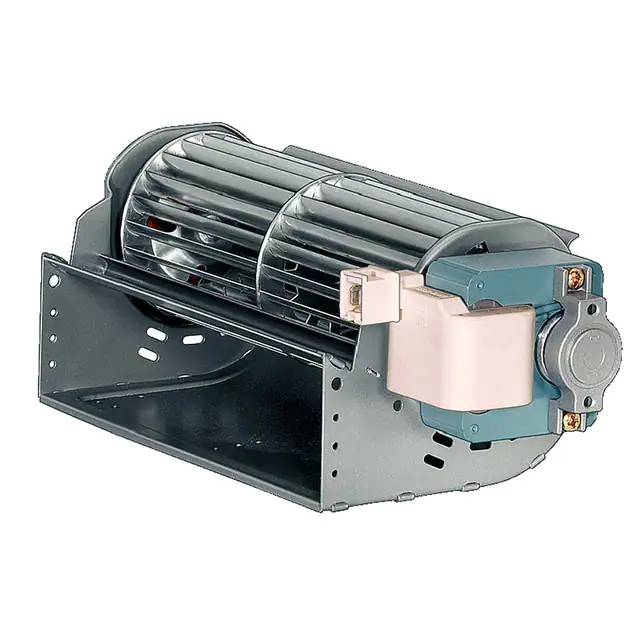

55416.35031FAN BLWR CF 300X108MM 115VAC |
124 |
|
데이터시트 |
QLN65 | Bulk | Active | 115VAC | Rectangular - 400mm L x 90mm H (65mm Dia) | 108.0mm | 150.0 CFM (4.20m³/min) | 0.442 in H2O (110.0 Pa) | Sleeve | Blower, Cross Flow | - | - | 65.0W | 1400 RPM | Terminal Block | - | 32 ~ 140°F (0 ~ 60°C) | - | 3.9 lbs (1.8 kg) |
|

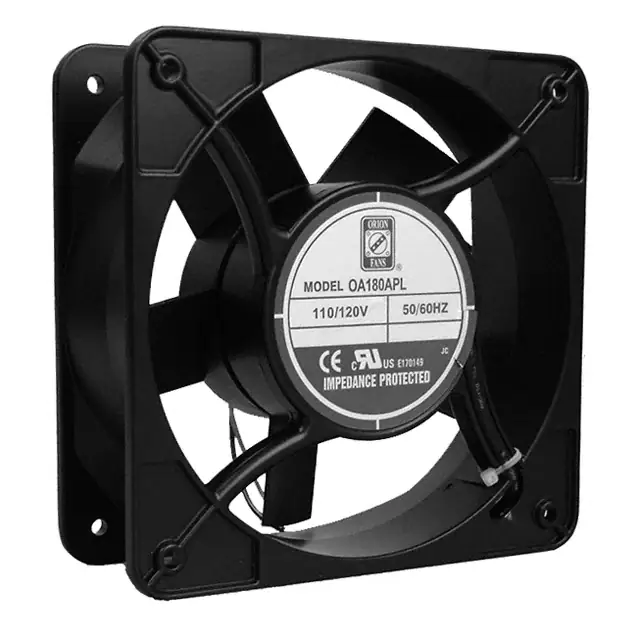

OA180APL-11-1TBFAN AXIAL 180X65MM 115VAC TERM |
33 |
|
데이터시트 |
OA180APL | Box | Active | 115VAC | Square - 180mm L x 180mm H | 65.00mm | 405.0 CFM (11.34m³/min) | 0.830 in H2O (206.7 Pa) | Ball | Tubeaxial | Thermal Overload Protector (TOP) | 60.0dB | 70.0W | 3300 RPM | 2 Terminals | - | -4 ~ 176°F (-20 ~ 80°C) | cURus, TUV | 4 lbs (1.8 kg) |
|

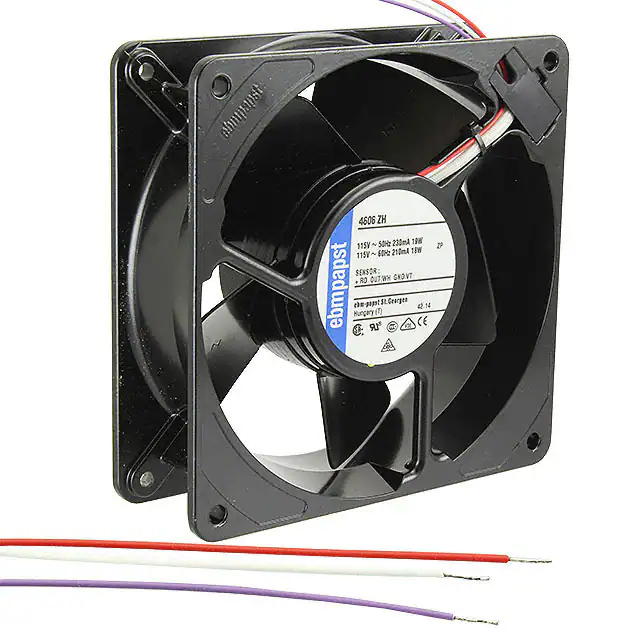

4606ZHFAN AXIAL 119X38MM BALL 115VAC |
984 |
|
데이터시트 |
4000Z | Box | Active | 115VAC | Square - 119mm L x 119mm H | 38.00mm | 105.9 CFM (2.97m³/min) | - | Ball | Tubeaxial | - | 45.0dB(A) | 18.00W | 3100 RPM | 2 Terminals and 3 Wire Leads | - | -40 ~ 185°F (-40 ~ 85°C) | - | 1.2 lbs (544.3 g) |
|
GTW012FU604120X145X38MM 100 / 240V AC FAN W |
153 |
|
데이터시트 |
GTW | Box | Active | 230VAC | Square - 120mm L x 120mm H | 38.00mm | 184.0 CFM (5.15m³/min) | 0.840 in H2O (209.2 Pa) | Ball | Tubeaxial | Electronic Commutation (EC), Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 55.5dB(A) | 18.00W | 4100 RPM | 5 Wire Leads | IP54 - Dust Protected, Water Resistant | -4 ~ 158°F (-20 ~ 70°C) | - | - |
|
OA180AP-11-1TBFAN AXIAL 180X89MM 115VAC TERM |
101 |
|
데이터시트 |
OA180AP | Box | Active | 115VAC | Square - 180mm L x 180mm H | 89.00mm | 409.0 CFM (11.45m³/min) | 0.840 in H2O (209.2 Pa) | Ball | Tubeaxial | Thermal Overload Protector (TOP) | 62.0dB | 70.0W | 3175 RPM | 2 Terminals | - | -4 ~ 158°F (-20 ~ 70°C) | CE, cURus, TUV, UR | 4 lbs (1.8 kg) |
|
UF25GCA12-BTHRFAN AXIAL 254X89MM 115VAC |
263 |
|
데이터시트 |
UF25GC | Bulk | Active | 115VAC | Round - 254mm Dia | 89.00mm | 680.0 CFM (19.04m³/min) | 0.370 in H2O (92.2 Pa) | Ball | Tubeaxial | Permanent Split Capacitor Motor, Thermal Overload Protector (TOP) | 62.0dB(A) | 75.0W | 2600 RPM | 2 Terminals | - | -40 ~ 158°F (-40 ~ 70°C) | CE, cUL, TUV, UL | 4.1 lbs (1.9 kg) |
|
OA254AN-11-1TBXCFAN AXIAL 254X89MM 115VAC TERM |
545 |
|
데이터시트 |
OA254AN XC | Box | Active | 115VAC | Round - 254mm Dia | 89.00mm | 850.0 CFM (23.80m³/min) | 0.780 in H2O (194.3 Pa) | Ball | Tubeaxial | Capacitor, Thermal Overload Protector (TOP) | 69.0dB | 75.0W | 2700 RPM | 2 Terminals | - | -4 ~ 176°F (-20 ~ 80°C) | CE, cURus, TUV, UR | 5.4 lbs (2.4 kg) |
|
R2E190-RA50-21190 MM AC CENTRIFUGAL FAN |
423 |
|
데이터시트 |
RadiCal® R2E190RA | Bulk | Active | 115VAC | Round - 190mm Dia | 68.50mm | 341.4 CFM (9.56m³/min) | - | Ball | Motorized Impellers | - | - | 70.0W | 2450 RPM | 4 Wire Leads | IP44 | -13 ~ 167°F (-25 ~ 75°C) | UL | 2.6 lbs (1.2 kg) |
|
19031842AFAN AXIAL 172X55MM 115VAC MA2B3 |
148 |
|
데이터시트 |
Maltese AC | Box | Active | 115VAC | Rectangular/Rounded - 172mm L x 150mm H | 55.00mm | 300.0 CFM (8.40m³/min) | 0.840 in H2O (209.2 Pa) | Ball | Tubeaxial | - | 59.0dB(A) | 41.40W | 3400 RPM | 2 Terminals | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cUL, UL | 2.3 lbs (1 kg) |
|

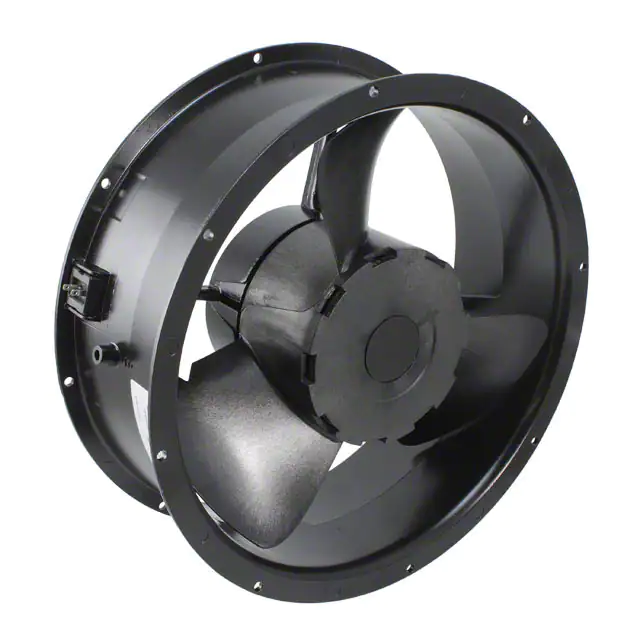

19020190AFAN AXIAL 254X89MM 230VAC CLE3L2 |
800 |
|
데이터시트 |
Caravel AC | Box | Active | 230VAC | Round - 254mm Dia | 88.90mm | 550.0 CFM (15.40m³/min) | 0.331 in H2O (82.4 Pa) | Ball | Tubeaxial | Auto Restart | 49.2dB(A) | 34.00W | 1650 RPM | 2 Wire Leads | - | -22 ~ 140°F (-30 ~ 60°C) | CE, cUL, UL | 4.4 lbs (2 kg) |
|

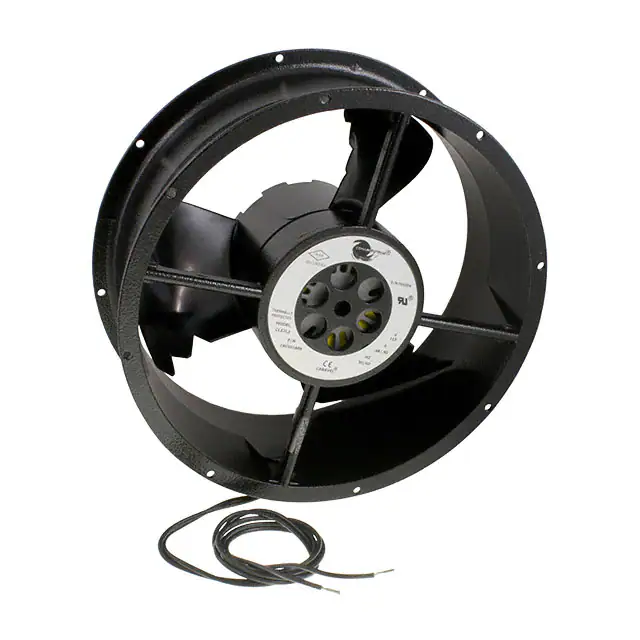

19020188AFAN AXIAL 254X89MM 115VAC CLE2L2 |
241 |
|
데이터시트 |
Caravel AC | Box | Active | 115VAC | Round - 254mm Dia | 89.00mm | 550.0 CFM (15.40m³/min) | 0.331 in H2O (82.4 Pa) | Ball | Tubeaxial | - | 49.2dB(A) | 61.0W | 1650 RPM | 2 Wire Leads | - | -22 ~ 140°F (-30 ~ 60°C) | CE, cUL, UL | 4.4 lbs (2 kg) |
|
|
19020191AFAN AXIAL 254X89MM 230VAC CLE3T2 |
40 |
|
데이터시트 |
Caravel AC | Box | Active | 230VAC | Round - 254mm Dia | 89.00mm | 525.0 CFM (14.70m³/min) | 0.331 in H2O (82.4 Pa) | Ball | Tubeaxial | - | 49.2dB(A) | 60.0W | 1650 RPM | 2 Terminals | - | - | CE, cUL, UL | 4.4 lbs (2 kg) |
|

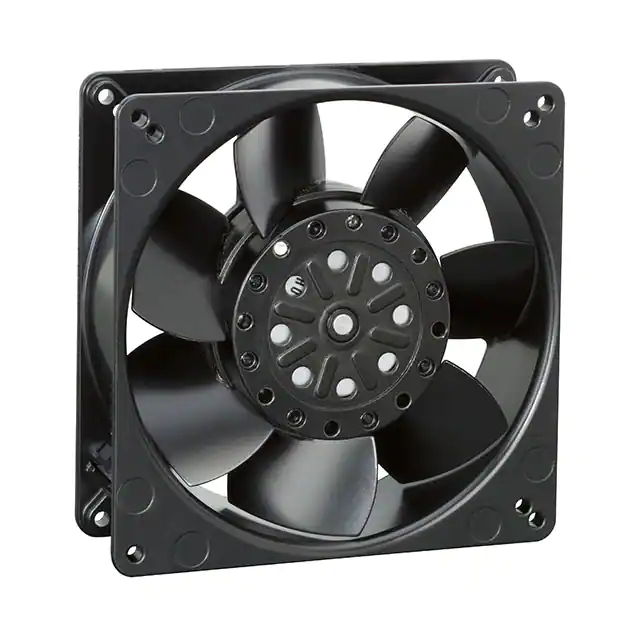

5656SFAN AXIAL 135X38MM 230VAC TERM |
47 |
|
데이터시트 |
5600 | Bulk | Active | 230VAC | Square - 135mm L x 135mm H | 38.00mm | 138.0 CFM (3.86m³/min) | - | Ball | Tubeaxial | - | 46.0dB(A) | 30.00W | 2700 RPM | 2 Terminals | - | -31 ~ 158°F (-35 ~ 70°C) | CE, CSA, UL, VDE | 1.8 lbs (816.5 g) |
|
|
OA254AN-22-1TBXCFAN AXIAL 254X89MM 230VAC TERM |
777 |
|
데이터시트 |
OA254AN XC | Box | Active | 230VAC | Round - 254mm Dia | 89.00mm | 850.0 CFM (23.80m³/min) | 0.780 in H2O (194.3 Pa) | Ball | Tubeaxial | Capacitor, Thermal Overload Protector (TOP) | 69.0dB | 75.0W | 2700 RPM | 2 Terminals | - | -4 ~ 176°F (-20 ~ 80°C) | CE, cURus, TUV, UR | 5.4 lbs (2.4 kg) |
|
|
OA254AN-11-1WBXCFAN AXIAL 254X89MM 115VAC WIRE |
201 |
|
데이터시트 |
OA254AN XC | Box | Active | 115VAC | Round - 254mm Dia | 89.00mm | 850.0 CFM (23.80m³/min) | 0.780 in H2O (194.3 Pa) | Ball | Tubeaxial | Capacitor, Thermal Overload Protector (TOP) | 69.0dB | 75.0W | 2700 RPM | 2 Wire Leads | - | -4 ~ 176°F (-20 ~ 80°C) | CE, cURus, TUV, UR | 5.4 lbs (2.4 kg) |
|
|
OA254AP-11-1TBFAN AXIAL 254X89MM 115VAC TERM |
540 |
|
데이터시트 |
OA254 | Box | Active | 115VAC | Round - 254mm Dia | 89.00mm | 547.0 CFM (15.32m³/min) | 0.390 in H2O (97.1 Pa) | Ball | Tubeaxial | Capacitor, Thermal Overload Protector (TOP) | 55.0dB | 35.00W | 1650 RPM | 2 Terminals | - | -4 ~ 176°F (-20 ~ 80°C) | cURus, TUV | 4.2 lbs (1.9 kg) |
|
|
OA254AP-11-1WBFAN AXIAL 254X89MM 115VAC WIRE |
30 |
|
데이터시트 |
OA254 | Box | Active | 115VAC | Round - 254mm Dia | 89.00mm | 547.0 CFM (15.32m³/min) | 0.390 in H2O (97.1 Pa) | Ball | Tubeaxial | Capacitor, Thermal Overload Protector (TOP) | 55.0dB | 35.00W | 1650 RPM | 2 Wire Leads | - | -4 ~ 176°F (-20 ~ 80°C) | cURus, TUV | 4.2 lbs (1.9 kg) |
|
|
OA254AN-22-1TBFAN AXIAL 254X89MM 230VAC TERM |
44 |
|
데이터시트 |
OA254AN | Box | Active | 230VAC | Round - 254mm Dia | 89.00mm | 700.0 CFM (19.60m³/min) | 0.531 in H2O (132.3 Pa) | Ball | Tubeaxial | Capacitor, Thermal Overload Protector (TOP) | 65.0dB | 70.0W | 2200 RPM | 2 Terminals | - | -4 ~ 176°F (-20 ~ 80°C) | CE, cURus, TUV, UR | 5.4 lbs (2.4 kg) |
