AC 팬
| 사진 | 제조업체 부품 번호 | 재고 상태 | 수량 | 데이터시트 | 시리즈 | 패키징 | 제품 상태 | 전압 - 정격 | 크기/치수 | 너비 | 공기 흐름 | 정압 | 베어링 유형 | 팬 유형 | 기능 | 소음 | 전력(와트) | RPM | 종단 | 침투 방지 | 작동 온도 | 승인 기관 | 무게 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
109S078ULFAN 120X38MM 200VAC |
20 |
|
데이터시트 |
San Ace 120 | Box | Active | 200VAC | Square - 119mm L x 119mm H | 38.00mm | 102.5 CFM (2.87m³/min) | 0.276 in H2O (68.7 Pa) | Ball | Tubeaxial | - | 45.0dB(A) | 16.00W | 3100 RPM | 2 Terminals | - | -22 ~ 140°F (-30 ~ 60°C) | CE, CSA, PSE, TUV, UL | 1.2 lbs (544.3 g) |
|

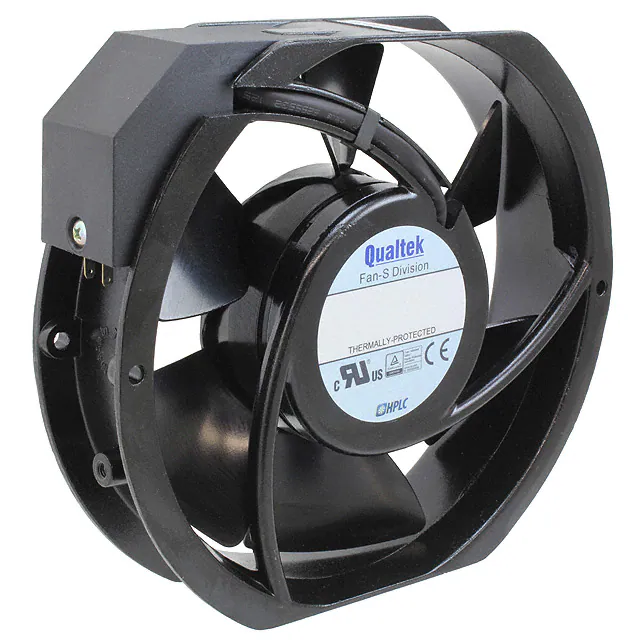

FDA2-17238QBHT4FFAN AXIAL 172X38.5MM 230VAC TERM |
8 |
|
데이터시트 |
HPLC, FDA2-17238 | Bulk | Active | 230VAC | Rectangular/Rounded - 172mm L x 151mm H | 38.50mm | 240.0 CFM (6.72m³/min) | 0.571 in H2O (142.2 Pa) | Ball | Tubeaxial | - | 59.0dB(A) | 27.00W | 3100 RPM | 2 Terminals | - | -4 ~ 158°F (-20 ~ 70°C) | CE, cURus, TUV | 1.8 lbs (816.5 g) |
|

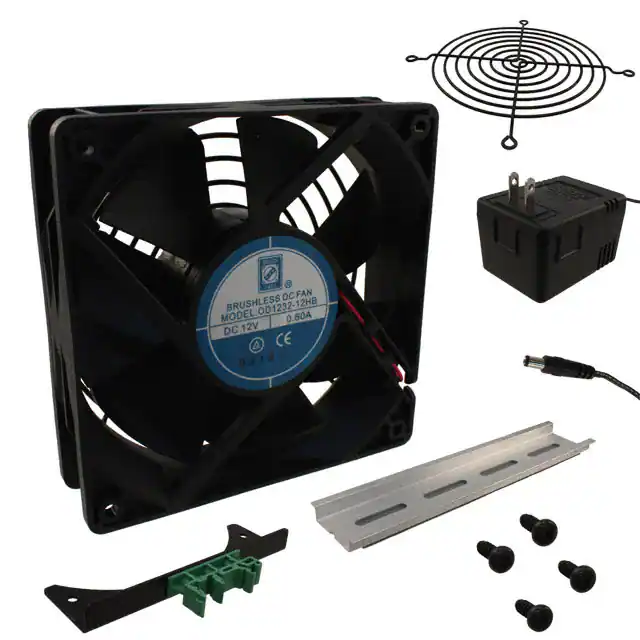

OD1232-SPOT/DINFAN AXIAL 120X32MM BALL 120VAC |
14 |
|
데이터시트 |
OD1232 | Box | Active | 120VAC | Square - 120mm L x 120mm H | 32.00mm | 120.0 CFM (3.36m³/min) | 0.430 in H2O (107.1 Pa) | Ball | Tubeaxial | Auto Restart, Thermal Overload Protector (TOP) | 20 ~ 47dB | 19.00W | 3750 RPM | Cord and Plug | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
RG90-18/56FAN BLWR FLATPAK 135X38MM 230VAC |
3 |
|
데이터시트 |
RG90 | Box | Active | 230VAC | Square - 135mm L x 135mm H | 38.00mm | 31.8 CFM (0.890m³/min) | - | Ball | Blower, Flatpak | - | 60.0dB(A) | 22.00W | - | 2 Wire Leads | - | - | CE, CSA, UL, VDE | 1.3 lbs (589.7 g) |
|
11938MB-B2N-EA-00FAN 119MM X 38MM 200VAC TERMINAL |
12 |
|
데이터시트 |
11938MB | Bulk | Active | 220VAC | Square - 119mm L x 119mm H | 38.00mm | 102.4 CFM (2.87m³/min) | 0.300 in H2O (74.7 Pa) | Ball | Tubeaxial | - | 41.0dB | 13.00W | 2900 RPM | 2 Terminals | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
11938MB-B0N-EA-00FAN 119MM X 38MM 200VAC TERMINAL |
6 |
|
데이터시트 |
11938MB | Bulk | Active | 200VAC | Square - 119mm L x 119mm H | 38.00mm | 102.4 CFM (2.87m³/min) | 0.310 in H2O (77.2 Pa) | Ball | Tubeaxial | - | 41.0dB | 13.00W | 2900 RPM | 2 Terminals | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
17000538AFAN AXL 120X38MM CR12038EC-3600 |
5 |
|
데이터시트 |
- | Box | Active | 100 ~ 240VAC | Square - 120mm L x 120mm H | 38.00mm | 144.0 CFM (4.03m³/min) | 0.460 in H2O (114.6 Pa) | Ball | Tubeaxial | Auto Restart, Electronic Commutation (EC) | 60.0dB(A) | 17.00W | 3600 RPM | 2 Terminals | - | -4 ~ 158°F (-20 ~ 70°C) | CE, cUL, UL | 1.1 lbs (499.0 g) |
|
UF15PC12/23-BWHNSR-L24FAN AXIAL 172X51MM 115/230VAC |
9 |
|
데이터시트 |
UF15PC | Bulk | Active | 115/230VAC | Rectangular/Rounded - 172mm L x 150mm H | 51.00mm | 226.0 CFM (6.33m³/min) | 0.790 in H2O (196.8 Pa) | Ball | Tubeaxial | Dual Voltage, Permanent Split Capacitor Motor, Salt Fog Rated, Thermal Overload Protector (TOP) | 58.0dB(A) | 29.00W, 31.00W | 3400 RPM | 2 Wire Leads | IP55 - Dust Protected, Water Resistant | -40 ~ 158°F (-40 ~ 70°C) | CE, cUL, TUV, UL | 1.8 lbs (816.5 g) |
|

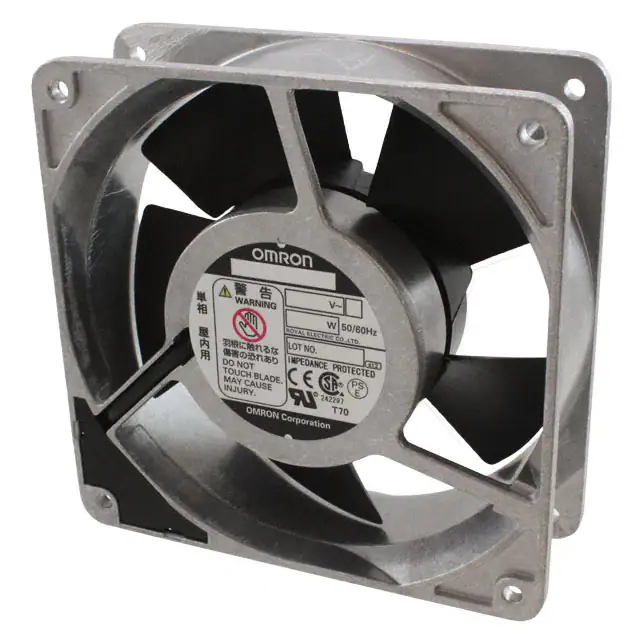

R87F-A1A15HPFAN AXIAL 120X38MM 100VAC TERM |
18 |
|
데이터시트 |
R87F | Bulk | Active | 100VAC | Square - 120mm L x 120mm H | 38.00mm | 110.7 CFM (3.10m³/min) | 0.374 in H2O (93.1 Pa) | Ball | Tubeaxial | - | 42.0dB | 15.00W | 2750 RPM | 2 Terminals | - | -22 ~ 158°F (-30 ~ 70°C) | CSA, UL | 1.2 lbs (544.3 g) |
|
|
15038PB-A1L-GP-S0FAN 150MM X 172MM X 38MM 115VAC |
13 |
|
데이터시트 |
15038PB | Bulk | Active | 115VAC | Rectangular/Rounded - 172mm L x 150mm H | 38.00mm | 212.0 CFM (5.94m³/min) | 0.865 in H2O (215.6 Pa) | Ball | Tubeaxial | Thermal Overload Protector (TOP) | 56.0dB | 32.00W | 3200 RPM | 3 Terminals | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
|
R87F-A4A15HPFAN AXIAL 120X38MM 200VAC TERM |
16 |
|
데이터시트 |
R87F | Bulk | Active | 200VAC | Square - 120mm L x 120mm H | 38.00mm | 110.7 CFM (3.10m³/min) | 0.374 in H2O (93.1 Pa) | Ball | Tubeaxial | - | 42.0dB | 15.00W | 2750 RPM | 2 Terminals | - | -22 ~ 158°F (-30 ~ 70°C) | CSA, UL | 1.2 lbs (544.3 g) |
|
OA180APL-22-1WBFAN AXIAL 180X65MM 230VAC WIRE |
8 |
|
데이터시트 |
OA180APL | Box | Active | 230VAC | Square - 180mm L x 180mm H | 65.00mm | 405.0 CFM (11.34m³/min) | 0.830 in H2O (206.7 Pa) | Ball | Tubeaxial | Thermal Overload Protector (TOP) | 60.0dB | 70.0W | 3300 RPM | 2 Wire Leads | - | -4 ~ 176°F (-20 ~ 80°C) | cURus, TUV | 4 lbs (1.8 kg) |
|
|
9ADA1201G1002120X38MM, ACDC, 100V TO 240V, HI |
17 |
|
데이터시트 |
San Ace 120AD | Box | Active | 100 ~ 240VAC | Square - 120mm L x 120mm H | 38.00mm | 138.0 CFM (3.86m³/min) | 0.683 in H2O (170.0 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 52.0dB(A) | 9.00W | 4400 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | - | - |
|
4656NUFAN AXIAL 119X38MM 230VAC |
18 |
|
데이터시트 |
4000N | Bulk | Active | 230VAC | Square - 119mm L x 119mm H | 38.00mm | 94.1 CFM (2.63m³/min) | - | Ball | Tubeaxial | - | 47.0dB(A) | 19.00W | 2650 RPM | 2 Terminals | IP54/IP65 - Dust Protected, Water Resistant, Dust Tight, Water Resistant | -40 ~ 185°F (-40 ~ 85°C) | CE, CSA, UL, VDE | - |
|

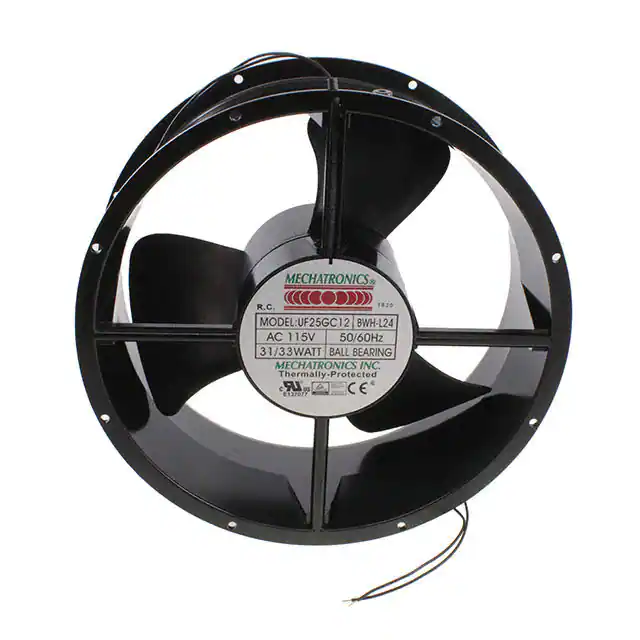

UF25GC12-BWHR-L24FAN AXIAL 254X89MM 115VAC WIRE |
24 |
|
데이터시트 |
UF25GC | Bulk | Active | 115VAC | Round - 254mm Dia | 89.00mm | 550.0 CFM (15.40m³/min) | 0.400 in H2O (99.6 Pa) | Ball | Tubeaxial | Permanent Split Capacitor Motor, Thermal Overload Protector (TOP) | 55.0dB(A) | 33.00W | 1650 RPM | 2 Wire Leads | - | -40 ~ 158°F (-40 ~ 70°C) | CE, cUL, TUV, UL | 4.1 lbs (1.9 kg) |
|
UF25GC23-BWHR-L24FAN AXIAL 254X89MM 230VAC WIRE |
14 |
|
데이터시트 |
UF25GC | Bulk | Active | 230VAC | Round - 254mm Dia | 89.00mm | 550.0 CFM (15.40m³/min) | 0.400 in H2O (99.6 Pa) | Ball | Tubeaxial | Permanent Split Capacitor Motor, Thermal Overload Protector (TOP) | 55.0dB(A) | 33.00W | 1650 RPM | 2 Wire Leads | - | -40 ~ 158°F (-40 ~ 70°C) | CE, cUL, TUV, UL | 4.1 lbs (1.9 kg) |
|
UF16FC23-BWHR4AC FAN AXIAL 160X160X62MM, 230VA |
13 |
|
데이터시트 |
UF16FC | Bulk | Active | 230VAC | Square - 160mm L x 160mm H | 62.00mm | 265.0 CFM (7.42m³/min) | 0.720 in H2O (179.3 Pa) | Ball | Tubeaxial | Permanent Split Capacitor Motor, Thermal Overload Protector (TOP) | 56.0dB(A) | 41.00W | 3400 RPM | 2 Wire Leads | - | - | - | - |
|
OA180AP-22-1WBFAN AXIAL 180X89MM 230VAC WIRE |
8 |
|
데이터시트 |
OA180AP | Box | Active | 230VAC | Square - 180mm L x 180mm H | 89.00mm | 409.0 CFM (11.45m³/min) | 0.840 in H2O (209.2 Pa) | Ball | Tubeaxial | Thermal Overload Protector (TOP) | 62.0dB | 70.0W | 3175 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CE, cURus, TUV, UR | 4 lbs (1.8 kg) |
|
UF25GCA12-BWHRFAN AXIAL 254X89MM 115VAC WIRE |
20 |
|
데이터시트 |
UF25GC | Bulk | Active | 115VAC | Round - 254mm Dia | 89.00mm | 680.0 CFM (19.04m³/min) | 0.370 in H2O (92.2 Pa) | Ball | Tubeaxial | Permanent Split Capacitor Motor, Thermal Overload Protector (TOP) | 62.0dB(A) | 75.0W | 2600 RPM | 2 Wire Leads | - | -40 ~ 158°F (-40 ~ 70°C) | CE, cUL, TUV, UL | 4.1 lbs (1.9 kg) |
|
UF25GCB12-BTHRFAN AXIAL 254X89MM 115VAC TERM |
12 |
|
데이터시트 |
UF25GC | Bulk | Active | 115VAC | Round - 254mm Dia | 89.00mm | 812.0 CFM (22.74m³/min) | 0.820 in H2O (204.3 Pa) | Ball | Tubeaxial | Permanent Split Capacitor Motor, Thermal Overload Protector (TOP) | 65.0dB(A) | 96.0W | 3200 RPM | 2 Terminals | - | -40 ~ 158°F (-40 ~ 70°C) | CE, cETL, ETL, TUV | 4.1 lbs (1.9 kg) |
