DIP 스위치
| 사진 | 제조업체 부품 번호 | 재고 상태 | 수량 | 데이터시트 | 시리즈 | 패키징 | 제품 상태 | 회로 | 위치 수 | 전류 정격(암페어) | 전압 정격 | 액추에이터 유형 | 액추에이터 레벨 | 접점 재질 | 접점 마감 | 보드 위 높이 | 장착 유형 | 종단 스타일 | 피치 | 세척 가능 | 기능 | 작동 온도 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
BPA08SBRSWITCH PIANO DIP SPST 0.1A 5V |
2,966 |
|
데이터시트 |
BPA | Tape & Reel (TR) | Active | SPST | 8 | 100mA | 5VDC | Piano | Raised | Beryllium Copper | Gold | 0.274" (6.95mm) | Surface Mount, Right Angle | Gull Wing | 0.100" (2.54mm), Full | Yes | - | -20°C ~ 85°C |
|
KAN1102RTSWITCH SLIDE DIP SPST 0.025A 24V |
2,337 |
|
데이터시트 |
KAN | Tube | Active | SPST | 2 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.063" (1.60mm) | Surface Mount | Gull Wing | 0.050" (1.27mm), Half | Yes | Tape Seal | -40°C ~ 85°C |
|

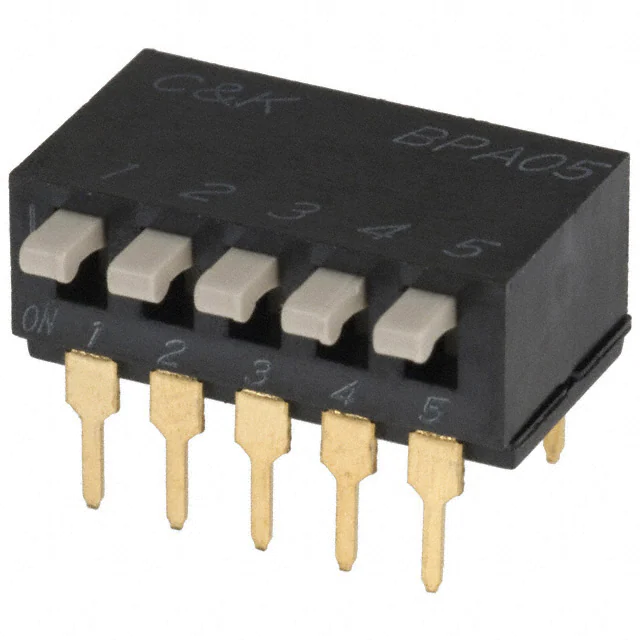

BPA05BSWITCH PIANO DIP SPST 0.1A 5V |
4,994 |
|
데이터시트 |
BPA | Tube | Active | SPST | 5 | 100mA | 5VDC | Piano | Raised | Beryllium Copper | Gold | 0.287" (7.30mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | - | -20°C ~ 85°C |
|
TDA02H0SB1RSWITCH SLIDE DIP SPST 0.025A 24V |
24,255 |
|
데이터시트 |
TDA | Tape & Reel (TR) | Active | SPST | 2 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.091" (2.30mm) | Surface Mount | Gull Wing | 0.050" (1.27mm), Half | Yes | Tape Seal | -40°C ~ 85°C |
|

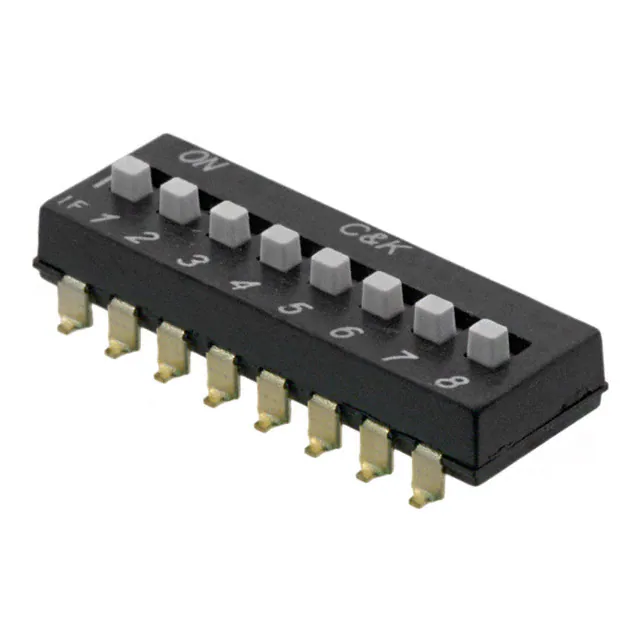

SDA08H1SBDSWITCH SLIDE DIP SPST 0.025A 24V |
41,249 |
|
데이터시트 |
SDA | Tube | Active | SPST | 8 | 25mA | 24VDC | Slide (Standard) | Raised | Beryllium Copper | Gold | 0.214" (5.45mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
RW-1106-NS RTSWITCH ROTARY DIP SP10T 0.01A 5V |
3,903 |
|
데이터시트 |
RW, COMAX | Tape & Reel (TR) | Active | SP10T | 10 | 10mA | 5VDC | Rotary with Shaft | Raised | - | Gold | 0.120" (3.05mm) | Surface Mount | J Lead | 0.042" (1.08mm) | No | - | -30°C ~ 80°C |
|
|
A6H-4101-PSWITCH SLIDE DIP SPST 0.025A 24V |
16,544 |
|
데이터시트 |
A6H | Tape & Reel (TR) | Active | SPST | 4 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | - | - | 0.061" (1.55mm) | Surface Mount | Gull Wing | 0.050" (1.27mm), Half | No | - | -20°C ~ 70°C |
|
IKH0403000SWITCH SLIDE DIP SPST 0.025A 24V |
4,481 |
|
데이터시트 |
IKH | Tube | Active | SPST | 4 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Phosphor Bronze | Gold | 0.063" (1.60mm) | Surface Mount | Gull Wing | 0.050" (1.27mm), Half | Yes | Tape Seal | -20°C ~ 70°C |
|
S-1010ASWITCH ROTARY DIP HEX 0.1A 5V |
2,816 |
|
데이터시트 |
S-1000A | Bulk | Active | Hexadecimal | 16 | 100mA | 5VDC | Rotary for Tool | Flush, Recessed | Copper Alloy | Gold | 0.275" (6.99mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|
428527320916SWITCH ROTARY DIP HEX 0.15A 24V |
4,641 |
|
데이터시트 |
WS-ROTV | Tube | Active | Hexadecimal | 16 | 150mA | 24VDC | Rotary for Tool | Flush, Recessed | - | Gold | 0.256" (6.50mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | IP67 - Dust Tight, Waterproof | -40°C ~ 85°C |
|
1571983-3SWITCH SLIDE DIP SPST 0.025A 24V |
18,092 |
|
데이터시트 |
GDH | Tape & Reel (TR) | Active | SPST | 2 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.091" (2.30mm) | Surface Mount | Gull Wing | 0.050" (1.27mm), Half | Yes | Tape Seal | -30°C ~ 85°C |
|

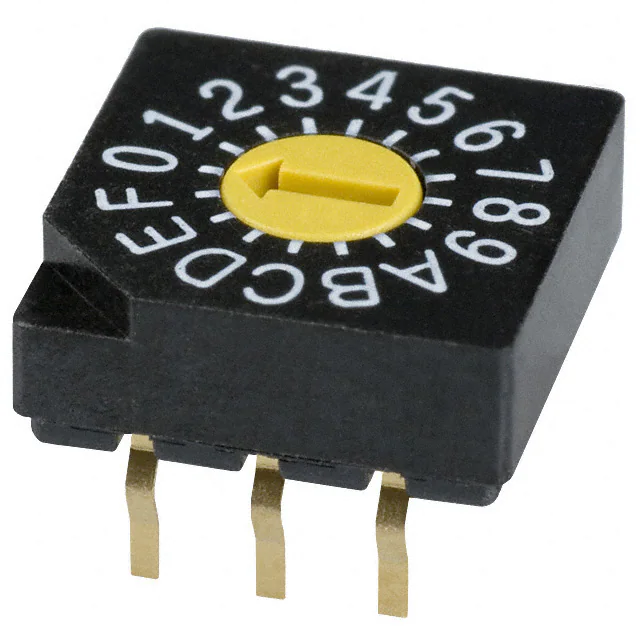

SD-1010SWITCH ROTARY DIP HEX 0.1A 5V |
54,356 |
|
데이터시트 |
SD-1000 | Bulk | Active | Hexadecimal | 16 | 100mA | 5VDC | Rotary for Tool | Flush, Recessed | Copper Alloy | Gold | 0.154" (3.90mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
S-2011ASWITCH ROTARY DIP BCD 0.1A 5V |
36,975 |
|
데이터시트 |
S-2000A | Bulk | Active | BCD | 10 | 100mA | 5VDC | Rotary for Tool | Flush, Recessed | Copper Alloy | Gold | 0.394" (10.00mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|
S-1011ASWITCH ROTARY DIP HEX 0.1A 5V |
8,327 |
|
데이터시트 |
S-1000A | Bulk | Active | Hexadecimal | 16 | 100mA | 5VDC | Rotary for Tool | Flush, Recessed | Copper Alloy | Gold | 0.394" (10.00mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|
CVS-04TBSWITCH SLIDE DIP SPST 0.1A 6V |
10,476 |
|
데이터시트 |
CVS | Tape & Reel (TR) | Active | SPST | 4 | 100mA | 6VDC | Slide (Standard) | Raised | Stainless Steel | Gold | 0.057" (1.45mm) | Surface Mount | Gull Wing | 0.039" (1.00mm) | No | - | -40°C ~ 85°C |
|
IKH0203000SWITCH SLIDE DIP SPST 0.025A 24V |
2,580 |
|
데이터시트 |
IKH | Tube | Active | SPST | 2 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Phosphor Bronze | Gold | 0.063" (1.60mm) | Surface Mount | Gull Wing | 0.050" (1.27mm), Half | Yes | Tape Seal | -20°C ~ 70°C |
|

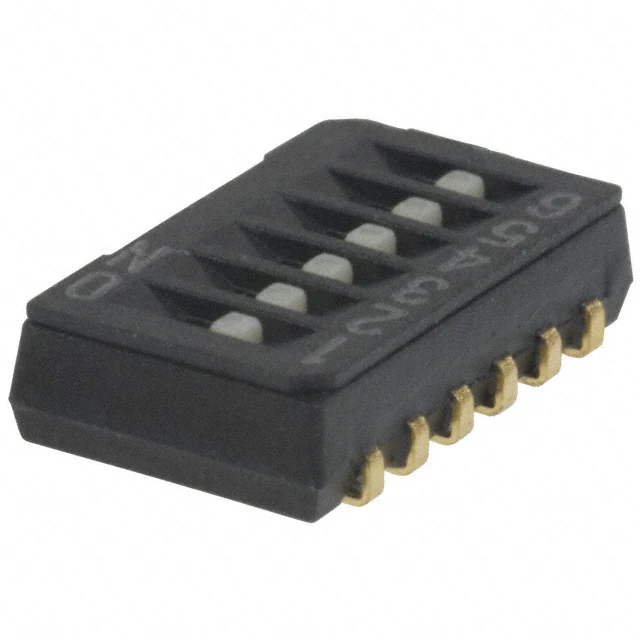

CHS-06TASWITCH SLIDE DIP SPST 0.1A 6V |
2,982 |
|
데이터시트 |
CHS | Tape & Reel (TR) | Active | SPST | 6 | 100mA | 6VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.098" (2.50mm) | Surface Mount | J Lead | 0.050" (1.27mm), Half | Yes | Tape Seal | -40°C ~ 85°C |
|
TDA06H0SB1SWITCH SLIDE DIP SPST 0.025A 24V |
37,018 |
|
데이터시트 |
TDA | Tube | Active | SPST | 6 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.091" (2.30mm) | Surface Mount | Gull Wing | 0.050" (1.27mm), Half | Yes | Tape Seal | -40°C ~ 85°C |
|
SD04H0SBRSWITCH SLIDE DIP SPST 0.1A 25V |
10,440 |
|
데이터시트 |
SD | Tape & Reel (TR) | Active | SPST | 4 | 100mA | 25VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.170" (4.33mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 85°C |
|
78B02TSWITCH SLIDE DIP SPST 0.15A 30V |
1,818 |
|
데이터시트 |
78 | Tube | Active | SPST | 2 | 150mA | 30VDC | Slide (Standard) | Raised | Copper Alloy | Gold | 0.315" (8.00mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
